เพาเวอร์แอมป์ AUDAC CAP224 2 ชาแนล 2 x 240 วัตต์ คลาส D ซีรีส์ CAP เป็นเพาเวอร์แอมป์แบบหลายช่องสัญญาณ 100V ระดับมืออาชีพ จากแบรนด์ AUDAC

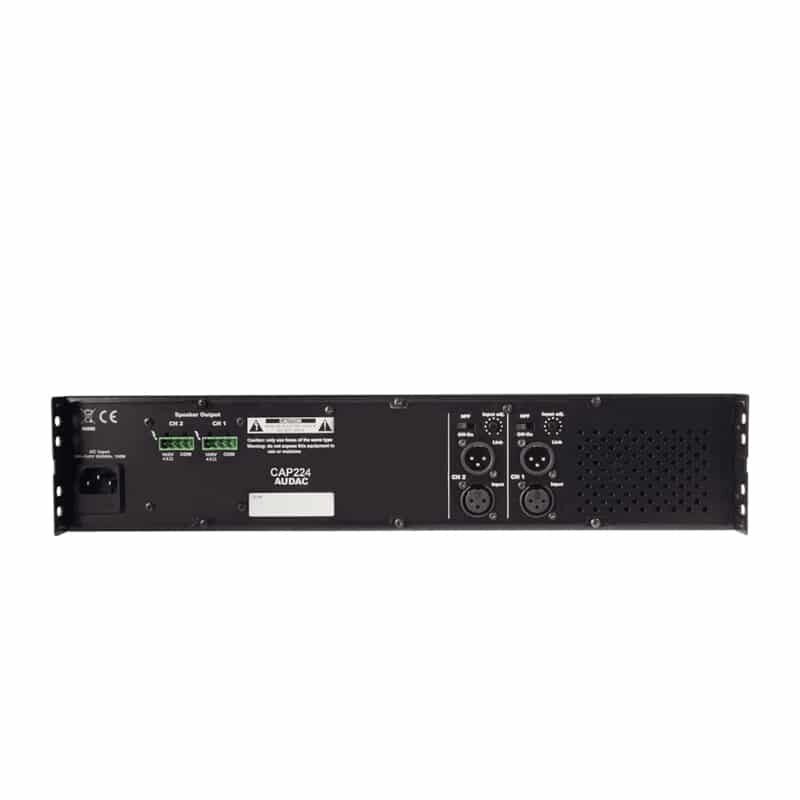

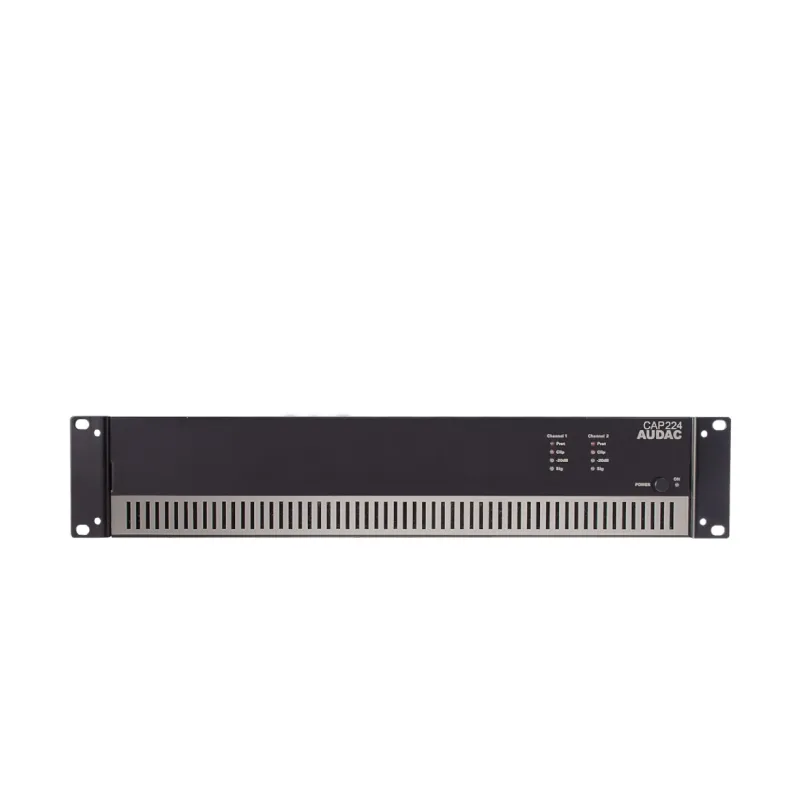

AUDAC CAP224
DUAL-CHANNEL POWER AMPLIFIER 2 X 240W 100V
The CAP series are professional 100V multi-channel power amplifiers. The CAP224 offers two channels and has an output power of 240 Watt. This way, a flexible solution is created for multi-zone audio distribution systems with two independent zones. They are designed as no-nonsense amplifiers with only the necessary controls and connections which creates great simplicity in use and installation. A high efficiency and reliability of the device is achieved by using switching power supplies in combination with Class-D amplifier technology. A temperature controlled fan constantly keeps all parts within the right operation range while avoiding excessive buzz. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload and limits the signal when necessary. The input connections are performed using balanced XLR connectors and link output connectors are provided for link through to other amplifiers. Besides, a high-pass filter switch (400 Hz) and a gain adjustment potentiometer are provided for each channel. The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19” rack mounting housing.
- Operation indicator LED’s
- Class D amplifier technology
- Advanced protection circuitry
- Terminal block output connections (100V)
- XLR input & linktrough connections
- Input gain control potentiometer
- High pass filter switch
