AUDIOENGINE D1 24-BIT DAC/ HEADPHONE AMP
AUDIOENGINE D1 HEADPHONE AMP แอมป์หูฟัง D1 HEADPHONE AMP จากแบรนด์ AUDIOENGINE
The D1 is a premium 24-bit DAC and headphone amplifier for your computer, TV, and more.
ENHANCE YOUR SOUND
Perfect for providing high quality audio to speakers or headphones, the D1 is a premium 24-bit DAC and headphone amplifier for your computer, TV, and more. The D1 connects to your computer’s USB port or optical output without any software to download, making the D1 quick and easy to set up.
WHY YOU’LL LOVE IT
BENEFITS
High-performance DAC and headphone amp
USB and optical inputs
Stream bit-perfect 24/96 HD audio
Desktop or portable DAC
Mac or PC, no driver to install
PREMIUM 24-BIT DAC
Audioengine D1 Premium 24-bit DAC (digital-to-analog converter) allows you to bypass your computer’s soundcard or headphone output and send audio through USB or optical.
D1 will process digital audio at any bit depth up to 24 bits and any sample rate to 192kHz. With it’s high signal-to-noise ratio and low distortion, the D1 delivers sound quality generally heard only in more expensive DACs. The high-performance headphone output was designed for a wide range of headphones and will satisfy even the most demanding headphone enthusiasts.
D1 is the perfect digital interface between your computer and music system and will improve the sound of ALL your music.
PLUG-AND-PLAY
ALWAYS READY TO GO

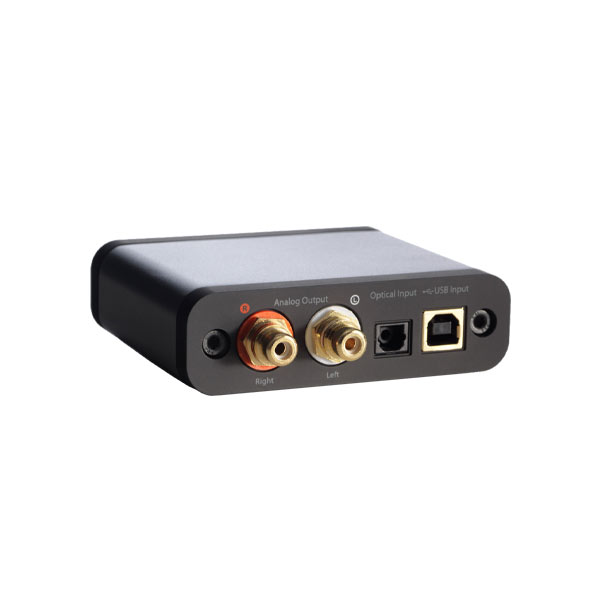

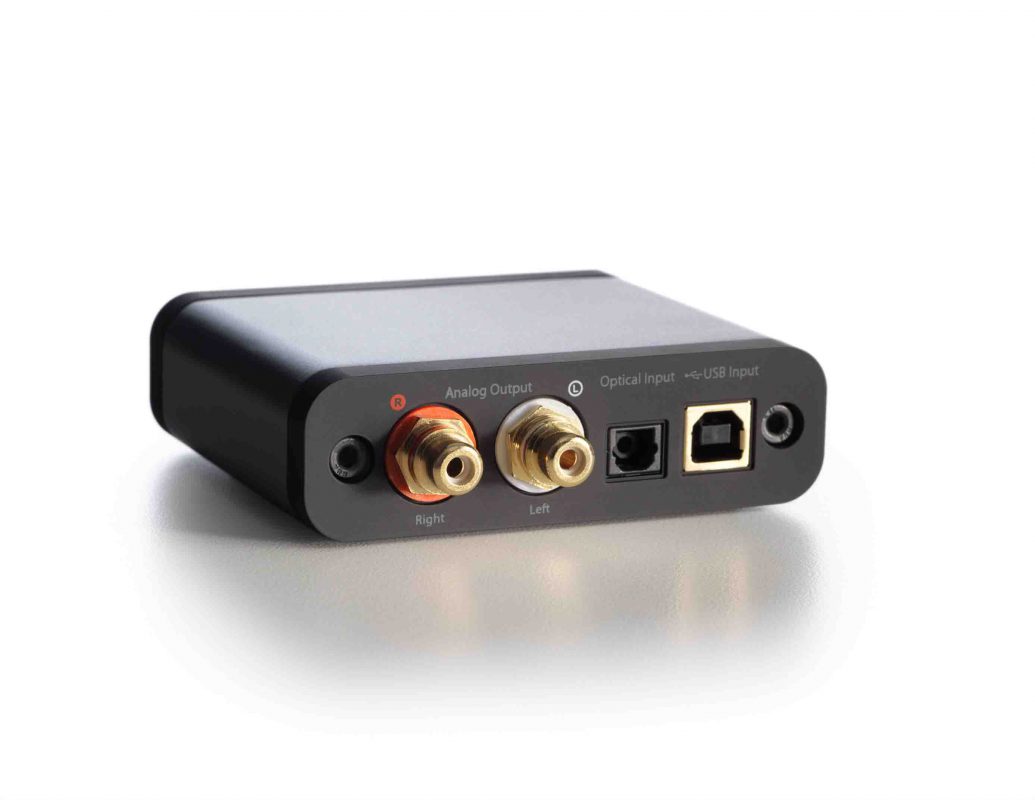

The D1 accepts inputs from both USB and optical and has outputs for any audio system or headphones. The D1 DAC is the perfect way to get great-sounding music not only from your computer but from your TV, Apple TV, Blu-ray player or CD player. DirecTV and Comcast also have optical outputs for high-res audio.
Setup is easy and no special software, app, or driver is needed, making D1 a true plug-and-play digital audio solution.
HEAR THE DIFFERENCE
The D1 reflects traditional Audioengine design and the audio fidelity is typical of Audioengine’s commitment to great sound at an affordable price. Even if you’re not an audio enthusiast we guarantee your music will sound better!
GENERAL SPECIFICATIONS
- DAC type
- USB and Optical
- Inputs
USB audio
SPDIF Optical - D/A converter
AKM4396 - USB transfer mode
Asynchronous dual clock - USB controller
TI1020B - USB device class
Type 1.1 or above - Input bit depth
16 bit, 24 bit - Input sample rate (USB)
32kHz-96kHz native playback
188.2kHz & 192kHz re-sampled to 96kHz - Input sample rate (optical)
32kHz-192kHz native playback - Outputs
Analog RCA L/R stereo
Analog 3.5mm mini-jack stereo - Full-scale output level
2.0V RMS - Output impedance
2 ohms - Recommended headphone impedance range
10 ohms to 10K ohms - Headphone amplifier
OPA2134 - Optical receiver
CS8416 - Frequency response
10Hz-25KHz (+/- 0.5dB) - SNR
(DC to 20 kHz) >110dB - THD+N
(1kHz FS 96kS/s) <0.0025% Crosstalk
-85db - Input bit depth
16 bit, 24 bit - Input sample rate (USB)
32kHz-96kHz native playback
188.2kHz & 192kHz re-sampled to 96kHz - Input sample rate (optical)
32kHz-192kHz native playback - Power requirement
USB 5V DC, 200mA - USB power filtering
2-stage redundant regulation - Product dimensions
3.5×3.75×1″ (89x95x25mm) - Shipping weight
1.0lbs (0.5kg) - Environmental
Operating Temperature: 32 to 95 degrees F
Non-operating Temp: -4 to 113 degrees F
Relative Humidity: 5% to 95% non-condensing - Included accessories
USB cable, 2ft
Setup guide
Microfiber bag - D1 Internal Converter
The D1 uses the AK4396 DAC, which is well-regarded for its low noise and high fidelity. Due to the high signal-to-noise specs of the AK4396 and the added benefit of double redundancy power source conversion and filtering, the D1 presents impressive low noise and low distortion characteristics. The D1 can process digital audio at any bit depth up to 24-bits and any sample rate up to 192kHz. - D1 Headphone Amplifier
The D1 includes a headphone amp based on the TI OPA2134 low noise opamp. The high-performance headphone output was designed for a wide range of headphones and will satisfy even the most demanding headphone enthusiasts. - D1 Power
The D1 is powered directly from the USB bus and power is passed through two stages of regulation to ensure no USB bus power variations affect the audio quality. - D1 Volume Control

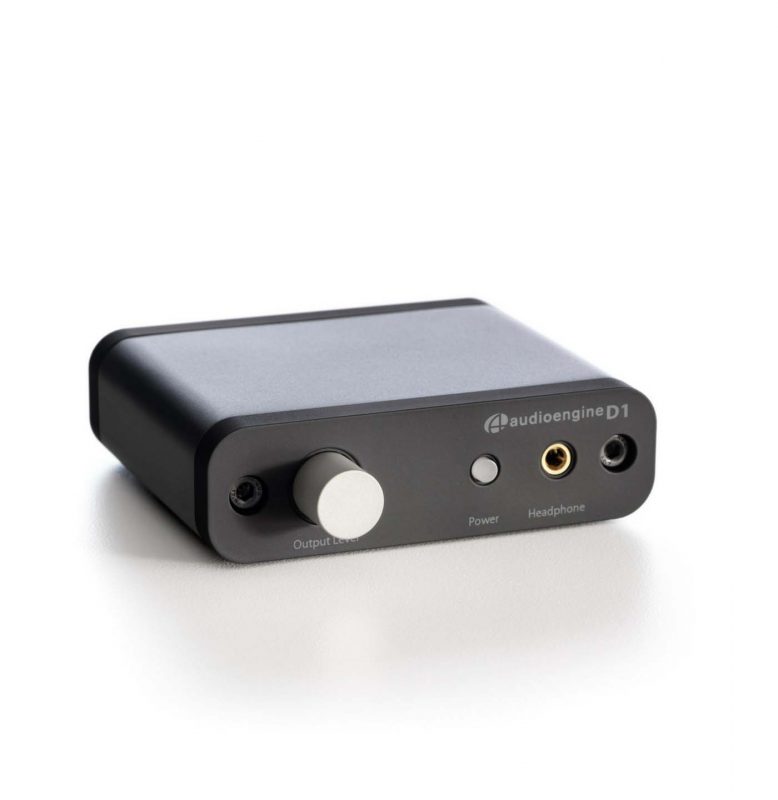

Volume is controlled directly from the D1 front panel via the digitally-controlled analog potentiometer.
