AUDIOENGINE N22 DESKTOP AUDIO AMPLIFIER
AUDIOENGINE N22 Headphone Amp แอมป์หูฟัง N22 HEADPHONE AMP จากแบรนด์ AUDIOENGINE
The N22 Desktop Amplifier is a compact integrated stereo power amplifier and a high-quality headphone amp.
DESKTOP AUDIO AMP

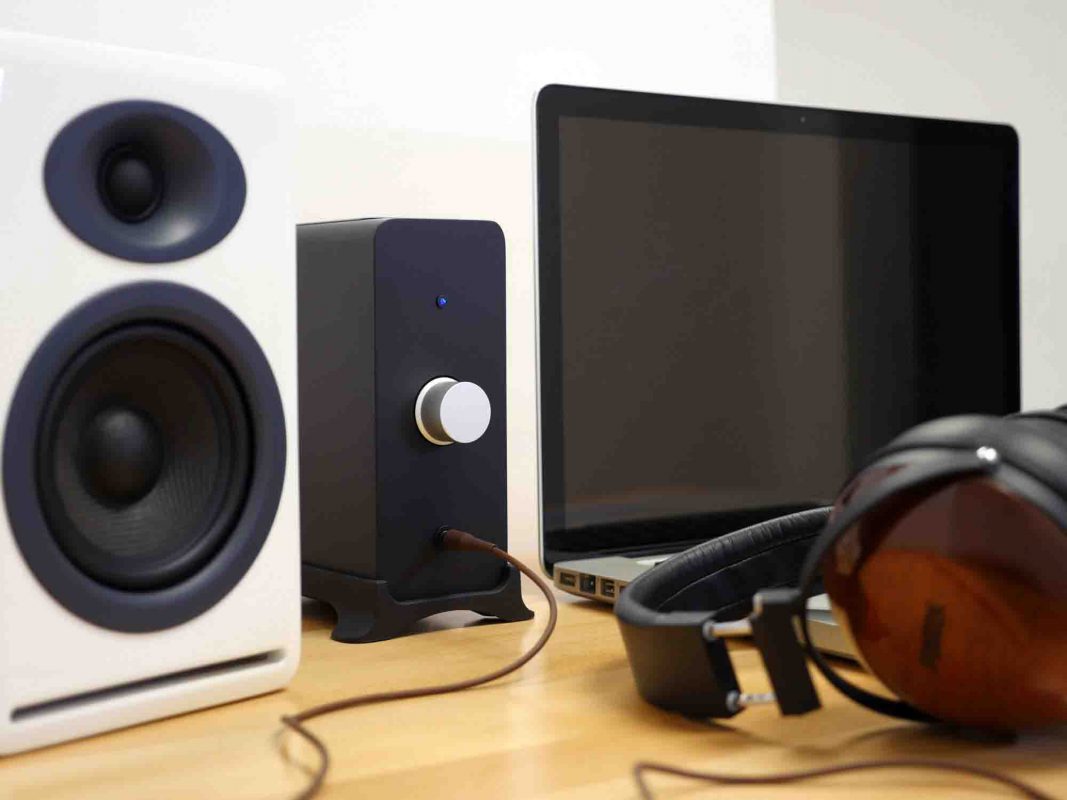

Perfectly suited for your desktop or a smaller space in your home or office, the N22 Desktop Amplifier is a compact integrated stereo power amplifier and high-quality headphone amp. Connect your computer, headphones, and your favorite speakers for a high-quality desktop music system.
WHY YOU’LL LOVE IT

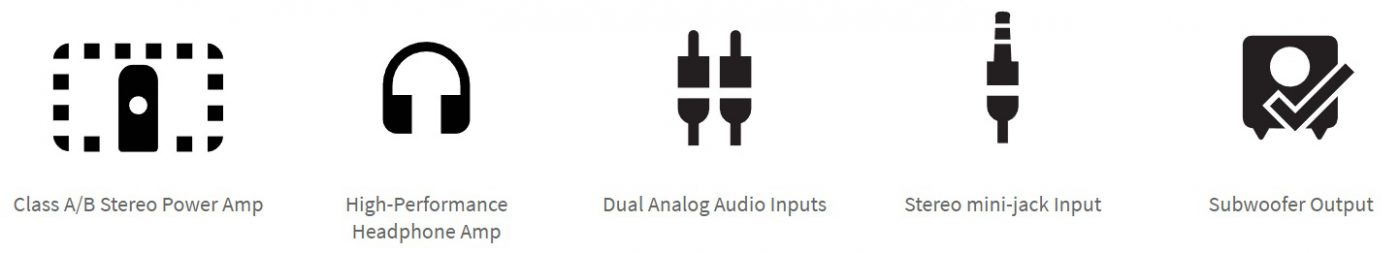

BENEFITS
Powerful but compact stereo amp
Premium headphone amplifier
Variable audio output
Charge + power port
SET UP IN SECONDS

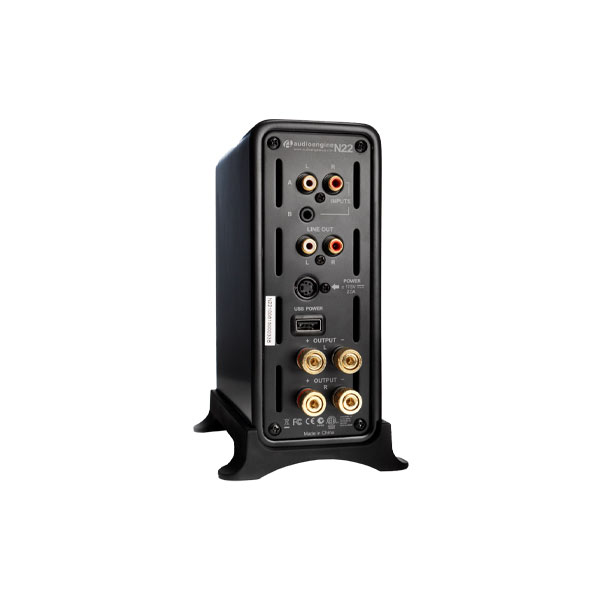

The N22 Desktop Amplifier is easy to connect to any device with no software or driver to install. High quality 5-way binding posts provide solid connections for your passive speakers. N22 also includes a power port for Audioengine wireless adapters or for charging your phone. You can also connect a subwoofer to the line out for a complete mini music system.
KICK ARSE HEADPHONE AMP
JAM-PACKED AUDIO GOODNESS
Connect any device to your speakers or headphones for a compact and great-sounding personal stereo system. Two audio inputs are included so you can connect your computer, stereo, or turntable directly.
HEAR THE DIFFERENCE
Unlike many audio products stuck in a cheap plastic box, N22 is wrapped in real wood and hand-finished just like our speakers.
Even if you’re not an audio enthusiast we guarantee you will hear a difference.
GENERAL SPECIFICATIONS
- Type Compact Integrated Stereo Amplifier
-
Power output
22W RMS / 40W peak per channel (AES)
-
Amplifier type
Dual Class AB monolithic
-
Input voltages
110-240V, 50/60Hz auto-switching
-
Inputs
RCA and 1/8″ (3.5mm) mini-jack
-
Outputs
RCA variable preamp
-
Speaker outputs
5-way binding posts
-
SNR
>95dB A-weighted
-
THD+N
<0.02% at all power settings
-
Crosstalk
-50dB
-
Frequency response
20Hz-22kHz ±1dB
-
Input impedance
10K ohms unbalanced
-
Input sensitivity
410mV (@max volume)
-
Protection
Output current limiting, thermal over-temperature, power on/off transient protection
-
Headphone amplifier
Burr-Brown/TI OPA2134
-
Dimensions
7″(H) x 2.75″(W) x 5.5″(D)
-
Weight
3.55 lbs (1.6kg)
-
Shipping weight
5.0 lbs (4.6kg)
-
Shipping box dims
11.5″(H) x 7.5″(W) x 9.5″(D)
-
Finish
Satin Black
-

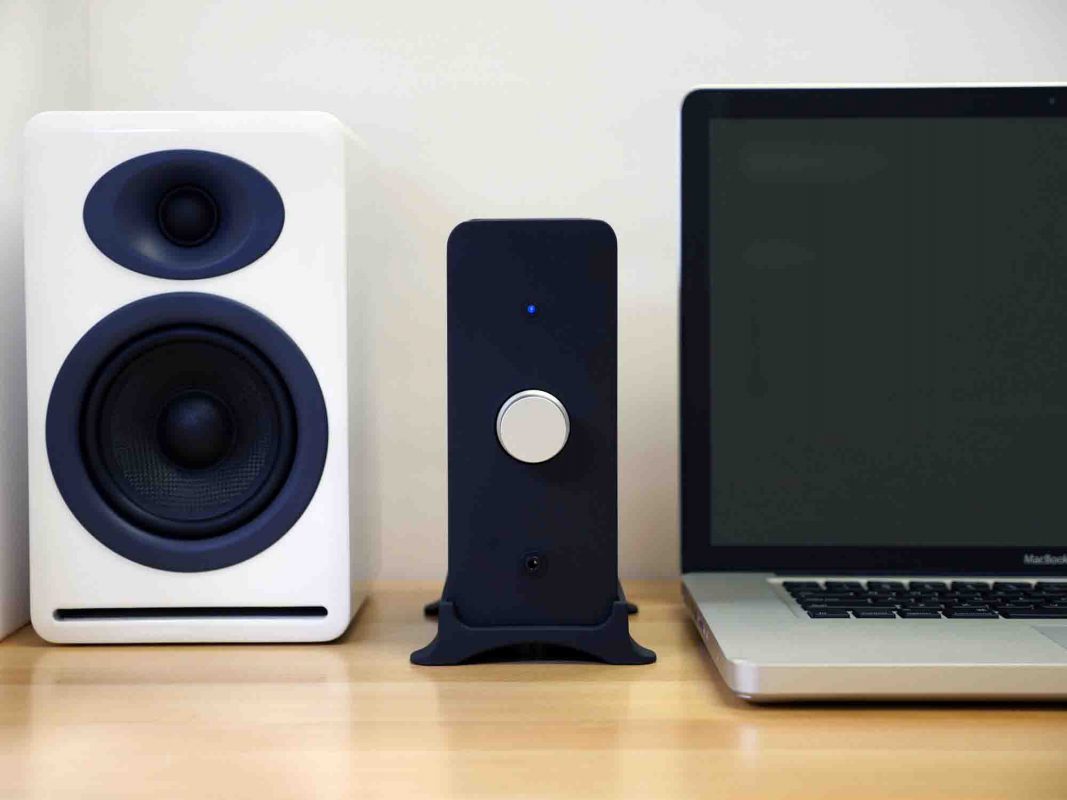

Upstanding design
The vertical design of the N22 with its integrated stand allows the 22 watt/per channel stereo class A/B amplifiers to run cool through passive convection without a fan or massive heatsink. The N22 fits easily on your desk and doesn’t take up much space.
-
Discrete headphone amplifier
For headphone enthusiasts the N22 includes a high-performance, low-noise discrete amplifier which works well with all types of headphones and earphones.
-
USB power
The Audioengine N22 has a built-in power port for charging portable devices, while listening to your music. The USB connector allows you to charge and power your Smartphone, Tablet, Audioengine wireless adapters or any other USB powered product. USB is for power only, not USB audio or data transfer.
-
Variable line out
The N22 includes a variable preamp output so you can connect a subwoofer, external amplifier, or Audioengine wireless adapter and control the volume of the line-out from the front panel.
-
Simple operation
Both audio inputs on the N22 are active so two audio sources may be connected to the amplifier at the same time without the need for an input switch. A standby idle mode is also included to conserve power when you’re not playing music.
-
Wireless rear speakers
Use the N22 amp, Audioengine P4 passive speakers, and our W3 wireless adapter for a low-cost but great-sounding wireless rear channel setup for your home theater.
