เพาเวอร์แอมป์ BEHRINGER NU12000 กำลังขยายสูง 1,200 วัตต์ แอมป์ Class D BEHRINGER NU12000 Power Amplifiers จากแบรนด์ BEHRINGER

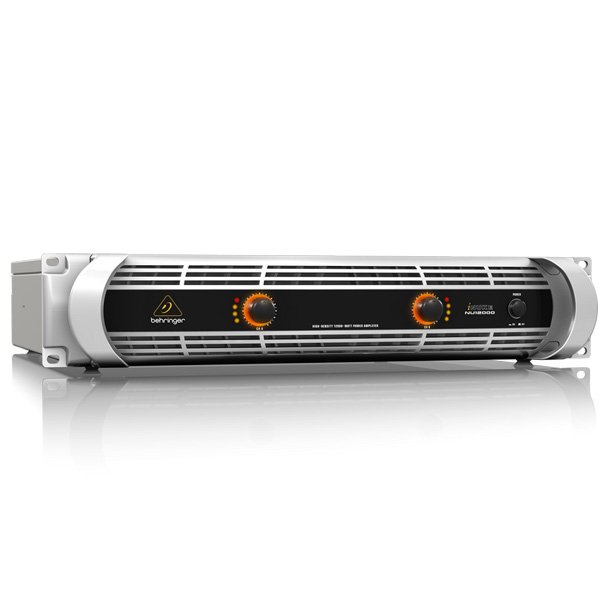

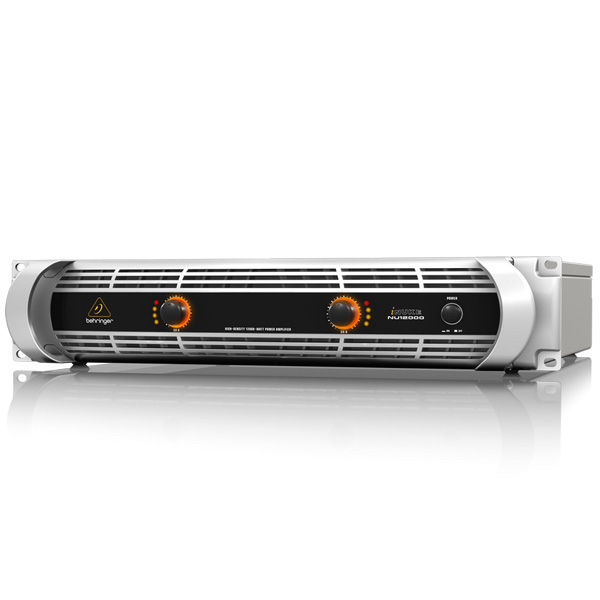

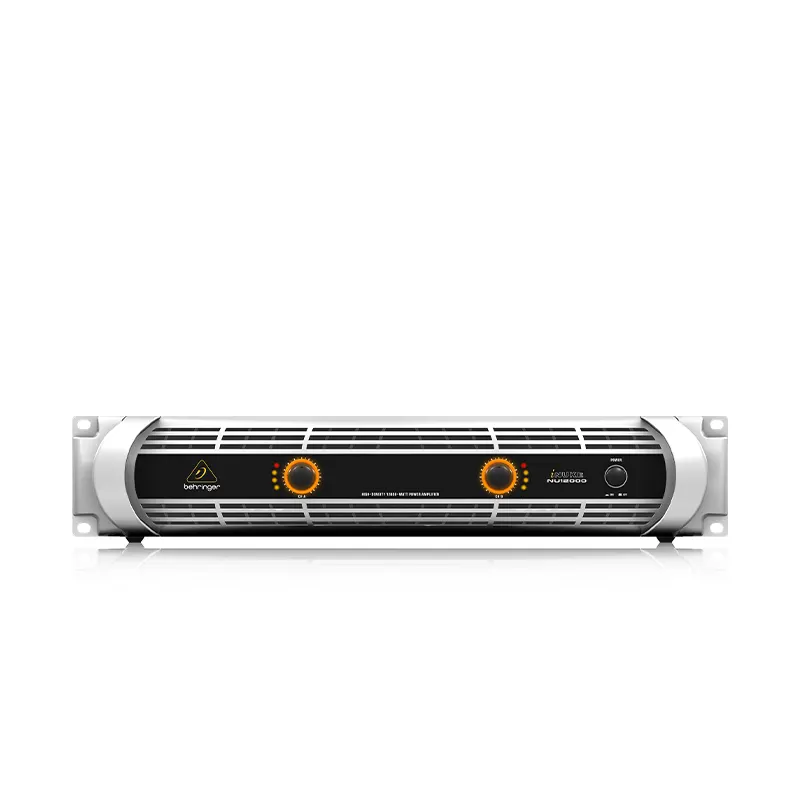

BEHRINGER NU12000
Ultra-Lightweight, High-Density 12000-Watt Power Amplifier
- เพาเวอร์แอมป์
- กำลังขับ 6000W x 2 @ 2Ohm
- กำลังขับ 3400W x 2 @ 4Ohm
- กำลังขับ 1700W x 2 @ 8Ohm
คุณสมบัติ
- Delivers 2 x 6000 Watts into 2 Ohms, 2 x 3400 Watts into 4 Ohms, 2 x 1700 Watts into 8 Ohms and weighs less than 26.5 lbs / 12 kg
- Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal buildup
- Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
- “Zero-Attack” limiters offer maximum output level with reliable overload protection
- Built-in stereo crossover with low-cut, high-cut and full range mode
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4” TRS combination input connectors for compatibility with any source
- Professional twist-lock speaker connectors for ultimate reliability
- Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
- “Back-to-front” ventilation system prevents thermal buildup for reliable operation
- Delivered with Neutrik* powerCON 32A* twist-lock connector (cable not included)
- 3-Year Warranty Program*
- Designed and engineered in Germany
สเปค
| Power Output | 2 Ω per channel, stereo: 2 x 6000 W 4 Ω per channel, stereo: 2 x 3400 W 8 Ω per channel, stereo: 2 x 1700 W |
DSP |
|
|---|---|
| Resolution | 24-bit at 96,000 Hz |
Controls |
|
|---|---|
| Front | Power switch gain controls (channels A and B) |
| Rear | Mode switch (stereo/mono) Crossover switch (LF/full-range/HF) Circuit breaker |
Indicator |
|
|---|---|
| Power | Amber backlit illuminated gain controls |
| Limiter | Per channel: 0 dB, full scale |
| Signal | Per channel: -24, -12, -6 dB |
| RMS Voltage Swing | 8 Ω: 0.75 V (-0.3 dBu) |
| Input Connectors | 2 x combo jacks |
| Input Impedance | 10 kΩ unbalanced 20 kΩ balanced |
| Outputs | 2 x locking-style professional speaker connectors |
| Circuit Type | Class D |
| Distortion | <0.2 % |
| Frequency Response | 20 to 20,000 Hz, +0/-2 dB |
| Damping Factor | >100 at 8Ω |
| Signal-to-noise | >100 dB |
| Circuit Protection | Cooling: continuously variable speed fan back-to-front air flow
Amplifier protection: thermal and DC protection stable into reactive or mismatched loads Load protection: on/off muting, DC-fault power supply shutdown |
| Power Supply | USA/Canada/Japan: 100 to 120 V at 50/60 Hz (50 A 120 VAC)
UK/Australia/Europe/Korea/China: 220 to 240 V at 50/60 Hz (25 A at 250 VAC) |
| Power Consumption | 2 Ω at 1/8 rated power: 1300 W 4 Ω at 1/8 rated power: 760 W |
| Connector | Mains: Neutrik powerCON 32 A |
| Dimensions (HxWxD) | 3.7 x 19 x 17.2″ (94 x 482 x 436 mm) |
| Weight | Approximately 26.5 lb (12.0 kg) |
