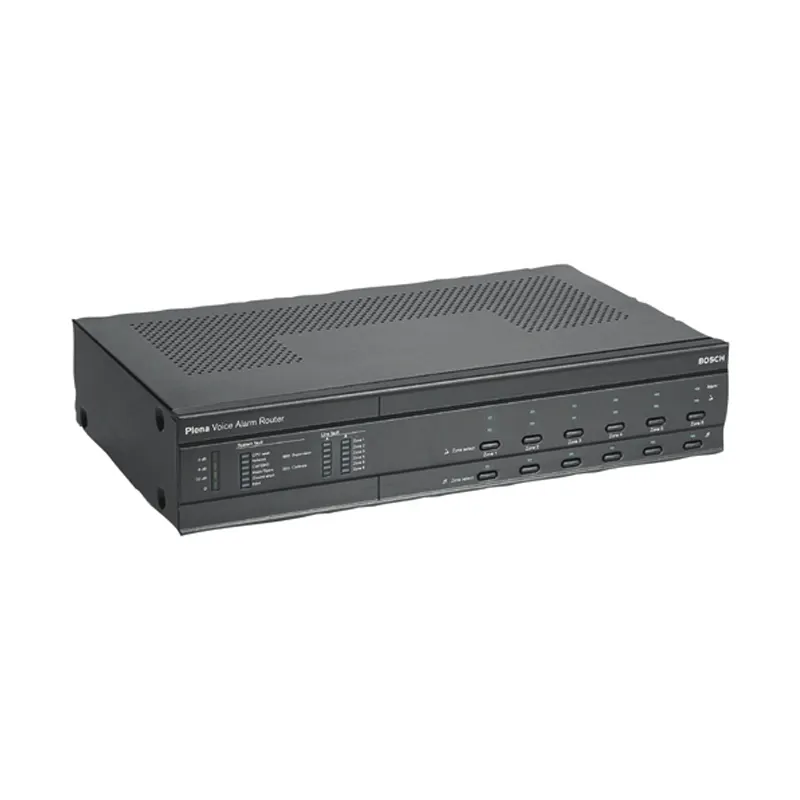

BOSCH LBB 1992/00 Plena Voice Alarm Router แบบ 1,000 วัตต์ 6 Zone 2 BOSCH LBB 1992/00 Router จากแบรนด์ BOSCH
BOSCH LBB 1992/00
คุณสมบัติ
- Expand the Plena Voice Alarm System with six zones
- EN 54‑16 certified
- 12 additional input contacts
- Six volume override output contacts
- Supervision within the Plena Voice Alarm System
สเปค
Mains power supply
| Voltage |
230/115 VAC, ±10%, 50/60 Hz |
| Inrush current |
1.5 A @ 230 VAC / 3 A @ 115 VAC |
| Max power consumption |
50 VA |
| Idle / max load* current |
0.2 A / 0.3 A |
Battery power supply
| Voltage |
24 VDC, +15% / -15% |
| Current max |
1.8 A |
| Typical / max load* current |
0.51 A / 1.5 A |
| Trigger Inputs |
12 x (6 EMG, 6 business) |
| Connectors |
MC1,5 / 14-ST-3,5 |
| Activation |
Programmable |
| Supervision |
On EMG inputs, programmable |
| Supervision method |
Series / parallel resistor |
100 V input
| Connector |
MSTB 2,5 /16-ST |
| Amp 1 |
100 V / 70 V / 0 V |
| Amp 2 |
100 V / 0 V |
| Power handling capacity |
1000 W |
| Loudspeaker outputs |
12 x (2 x 6 zones) |
| Connectors |
MSTB 2,5 /16-ST, floating |
| 100 V output |
700 W rated per zone |
| Volume override types |
3‑wire, 4‑wire (24 V), 4‑wire failsafe |
Output Contacts
| Connector |
MC 1,5/14-ST-3,5 |
| Rating |
100 V, 2A, voltage free |
| General purpose relays (2x) |
NO / COM |
| Dimensions (H x W x D) |
88 x 430 x 260 mm (19″ wide, 2U high) |
| Weight |
Approx. 3 kg |
| Mounting |
Standalone, 19” rack |
| Color |
Charcoal |
| Operating temperature |
-10 ºC to +55 ºC (14 ºF to +131 ºF) |
| Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity |
<95% |
