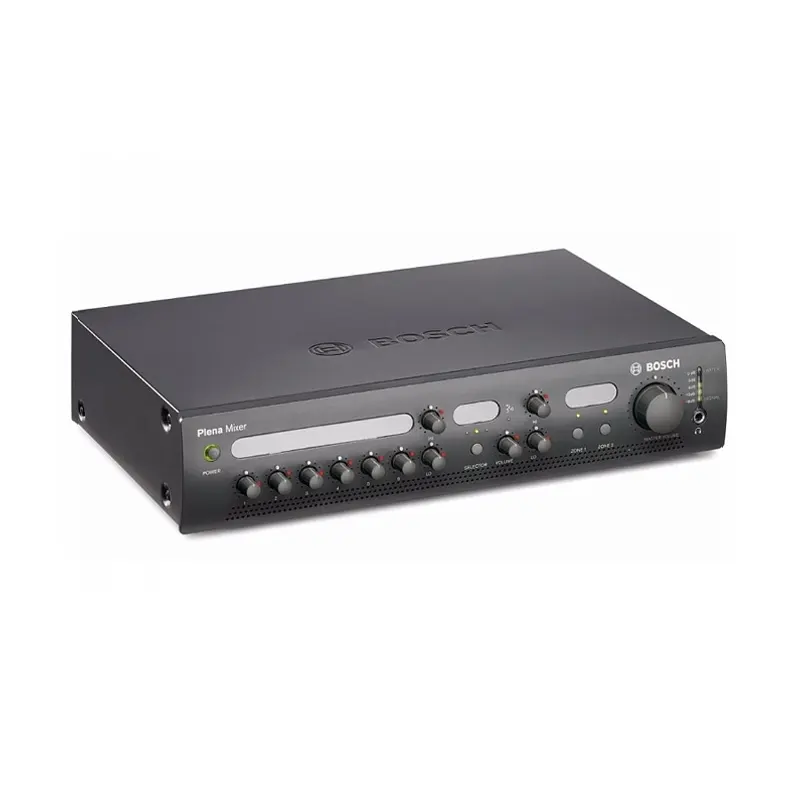

BOSCH PLE-10M2-EU มิกเซอร์แอมป์ 2 ชาแนล 100 วัตต์ PLE-10M2-EU โวลุ่มคอนโทรล จากแบรนด์ BOSCH
BOSCH PLE-10M2-EU
Mixer, 2-channel
คุณสมบัติ
- 6 microphone/line inputs, plus 3 music source inputs
- 100 V, telephone and a call station input with priority & VOX
- 2 zones and 2-channel operation
- Voice-activated emergency override
- 2-tone chime built in, 7 more chimes optional with call station
- Outputs for line out, music-only out, and insert point
- 24 V backup input with built in 24 V charger
- Separate tone controls for microphones and music sources
สเปค
Mains power supply
| Voltage | 115 – 230 VAC ±10%, 50/60 Hz |
| Power consumption | 24 VA |
| Battery power supply | |
| Voltage | 24 VDC, +10% / -15% |
| Current | 1 A |
| Power consumption (maximum) | 1 A |
Performance
| Frequency response | 50 Hz to 20 kHz (+0/‑3 dB) |
| Distortion | <0.1% @ rated output power, 1 kHz |
| Low Control | Max -12/+12 dB (frequency is setting dependent) |
| Hi Control | Max -12/+12 dB (frequency is setting dependent) |
| RJ-45 input | 2 x |
| Call station input | For PLE-2CS(MM) |
| Wall panel input | For PLE-WP3S2Z |
| Mic/line input | 6 x |
| Input 1 (Push-to-talk contact with ducking functionality) | 5-pin Euro style, balanced, phantom3-pin XLR, balanced, phantom |
| Input 2-6 (VOX with ducking functionality on input 2) | 3-pin XLR, balanced, phantom |
| Sensitivity | 1 mV (mic); 1 V (line) |
| Impedance | >1 kohm (mic); >5 kohm (line) |
| Dynamic range | 100 dB |
| S/N (flat at max volume) | >63 dB (mic) >70 dB (line) |
| S/N (flat at min volume/muted) | >75 dB |
| CMRR (mic) | >40 dB (50 Hz to 20 kHz) |
| Speech filter | -3 dB @ 315 Hz, high-pass, 6 dB/oct |
| Phantom power supply | 16 V via 1.2 kohm (mic) |
| Speech filter | -3 dB @ 315 Hz, high-pass, 6 dB/oct |
| VOX (input 1 & 2) | attack time 150 ms; release time 2 s |
| Music inputs | 3 x |
| Connector | Cinch, stereo converted to mono |
| Sensitivity | 300 mV |
| Impedance | 22 kohm |
| S/N (flat at max volume) | >70 dB |
| S/N (flat at min volume/muted) | >75 dB |
| Headroom | >25 dB |
| Emergency / telephone | 1 x |
| Connector | 7-pin Euro style pluggable screw terminal |
| Sensitivity telephone input | 1 V – 10 V adjustable |
| Sensitivity emergency input | 100 V adjustable |
| Impedance | >10 kohm |
| S/N (flat at max volume) | >65 dB |
| VOX | Threshold 50 mV; attack time 150 ms; release time 2 s |
| Insert | 1 x |
| Connector | Cinch |
| Nominal level | 1 V |
| Impedance | >10 kohm |
| Zone/Master/Music output | 3 x |
| Connector | 3-pin XLR, balanced |
| Nominal level | 1 V |
| Impedance | <100 ohm |
| Dimensions (H x W x D) | 100 x 430 x 270 mm (19″ wide, 2U high) |
| Mounting | Stand-alone, 19″ rack |
| Color | Charcoal |
| Weight | Approx. 4.5 kg |
| Operating temperature | -10 ºC to +45 ºC |
| Storage and transport temperature | -40 ºC to +70 ºC |
| Relative humidity | <95% |
