BOSCH PLE-1MA030-EU มิกเซอร์แอมป์ 30 วัตต์ 4 MIC , 3 BGM BOSCH PLE-1MA030-EU Priority mixer amplifier จากแบรนด์ BOSCH

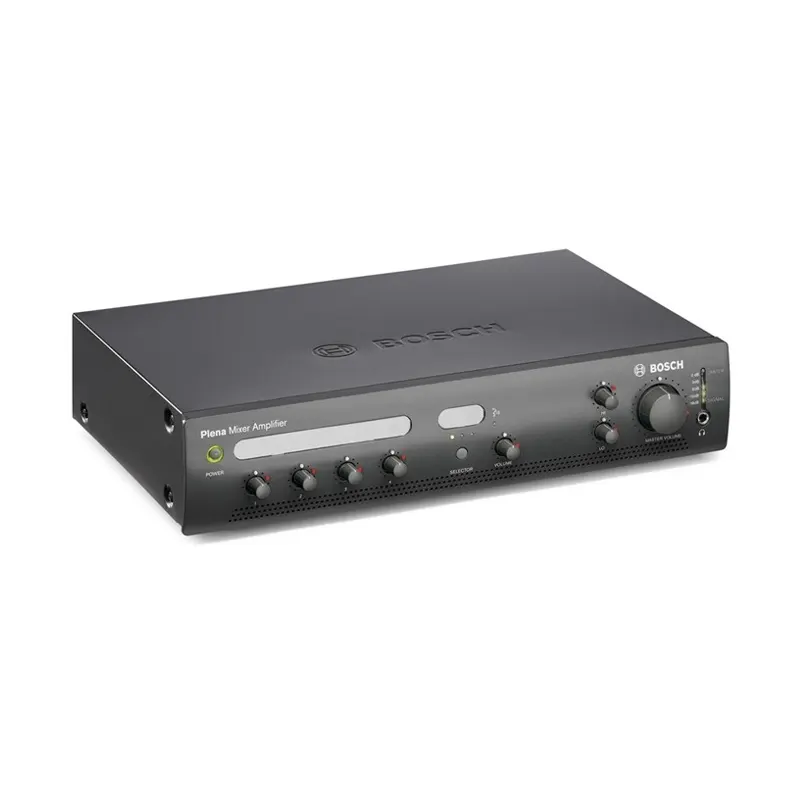

BOSCH PLE-1MA030-EU
Mixer amplifier, 30 W, 4 microphones and 3 background music (BGM) inputs.
คุณสมบัติ
- 100 V and telephone input with priority & VOX
- 4 microphone/line inputs, plus 3 music source inputs
- Announcement only output, 3-wire volume override
- Outputs for line out and music only out
- Unique easy-to-use intuitive tone controls
- Voice-activated emergency override
- Wide range of power (30, 60 and 120 Watts)
สเปค
Mains power supply
| Voltage |
230 VAC ±10%, 50/60 Hz (reduced power at lower mains or battery voltage) |
| Inrush current PLE-1MA030-EU |
4.5 A |
| Inrush current PLE-1MA060-EU |
5 A |
| Inrush current PLE-1MA120-EU |
10 A |
Power consumption
| PLE-1MA030-EU |
100 VA |
| PLE-1MA060-EU |
200 VA |
| PLE-1MA120-EU |
400 VA |
Performance
| Frequency response |
50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output) |
| Distortion |
<1% @ rated output power, 1 kHz |
| Bass Control |
Max -12/+12 dB (frequency is setting dependent) |
| Treble Control |
Max -12/+12 dB (frequency is setting dependent) |
| RJ-45 input |
1 x |
| Wall panel input |
For PLE‑WP3S2Z |
| Mic/Line input |
4 x |
| Input 1 (Push-to-talk contact with ducking functionality) |
5‑pin Euro style, balanced, phantom3‑pin XLR, balanced, phantom |
| Input 2-4 (VOX with ducking functionality on input 2) |
3‑pin XLR, balanced, phantom |
| Sensitivity |
1 mV (mic); 1 V (line) |
| Impedance |
>1 kohm (mic); >5 kohm (line) |
| Dynamic range |
93 dB |
| S/N (flat at max volume) |
>63 dB (mic); >70 dB (line) |
| S/N (flat at min volume/muted) |
>75 dB |
| CMRR (mic) |
>40 dB (50 Hz to 20 kHz) |
| Headroom |
>17 dB |
| Speech filter |
-3 dB @ 315 Hz, high-pass, 6 dB/oct |
| Phantom power supply |
16 V via 1.2 kohm (mic) |
| Music input |
3 x |
| Connector |
Cinch, stereo converted to mono |
| Sensitivity |
300 mV |
| Impedance |
22 kohm |
| S/N (flat at max volume) |
>70 dB |
| S/N (flat at min volume/muted) |
>75 dB |
| Headroom |
>25 dB |
| Emergency / telephone |
1 x |
| Connector |
7‑pin Euro style pluggable screw connector |
| Sensitivity Tel |
1 V maximum |
| Sensitivity 100V |
100 V maximum |
| Impedance |
>10 kohm |
| S/N (flat at max volume) |
>65 dB |
| VOX |
Threshold 50 mV; attack time 150 ms; release time 2 s |
| Master/music output |
1 x |
| Connector |
3-pin XLR, balanced |
| Nominal level |
1 V |
| Impedance |
<100 ohm |
| Loudspeaker output 100 V |
|
| Connector |
Euro style pluggable screw terminal, floating |
| Max / rated PLE-1MA030 |
45 W / 30 W |
| Max / rated PLE-1MA060 |
90 W / 60 W |
| Max / rated PLE-1MA120 |
180 W / 120 W |
Loudspeaker output 4 ohm
| Connector |
Euro style pluggable screw terminal, floating |
| PLE-1MA030-EU |
11 V (30 W) |
| PLE-1MA060-EU |
16 V (60 W) |
| PLE-1MA120-EU |
22 V (120 W) |
| Dimensions (H x W x D) |
100 x 430 x 270 mm (19″ wide, 2U high) |
| Mounting |
Stand-alone, 19″ rack |
| Color |
Charcoal |
| Weight |
|
| PLE-1MA030-EU |
Approx. 5 kg |
| PLE-1MA060-EU |
Approx. 8.5 kg |
| PLE-1MA120-EU |
Approx. 10.5 kg |
| Operating temperature |
-10 ºC to +45 ºC |
| Storage and transport temperature |
-40 ºC to +70 ºC |
| Relative humidity |
<95% |
| Acoustic noise level of fan(PLE‑1MA120-EU) |
<33 dB SPL @ 1 m |
