CERWIN-VEGA CV-5000 เพาเวอร์แอมป์ 2×1100 วัตต์ ที่ 8 โอมห์

เพาเวอร์แอมป์ CERWIN-VEGA CV-5000 2×1100 วัตต์ ที่ 8 โอมห์ CERWIN-VEGA CV-5000 เครื่องขยายเสียง จากแบรนด์ CERWIN-VEGA

CERWIN-VEGA CV-5000

Poweramp 1100W x 2 @ 8 ohm

This field proven amp design is the most muscular yet in the CV Series and is a perfect match for Cerwin-Vega’s largest and loudest Passive Speakers and Folded Horns. A true powerhouse, the CV-5000 is capable of driving the most demanding speaker applications including Cerwin-Vega’s TS-42 Folded Horn Sub. The 3 RU enclosure is compact and feature-laden, with a design that includes a high-efficiency, variable-speed fan tunnel cooling system, complete LED monitoring of the amplifier’s status and comprehensive protection circuitry that guards vital components.

• Controls

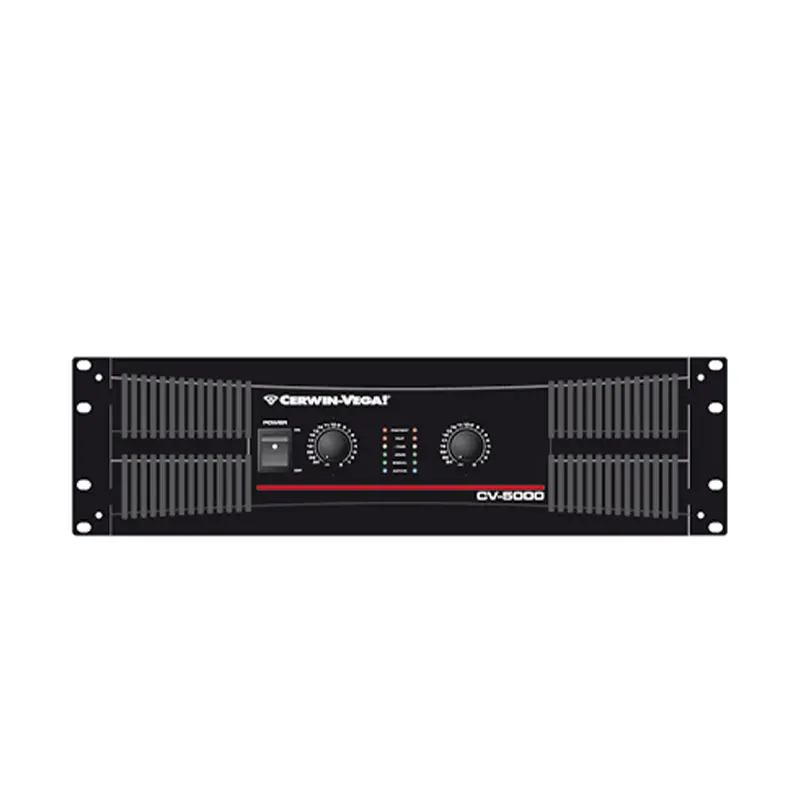

  • Front: Volume control that features a 21 detent potentiometer
  for each channel

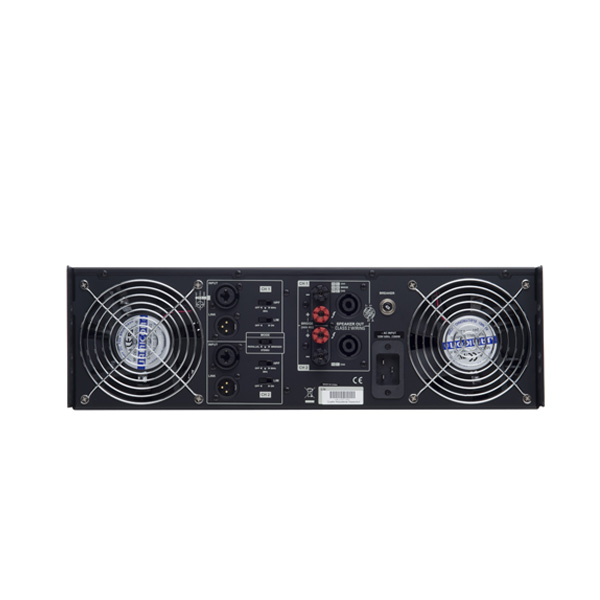

  • Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)
• HPF: On/Off switch for each channel
• Limiter: On/Off switch for each channel
• Connectors
  • Input: Combo jack electronically balanced 1/4” & XLR male for
  input link
  • Output: 5-way binding post & Speakon® connector for each
  channe
• Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active
• Protection: Short Circuit, Thermal, Current Limit, DC Offset,
  Current Inrush, RF Protection, Turn On / Turn Off Mute
• Cooling: Variable speed fan forced cooling

• Front: Volume control that features a 21 detent potentiometer for each channel

• Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)

• HPF: On/Off switch for each channel

• Limiter: On/Off switch for each channel

• Connectors

  Input: Combo jack electronically balanced 1/4″ & XLR male for input link

  Output: 5-way binding post & Speakon® connector for each channel

• Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active

• Protection: Short Circuit, Thermal, Current Limit, DC Offset, Current Inrush, RF Protection, Turn On / Turn Off Mute

• Cooling: Variable speed fan forced cooling

• Rated Power:
  Stereo @ 8 ohms 1100 W
  Stereo @ 4 ohms 1800 W
  Stereo @ 2 ohms 2500 W
  Bridge @ 8 ohms 3600 W
  Bridge @ 4 ohms 5000 W
• Input Sensitivity (8 ohms 1.42V (+5.3dB)
• Input Impedance 20 kohms Balanced / 10t kohms Unbalanced
• Frequency Response (+/-3.0 dB) 5Hz – 50kHz
• Class H , 3 tier
• T.H.D (1 kHz, Rated Power) < 0.03 % 4 ohms and 8 ohms
• Signal to Noise Ratio (20Hz – 20kHz) <-100 dB
• Damping Factor (8 ohms,400 Hz) > 300
• Power Source 100~240 Vac, 50/60 Hz
• Weight (Net) Net:
• Dimensions (H x W x D) 132 x 482 x 482 mm
