เพาเวอร์แอมป์ CERWIN-VEGA CV-900 เครื่องขยายเสียง 2 x 320 วัตต์ ที่ 4 โอมห์,2 x 210 วัตต์ ที่ 8 โอมห์ CERWIN-VEGA CV-900 เครื่องขยายเสียง จากแบรนด์ CERWIN-VEGA

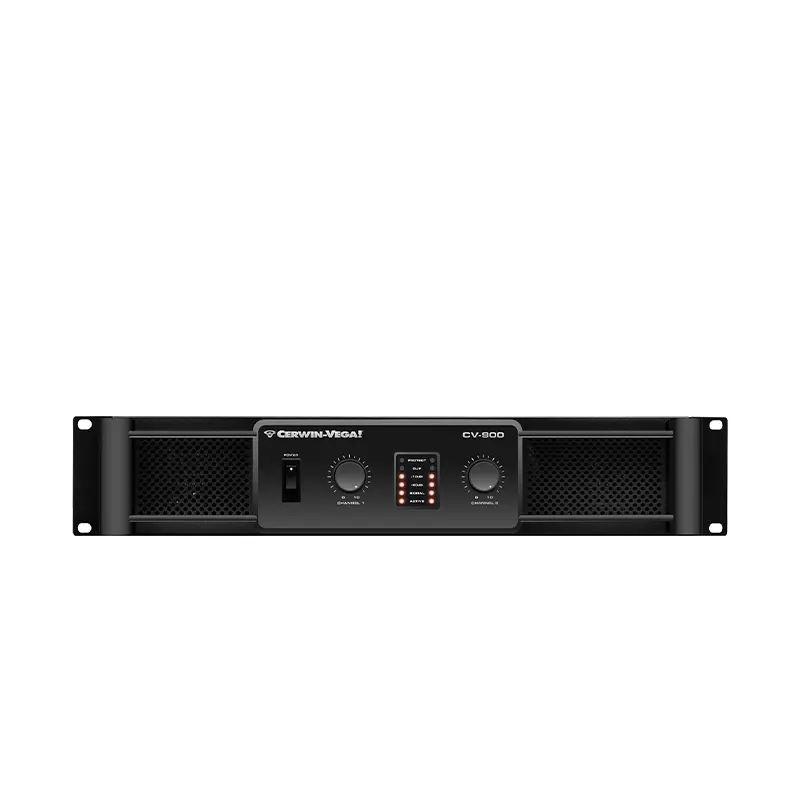

CERWIN VEGA CV-900
HIGH PERFORMANCE PROFESSIONAL POWER AMPLIFIER
The Cerwin-Vega! CV-Series high performance professional power amplifiers are rugged, 2U rackmountable workhorses with the muscle to accommodate the most demanding audio challenge. With power ratings up to 2800 watts, support for bridged mono operation, exceptional THD (Total Harmonic Distortion) and Signal-to-Noise ratings, the CV Series power amps are the right choice for a wide range of musical tasks.
Featuring state-of-the-art designs that include a highly efficient tunnel cooling system to ensure reliable, cool running operation, 21-position detent level control knobs for easily repeatable settings, signal and clip indicators for convenient monitoring of the amplifier’s status, and the right connectors for integration into most any environment. The CV-Series Amps are right for the job.
คุณสมบัติ
-
Power ratings up to 2800 watts
-
Front panel LED displays indicate power, clip protect and signal status
-
Balanced XLR and TRS Input connectors
-
Speakon NL-4 locking output connectors and binding posts
-
Detented 21-position input level control knobs
-
Defeatable limiter and high pass filter per channel
-
Flow-through cooling design prevents overheating
Performance Data
-
Frequency Response: 0/-0.5dB ; 20Hz-20KHz, 0/-3dB: 5Hz-60KHz
-
Rated Output Power (Stereo): 210 watts at 8 ohms; 320 watts at 4 ohms; 420 wats at 2 ohms
-
Rated Output Power (Mono): 650 watts at 8 ohms; 845 watts at 4 ohms
-
At Full Power @4 ohms: 10.5A / 5.5A
-
Signal to Noice Ratio: 20 Hz – 20k Hz – 100dB
-
Distortion (SMPTE-IM): .05%
-
Output Circuitry: AB
-
Damping Factor (400 Hz): 200
สเปค
-
Front panel LED displays indicate power, clip protect and
signal status
-
Balanced XLR and TRS Input connectors
-
Speakon NL-4 locking output connectors and binding posts
-
Detented 21-position input level control knobs
-
Defeatable limiter and high pass filter per channel
-
Short circuit, thermal, current limit, DC offset, current inrus, RF protection, Turn on/ Turn off muting protection
-
5-way binding post and Speakon output connectors
-
Flow-through cooling design prevents overheating with continuously variable speed, front to rear
