เพาเวอร์แอมป์ CROWN KVS700 แบบ 2 ชาแนล 1000 วัตต์ ที่ 4 โอมห์ เพาเวอร์แอมป์ระดับมืออาชีพของ Crown ที่ออกแบบมาสำหรับการติดตั้ง จากแบรนด์ CROWN

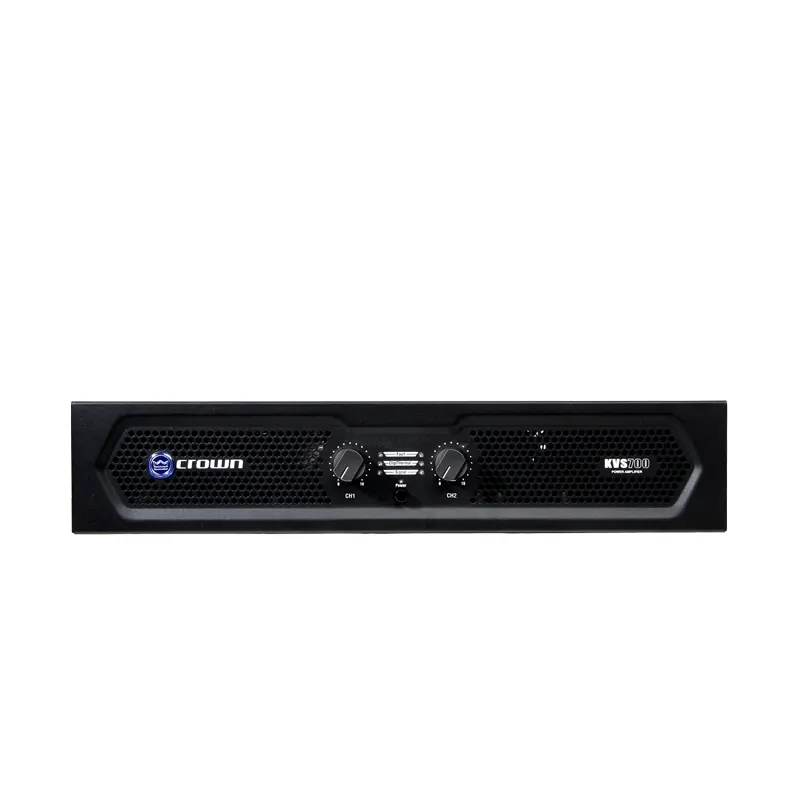

CROWN KVS700
Power Amplifier
The KVS Series represent Crown’s professional-grade power amplifiers designed for fixed installation applications, with four models available: KVS300, KVS500, KVS700 and KVS1000.
KVS Series power amplifiers use switching power supplies that offer high stability and a high-speed response. When compared with similar products, the KVS Series have reduced weight and heat generation, with significantly improved power efficiency and operating stability. In addition, the integrated protection circuit can effectively avoid overvoltage, undervoltage, overcurrent, overheating and other issues and ensures that the equipment can operate even in the most demanding application environments.
คุณสมบัติ
- Operation modes: Stereo-Dual, Parallel or Bridge
- Input sensitivity switch: 0.775V / 1.4V
- Input: Balanced XLR , one (1) per channel
- Output: 4-pole Speakon® and one (1) pair Binding Post per channel
- One (1) gain knob per channel, one (1) power switch with LED indicator
- Three (3) LED indicators for each channel: Fault (red), Clip/Thermal (yellow) and Signal (green)
- Protection against short circuits, no-load, on/off muting, RF interference
สเปค
Frequency Response | 20Hz – 20kHz, +0/-1dB |
Total Harmonic Distortion (THD) | < 0.5%, 20 Hz – 20kHz |
Intermodulation Distortion | = / < 0.35% (from full rated output to -30dB) |
Conversion Rate | >10V/us |
Voltage Gain | 33dB |
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) | >100dB |
Damping Factor | >200 (8Ω, 10Hz – 400Hz) |
Crosstalk | -75dB at 1kHz, -59dB at 20kHz |
Input Sensitivity | 0.775V or 1.4V (rated power 8Ω) |
Input Impedance | 20kΩ |
Input Connectors | Balanced XLR per channel |

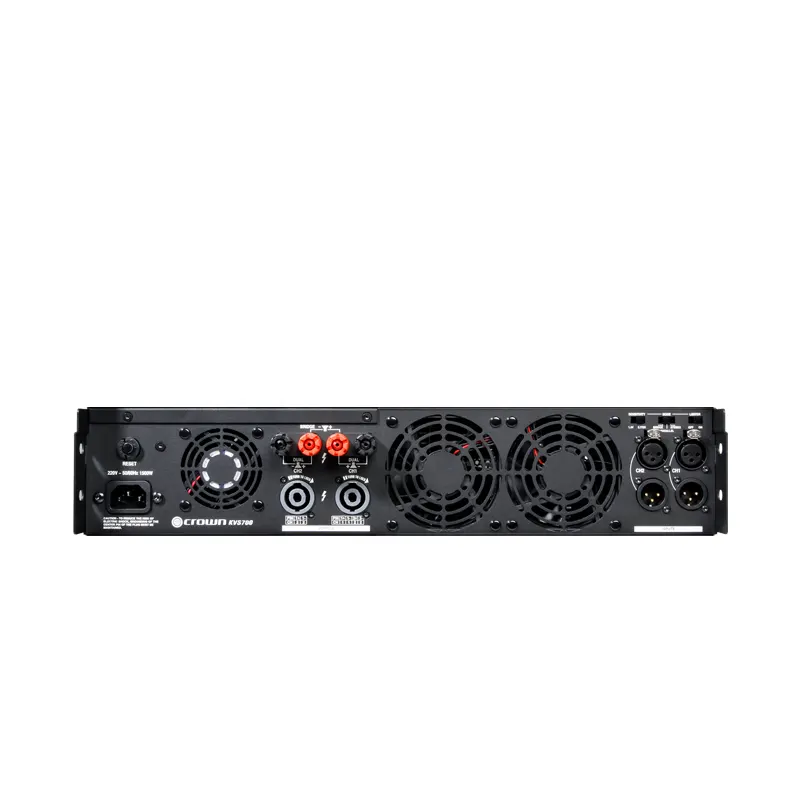

Output Connectors | 4-POLE Speakon® and a pair of binding posts per channel |
Front Panel Components | Power switch, channel gain control |
Rear Panel Components | Output mode switch: stereo, parallel, bridge, Input sensitivity switch: 0.775V or 1.4V |
Power Indicator | Blue and green two-color LED |
Signal Indicator | One green LED per channel |
Clip Indicator | One yellow LED per channel |
Fault Indicator | Red LED per channel , indicating that the channel is closed |
Power cables | Plug : 10A, 250V, Wire : CCC 3×1.5mm 2 |
Protection | Protection against short circuit, no load, on / off noise, radio interference protection circuit |
Ventilation | Air convection mechanism |
Cooling | Internal air is forced to dissipate heat, fan cooling, rapid adjustment, temperature protection |
Dimensions (w x h x d) | 19″x3.5″x15.6″ (482 mm x 89 mm x 395 mm) |
Net Weight | 20.4 lb (9.3 kg) |
Shipping Weight | 24.7 lb (11.2 kg) |
