เพาเวอร์แอมป์ EV PA4150L เครื่องขยายเสียง 4 ชาแนล 160 วัตต์ ที่ 4 โอมห์ จากแบรนด์ EV

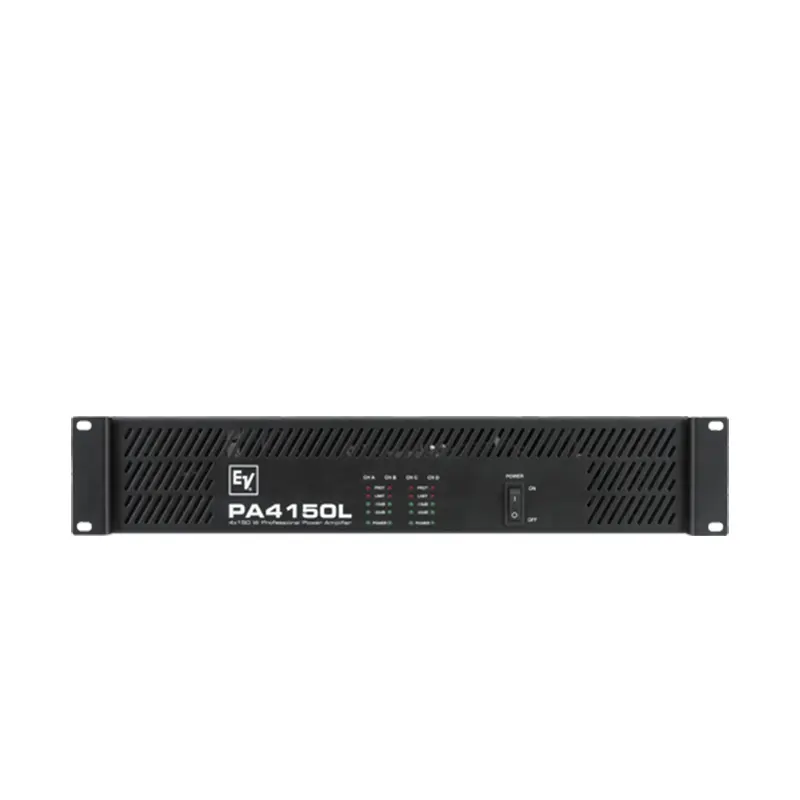

EV PA4150L
QUAD 150 W/CH POWER AMPLIFIER
EV PA4150 is from the PA series of professional commercial audio amplifiers. The direct path airflow design reduces the heat buildup significantly and allows for 4 full amplifier channels in a slim two rack space chassis. The audio performance of the PA4150 is superior and fulfills the requirements in many demanding long term applications from sound reinforcement, paging or life safety installations.
EV PA415L features many of the same comprehensive protection circuits typical in EV amplifiers. Complete protection is provided for high temperature, audio limiters, power up delay and peak current limiters. In addition to the rated output power, the PA4150 provides excellent headroom for a wide dynamic range on music signals. A selectable 50Hz or 300Hz hi-Pass filter makes it easy to incorporate the unit into The onboard dynamic limiter ensures that the output clipping of the PA4150 will not will not generate excessive distortion.
The amplifier channels can be bridged for more power flexibility. Marked level controls on the rear panel provide hidden reliable level adjustments for each channel. Front panel LEDs indicate signal present, 0 dB, and limit. Phoenix type connectors for inputs and outputs provide an easy rack wiring.
คุณสมบัติ
- Flexible multi-channel power for installation
- Ideal for sound reinforcement, paging, and life safety
- 150 W per channel into 4 Ω
- Bridged mode for dual 315 W outputs into 8 Ω
- Compact 2 RU design
- Stepped rear-panel level attenuation
- Selectable 50 Hz or 300 Hz high-pass filter
- Thermal protection, peak limiting, turn-on delay
- Phoenix-type inputs and outputs
- Three-stage front-to-rear fans
- Integrated rack ears for direct mounting
