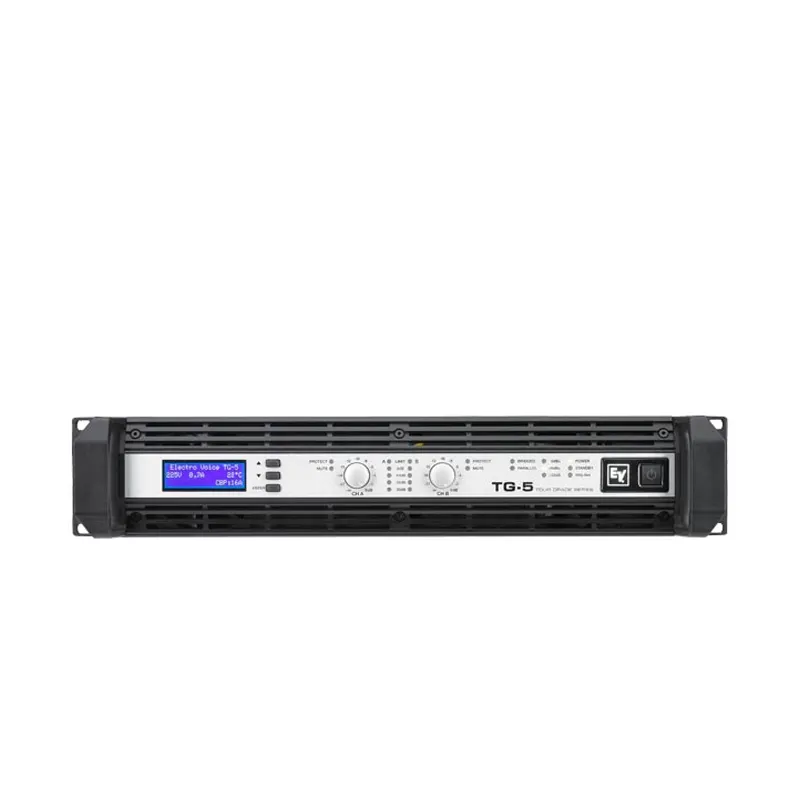

เพาเวอร์แอมป์ EV TG5 เครื่องขยายเสียง 2 ชาเเนล คลาส H 2000 วัตต์ ที่ 2 โอห์ม, 1,450 วัตต์ ที่ 4 โอห์ม และ 850 วัตต์ ที่ 8 โอห์ม Electro-voice TG5 เพาเวอร์แอมป์ ขยายเสียง จากแบรนด์ EV
EV TG5
2000 W/CH POWER AMPLIFIER
Tour Grade amplifiers are designed for today’s most demanding audio applications. They offer a unique combination of high output power, sonic excellence, high efficiency, as well as state-of-the-art, optional signal processing and system supervision via IRIS Net software, in a compact lightweight format.
Tour Grade amplifiers have a microprocessor controlled operation management system that provides useful features such as compound thermal management (preventing amps from switching off in excessive thermal environment), automatic mains voltage detection and a circuit breaker control that allows the TG-7 to operate on a 30A (120V) or 16A (230V) circuit breaker with normal music signal.
Tour Grade amplifiers use a grounded bridge 3-step class-H topology to ensure the highest acoustic performance and reliability. The TG Series also offers the power and transient response to drive subwoofers along with the low distortion for critical HF signals. The high capacity switchmode power supply provides the headroom needed to ensure high dynamic outputs and reliable operation on extreme low loads.
Optional IRIS-Net™ (Intelligent Remote & Integrated SupervisionNetwork™) Modules available for the Tour Grade amplifiers open up a whole world of state-of the-art DSP, remote control, networking and unique system supervision – down to an individual loudspeaker component. IRIS-Net™ software is an expandable, open architecture application that operates under Windows™ and supports Ethernet, CobraNet™, CAN-Bus, USB, and RS-232 interfaces.
There will be several modules available: RCM-26 (DSP, AES/EBU input, GPIO, CANBus), RCM-28 (DSP, GPIO, COBRA-Net™), RCM-20 (no DSP, CAN Bus) to allow any combination of central control and supervision with central or decentralized signal processing. Connection to a PC running IRIS-Net software can be achieved using a UCC-1 USB-CAN interface and/or a N8000 digital matrix.
คุณสมบัติ
-
High-level touring performance
-
Rugged, lightweight package
-
2000 W per channel (2 Ω)
-
Grounded Bridge Class-H design
-
Switch-mode power supply
-
Microprocessor-controlled
-

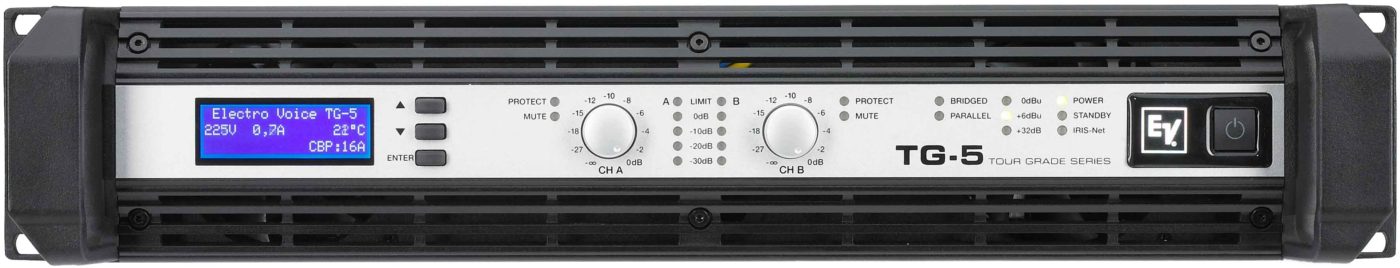

Front LCD panel for operation-mode setup and monitoring
-
Slot for optional RCM-26 IRIS-Net-compatible DSP and control module
-
11-level protection package
-
Only 31.4 lbs (14.2 kg)
สเปค
| Weight Net | 14.2kg (31.31 lbs) |
| Depth | 512mm (20.16″) |
| Width | 482.6mm (19″) |
| Height | 88.1mm (3.47″) |
| A/D Conversion | 24 Bit linear, Sigma-Delta, 128 times oversampling |
| Amplifier Gain | 39, 35, or 32dB (Switchable) |
| Analog Inputs | Yes |
| CAN Bus Interface | 10 – 500 kbaud, 2x RJ-45 (IRIS-Net Control) |
| Channels | 2 |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 2000Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 1450Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 850Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 1200Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 600Watts |
| Control Protocol | CAN-Bus (with RCM 26 module) |
| D/A Conversion | 24 Bit, Sigma-Delta, 128 times over-sampling |
| Data Format | 24 Bit linear A/D and D/A conversion, 48 Bit processing |
| Digital Inputs | Optional with RCM-26 |
| DIM 30 | 0.02% |
| Electronics Type | Amplifier |
| FIR-Drive | Optional with RCM-26 |
| GPIO Control Ports | 1 x 6-pole Euro block, 2 control inputs, 2 control outputs, (+5 V, 200 mA/GND) |
| Impedance | 2/4/8Ω |
| Input Impedance (Balanced) | 20kΩ |
| Input Sensitivity | 0 dBu / +6 dBu / +7 dBu (Selectable) |
| Intermodulation Distortion (SMPTE) | 0.05% |
| Internal Processing | 2 DSPs (150 MHz, 300 MIPS) |
| Maximum Bridged Output 4Ω | 3800Watts |
| Maximum Bridged Output 8Ω | 2900Watts |
| Network Control (IRIS-Net) | Optional with RCM-26 |
| Power Consumption | 1000 W |
| Power Supply | 100 – 240V, 50 – 60 Hz |
| Sample Rate | 48 kHz |
| Sample Rate Conversion (SRC) | 32 kHz – 192 kHz, internal Sample-Rate- Converter |
| Signal-to-Noise Ratio (A-weighted) | 109dB |
| Slew Rate | 30V/µs |
| Topology | Class-H grounded bridge |
| Total Harmonic Distortion | 0.05% |
