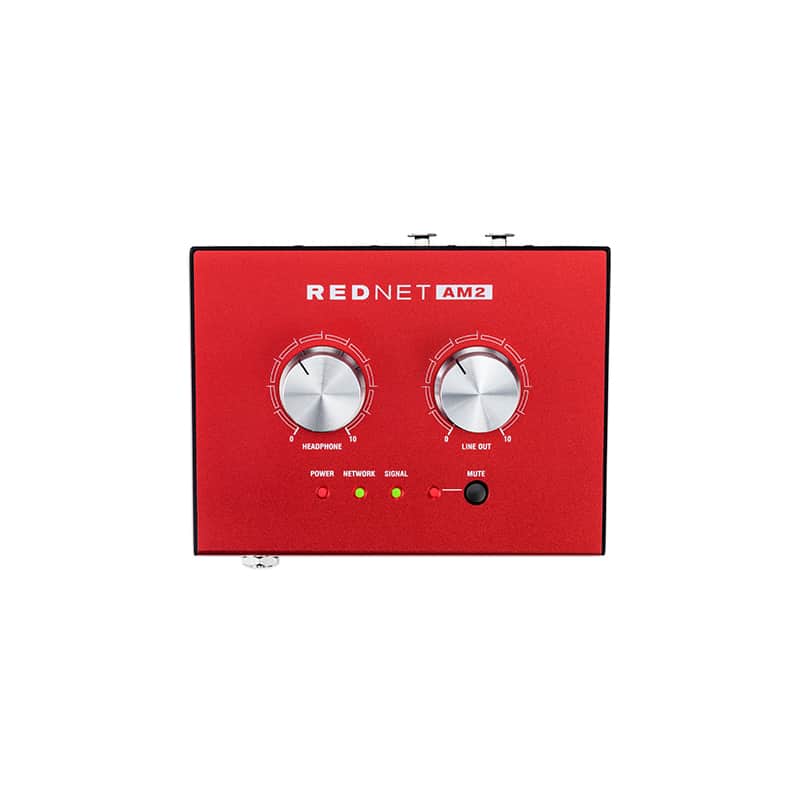

FOCUSRITE RedNet AM2 แอมป์หูฟัง สำหรับ Dante audio-over-IP networks, Power-over-Ethernet รองรับ IEEE 802.3af

LINE LEVEL OUTPUTS

• 0 DBFS Reference Output Levels
  18 or 24dBu (switchable)

• Frequency Response Output
  20Hz – 20kHz ±0.05dB

• THD N Output
  <-100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input

• Dynamic Range
  120dB A-weighted (typical), 20Hz – 20kHz

CROSSTALK

• Output To Output
  <-100dB unweighted, 20Hz – 20kHz; -20dBFS input

HEADPHONE OUTPUT

• 0 DBFS Reference Levels Headphones
  19dBm

• Headphone Frequency Response
  20Hz – 20kHz ±0.05dB

• Headphone THD N
  <-100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input

• Headphone Dynamic Range
  118dB A-weighted (typical), 20Hz – 20kHz

• Output Impedance
  5O

• Headphone Impedance
  32O – 600O

DIGITAL PERFORMANCE

• Supported Sample Rates
  44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit

• Clock Sources
  Internal or from Dante Network Master

• Minimum Latency
  1ms

FRONT PANEL CONNECTIVITY

• Headphone Outputs
  1 x 1/4″ stereo jack

• Line Outputs
  2 x Male XLR

• PSU (PoE And DC)
  1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector

• Network
  Green LED: Indicates device is network master or network slave, shows valid network lock

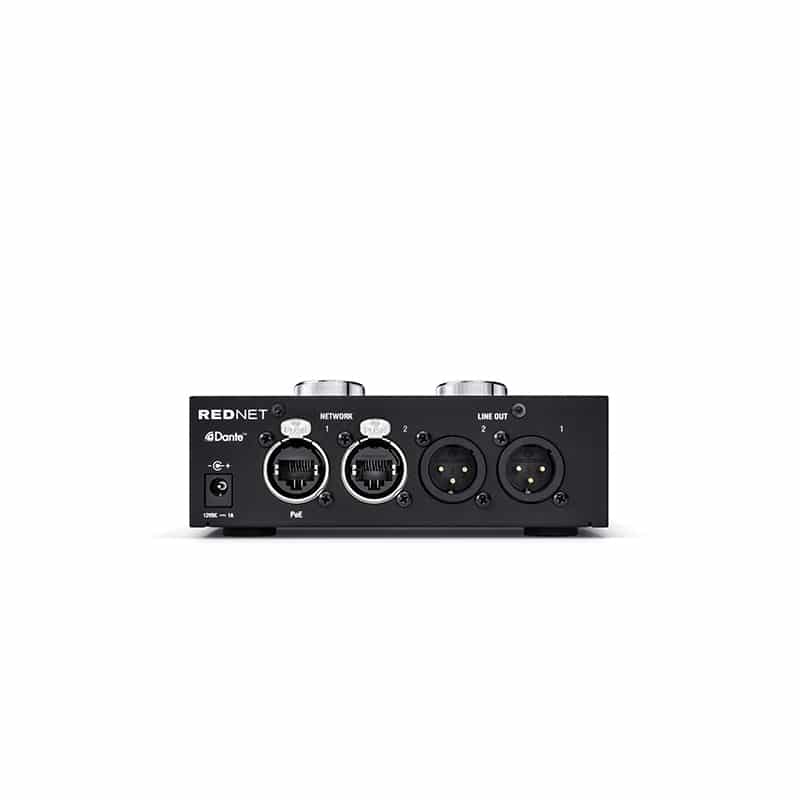

REAR PANEL CONNECTIVITY

TOP PANEL INDICATORS

• Power
  LED illuminates Green when PoE is connected and Red when DC power is connected

• Signal
  Signal indicator LED for both network input channels

• Mute
  Red LED

• Control Functions
  2 x Pots

DIMENSIONS

• Height (Chassis Only)
  48mm/ 1.89″

• Height (Inc. Pots And Feet)
  58mm/ 2.28″

• Width
  140mm/ 5.51″

• Depth (Chassis Only)
  106.5mm/ 4.19″

• Depth (Inc. Connectors)
  116mm/ 4.57″

WEIGHT

• Weight
  0.81kg

POWER

• Power Over Ethernet (PoE)
  Complies with IEEE 802.3af class 0 Power-over-Ethernet standard

• DC Power Supply
  1 x 12V 1.2A DC Power Supply

• Power Consumption
  PoE: 11.0W – DC: 9.8W

• Operating Temperature
  Operates at up to an ambient temperature of 50 degrees Celcius
