FOCUSRITE RedNet X2P แอมป์หูฟัง 2×2 Analogue I/O With 2x Mic Pres, Headphone And Line Output
฿54,900 (รวม VAT 7% แล้ว)
เงื่อนไขและข้อตกลง
- เช็ค Stock สินค้ากับเจ้าหน้าที่ ก่อนสั่งซื้อทุกครั้ง
- รับสินค้าภายใน 3 - 7 วัน ( ขึ้นอยู่กับที่อยู่จัดส่ง )
- สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา โดยไม่แจ้งให้ทราบล่วงหน้า
- สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ
สินค้ารับประกัน
จากศูนย์ชั้นนำ
แบรนด์แท้ 100%
แบรนด์ชั้นนำ
ส่งฟรี!
ตามเงื่อนไข
แอมป์หูฟัง FOCUSRITE RedNet X2P 2×2 Analogue I/O With 2x Mic Pres, Headphone And Line Output, Up to 24-bit, 96kHz sampling rates จากแบรนด์ FOCUSRITE
FOCUSRITE RedNet X2P
2×2 Analogue I/O With 2x Mic Pres, Headphone And Line Output, PoE Supplied
RedNet X2P is a compact, portable and robust 2×2 Dante™ audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P allows you to effortless add a high quality Dante audio interface by integrating power, audio, clock and remote control over a single Ethernet cable – simply use a power over Ethernet switch or PoE injector. A local input mixer allows ‘more me’ monitoring control, while a control lockout mode ensures settings can not be changed when used remotely.

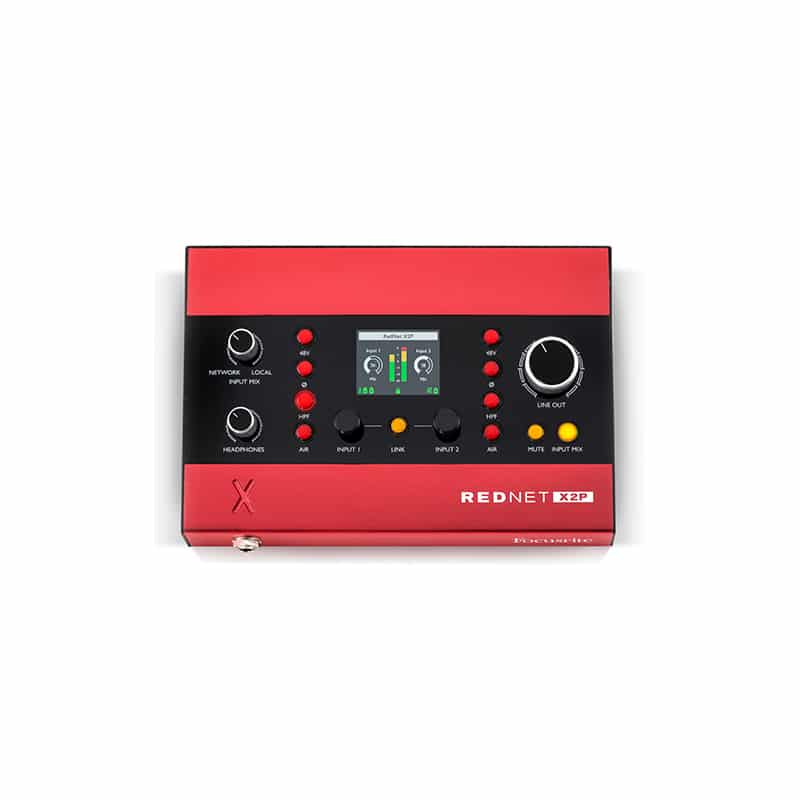

Rear panel XLR outputs offer level-controlled analogue outputs of up to 24dBu, while a front panel 1/4″ connector provides a high-powered headphone output capable of driving both high and low impedance headphones. A pair of combination XLR/1/4″ inputs allow the connection of mic, line or instrument level signals to the mic pres, which include Focusrite’s acclaimed Air mode which emulates the sound of our classic input transformers. The top panel features an array of controls: output level for headphone and line outputs, mic pre controls of gain, high-pass filter, Air, phase invert, phantom power and stereo linking; as well as the crossfader for controlling the balance of mic pre inputs and network receiver channels which to be sent to the headphone or line outputs.
คุณสมบัติ
- Stereo 2×2 audio interface for Dante Audio-over-IP networks
- Two Red Evolution mic preamps for mic, line or instrument level inputs
- Power-over-Ethernet supplied: IEEE 802.3af compliant
- Up to 24-bit, 96kHz sampling rates
- Robust steel and aluminium chassis
- Local input mix to allow ‘more-me’ style monitoring for easy foldback control
- Powerful headphone output even with high-impedance headphones
- Local control lockout of mic pre settings, output settings or both
- Up to 24dBu line output levels
- Independent level control of headphone and line outputs
- Mute switch for line output
- Mic stand mount
- Kensington security slot
- Integrated network switch allowing daisy-chaining of network devices
- Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
- AES67 compliant
สเปค
SPECIFICATIONS
MICROPHONE/ LINE INPUTS
- Gain Range
0dB to 68dB in 1dB steps
- Type
Electronically Balanced, Zin = 6.2kO
- Max. Input Level
>+24dBu, min gain
- Frequency Response
20Hz – 35kHz ±0.1dB
- THD + N
-103dB (0.0007%) @ -1dBFS (@ 24dB Gain)
- EIN
<-130dBu ‘A’-Weighted (typical)
- Signal-To-Noise Ratio
-120dB ‘A’-Weighted (typical), min gain
- Common-Mode Rejection Ratio
50/60Hz CMRR: -80dB
- Phantom Power
+48V, independently switchable per channel.
- HPF
High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
- Air Mode
2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO
INSTRUMENT INPUTS
- Instrument Inputs Gain Range
0dB to 68dB in 1dB steps
- Instrument Inputs Type
Electronically Balanced, Zin = 2MO
- Instrument Inputs Max. Input Level
>+15dBu, min gain
- Instrument Inputs Frequency Response
20Hz – 35kHz ±0.1dB
- Instrument Inputs THD + N
<-100dB (0.001%) @ -1dBFS (@ 16dB Gain)
- Instrument Inputs Signal-To-Noise Ratio
-118dB ‘A’-Weighted (typical), min gain
- Instrument Inputs HPF
High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
LINE LEVEL OUTPUTS
- Line Level Outputs 0 DBFS Reference Levels
+18 or +24dBu (switchable)
- Line Level Outputs Frequency Response
20Hz – 35kHz ±0.1dB
- Line Level Outputs THD + N
<-104dB (0.0006%) @ -1dBFS
- Line Level Outputs Dynamic Range
-120dB ‘A’-Weighted (typical), 20Hz – 20kHz
HEADPHONE OUTPUT
- Headphone Output 0 DBFS Reference Levels
>+19dBm
- Headphone Output Frequency Response
20Hz – 20kHz ±0.2dB
- Headphone Output THD + N
<-103dB (0.0007%) @ -1dBFS
- Headphone Output Dynamic Range
117dB ‘A’-weighted (typical), 20Hz – 20kHz
- Headphone Output Impedance
5O
- Headphone Impedance
32O – 600O
MICROPHONE/ LINE CROSSTALK
- Mic/Line Input To Input
< -72dB; 20Hz – 20kHz (driven channel at -20dBFS)
- Mic/Line Input To Output
< -126dB; 20Hz – 20kHz (driven channel at -20dBFS)
- Output To Mic/Line Input
< -159dB; 20Hz – 20kHz (driven channel at -20dBFS)
OUTPUT CROSSTALK
- Output To Output
< -101dB; 20Hz – 20kHz (driven channel at -20dBFS)
HEADPHONE CROSSTALK
- Right To Left
< -85dB; 20Hz – 20kHz (driven channel at -20dBFS)
DIGITAL PERFORMANCE
- Supported Sample Rates
44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
- Clock Sources
Internal or from Dante Network Master.
FRONT PANEL CONNECTIVITY
- Outputs Headphone Outputs
1 x 1/4″ stereo jack

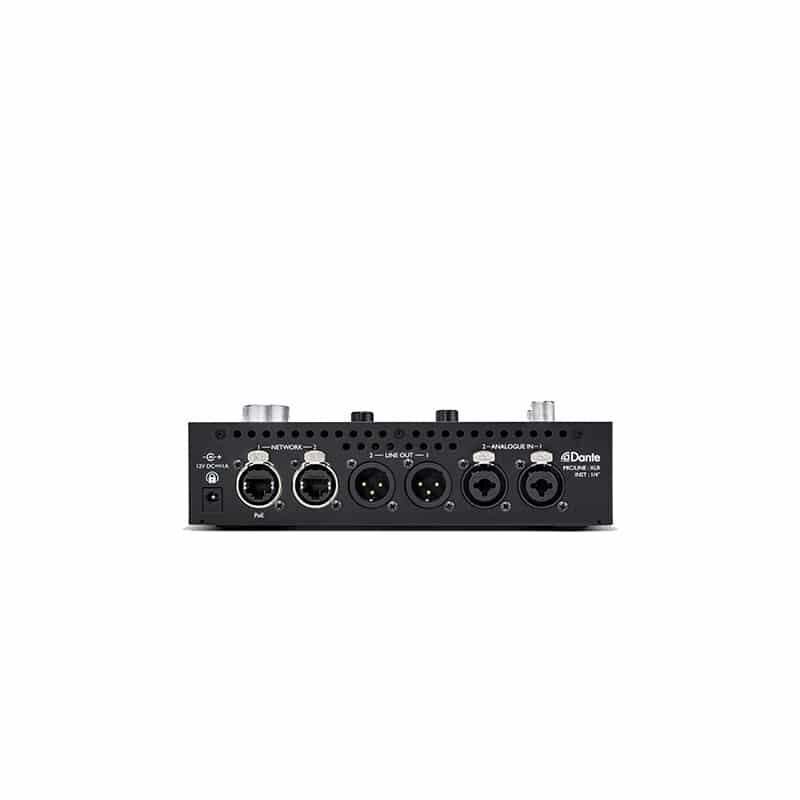

REAR PANEL CONNECTIVITY
- Inputs Mic/Line/Inst Inputs
2 x Locking Combi XLR
- Outputs Line Outputs
2 x Male XLR
PSU & NETWORK CONNECTIONS
- PSU (PoE And DC)
1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector.
- Network
2 x etherCON connectors, also compatible with standard RJ45 connectors.
TOP PANEL INDICATORS
- LCD Screen
1 x Screen (Status & Metering)
DIMENSIONS
- Height (Chassis Only)
47.5mm/ 1.87″
- Width
140mm/ 5.51″
- Depth (Chassis Only)
104mm/ 4.09″
WEIGHT
- Weight
1.04kg
POWER
Power Over Ethernet (PoE)
Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
DC Power Supply
1 x 12V 1.2A DC Power Supply.
Power Consumption
PoE: 11.0W – DC: 13.32W (When using supplied DC PSU)
HEAT PERFORMANCE
Operating Temperature
Operates at up to an ambient temperature of 45 degrees Celcius
| น้ำหนัก | 1.04 kg |
|---|---|
| ขนาด | 104 × 140 × 47.5 mm |
| ยี่ห้อ |
