ITC T-240 TB Mixer Amplifier เครื่องผสมสัญญาณเสียง 4ไมค์ 2aux

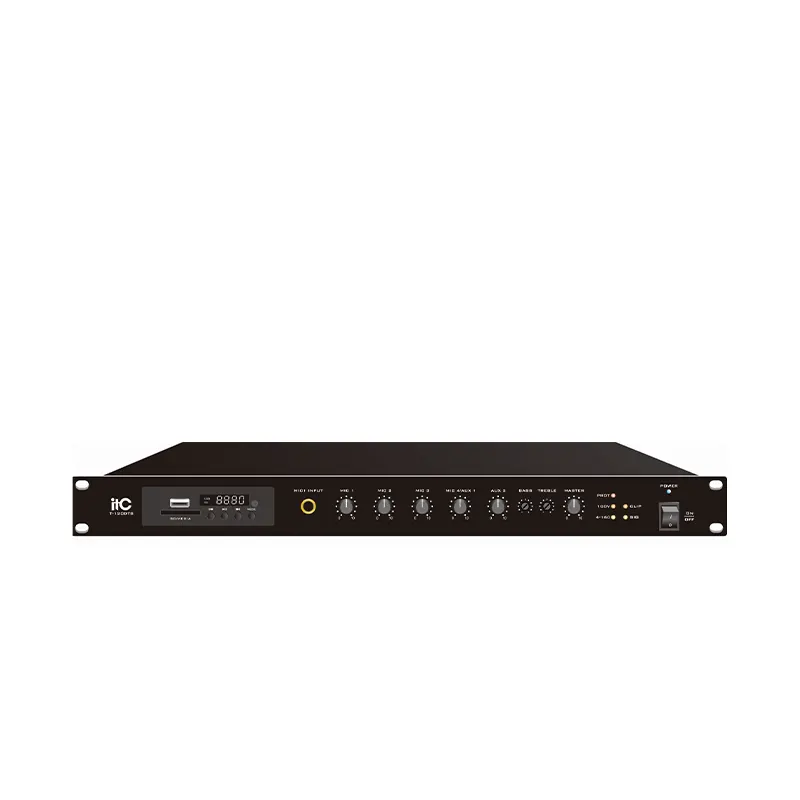

ITC T-240
Mixer Amplifier with Audio Sources(MP3/TUNER/Bluetooth)
คุณสมบัติ
- Standard rack mounted design (1U), SMT design
- With mp3/TUNER/Bluetooth module，Digital screen displaying the current music from USB。
- With mp3/TUNER/Bluetooth remote control function。
- 1EMC input，2AUX input，4MIC input。
- Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2。
- Each channel has volume control function, master volume control and bass/treble tone control。
- With level indicator, overload and protection indicator。
- With high temp, overload & short-circuit protection.
- 2 output modes：100V、70V（non- Bridged mode）
- High energy-efficient switching power supply and high-efficient power amplifier
- Wide voltage power supply: 180V – 240 V can work normally.
สเปค
| Model | T-60TB | T-120TB | T-240TB |
| Output Terminal | 70V, 100V | ||
| Output Power | 60W | 120W | 240W |
| The Input Sensitivity And Impedance | MIC1, 2, 3, 4input:5mV/600Ω Unbalanced 6.3 connector | ||
| AUX1, 2 input:350mV/10KΩ Unbalanced RCA connector | |||
| EMC input:775mV/10KΩUnbalanced 6.3 connector | |||
| The Output Sensitivity & Source Impedance | MIX OUT:1000mV/470Ω Unbalanced RCA connector | ||
| Tone | Bass: ±10dB at 100Hz | ||
| Treble: ±10dB at 10KHz | |||
| Frequency Response | 50Hz~16KHz (+1dB, -3dB) | ||
| SNR | MIC1, 2, 3:66dB; AUX1, 2:80dB | ||
| THD | Less than 0.5%( at 1KHz, 1/3 rated power) | ||
| Mute Control | EMC has highest priority | ||
| MIC 1 priority over MIC2-4, AUX1-2 audio input, | |||
| Channel Crosstalk Attenuation | ≥50dB | ||
| Heat Dissipation | Flank in and rear panel out to force fan cooling, fan starts | ||
| when amplifier turned on, infinitely variable speeds | |||
| Protection | Over-heat, overload, short circuit, etc | ||
| Power Supply | ~220-240V 50/60Hz | ||
| Power Consumption | 100W | 180W | 350W |
| Dimension | 484×260×44mm | ||
| Weight | 4.1Kg | 4.5Kg | 5.1Kg |
