ITC T-2P120 เพาเวอร์แอมป์ แบบ 70V/100V 2 ชาแนล 2×120 วัตต์ จากแบรนด์ ITC

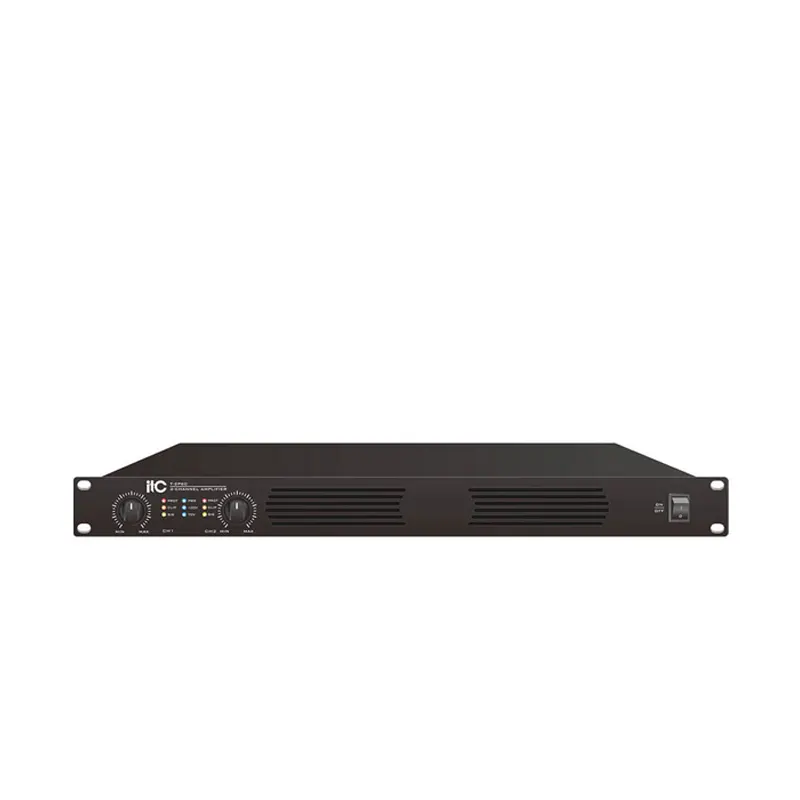

ITC T-2P120
2 Channel Power Amplifier
*One channel small power rack amplifier.
*Used for small area PA system.
คุณสมบัติ
-
Rack mount design in 1U type, Humanized design, exquisite technology, high-grade quality.
-
One channel LINE multifunction socket with TRS input or XLR balance input, XLR cascade output.
-
Perfectly combination of Energy efficient switching power supply and Efficient power amplifier.
-
Wide voltage power supply: 180V– 240V can work normally.
-
With standby power supply 24V ; switch without delay, optional.
-
Panel with the volume control knob, rear panel has a floating “earth” switch, when multiple devices connected and disconnect the switch, it would effectively eliminate the earth line loop noise which caused by multiple devices signal earth line connection.
-
With Short circuit, overload, overheat automatic protection function.
-
Two Power output way: 100v;70v.
สเปค
Model |
T-2P60 |
T-2P120 |
RMS |
2x60W |
2x120W |
Speaker Output |
70V, 100V |
|
Input Sensitivity & Input Impedance |
±385mV/10KΩ, balance XLR |
|
775mV/10KΩ,Unbalanced TRS input terminals |
||
Output Sensitivity & Output Source Impedance |
±385mV/10KΩ, balanceed XLR |
|
775mV/10KΩ,Unbalanced TRS output terminals |
||
Frequency Response |
50Hz~16KHz(+1dB, -3dB) |
|
SNR |
>90dB |
|
THD |
1KHz 0.5%, 1/3 output power |
|
Earth Line Float Switch |
Signal earth line can be connected on amplifier box or suspending |
|
Channel Crosstalk Attenuation |
<50dB |
|
Heat Dissipation |
From front to rear forced cooling, infinite temperature control fan |
|
Protection |
Overheating, overload and short circuit |
|
Power Supply |
~220-240V 50/60Hz |
|
Power Consumption |
180W |
350W |
Dimension |
484x255x44mm |
|
Weight |
3.8 Kg |
4.30Kg |
Material |
Black Aluminum panel, (SPCC) Cold Rolled Sheet |
|
