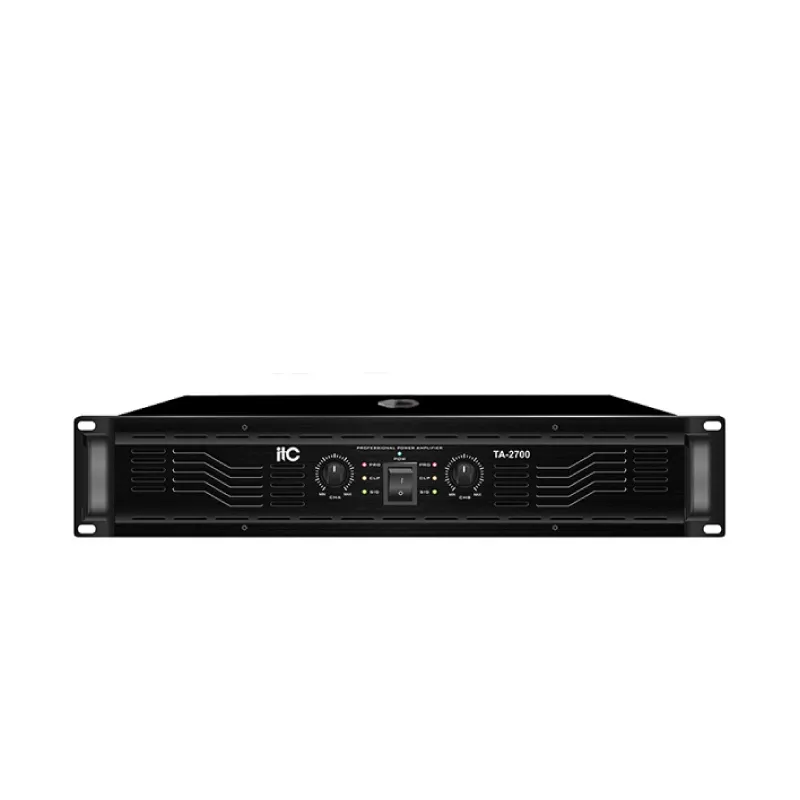

เพาเวอร์แอมป์ ITC TA-2700 2×700 วัตต์ Stereo 8 โอมห์ จากแบรนด์ ITC
ITC TA-2700
Professional Power Amplifier
คุณสมบัติ
- Industrial modeling steel panel, professional design and durable surface, anti-dust mesh panel with folding structure design, removable cleaning cooling vents.
- Power on soft-start, to prevent absorbing a large current of the power grid, from interference with other electrical equipment.
- Intelligent control forced cooling design, low fan noise, high cooling efficiency etc.
- Built-in intelligent limiter system, control the power module and the speaker system work in a safe range.
- Built-in 30Hz / 50Hz high-pass filter.
- Multiple modes: stereo, bridge, parallel.
- Abundant reserve power, with 2R low-impedance output, high-fidelity and perfect sound quality.
- High quality transformer, low resistance and large capacity electrolytic filter, ensure large dynamic work smoothly.
- Class-H efficient power amplifier, comprehensive and reliable security protection measures and working status indicator (short circuit, overload, DC and overheating protection, transformer overheating protection), let users at easy use.
สเปค
Output Power (20-20KHz/THD≤1%) |
TA-2500 |
TA-2700 |
TA-2900 |
TA-21200 |
|||||
Stereo/Parallel 8Ω X 2 |
500W x 2 |
700W x 2 |
900W x 2 |
1200W x 2 |
|||||
Stereo/Parallel 4Ω X 2 |
750W x 2 |
1050W x 2 |
1350W x 2 |
1800W x 2 |
|||||
Stereo/Parallel 2Ω X 2 |
1125Wx 2 |
1500W x 2 |
2000W x 2 |
2700W x 2 |
|||||
Bridged 8Ω |
1500W |
2100W |
2600W |
3600W |
|||||
Bridged 4Ω |
2200W |
3000W |
4000W |
5400W |
|||||
Integrated Socket |
XLR, TRS interface |
||||||||
Voltage Gain (@1KHz) |
36dB |
37.7dB |
38.5dB |
40dB |
|||||
Input Sensitivity |
0dBu(1V) |
||||||||
Input Impedance |
10KΩ Unbalance, 20KΩ balance |
||||||||
Frequency Response (@1W Power) |
20-20KHz/±1dB |
||||||||
THD+N |
≤0.05% |
||||||||
S/N Ratio (A Weighting) |
≥100dB |
||||||||
Damping (@ 1KHz) |
≥300@ 8Ω |
||||||||
Resolution (@1KHz) |
≥80dB |
||||||||
Protection Mode |
Over-current protection, DC protection, short circuit protection |
||||||||
Indicator |
Power, protection, distortion |
||||||||
Cooling Method |
Fan cooling |
||||||||
Power Supply |
~ 220-240V 50/60Hz |
||||||||
maximum Power Consumption |
3300W |
4500W |
6000W |
8000W |
|||||
Dimensions (L x W x H) |
483 x 88 x 494mm |
483 x 132 x 524mm |
|||||||
Weight |
17.4Kg |
19.6Kg |
30.Kg |
32.Kg |
