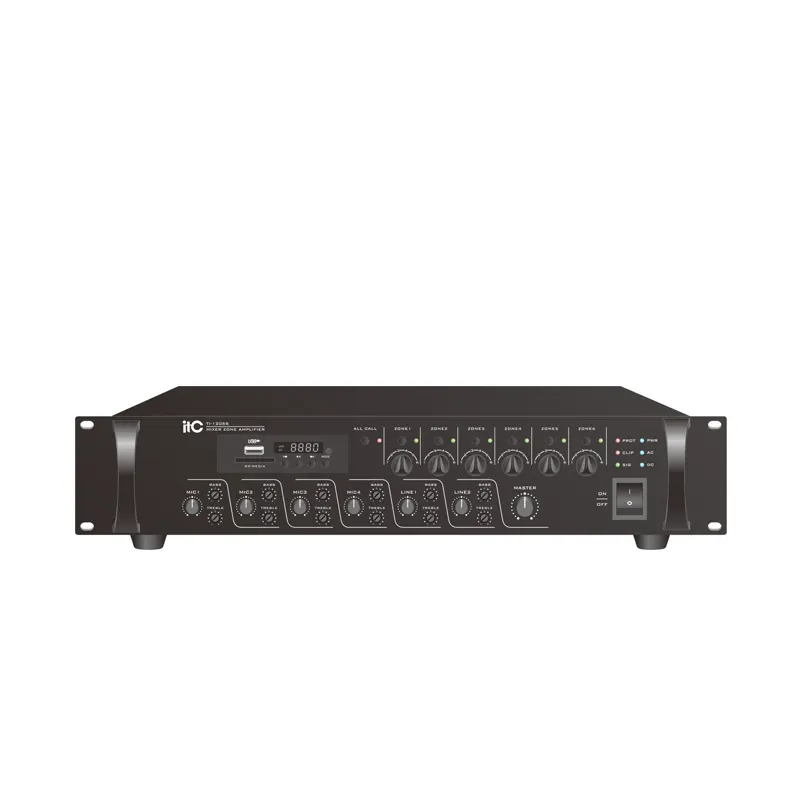

ITC TI-5006S มิกเซอร์แอมป์ 500 วัตต์ MONO 3 MIC ITC TI-5006S6 Mixer Amplifier จากแบรนด์ ITC
ITC TI-5006S
Zones Mixer Amplifier with Mp3
คุณสมบัติ
- Rated outputs from 60W to 120W and 240W.
- 70V, 100V and low impedance 4-16Ω speaker outputs.
- Built-in MP3 player and AM/FM tuner and remote control.
- USB ports and front and rear panel to read MP3 files.
- MP3 file single cycle and all cycle play modes.
- AM/FM each 100 channels memory storage.
- Tuner manual or automatic search with remote control.
- 3 balanced MIC inputs, 2 line inputs, 1 aux input and 1 line output.
- Pre output/Amp input for extra signal processing equipments like mixer, EQ.
- 5 zone and all zone speaker outputs.
- EMC input with priority over all other inputs except MIC 1.
- Mic 1 of VOX features of highest input priority.
- Built-in chime, chime volume, remote trigger and 2/4 tone selector are provided.
- Aux, Mic1-3, MP3, tuner and master volume control, bass and treble tone control.
- VFD English display.
- Power, protection indicators and output level meters.
- AC fuse, short circuit and high temp protection.
สเปค
Model |
TI-1206S |
TI-2406S |
TI-3506S |
TI-5006S |
|
Amplifier Section(Load 100V Output) |
Rated Output Power (THD 1%) |
120W(RMS) |
240W(RMS) |
350W(RMS) |
500W(RMS) |
Speaker Zone 1~5 Output |
25W MAX |
50W MAX |
70W MAX |
85W MAX |
|
Mic Input Section(Mic 1~4 In@1KHz) |
Input Sensitivity/Impedance |
5mV 600Ω/350mV 10KΩ BAL |
|||
S/N Ratio |
Better than 75dB |
||||
Frequency Response (±3dB) |
80Hz~16KHz |
||||
Tone Control (Bass:100Hz, Treble:10KHz) |
±10dB |
||||
Phantom Power |
+ 48V |
||||
Line Input Section(Mic 1~2 In@1KHz) |
Input Sensitivity/Impedance |
350mV/47KΩ |
|||
S/N |
Better than 80dB |
||||
Frequency Response (±3dB) |
80Hz~16KHz |
||||
Tone Control (Bass: 100Hz,Treble:10KHz) |
±10dB |
||||
Tel Audio Input |
Input Sensitivity/Impedance |
0.775V/10KΩ |
|||
S/N |
Better than 75dB |
||||
Frequency Response (±3dB) |
50Hz~16KHz |
||||
EMC Audio Input |
Input Sensitivity/Impedance |
0.775V/10KΩ |
|||
S/N |
Better than 75dB |
||||
Frequency Response (±3dB) |
80Hz~16KHz |
||||
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In) |
1V/600Ω |
||||
Remote MIC Sensitivity/Impedance |
775mV/10KΩ |
||||
THD |
Less than 0.1% at 1KHz, 1/3 rated power |
||||
Power Supply |
~110-230V 50/60Hz & DC 24V |
||||
Power Consumption |
180W |
320W |
500W |
750W |
|
Weight |
6.5Kg |
7.1Kg |
7.8Kg |
8.9Kg |
