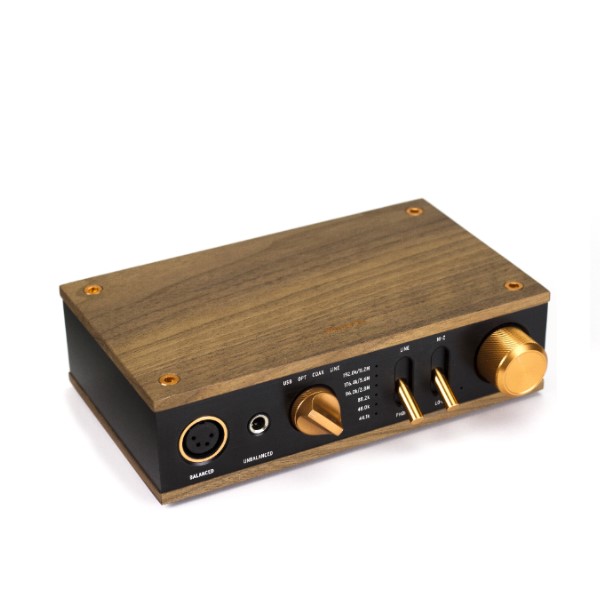

KLIPSCH HERITAGE HEADPHONE AMPLIFIER
KLIPSCH HERITAGE แอมป์หูฟัง HERITAGE HEADPHONE AMPLIFIER จากแบรนด์ KLIPSCH
Encased in formed aluminum with genuine walnut veneer, the Heritage Headphone Amplifier exudes quality before plugging in your headphones. All switches, knobs, and controls are weighted and anodized aluminum for great feel and tactile response. All analog switches operate through relays for the cleanest signal while maintaining a vintage feel.
คุณสมบัติ
- Audiophile digital to analog converter
- Asynchronous USB interface
- Dual amplifiers for balanced output
- Versatile inputs and outputs
- Low distortion
- Sample rate notification
สเปค
| S P E C I F I C AT I O N S | |
| AMPLIFIER TYPE | Dual Class-AB (TI TPA6120A2) |
| DIGITAL ANALOG CONVERTER | ESS Sabre32 ES9018K2M |
| USB | XMOS Asynchronous Audio Interface |
| AMPLIFIER POWER | Balanced XLR-4 525mW into 16Ω 1440mW into 32Ω 1050mW into 150Ω 540mW into 300Ω 270mW into 600Ω |
| FREQUENCY RESPONSE | Balanced XLR-4 20 Hz – 40 kHz, +0 / -0.1 dB 9 Hz – 90 kHz, +0 / -3.0 dB |
| SIGNAL TO NOISE RATIO | Balanced XLR-4 118 dB A-Weighted |
| THD+N | Balanced XLR-4 < 0.009%, 20 Hz – 20 kHz |
| CROSSTALK | Balanced XLR-4 < -75 dB, 20 Hz – 20 kHz |
| GAIN | Lo-Z 0 dB, Hi-Z 10 dB |
| SAMPLE RATE SUPPORT | 16 – 24 Bit | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| DSD SUPPORT | 2.8M, 5.6M, 11.2M |
| INPUTS | • USB Audio (Type B Connection) • Optical (TOSLINK) • Coaxial • RCA Analog Audio |
| OUTPUTS | • Balanced XLR-4 • Unbalanced 1/4” • RCA Analog Audio (Fixed/Variable) |
| PRODUCT DIMENSIONS | 2.28” (58mm) H x 7.87” (200mm) W x 5.7” (145mm) D |
| BOX DIMENSIONS | 4.52” (115mm) H x 11.73 (298mm) W x 6.45” (164mm) D |
| ENCLOSURE MATERIAL | Top and Bottom: MDF with Walnut Veneer Case: Anodized Aluminum Extrusion |
| VOLTAGE | 100-240 VAC, 50/60 Hz |
| PRODUCT WEIGHT | 1.7 lbs (.77 kg) |
| BOXED WEIGHT | 2.75 lbs (1.25 kg) |
| INCLUDED ACCESSORIES | • 2.0m USB Type-B Cable • Universal Power Supply • US, EU, UK, and AU Plugs |
| BUILT FROM | 2017 |
