Built to Handle Extreme Low-Frequency Loads Effortlessly…

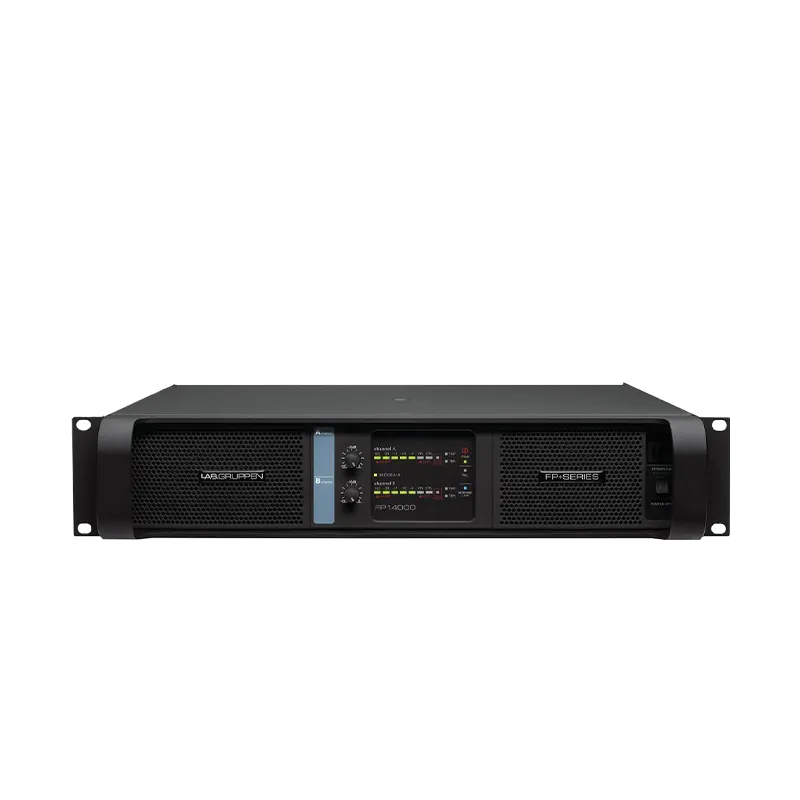

Over the past decade, the tight and transparent sound of LAB GRUPPEN touring amplifiers has earned the praise of renowned FOH engineers and leading sound rental companies worldwide. FP 14000, the new flagship model of the FP+ Series, advances this tradition by further augmenting effective power output to effortlessly handle extreme low-frequency loads.The Regulated Switch Mode Power Supply (R.SMPS) has been updated to provide more sustained high power during extended bursts of low frequency content, while at the same time ensuring stable rail voltages even with wide fluctuations of external mains voltage. The forceful, high-current (83 A peak) output stage relies on LAB GRUPPEN’s patented Class TD topology, a breakthrough in amplifier technology that approaches the efficiency of Class D while retaining the sonic purity of proven Class B designs. A highly refined and efficient circuit layout further optimizes the interaction of R.SMPS and Class TD to produce the unprecedented power density of the FP 14000.

To keep its cool under extreme demands, the FP 14000 relies on LAB GRUPPEN’s proprietary Intercooler. This innovation uses thousands of copper fins to multiply the exposed heatsink surface’s rapid heat dissipation. Also, all output devices are mounted transverse to the airflow for uniform cooling. As a result, the FP 14000 delivers LAB GRUPPEN’s’ trademark “all the power, all the time” with no degradation of sonic performance.

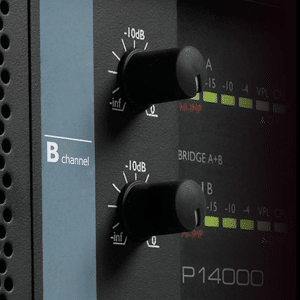

To maximize headroom in any application, the FP 14000 offers adjustable input gain along with LAB GRUPPEN’s exclusive Voltage Peak Limiter (VPL). Adjustable on a per-channel basis, VPL optimizes the output for any load, from a single massive subwoofer to a series of HF compression drivers.

The comprehensive warning and protection features on the FP 14000 safeguard output circuits and connected loads while also extending amplifier life and minimizing the chance of service interruptions Whether it’s a matter of faulty wiring, improper use, or extreme ambient temperatures, the FP 14000 gives clear indication of any problems. Automatic protection measures engage only at critical thresholds. Operating conditions are re-checked every six seconds and, if a fault is detected, normal operation is resumed when measurements return to nominal.
