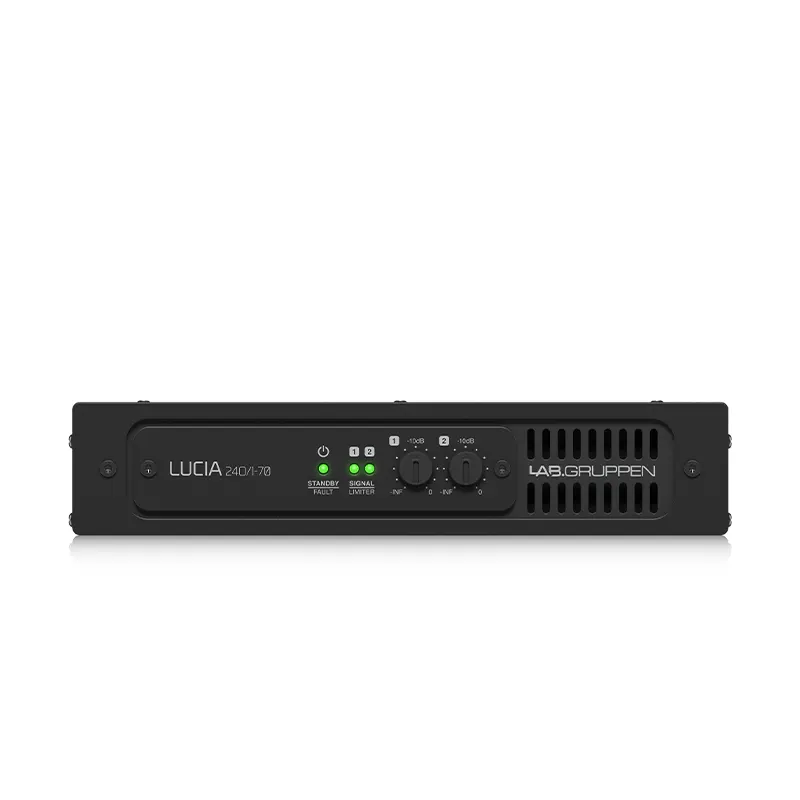

แอมป์ขยายเสียง LAB GRUPPEN LUCIA 240/1-70 แอมป์ขยายเสียง 1 ชาเเนล คลาส D 240 วัตต์ แบบ 70V/100V แอมป์ขยายเสียง LUCIA 240/1-70 จากแบรนด์ LAB GRUPPEN
LAB GRUPPEN LUCIA 240/1-70
เป็นแอมพลิฟายเออร์สุดคุ้มค่า ขนาดเล็ก กะทัดรัด ติดตั้งง่าย มาพร้อมกำลังขับ 240 วัตต์ คลาส D การให้กำลังเป็นไปตามมาตรฐานของ Energy Star
Great Sound, Flexibility and Ease of Use
Lab Gruppen’s innovative LUCIA (Localized Utility Compact Intelligent Amplification) brings superior audio performance and extraordinary flexibility to a decentralized approach in AV systems design. Power, processing, control and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution that often eliminates the complications and added expense of a centralized equipment room. LUCIA amplifiers incorporate a digital, firmware-controlled front end coupled to a robust, durable and highly efficient Lab Gruppen output stage, all of which make LUCIA the best-sounding and most reliable compact amplifier in its category.
Fits in Anywhere
LUCIA 240/1-70 has been designed and engineered for quick installation and easy setup. The supplied wall-mount bracket enables discreet on-wall location (such as behind video displays), but the ultra-compact form factor also allows easy placement virtually anyplace – whether next to a projector or integrated into a reception counter, podium & lectern or bar area. All input and output connections are on Euroblock screw terminals (with parallel unbalanced RCA connectors), and level setting is available on front-panel potentiometers. Advanced circuitry protects the amplifier and connected loudspeakers from potential damage caused by clipping, thermal overload, or extreme low line voltage.
Integrated DSP for Enhanced Flexibility
The LUCIA 240/1-70 incorporates a digital front end with a 2 x 1 Mix Matrix and comprehensive DSP features, including proprietary Automatic Dynamic Loudness Contouring (ADLC™) and a full selection of EQ filters both before and after the matrix – features that eliminate the need for external mixers and processors in many applications, saving time and money. A software wizard facilitates fast setup, while the advanced editor allows offline configuration of common presets that can be quickly downloaded to multiple units via USB.
Green Credentials
LUCIA amplifiers are Energy Star qualified, making them an ideal choice for installation in projects seeking energy efficient certifications. The amplifiers automatically enter standby mode after a 20 minute period with no signal input, consuming less than 1 watt. Automatic power-up occurs within two seconds after an input signal is sensed.
Third Party Control
Once installed the LUCIA can be controlled and monitored either via GPIO or more extensively using that RS232 interface that is included. The protocol used is open and free for anyone to implement. The list of companies supporting it is growing.
Energy Star Qualified
By maintaining very low current draw during operating cycles even at high output levels, and reduced power consumption during non-operational cycles, our Energy Star qualified products harness impeccable Lab Gruppen sonic performance and robust power output while meeting the rigorous efficiency requirements of current Energy Star certification standards.
ADLC for Great Sound, Everytime
Automatic Dynamic Loudness Contouring ensures a fuller and comfortable listening experience – especially at low perceived levels. Based on industry leading technology from TC Electronic, ADLC ensures that LUCIA makes the best of what comes into the system regardless of output gain (or “volume”).
คุณสมบัติ
FEATURES
-
- Compact mono amplifier which offers 240 W for high impedance speakers on 70 V distribution lines
- Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
- Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows and Mac
- Energy efficient with Energy Star certification for supreme green credentials and exceptionally low lifetime running costs
- Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
- Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
- Optimized presets available for a wide range of loudspeaker models for fast configuration
- Enhanced Bass Profile for extended LF response with small loudspeakers
- Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
- Efficient Class-D amplifier with low distortion and minimal heat dissipation
- Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
- Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
- Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
- Universal power supply supports 100 – 240 V AC at 50 or 60 Hz
- Intelligent fan control for silent operation at idle and at lower output levels
- Front panel power and fault indication as well as per-channel signal LED and attenuation knob
- Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
- Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
- Rackmount kit, pole-mount kit and wall panel kits available as accessories
สเปค
Specification
General
| Number of amplifier channels | 1 |
| Max total output all channels driven | 240 W |
| Max output voltage | 100 Vpeak |
| Max output Current | 7 Arms |
Performance
| 70 V | 240 W |
| 100 V 1 | 120 W |
| 16 ohms | 240 W |
| Signal to Noise Ratio | >100 dBA |
Gain, Sensitivity and Limiters
| VPL | 100 Vpeak |
| Sensitivity, balanced input | 4 dBu / 1.23 Vrms |
| Sensitivity, RCA input | -2 dBu / 0.62 Vrms |
| Input headroom for clip, balanced 2 | 12 dBu / 3.09 Vrms |
| Input headroom for clip, RCA 2 | 6 dBu / 1.55 Vrms |
Connectors and Buttons
| Input connectors (per ch.) | 3 – pin detachable screw terminals, electronically balanced |
| Input connectors (ch. 1 & 2) | Unbalanced RCA type |
| Output connector | 2 – pin detachable screw terminal |
| GPI 3 | 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default functionality is output level for GPI1 and wake up from stand by for GPI2. |
| GPO (power state output) 3 | Contact closure type, 2 pins in a detachable screw terminal Default for external monitoring of fault/protection/power off |
| USB | For firmware update and configuration of the signal processing and altering the default functions of the GPI ports |
| High pass filter | This filter is in series with the other filters in the DSP and it is controlled with switches on the back. Settings OFF / 50 Hz / 80 Hz. |
| Level adjustment (per input) | Front panel potentiometer, detented from -inf to 0 dB |
| RS232 | Can be controlled and monitored by third parties via RS232 using both the GPI pins |
Processing Features
| Input processing block 4 | 4 EQ sections per input |
| Mix matrix routing block 4 | 2 in – 1 out mix-matrix controllable from GPI |
| Output processing block 4 | 4 EQ sections per output (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation) |
| Latency from any input to any output | User adjustable from 9.15 to 137 ms |
Power
| Nominal voltage | 100 – 240 VAC |
| Operating voltage | 85 – 265 VAC |
| Standby consumption | <1 W |
| Mains connector | IEC inlet |
| Cooling | One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 12 W and the ambient temperature is below 25 C |
| Auto mode | The power state is controled automatically by the audio signal |
Dimensions
| Dimensions | W: 216 mm (8.5”), H: 44 mm (1 U), D: 280 mm (11”) |
Weight
| Weight | 1.9 kg (4.2 lbs) |
Finish
| Finish | Black aluminum front and black steel chassis |
Approvals
| Approvals | CE, CSA, CCC, PSE, FCC, Energy Star |
