LAB GRUPPEN PLM 12K44 BP แอมป์ขยายเสียง 4 แชนแนล คลาส D 12000 วัตต์ 16 โอมห์

฿455,820 (รวม VAT 7% แล้ว)

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

แอมป์ขยายเสียง LAB GRUPPEN PLM 12K44 BP แอมป์ขยายเสียง 4 แชนแนล คลาส D 12000 วัตต์ 16 โอมห์ PLM 12K44 BP จากแบรนด์ LAB GRUPPEN

LAB GRUPPEN PLM 12K44 BP

12,000 Watt Amplifier with 4 Flexible Output Channels on Binding Post Connectors, Lake Digital Signal Processing and Digital Audio Networking for Touring Applications

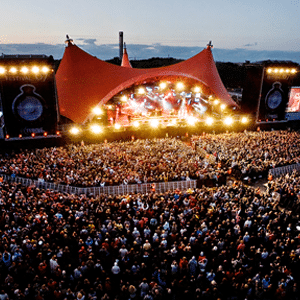

PLM-5K44-1

The PLM 12K44 Combines a 4-in, 4-out Configuration with Industry-standard Dante Networking, Setting the Benchmark for Powered Loudspeaker Management Systems.

The PLM 12K44 is the natural successor of the proven, road tested, and trusted LAB GRUPPEN touring foundation exemplified by the iconic PLM series, but with an additional new powerful feature set: the ability to rationalize power allocation between channels to optimize performance. Now packaged in an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 LAKE Controller release, plus industry-standard Dante® networking, the PLM 12K44 sets the benchmark for Powered Loudspeaker Management Systems.

The PLM 12K44 combines four channels of extremely powerful amplification with unrivalled signal processing and audio management. At the core of the system concept is the total integration of all devices – including networking, audio I/O, signal processing, amplifiers, power supply and connected mains supply – allowing complete control and monitoring of the entire platform, resulting in unique operational benefits.

Rational Power Management (RPM)

On top of the outstanding performance users have come to expect from a PLM, the 12K44 also features Rational Power Management (RPM), a proprietary LAB GRUPPEN technology that provides designers and systems techs with unprecedented freedom to allocate the available output power of each amplifier channel for optimum performance with specific load conditions. For the first time, RPM provides true flexibility in allocating available power across the four output channels. Each channel of the PLM 12K44 may be tailored to meet the requirements of the connected load, and any power not used for that channel may be allocated for use on other channels.

RPM helps to avoid amplifier over-specification, or bridging of adjacent channels in order to meet minimum demands on one power-hungry load, which would otherwise result in a loss of channel count. RPM technology also enables the user to minimize equipment costs, reduce rack space and improve long-term energy efficiency – all achievable without compromising sonic performance. Rational Power Management incorporates features that safeguard the defined power output of one or more specified channels. From within the CAFÉ software, it allows the desired power demand to be calculated for the different loads in several different ways. RPM then analyses the desired power in relation to the channel and device constraints and guides the system designer towards the most effective way of powering the PA.

Rational Power Management results in real-world savings, both immediate and long-term. In many cases, fewer amplifiers – or lower cost models – may be specified while still fulfilling all power requirements. It also allows better mains management, avoiding over-specification of mains distribution, cooling, and UPS (where required). Finally, the overall gains in efficiency in larger systems will minimize current consumption and reduce operation costs – a “green bonus” for the system owner.

D-10-4L-7

The Power of LAKE Processing

The PLM 12K44 features the legendary power of exclusive LAKE Processing algorithms, incorporating four full-featured LAKE modules with four discrete channels of audio throughput input to output. Audio signals are selectable from four channels of analog (with Iso-Float ground isolation), four channels via AES3 digital inputs and eight dual redundant Dante networked digital inputs. Input signals are individually selectable for each channel, with programmable failover to a lower prioritized input.

The full-featured, on-board LAKE Processor includes group control with Raised Cosine MESA EQ asymmetric filters to match the responses of any loudspeaker system. LimiterMax peak and RMS limiters set the industry standard for loudspeaker protection and sonic transparency.

The included LAKE Controller software provides a unified interface for control of LAKE functions and for comprehensive monitoring of both amplifier status and connected loudspeaker loads. Optimized for a wireless tablet PC, LAKE Controller is easy and intuitive to operate, with the “feel” of real-time analog faders and controls. LAKE Controller also features seamless integration with third party, real-time sound system measurement, optimization, and control software packages. Users can measure spectrum and transfer function and adjust system EQ at the same time, using the same user interface.

LAKE Processing offers classical crossovers (selectable up to 48 dB per octave) as well as linear-phase crossovers capable of slopes exceeding 180 dB per octave for greater control to limit lobing and off-axis cancellation.

D-10-4L-6

CAFÉ for Green Credentials

CAFÉ (Configuring Amplifiers For the Environment) is a software suite that allows the PLM 12K44 to be easily configured and monitored in the most efficient manner possible. In addition to providing comprehensive system surveillance and configuration of RPM and other amplifier features such as ISVPL and Breaker Emulation Limiter (BEL), CAFÉ also includes valuable help to save the environment.
In combination with the RPM configuration CAFÉ can accurately predict estimations of average mains current draw and generated heat, and utilizing the PLM+ Series’ innovative power supply technologies in combination with BEL the mains draw can be safeguarded to a predicted level. The end result is precise mains management and thermal control, which allows more accurate (rather than over-specified) provision of mains distribution, cabling and cooling. This technology suite reduces lifetime running costs and minimizes environmental impact. It also reduces demands on UPS systems.

D-10-4L-8

Allocate Power Where It Is Needed

RPM Provides ultimate flexibility of power output allocation across channels to match specific load requirements, enabling more efficient use of amplifier inventory

More is More: Power, Performance and Processing

PLM+ offers unprecedented levels of refined performance, double the processing power, and even better overall efficiency – proven, tested and trusted

CAFÉ with ESP: Configuration, Control and Monitoring

LAB GRUPPEN’s dedicated integrated software provides comprehensive system surveillance, reducing running costs and minimising environmental impact

คุณสมบัติ

FEATURES

  • 12,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts channel output for touring applications
  • Lake digital signal processing for unparalleled loudspeaker management and system control
  • Integrated 8×8 channels of dual redundant Dante* digital audio networking with AES67 support
  • 4 x 3,000 Watts into 2 Ohms, 4 x 3,000 Watts into 2.67 Ohms, 4 x 3,000 Watts into 4 Ohms, 4 x 1,900 Watts into 8 Ohms, 4 x 950 Watts into 16 Ohms, 4 x 3,000 Watts into Hi-Z 70 V, 4 x 3,000 Watts into Hi-Z 100 V
  • Proven and reliable Class-TD output stage with proprietary Intercooler high-efficiency cooling system
  • Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
  • Best-in-class Power Factor Correction (PFC) with Current Draw Modelling reduces running costs and minimizes environmental impact
  • Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops
  • Dedicated on-board surveillance and load monitoring for complete peace of mind
  • Redundant audio inputs and on-board system surveillance for full system security
  • Backlit, white-on-black front panel display and menu navigation buttons
  • 100 user presets for simple and efficient system configuration and set-up
  • 3 front-to-rear airflow fans with temperature control for optimal speed and reduced noise
  • 4 “Lake Class” analog input channels with Iso-Float ground isolation
  • 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution
  • 2 Neutrik etherCON* RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software
  • Balanced analog and AES/EBU audio inputs on Neutrik* XLR connectors
  • Rugged binding post output connectors
  • Detachable Neutrik powerCON* cable rated at 250 V / 32 A
  • Removable dust filter grilles for increased air circulation
  • Rugged 2U rackmount chassis for durability in touring applications
  • 10-Year Warranty Program*
  • Designed and engineered in Sweden

สเปค

SPECIFICATION

General

Processing / Network Lake / Dante
Number of amplifier channels 4
Total burst power all channels (share among channels with RPM) 12000 W

Max output power (all channels driven)1

2 ohms 3000 W
2.67 ohms 3000 W
4 ohms 3000 W
8 ohms 1900 W
16 ohms 950 W
Hi-Z 70 V 3000 W
Hi-Z 100 V 3000 W

Max output power single channel1

2 ohms 4400 W
2.67 ohms 5900 W
4 ohms 4600 W
8 ohms 2300 W
16 ohms 1150 W
Hi-Z 70 V 3300 W
Hi-Z 100 V 4700 W

Amplifier output modules (all models, all channels)

Peak output voltage 194 V
Max. output current 67 A
Rational Power Management (RPM) Regardless of model, any channel has potential to deliver the max single channel output power
Default voltage limitation (can be lifted with RPM configuration) 175 V
Protection features Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection

Audio Performance (Amplifier platform with digital input)

THD + N 20 Hz – 20 kHz for 1 W < 0.05 %
THD + N at 1 kHz and 1 dB below clipping < 0.04 %
Dynamic range > 114 dB
Channel separation (Crosstalk) at 1 kHz > 70 dB
Frequency response (1 W into 8 Ohm, 20 Hz – 20 kHz) +/- 0.05 dB
Internal Sample Rate / Data path 48 / 96 kHz / 32 bit floating point
Product propagation delay AES 96 kHz / analog input 1.61 / 1.68 ms

Lake processing

Loudspeaker processing Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ – peak and RMS limiters
System tuning Group control with Raised Cosine™ MESA EG™ asymmetric filters
Input redundancy / Matrix Automatic 4 level input redundancy / 4 input mixers
System integration Comprehensive 3rd party protocol over UDP Ethernet

Measurement & Analysis

Pilot tone generation and analysis Yes
Load impedance analysis Yes
Real Time Analyzer (RTA), 3rd party integration Yes

Dante Audio Network

Dante I/O 8 x 8
Network topology / redundancy Flexible topology / Supports daisy-chained and Dual redundant networks
Sample Rates / Transport 48, 96 kHz / Uni + Multicast
Network latency 0.25, 0.5, 1.0, 2.0, 5.0 ms

Device presets

Local memory locations for the settings of the product 100

AES Inputs

Inputs 4 AES inputs
Supported sample rates / resolution 44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits
Sample rate conversion THD+N 20 Hz – 20 kHz unweighted 0.0000003

Analog Inputs

Inputs 4 high quality inputs with Iso-Float ground isolation
Maximum input / digital reference +26 dBu / +21 dBu
Sampling rate / Resolution 96 kHz / 24 bit
Input impedance balanced / unbalanced 20 / 10 kOhm
THD+N (typical at 1 kHz unweighted) 0.0000022
THD+N (typical at 20 Hz and 20 kHz unweighted) 0.0000033

Limiters

Adjustable Inter-Sample Voltage Peak Limiter (ISVPL) 17.8 – 194 V, step size 0.1 V
Current Peak Limiter < 300 ms 67 A peak
Current Average Limiter (CAL) > 300 ms 33 Arms
MaxRMS (rms voltage limiter) Yes
MaxPeak (peak voltage limiter) Yes

Gain

Amplifier gain 22 – 44 dB, step size 0.1 dB
Output attenuator -Inf to 0 dB, step size 0.25 dB

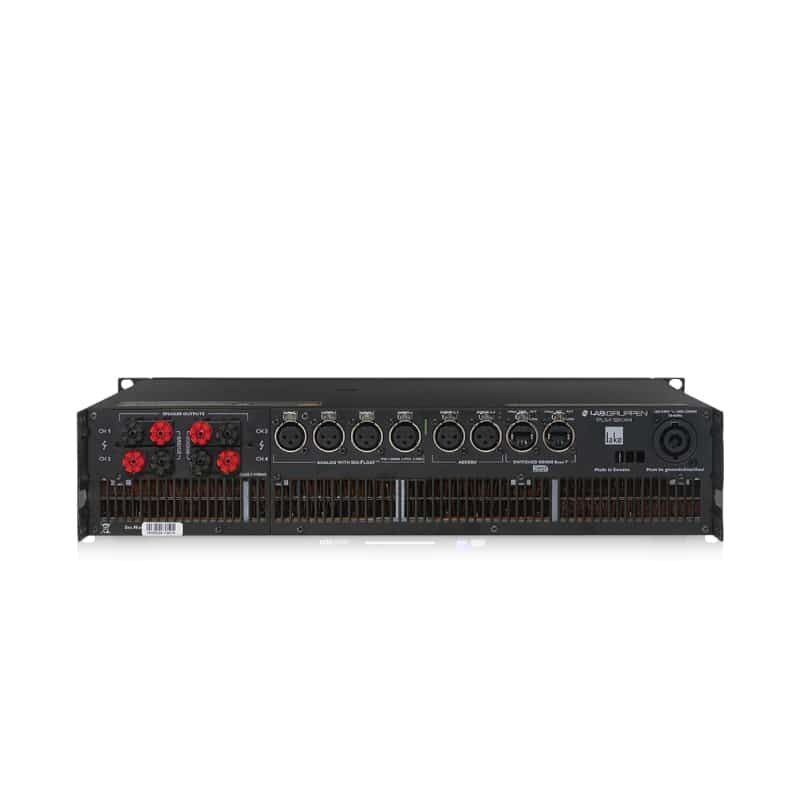

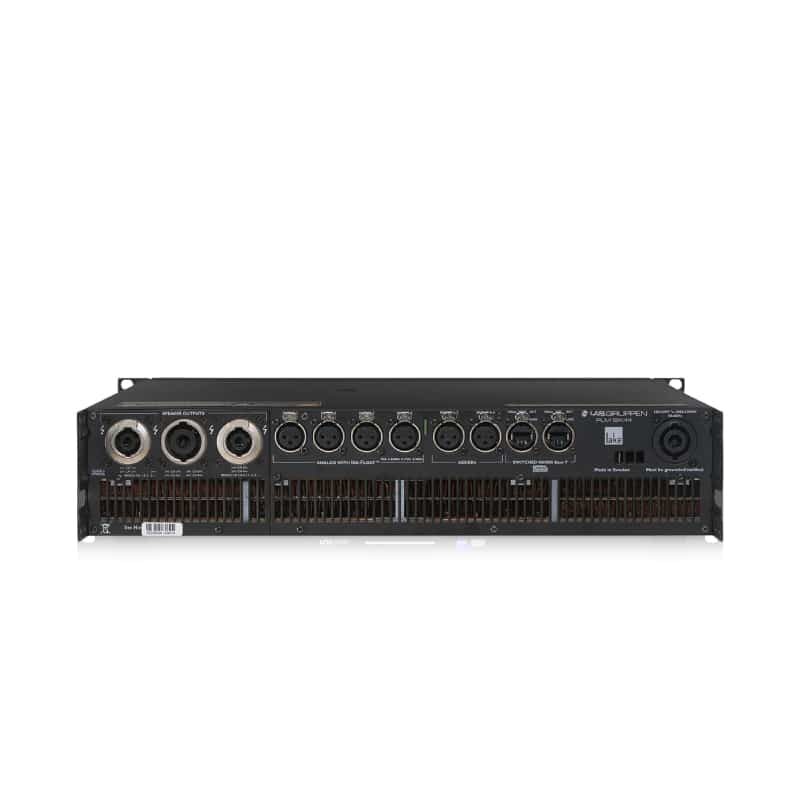

Back panel Interface

Analog, 2-channel I/O (input + link) 4 x 3-pin XLR, electronically balanced
AES / EBU / I/O (input + link) 2 x 3-pin XLR
Output connectors Neutrik speakON (1 x NLT8, 2 x NLT4) or 4 Binding Posts (pairs)
Auto 10/100, Auto Uplink 2 x RJ45 etherCON
Control and monitoring interface Via Ethernet for Lake Controller software, or DLM (the 3rd party protocol)
Detachable mains cord Neutrik PowerCon rated at 250V/32A
Cooling Three fans, front-rear airflow, temperature controlled speed

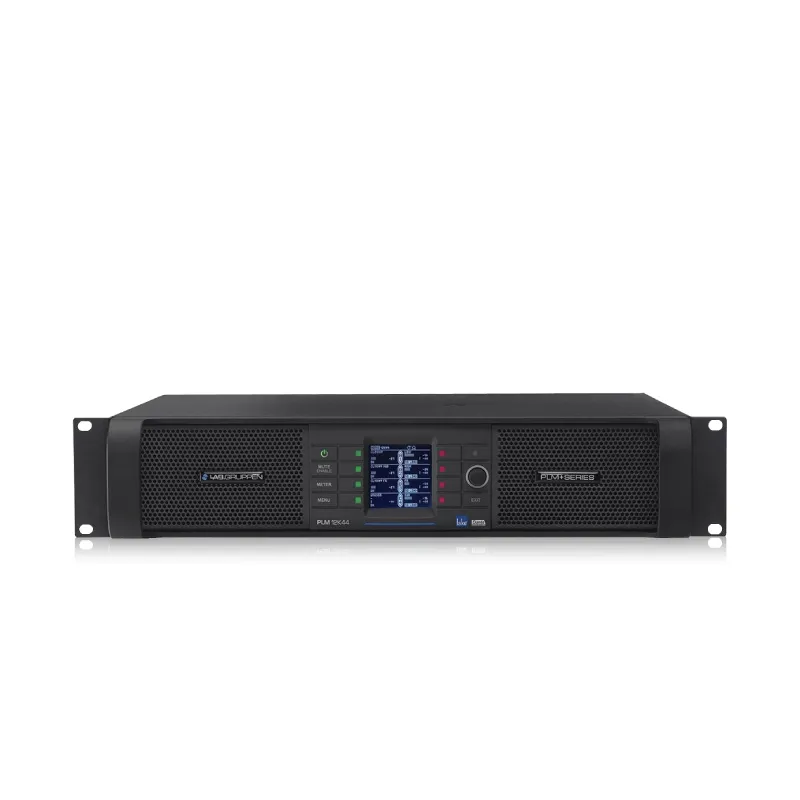

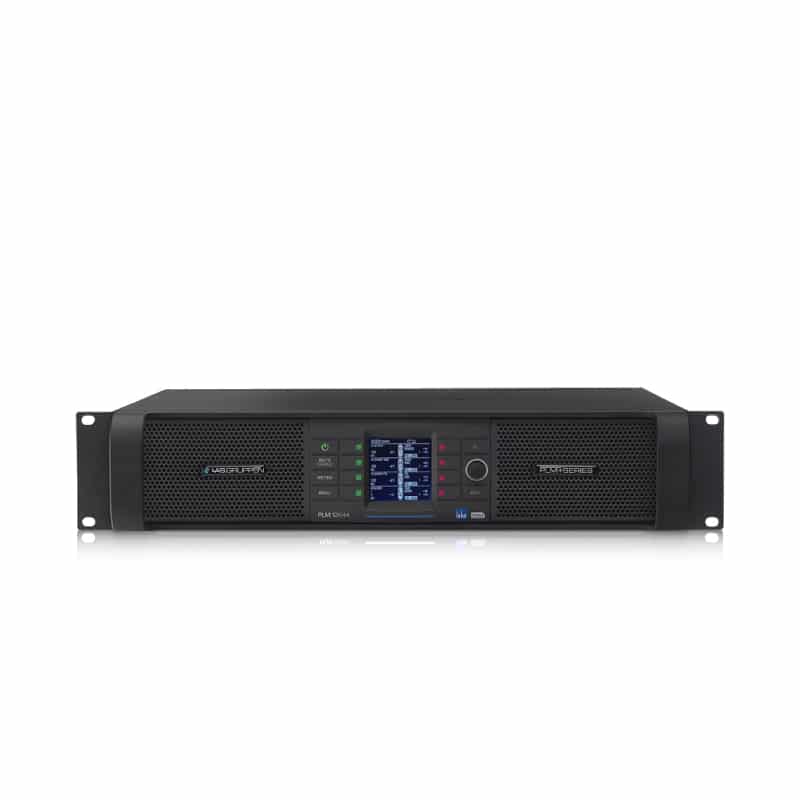

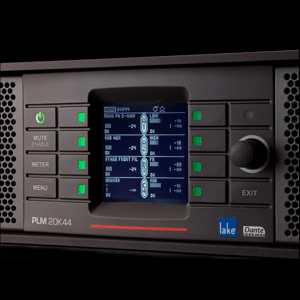

Front-panel user interface

Display 2.5 inch, black / white, daylight readable LCD
Fault/Warning/Limit/Clip indicators RGB LEDs and detailed fault description on display
Mute and soft function buttons 8 provided
Standby Power button On/Standby
Mute Enable button Enables muting of outputs and inputs via soft-button keypad
Meter button Toggles through meter views
Menu button Provides a menu driven interface for full function front panel control
Rotary Encoder Yes
Exit Button Provides a “back” function

Mains Power

Nominal voltage 100 – 240 Volt AC 45 – 66 Hz
Operating voltage 70-265 V AC
Mains wall plug NEMA L5-30 “Twist lock” 125 V / 30 A, and CEE 7/7 “Schuko” 230 V / 16 A

Power supply features

Soft start / Inrush power Yes/ Max 8 Ampere
Power Factor Correction (PFC) 0.98
Regulated switch mode power supply (R.SMPS) Yes
Breaker Emulation Limiter (BEL) Configurable current threshold and breaker profile
BEL max current threshold 25 A
Power Average Limiter (PAL) Yes
Under Voltage Limiter (UVL) Yes
Mains undervoltage and overvoltage protection and mains glitch tolerance Yes

Dimensions

Rack rail to rear panel W: 483 mm (19″), H: 88 mm (2 U), D: 424 mm (16″)
Overall depth front-rear support D: 498 mm (19.6″)

Weight

Weight 16.5 kg (36 lbs)

Finish

Finish Black painted steel chassis with black painted steel / aluminum front

Approvals

Approvals CE, ANSI / UL 60065 (ETL), CSA C22.2 NO. 60065, FCC, PSE, RCM, BIS India

ดาวน์โหลด

น้ำหนัก 16.5 กก.
ขนาด 483 × 424 × 88 มิลลิเมตร
