แอมป์ขยายเสียง LAB GRUPPEN PLM 20K44 SP แอมป์ขยายเสียง 4 แชนแนล คลาส D 20000 วัตต์ 16 โอมห์ PLM 20K44 SP จากแบรนด์ LAB GRUPPEN

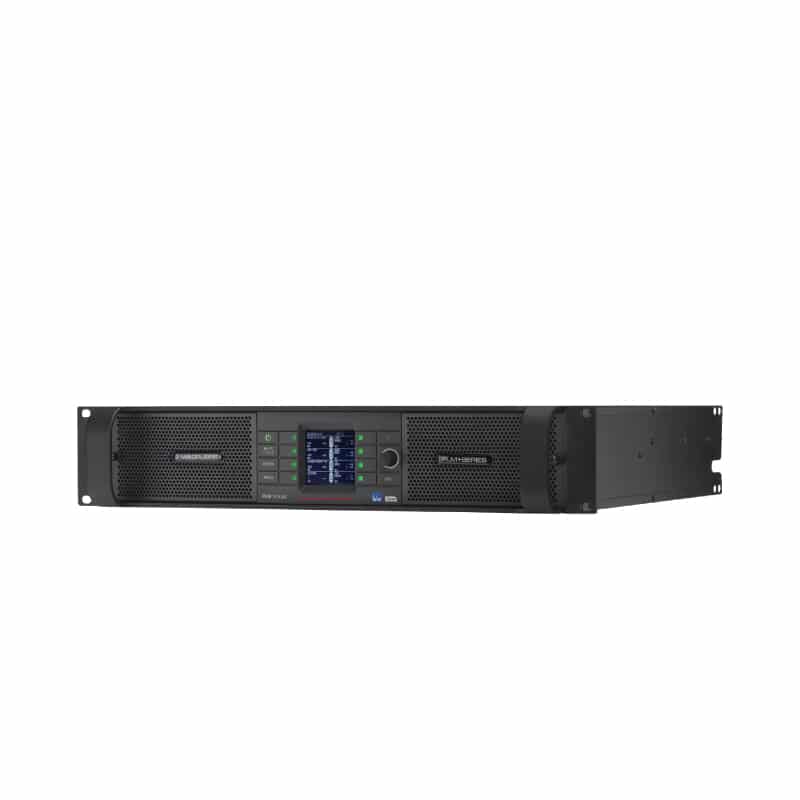

LAB GRUPPEN PLM 20K44 SP
20,000 Watt Amplifier with 4 Flexible Output Channels on SpeakON Connectors, Lake Digital Signal Processing and Digital Audio Networking for Touring Applications
The PLM 20K44 is the natural successor of the proven, road tested, and trusted LAB GRUPPEN touring foundation exemplified by the iconic PLM 20000Q. Now offering an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 Lake Controller release, plus industry-standard Dante® networking, the PLM 20K44 sets the benchmark for Powered Loudspeaker Management Systems.
The PLM 20K44 combines four channels of extremely powerful amplification with unrivalled signal processing and audio management. At the core of the system concept is the total integration of all devices – including networking, audio I/O, signal processing, amplifiers, power supply and connected mains supply – allowing complete control and monitoring of the entire platform, resulting in unique operational benefits.
The Power of LAKE Processing
The PLM 20K44 features the legendary power of exclusive LAKE Processing algorithms, incorporating four full-featured LAKE modules with four discrete channels of audio throughput input to output. Audio signals are selectable from four channels of analog (with Iso-Float ground isolation), four channels via AES3 digital inputs and eight dual redundant Dante networked digital inputs. Input signals are individually selectable for each channel, with programmable failover to a lower prioritized input.
The full-featured, on-board LAKE Processor includes group control with Raised Cosine MESA EQ asymmetric filters to match the responses of any loudspeaker system. LimiterMax peak and RMS limiters set the industry standard for loudspeaker protection and sonic transparency.
The included LAKE Controller software provides a unified interface for control of Lake functions and for comprehensive monitoring of both amplifier status and connected loudspeaker loads. Optimized for a wireless tablet PC, LAKE Controller is easy and intuitive to operate, with the “feel” of real-time analog faders and controls. Lake Controller also features seamless integration with third party, real-time sound system measurement, optimization, and control software packages. Users can measure spectrum and transfer function and adjust system EQ at the same time, using the same user interface.
LAKE Processing offers classical crossovers (selectable up to 48 dB per octave) as well as linear-phase crossovers capable of slopes exceeding 180 dB per octave for greater control to limit lobing and off-axis cancellation.
CAFÉ for Green Credentials
CAFÉ (Configuring Amplifiers For the Environment) is a software suite that allows the PLM 20K44 to be easily configured and monitored in the most efficient manner possible. In addition to providing comprehensive system surveillance and configuration of amplifier features such as ISVPL and Breaker Emulation Limiter (BEL), CAFÉ also includes valuable help to save the environment. CAFÉ can accurately predict estimations of average mains current draw and generated heat, and utilizing the PLM+ Series’ innovative power supply technologies in combination with BEL the mains draw can be safeguarded to a predicted level. The end result is precise mains management and thermal control, which allows more accurate provision of mains distribution, cabling and cooling. CAFÉ reduces lifetime running costs and minimizes environmental impact, and also reduces demands on UPS systems.
In addition CAFÉ also features Equipment Specification Predictor (ESP): an innovative design aid that examines the system SPL and speaker requirements and transforms that data into circuit and amplifier channel requirements. On a system level, CAFÉ supplies a recommendation for optimized placement of channels into amplifiers for the most cost effective solution, including quantities of PLM+ series models for the most rational equipment, thereby minimizing wasted headroom.
Allocate Power Where It Is Needed
RPM Provides ultimate flexibility of power output allocation across channels to match specific load requirements, enabling more efficient use of amplifier inventory
More is More: Power, Performance and Processing
PLM+ offers unprecedented levels of refined performance, double the processing power, and even better overall efficiency – proven, tested and trusted.
CAFÉ with ESP: Configuration, Control and Monitoring
LAB GRUPPEN’s dedicated integrated software provides comprehensive system surveillance, reducing running costs and minimising environmental impact.
คุณสมบัติ
FEATURES
- 20,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts channel output for touring applications
- Lake digital signal processing for unparalleled loudspeaker management and system control
- Integrated 8×8 channels of dual redundant Dante* digital audio networking with AES67 support
- 4 x 4,400 Watts into 2 Ohms, 4 x 5,000 Watts into 2.67 Ohms, 4 x 4,400 Watts into 4 Ohms, 4 x 2,300 Watts into 8 Ohms, 4 x 1,150 Watts into 16 Ohms, 4 x 3,300 Watts into Hi-Z 70 V, 4 x 4700 Watts into Hi-Z 100 V
- Proven and reliable Class-TD output stage with proprietary Intercooler high-efficiency cooling system
- Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
- Best-in-class Power Factor Correction (PFC) with Current Draw Modelling reduces running costs and minimizes environmental impact
- Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops
- Dedicated on-board surveillance and load monitoring for complete peace of mind
- Redundant audio inputs and on-board system surveillance for full system security
- Backlit, white-on-black front panel display and menu navigation buttons
- 100 user presets for simple and efficient system configuration and set-up
- 3 front-to-rear airflow fans with temperature control for optimal speed and reduced noise
- 4 “Lake Class” analog input channels with Iso-Float ground isolation
- 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution
- 2 Neutrik etherCON* RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software
- Balanced analog and AES/EBU audio inputs on Neutrik* XLR connectors
- 1 NLT8 and 2 NLT4 Neutrik speakON* output connectors
- Detachable Neutrik powerCON* cable rated at 250 V / 32 A
- Removable dust filter grilles for increased air circulation
- Rugged 2U rackmount chassis for durability in touring applications
- 10-Year Warranty Program*
- Designed and engineered in Sweden
สเปค
SPECIFICATION
General
| Processing / Network | Lake / Dante |
| Number of amplifier channels | 4 |
| Total burst power all channels (share among channels with RPM) | 20000 W |
Max output power (all channels driven)1
| 2 ohms | 4400 W |
| 2.67 ohms | 5000 W |
| 4 ohms | 4400 W |
| 8 ohms | 2300 W |
| 16 ohms | 1150 W |
| Hi-Z 70 V | 3300 W |
| Hi-Z 100 V | 4700 W |
Max output power single channel1
| 2 ohms | 4400 W |
| 2.67 ohms | 5900 W |
| 4 ohms | 4600 W |
| 8 ohms | 2300 W |
| 16 ohms | 1150 W |
| Hi-Z 70 V | 3300 W |
| Hi-Z 100 V | 4700 W |
Amplifier output modules (all models, all channels)
| Peak output voltage | 194 V |
| Max. output current | 67 A |
| Rational Power Management (RPM) | Regardless of model, any channel has potential to deliver the max single channel output power |
| Default voltage limitation (can be lifted with RPM configuration) | 194 V |
| Protection features | Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection |
Audio Performance (Amplifier platform with digital input)
| THD + N 20 Hz – 20 kHz for 1 W | < 0.05 % |
| THD + N at 1 kHz and 1 dB below clipping | < 0.04 % |
| Dynamic range | > 114 dB |
| Channel separation (Crosstalk) at 1 kHz | > 70 dB |
| Frequency response (1 W into 8 Ohm, 20 Hz – 20 kHz) | +/- 0.05 dB |
| Internal Sample Rate / Data path | 48 / 96 kHz / 32 bit floating point |
| Product propagation delay AES 96 kHz / analog input | 1.61 / 1.68 ms |
Lake processing
| Loudspeaker processing | Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ – peak and RMS limiters |
| System tuning | Group control with Raised Cosine™ MESA EG™ asymmetric filters |
| Input redundancy / Matrix | Automatic 4 level input redundancy / 4 input mixers |
| System integration | Comprehensive 3rd party protocol over UDP Ethernet |
Measurement & Analysis
| Pilot tone generation and analysis | Yes |
| Load impedance analysis | Yes |
| Real Time Analyzer (RTA), 3rd party integration | Yes |
Dante Audio Network
| Dante I/O | 8 x 8 |
| Network topology / redundancy | Flexible topology / Supports daisy-chained and Dual redundant networks |
| Sample Rates / Transport | 48, 96 kHz / Uni + Multicast |
| Network latency | 0.25, 0.5, 1.0, 2.0, 5.0 ms |
Device presets
| Local memory locations for the settings of the product | 100 |
AES Inputs
| Inputs | 4 AES inputs |
| Supported sample rates / resolution | 44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits |
| Sample rate conversion THD+N 20 Hz – 20 kHz unweighted | 0.0000003 |
Analog Inputs
| Inputs | 4 high quality inputs with Iso-Float ground isolation |
| Maximum input / digital reference | +26 dBu / +21 dBu |
| Sampling rate / Resolution | 96 kHz / 24 bit |
| Input impedance balanced / unbalanced | 20 / 10 kOhm |
| THD+N (typical at 1 kHz unweighted) | 0.0000022 |
| THD+N (typical at 20 Hz and 20 kHz unweighted) | 0.0000033 |
Limiters
| Adjustable Inter-Sample Voltage Peak Limiter (ISVPL) | 17.8 – 194 V, step size 0.1 V |
| Current Peak Limiter < 300 ms | 67 A peak |
| Current Average Limiter (CAL) > 300 ms | 33 Arms |
| MaxRMS (rms voltage limiter) | Yes |
| MaxPeak (peak voltage limiter) | Yes |
Gain
| Amplifier gain | 22 – 44 dB, step size 0.1 dB |
| Output attenuator | -Inf to 0 dB, step size 0.25 dB |

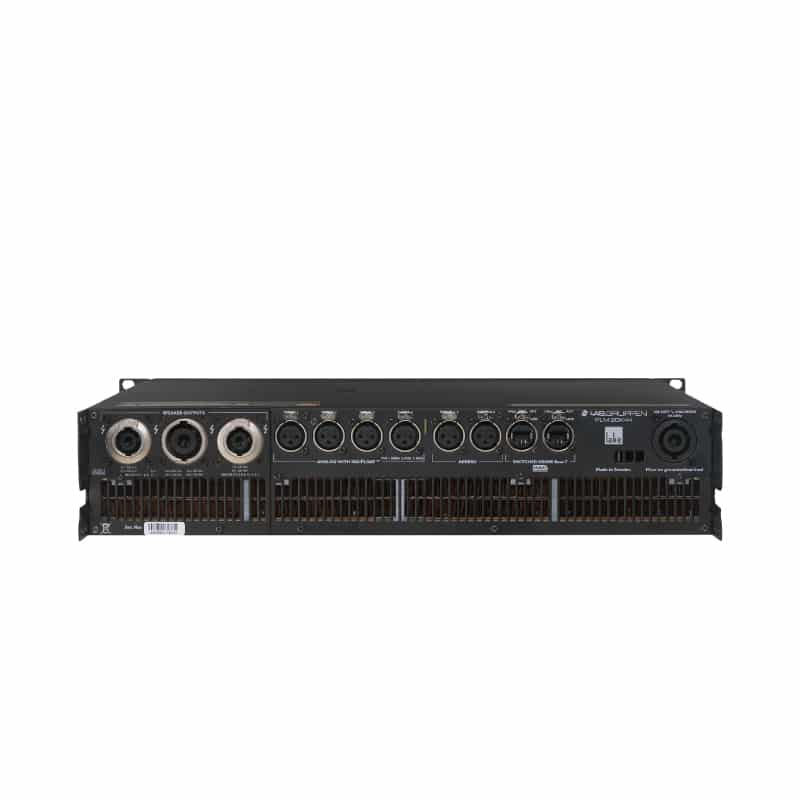

Back panel Interface
| Analog, 2-channel I/O (input + link) | 4 x 3-pin XLR, electronically balanced |
| AES / EBU / I/O (input + link) | 2 x 3-pin XLR |
| Output connectors | Neutrik speakON (1 x NLT8, 2 x NLT4) or 4 Binding Posts (pairs) |
| Auto 10/100, Auto Uplink | 2 x RJ45 etherCON |
| Control and monitoring interface | Via Ethernet for Lake Controller software, or DLM (the 3rd party protocol) |
| Detachable mains cord | Neutrik PowerCon rated at 250V/32A |
| Cooling | Three fans, front-rear airflow, temperature controlled speed |

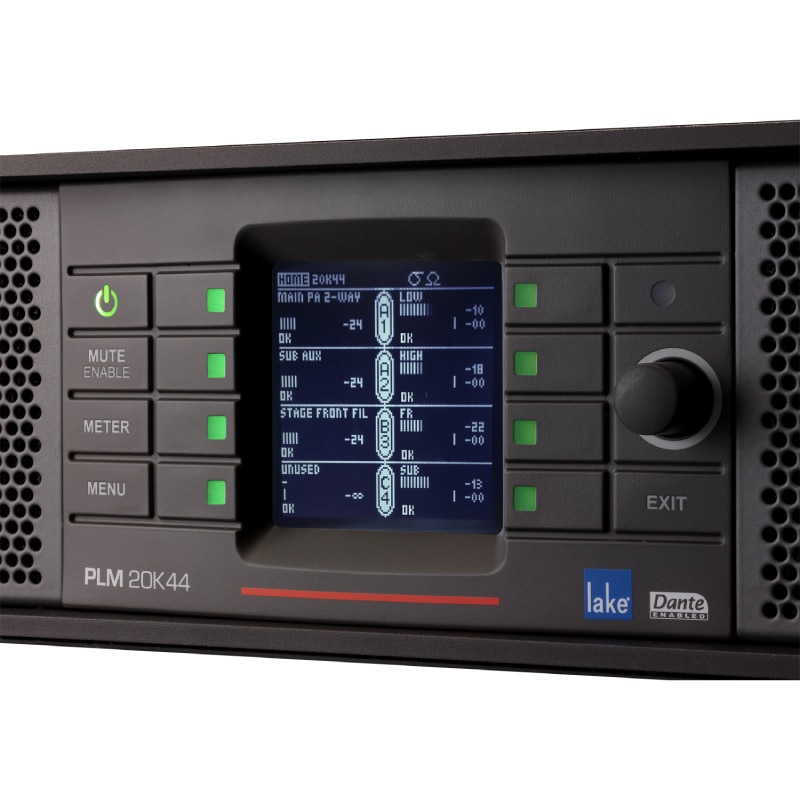

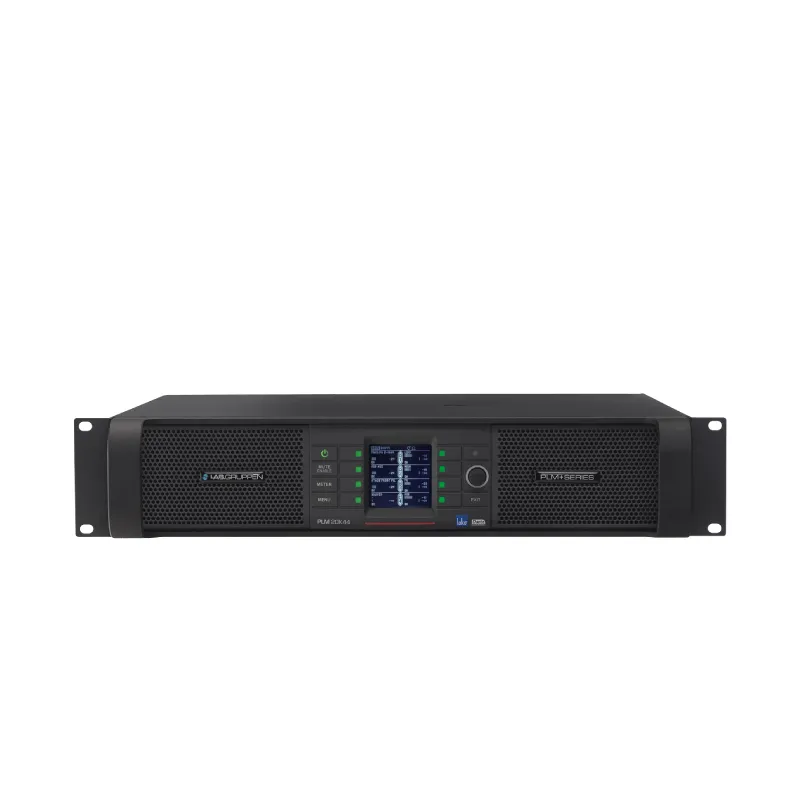

Front-panel user interface
| Display | 2.5 inch, black / white, daylight readable LCD |
| Fault/Warning/Limit/Clip indicators | RGB LEDs and detailed fault description on display |
| Mute and soft function buttons | 8 provided |
| Standby Power button | On/Standby |
| Mute Enable button | Enables muting of outputs and inputs via soft-button keypad |
| Meter button | Toggles through meter views |
| Menu button | Provides a menu driven interface for full function front panel control |
| Rotary Encoder | Yes |
| Exit Button | Provides a “back” function |
Mains Power
| Nominal voltage | 100 – 240 Volt AC 45 – 66 Hz |
| Operating voltage | 70-265 V AC |
| Mains wall plug | NEMA L5-30 “Twist lock” 125 V / 30 A, and CEE 7/7 “Schuko” 230 V / 16 A |
Power supply features
| Soft start / Inrush power | Yes/ Max 8 Ampere |
| Power Factor Correction (PFC) | 0.98 |
| Regulated switch mode power supply (R.SMPS) | Yes |
| Breaker Emulation Limiter (BEL) | Configurable current threshold and breaker profile |
| BEL max current threshold | 32 A |
| Power Average Limiter (PAL) | Yes |
| Under Voltage Limiter (UVL) | Yes |
| Mains undervoltage and overvoltage protection and mains glitch tolerance | Yes |
Dimensions
| Rack rail to rear panel | W: 483 mm (19″), H: 88 mm (2 U), D: 424 mm (16″) |
| Overall depth front-rear support | D: 498 mm (19.6″) |
Weight
| Weight | 17 kg (37 lbs) |
Finish
| Finish | Steel painted steel chassis with black painted steel / aluminum front |
Approvals
| Approvals | CE, ANSI / UL 60065 (ETL), CSA C22.2 NO. 60065, FCC, PSE, RCM, BIS India |
