EtherSound™ Network card NEXO NX.ES104 สำหรับ NXAMP แยกสตรีมเสียง 4 ช่อง ความละเอียดเสียง 24 บิต / 48 KHz สามารถควบคุมระยะไกลได้ จากแบรนด์ NEXO

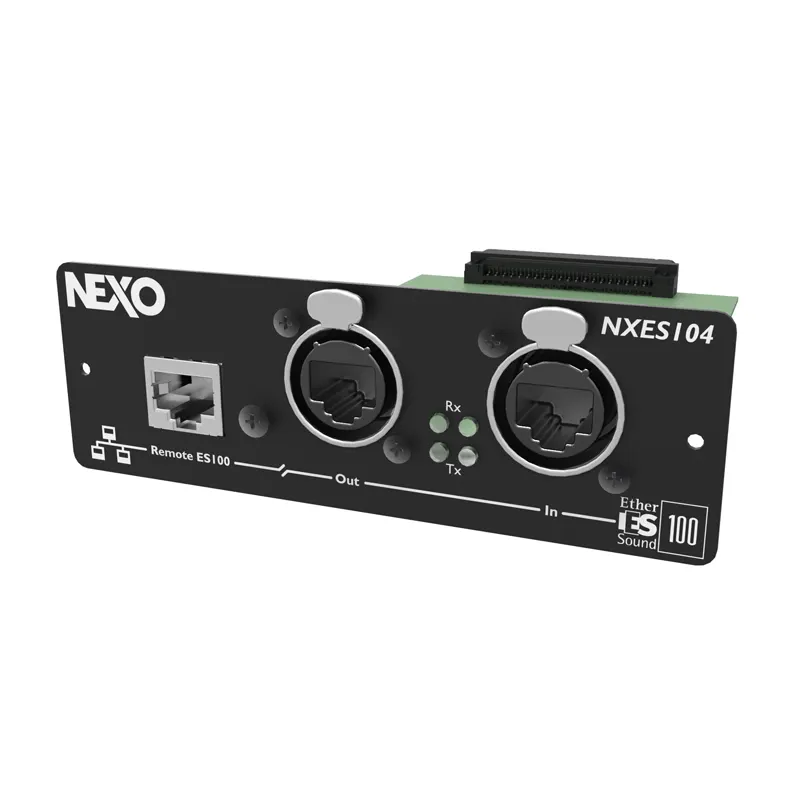

NEXO NX.ES104
EtherSound™ Network card for NXAMP
คุณสมบัติ
- Extracts 4 audio streams (24 bits / 48 KHz) among the 2 x 64 channels of a ES100 EtherSound™ stream
- IN and OUT port for simple daisy chain without any need for an external switch
- 3rd Ethernet port for remote control of the whole network from any NXES104 card and ASIO streaming
สเปค
SPECIFICATIONS
| DIGITAL AUDIO FORMAT | |
| Digital audio type | Ethersound networks |
| Media type | Dedicated Ethernet 100 Mb network |
| Number of channels | 4 channels from network to NXAMP |
| Resolution / Sample Rate | 24 bits / 48 KHz |
| Latency | 0.10 ms |
| REMOTE CONTROL FORMAT | |
| Network format | Embeded in the Ethersound frame |
| Device addressing | Automatic, based on Mac address |
| FRONT PANEL FEATURES | |
| Digital audio connectors | 2 shielded Neutrik Ethercon |
| Additional port | RJ45 for additional remote control |
| LEDs on digital audio ports | Tx and Rx on each port |
| LEDs on remote port | Link and activity |
| GENERAL SPECIFICATIONS | |
| Power supply | + 3.3 Volts, 5 W from NEXO slot |
| Dimensions (W x D x H) | 120 x 160 x 40 mm (NXAMP slot) |
| Weight | 160 g |
| EMC certification | CE, FCC, ICES |
| Green Status | ROHS and REACH |
