เพาเวอร์แอมป์ NEXO NXAMP4X4MK2 4 ชาแนล 4×4500 วัตต์ คลาส D เหมาะอย่างยิ่งสำหรับการใช้งานในการติดตั้งแบบตายตัวและการเดินทางแบบทัวร์ริ่ง จากแบรนด์ NEXO

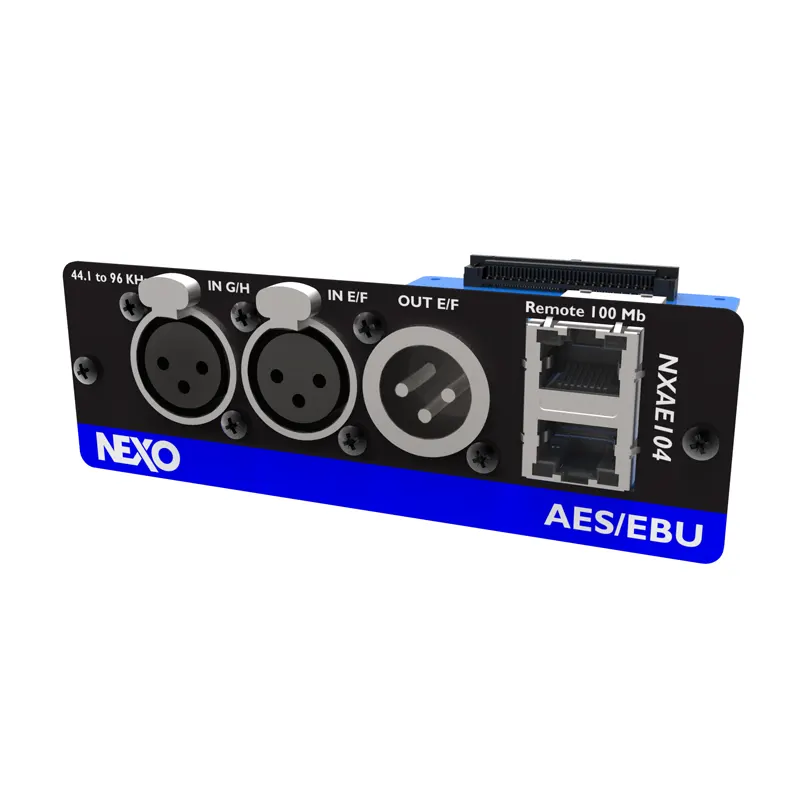

NEXO NXAE104
POWER AND PROCESSING FOR ALL NEXO SYSTEMS
คุณสมบัติ
- Receives 4 audio channels (24 bits / 44.1 – 96 kHz) in AES/EBU format
- 2 x AES/EBU stereo input on XLR, one with AES/EBU buffered output on XLR with fail safe relay
- 2 x switched RJ45 for remote control and daisy chain of the devices
สเปค
SPECIFICATIONS
| DIGITAL AUDIO FORMAT | |
| Digital audio type | AES/EBU |
| Media type | 110 Ohms 3 wires twisted pair with XLR connector |
| Number of channels | 4 |
| Resolution / Sample Rate | 24 bits / 44.1 – 96 KHz |
| Latency | 1.4 ms to 2.4 ms |
| REMOTE CONTROL FORMAT | |
| Network format | Standard TCP/IP |
| Device addressing | Automatic, based on IP address with Zeroconf |
| FRONT PANEL FEATURES | |
| Digital audio connectors | 2 x XLR-F and 1 x XLR-M |
| Additional port | 2 x RJ45 for remote control |
| LEDs on digital audio ports | None |
| LEDs on remote port | Link and Activity |
| GENERAL SPECIFICATIONS | |
| Power supply | +3.3 Volts, 2 W from NEXO slot |
| Dimensions (W x D x H) | 120 x 160 x 40 mm (NXAMP slot) |
| Weight | 200 g |
| EMC certification | CE, FCC |
| Green Status | ROHS and REACH |
