เพาเวอร์แอมป์ OPTIMAL AUDIO SMARTAMP 30 4×250 วัตต์ แบบ โอห์ม และ 70V-100 โวลต์ พร้อม integral DSP เพิ่มประสิทธิภาพการทำงานที่เหมาะสม จากแบรนด์ OPTIMAL AUDIO

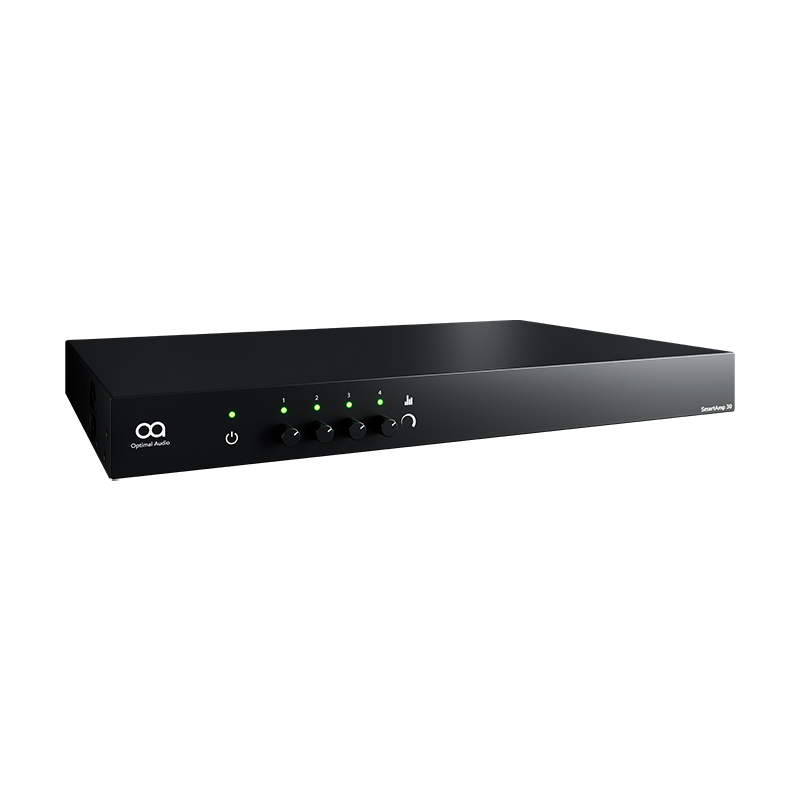

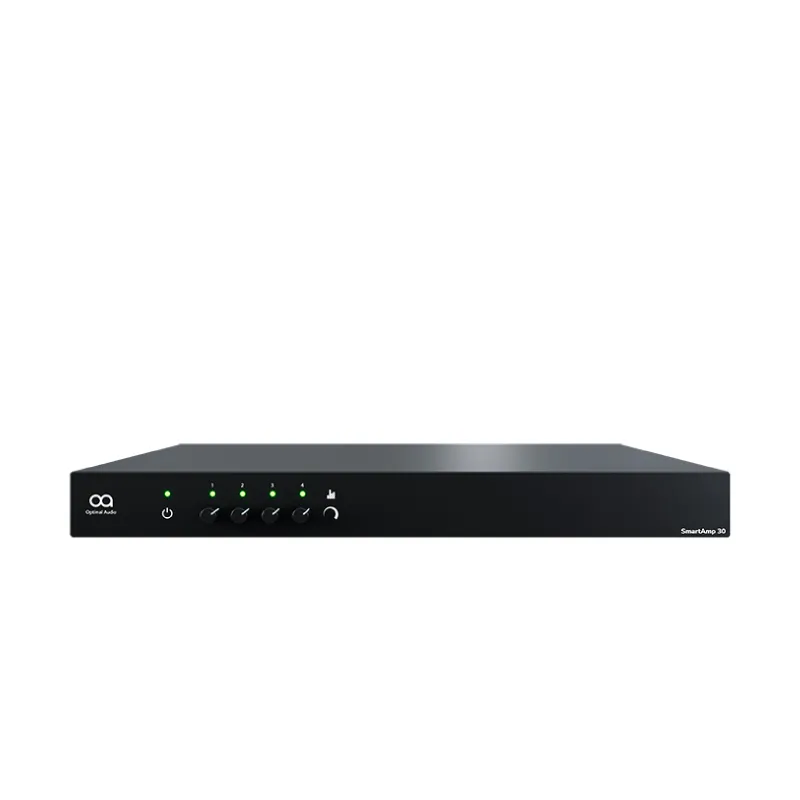

OPTIMAL AUDIO SMARTAMP 30
4 x 250W amplifier with integral DSP
SmartAmp 30 is an amplifier with built in Digital Signal Processing (DSP) specifically tailored to optimise the performance of the Optimal Audio loudspeaker range.

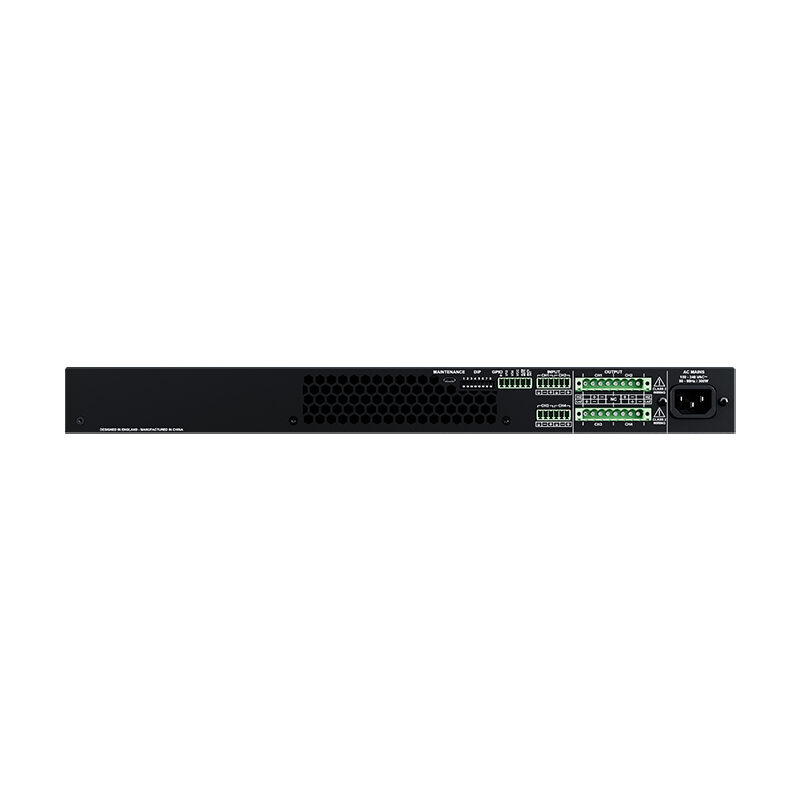

This four-channel 1U, 19”, power amplifier can drive both conventional low impedance and 70V – 100V loudspeaker loads. Internal DSP presets of Optimal Audio loudspeakers are selected by switches to the rear of the amplifier, which enable the appropriate EQ and overload protection settings.
The SmartAmp 30 can be configured to drive either low or high impedance loads at a maximum of 250W per channel, giving the options of a localised or evenly distributed speaker system.
The SmartAmp 30 is ideally suited to power multiple Up 6 speakers and models from the Cuboid series.
คุณสมบัติ
- Desktop or rack mounted
- Signal processing presets for Optimal Audio loudspeakers
- 250 watts per channel into 4Ω-16Ω and 70V-100V line loudspeaker loads
สเปค
| TYPE | CLASS D power amplifier with DSP |
| POWER OUTPUT (4Ω -16Ω) | 4 x 250W |
| 70V-100V OUTPUT | 4 x 250W |
| DIGITAL SIGNAL PROCESSING | EQ & limiter presets for Optimal Audio loudspeakers |
| COOLING | Forced air cooling with fan |
| ANALOGUE IN/LINK | 4 balanced line inputs on Euroblock connectors |
| ANALOGUE INPUT IMPEDANCE | 10kΩ unbalanced, 20kΩ balanced |
| MAXIMUM ANALOGUE INPUT LEVEL | +24dBu |
| AMPLIFIER OUTPUTS | Euroblock |
| SIGNAL TO NOISE RATIO | > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load) |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz, +0/-0.25 dB (8 Ω load, 3 dB below rated power) |
| TOTAL HARMONIC DISTORTION | < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power) |
| SLEW RATE | 8.796V/µS at 70 V peak, low impedence, 17.77V/µS at 100 V peak, high impedence |
| DAMPING FACTOR | 370 with 8Ω load |
| CONTROL AND MONITORING NETWORK PROTOCOL | GPIO |
| DSP SAMPLE RATE | 48kHz |
| MAINS POWER INPUT | Universal Mains, 100-240V, 50-60Hz |
| MAINS CONNECTOR | IEC |
| POWER CONSUMPTION | 300W |
| HEAT GENERATED | 1080 kJ per hour |
| DIMENSIONS | (W) 440mm x (H) 44mm x (D) 308mm (W) 17.32” x (H) 1.73” x (D) 12.13” |
| WEIGHT | 3.6kg (7.9lbs) |
