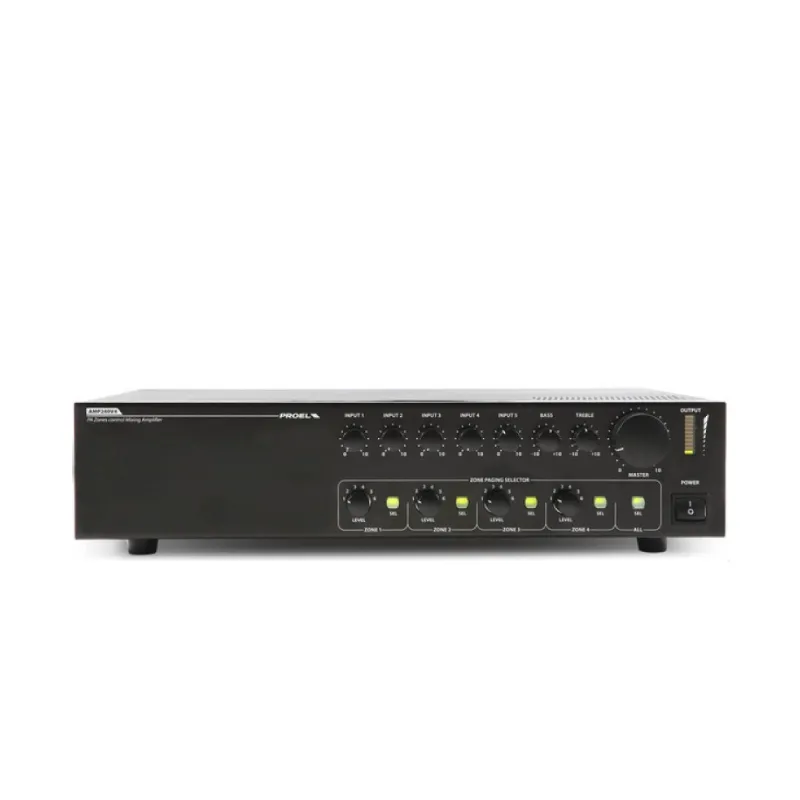

มิกซิ่งแอมป์ PROEL PA AMP240V4 240 วัตต์ 4 โซน 4 MIC, 1 AUX ได้รับการออกแบบมาสำหรับการผสมและการประกาศไมโครโฟนในแอปพลิเคชัน PA จากยี่ห้อ PROEL
PROEL PA AMP240V4
240W FOUR ZONES CONTROL MIXING AMPLIFIER
Overview
Multinput Proel amplifi er has been designed for mixing and microphone announcementdistribution in PA applications.
คุณสมบัติ
- Four zones output at 100V selectable independlly through a front keyboard
- Impedance constant outputs (4W) and constant voltage outputs (25, 70, 100 V)
- Four MIC/LINE combo (XLR – ¼” jack) inputs
- 24V Phantom supply
- Vocal activating priority MIC1 input – VOX
- PRE-OUT output
- AMP-IN input
- RCA input
- LINE OUT output
- LED level meter
- Hold On and Monitor outputs
- Signal peak LED
- Signal present LED
- Telephone-line signal input
- Bass and Treble EQ controls
- Master output volume control
- Volume controls for each zone
- Five independent level controls for input signals (INPUT 1 ÷ INPUT 5)
- A screw for ground wiring
- Rear Power supply selector 230/117V~
- Power supply: 230/117 V~ 50-60 Hz 24 V DC
- Rack mount brackets included
