เพาเวอร์แอมป์ QSC CMX800Va เครื่องขยายเสียง 2 ชาเเนล คลาส H 2-tier 500 วัตต์ ที่ 8 โอมห์ QSC CMX800Va เพาเวอร์แอมป์ ขยายเสียง จากแบรนด์ QSC

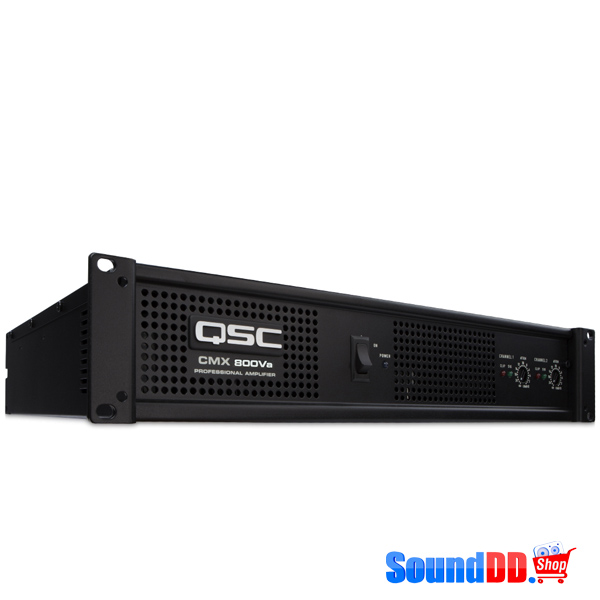

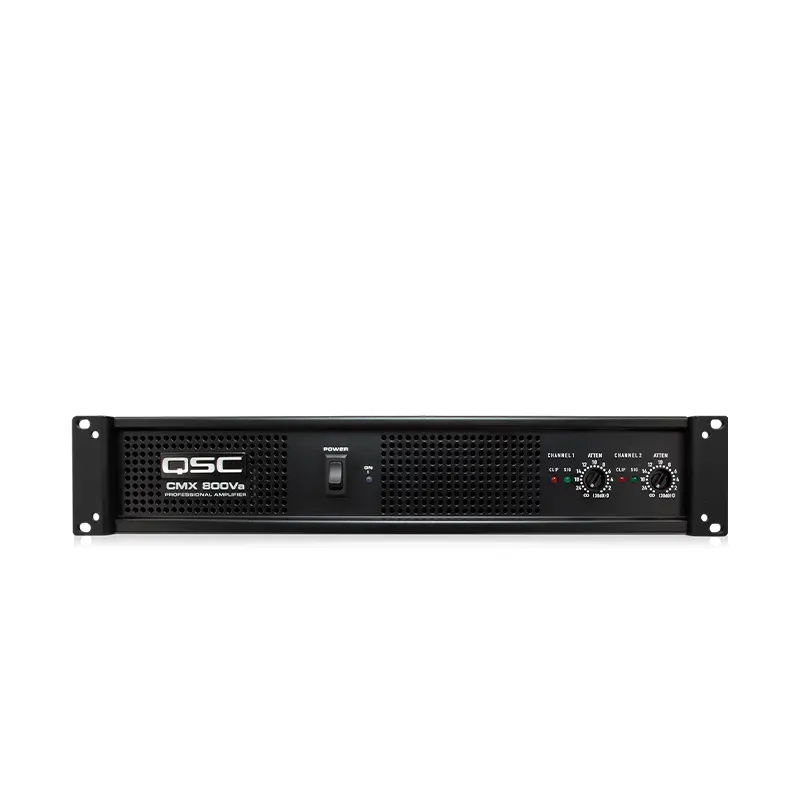

QSC CMX800Va
Commercial Power Amplifier
CMXa Series amplifiers represent an economical and rugged power amplifier solution for installed sound applications. There are four CMXa models to choose from (CMX 300Va, CMX 500Va, CMX 800Va, and CMX 2000Va). The CMX amplifiers provide flexible input and output connectors making them ideal for use in projects such as performance halls, houses of worship, sport clubs, gymnasiums, dance venues, pubs, and FGM/BGM systems. The CMXa Series provides unmatched performance and user options at an affordable price point.
คลิกที่ภาพ เพื่อขยาย
คุณสมบัติ
- “Flex-Use” loading options allows CMX Series amps to drive low-impedance loads down to 2 ohms, and certain models can direct-drive (no output transformer) 70V and 100V distributed loudspeaker systems
- “Flex-Use” input connectivity choices including actively balanced barrier strip, XLR, or ¼” TRS
- “Flex-Use” output connectivity choices include NL4 Speakon™ and detachable terminal block
- Rack mountable with chassis less than 16″ (40.6 mm) deep
- 1-dB recessed, detented gain controls for fast, accurate, and repeatable settings
- Tamper-proof security cover for gain controls
- Recessed rear DIP switches for easy selection of stereo, parallel, or bridged mode operation, and enabling/disabling low-frequency filter protection
- Low-noise variable-speed fans with rear-to-front airflow help keep amplifiers and racks cool
สเปค
CMX300Va |
CMX500Va |
CMX800Va |
CMX2000Va |
||
Stereo Mode (both channels driven)8Ω FTC 0.1% THD 70V Direct EIA 1% THD FTC: 20 Hz–20 kHz after preconditioning |
185 W 200 W 280 W 300 W 430 W– – |
260 W 300 W 400 W 500 W 700 W– – |
450 W 500 W 650 W 800 W 1200 W400 W – |
1050 W 1100 W 1600 W 2000 W* 2500 W2500 W 1000 W |
|
Bridge Mono Mode 8Ω FTC, 0.1% THD 8Ω EIA, 0.1% THD 4Ω EIA, 1% THD70V Direct Drive EIA, 1% THD 100V Direct Drive EIA, 1% THDFTC: 20 Hz–20 kHz after preconditioning; both channels driven simultaneously EIA: 1 kHz |
530 W 600 W 830 W600 W – |
800 W 900 W 1400 W1200 W 600 W |
1300 W 1500 W 2400 W2000 W 2300 W |
3200 W 3600 W 5000W5000 W 3600 W |
|
Signal to Noise (20 Hz–20 kHz, 8Ω) |
> 100 dB | ||||
Input Sensitivity into 8Ω |
1.15 V (+3.4 dBu) | 1.14 V (+3.4 dBu) | 1.23 V (+4.0 dBu) | 1.42 V (+5.3 dBu) | |
Max Voltage Gain |
31.6× (30 dB) | 40× (32 dB) | 46× (33 dB) | 64× (36 dB) | |
Output Circuitry |
Class AB | Class AB | 2-tier Class H | 3-tier Class H | |
Current Draw (pink noise program)
|
4.4 A 2.2 A 6.6 A 3.3 A |
5.4 A 2.7 A 9.6 A 4.8 A |
6.3 A 3.2 A 15.6 A 7.8 A |
13.9 A 7 A 26.9 A 13.5 A |
|
Distortion (SMPTE-IM) |
< 0.02% | < 0.01% | < 0.01% | < 0.01% | |
Distortion (typical)
|
< 0.03% THD / 4Ω and 8Ω < 0.03% THD / 4Ω and 8Ω |
||||
Frequency Response |
20 Hz–20 kHz: ±1 dB; -3 dB points: 5 Hz and 50 kHz | ||||
Damping Factor (1 kHz and below) |
> 300 at 8Ω | ||||
Input Impedance |
10 kΩ unbalanced, 20 kΩ balanced | ||||
Input Clipping |
10 V rms (+22 dBu) | ||||
Cooling |
Continuously variable-speed fan, rear-to-front air flow | ||||
Connectors (each channel) |

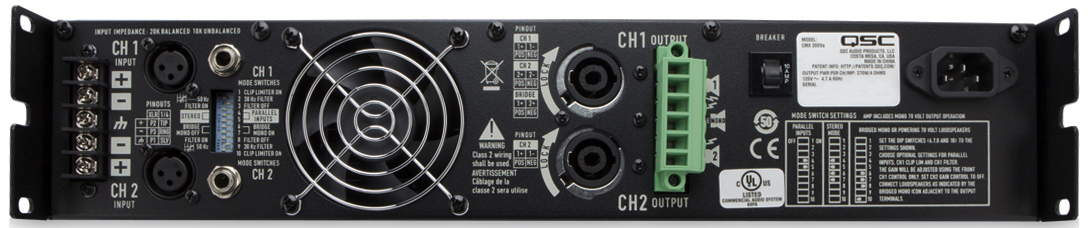

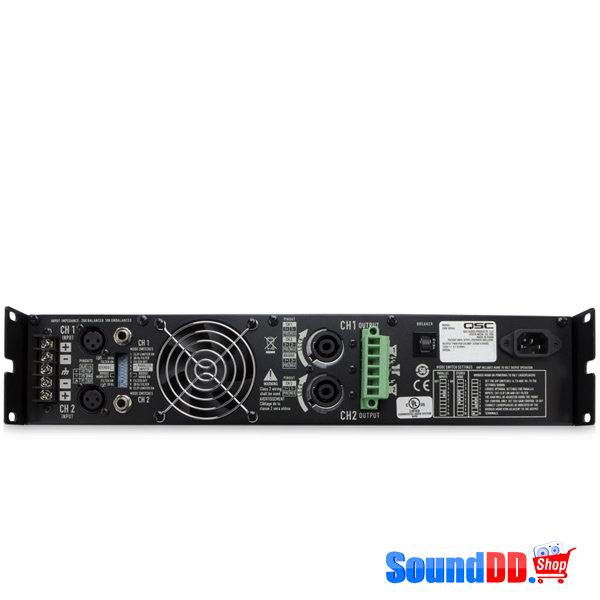

Input: Active balanced; barrier strip, XLR and ¼” (6.3 mm) – TRS tip and XLR pin 2 positive Output: Detachable terminal block and Neutrik™ Speakon™ |
||||
Controls |

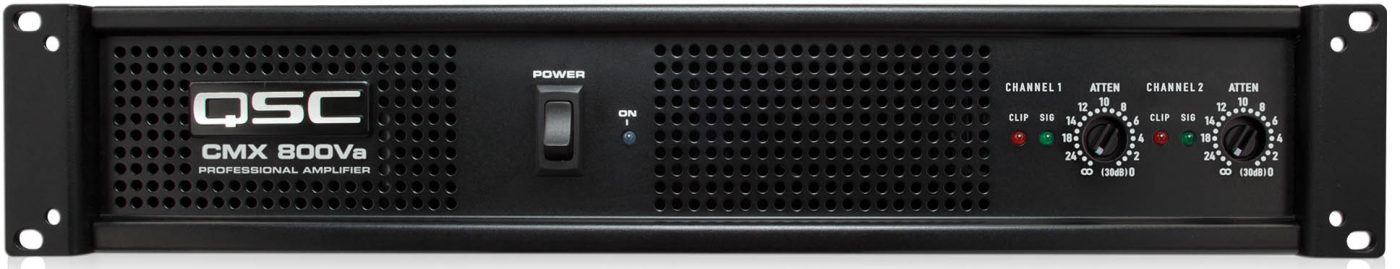

Front: AC switch, Channels 1 & 2 gain knobs Rear: 10-position DIP switch |
||||
Indicators |
Power-on: Green LED / Signal: Green LED (1 per channel) / Clip: Red LED (1 per channel) | ||||
Amplifier Protection |
Stable into reactive or mismatched loads | ||||
Load Protection |
On/off muting, AC coupling (CMX 300Va and CMX 500Va), triac crowbar (CMX 800Va and CMX 2000Va on each channel) | ||||
Power Requirements |
120 or 230 VAC, 50 – 60 Hz | ||||
Dimensions (HWD)
|
3.5″ (8.9 cm) 2 rack spaces x 19″ (48.3 cm) rack mounting x 15.9″ (40 cm) deep to rear support ears 5.25″ (13.3 cm) 3 rack spaces x 19″ (48.3 cm) rack mounting x 15.9″ (40 cm) deep to rear support ears |
||||
Weight – Net |
35 lb (15.9 kg) | 40 lb (18.2 kg) | 44.5 lb (20.2 kg) | 75 lb (33.1 kg) | |
Weight – Shipping |
41 lb (18.6 kg) | 46 lb (20.9 kg) | 50.5 lb (23 kg) | 87 lb (37.2 kg) |
