เพาเวอร์แอมป์ QSC PLD4.3 เครื่องขยายเสียง 4 ชาเเนล 4×1400 วัตต์ ที่ 4 โอมห์ QSC PLD4.3 เพาเวอร์แอมป์ ขยายเสียง จากแบรนด์ QSC

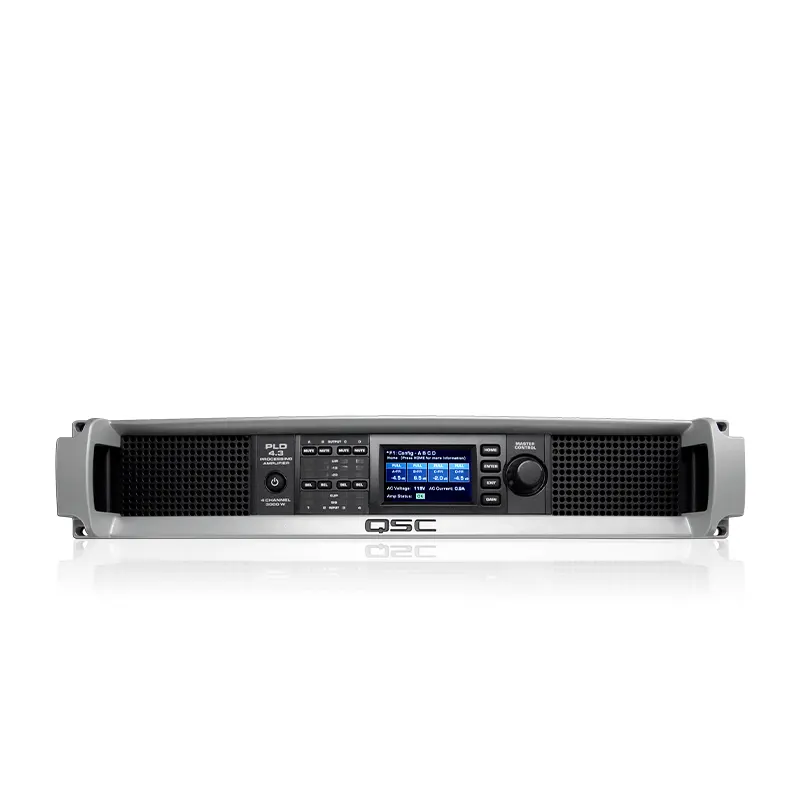

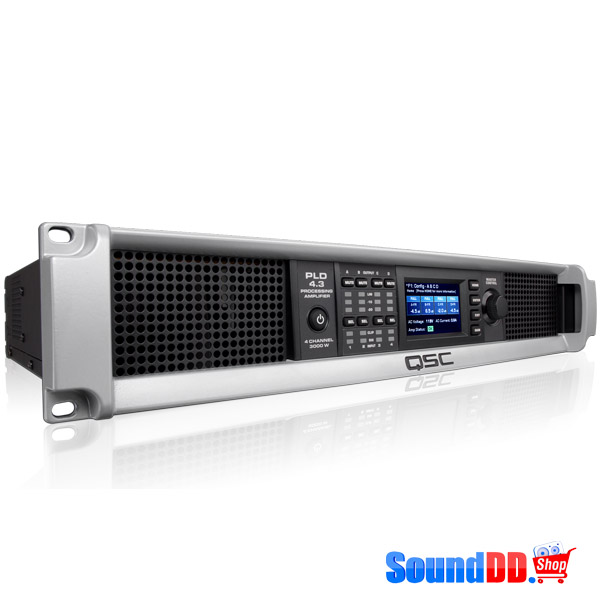

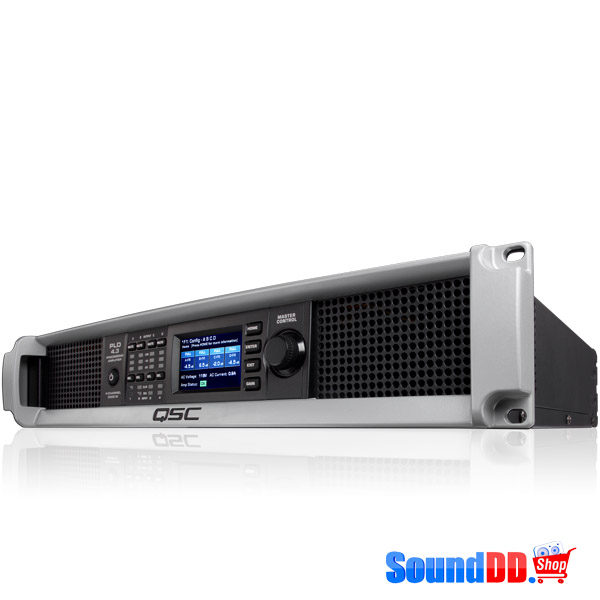

QSC PLD4.3
Processing Amplifier
With four flexible channels of up to 1400 watts each, lightweight PowerLight universal power supply, DSP on-board for each channel, and all the right connectors, the PLD4.3 is ideal for production and live sound applications.
คุณสมบัติ
- Flexible Amplifier Summing Technology™ (FAST) drives most any loudspeaker system or configuration by distributing total amplifier power across one, two, three, or all four channels.
- Four channels of full function onboard loudspeaker DSP with crossover and parametric EQ filters, limiting and alignment delay eliminate the need for outboard loudspeaker processors.
- E Series Entertainment System DSP Tunings are now available for PLD processing amplifiers:
- Visit the Amplifier Navigator Software to download and update
- Powerful Intrinsic Correction™ processing maximizes the sonic performance of QSC loudspeakers.
- 20 factory preset configurations that can be modified and stored in the 50 user presets.
- PowerLight universal switch mode power supply with PFC for highest efficiency, improved audio performance, and low weight.

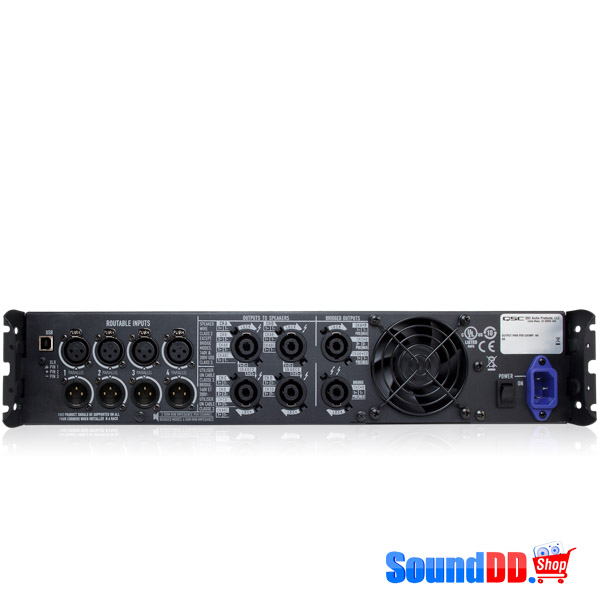

- Four Input XLR connectors and six NL4 output connectors.

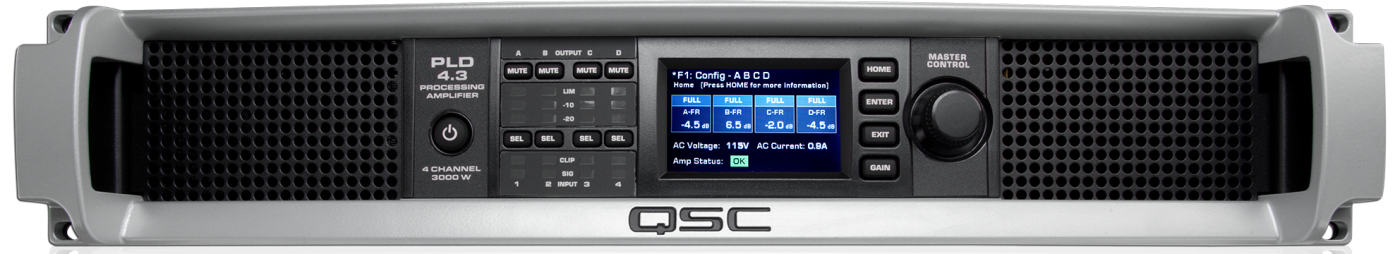

- Integrated front panel with channel Select and Mute buttons, input and output LED metering, 400×240 LCD, intuitive navigation buttons, LED power button and indicator, and cast aluminum handles.
- Preset Wizard simplifies amplifier configuration, providing selection from a list of the top selling passive loudspeakers.
สเปค
PLD4.2 |
PLD4.3 |
PLD4.5 |
||
| Typical Distortion | 0.01–0.06% | |||
| Maximum Distortion | 1.0% | |||
| Frequency response | 20 Hz–15 kHz ±0.2 dB 20 Hz–20 kHz +0.2/-0.7 dB |
|||
| Noise: Unweighted Output Unmuted |
-101 dB | |||
| Noise: Weighted Output Muted |
-109 dB | |||
| Gain | 1.2V | 34.0 dB | 38.4 dB | 38.4 dB |
| Damping factor | >150 | |||
| Input impedance | >10 kΩ, balanced or unbalanced | |||
| Maximum rms input level | 3.9V | 12.28 V (+24 dBu) | ||
| 1.2V | 3.88 V (+14 dBu) | |||
| Amplifier and load protection | Short circuit, open circuit, thermal, RF protection. on/off muting, DC fault shutdown, active inrush limiting, input current limiting | |||
| AC Power Input | 4.2: Universal Power Supply 100-132/200–240 VAC, 50–60 Hz 4.3/4.5: Universal Power Supply 100–240 VAC, 50–60 Hz |
|||
Power Specifications
PLD4.2 |
PLD4.3 |
PLD4.5 |
|||||
| Peak | Continuous | Peak | Continuous | Peak | Continuous | ||
| 4 Independent Channels A, B, C, D |
8Ω | 500 W | 400 W | 900 W | 625 W | 1200 W | 1150 W |
| 4Ω | 700 W | 400 W | 1400 W | 625 W | 2000 W | 1250 W | |
| 2Ω | 625 W | 325 W | 1200 W | 625 W | 1600 W | 625 W | |
| 2 Channel BTL Bridged A+B or C+D Doubles Voltage |
8Ω | 1200 W | 800 W | 2400 W | 1250 W | 4000 W | 2250 W |
| 4Ω | 1500 W | 600 W | NR* | NR* | NR* | NR* | |
| 2Ω | NR* | NR* | NR* | NR* | NR* | NR* | |
| 2 Channel Parallel AB or CD Doubles Current |
8Ω | 500 W | 400 W | 1300 W | 1150 W | 1250 W | 1150 W |
| 4Ω | 950 W | 800 W | 2000 W | 1250 W | 2400 W | 2250 W | |
| 2Ω | 1200 W | 800 W | 2500 W | 1250 W | 4000 W | 2100 W | |
| 1 Channel 3CH Parallel ABC Triples Current |
8Ω | 500 W | 400 W | 1400 W | 1150 W | 1400 W | 1150 W |
| 4Ω | 950 W | 800 W | 2400 W | 2000 W | 2500 W | 2400 W | |
| 2Ω | 1800 W | 1200 W | 3500 W | 2500 W | 4500 W | 4100 W | |
| 1 Channel Bridged/Parallel AB+CD Doubles Current and Voltage |
8Ω | 1600 W | 1500 W | 3500 W | 2500 W | 4500 W | 4200 W |
| 4Ω | 2500 W | 1600 W | 5000 W | 2500 W | 7500 W | 4200 W | |
| 2Ω | NR* | NR* | NR* | NR* | NR* | NR* | |
| 1 Channel 4CH Parallel ABCD Quadruples Current |
8Ω | 500 W | 400 W | 1400 W | 1150 W | 1600 W | 1150 W |
| 4Ω | 1000 W | 800 W | 3000 W | 2500 W | 3000 W | 2300 W | |
| 2Ω | 1700 W | 1600 W | 5000 W | 2500 W | 5300 W | 4200 W | |
NR* = Not Recommended due to excessive current draw
BOLD = Optimal configuration fo rthe load and channel count
Controls, Indicators and Connections
PLD4.2 |
PLD4.3 |
PLD4.5 |
|
| Controls and indicators (front) | Power • Channel MUTE Buttons • Channel SELECT buttons • Channel input signal and CLIP LED indicators • Channel output and LIMIT LED meters • HOME, ENTER, EXIT, GAIN navigation buttons • Control knob | ||
| Controls and indicators (rear) | AC Power Disconnect | ||
| Input connectors | Female XLR | ||
| Output connectors | NL4 | ||
Weights and Dimensions
PLD4.2 |
PLD4.3 |
PLD4.5 |
|
| Dimensions (HWD) inches | 3.5 x 19 x 12 | 3.5 x 19 x 16 | 3.5 x 19 x 16 |
| Dimensions (HWD) mm | 89 × 482 × 305 | 89 × 482 × 406 | 89 × 482 × 406 |
| Weight, Net / Shipping | 18.5 lb (8.4 kg) / 22 lb (10.0 kg) | 21.0 lb (9.5 kg) / 25 lb (11.3 kg) | 22.0 lb (10.0 kg) / 26 lb (11.8 kg) |
| Agency approvals | UL, CE, RoHS/WEEE compliant, FCC Class A (conducted and radiated emissions) | ||
| Carton contents | Locking IEC cable, Quick Start Guide, USB cable | ||
