เพาเวอร์แอมป์ QSC SPA4-100 เครื่องขยายเสียง 4 ชาเเนล คลาส D 100 วัตต์ ที่ 8 โอมห์ QSC SPA4-100 เพาเวอร์แอมป์ ขยายเสียง จากแบรนด์ QSC

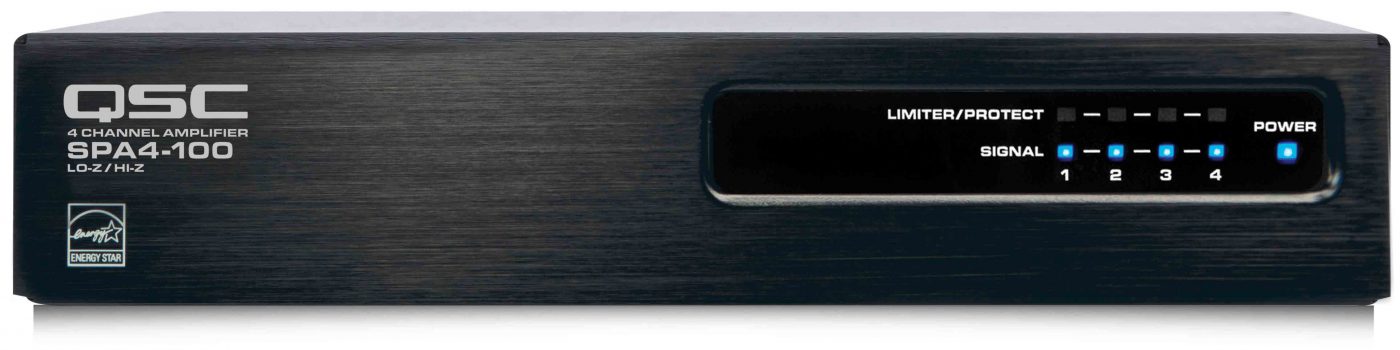

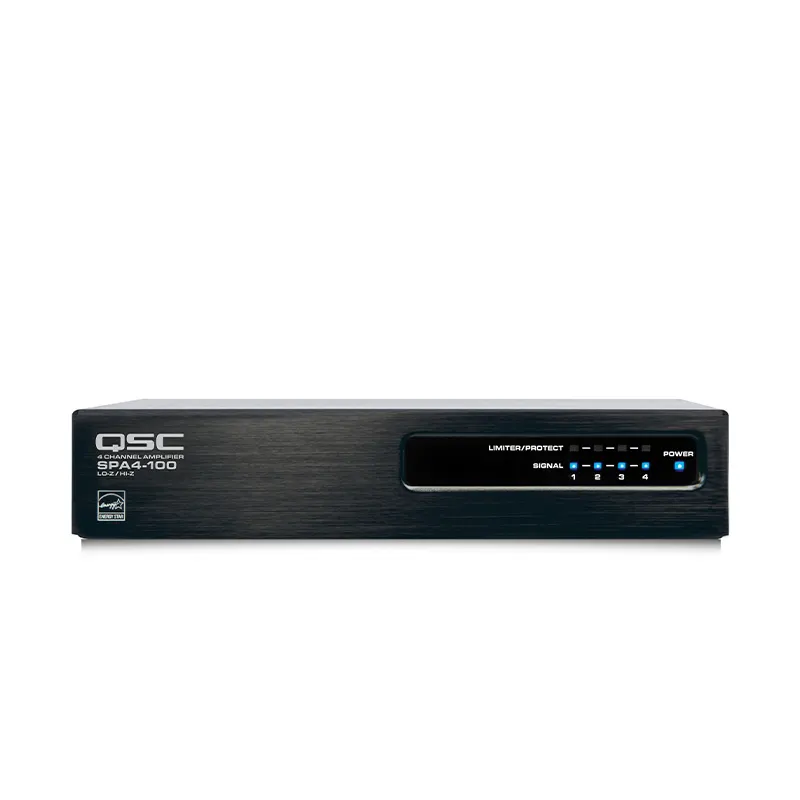

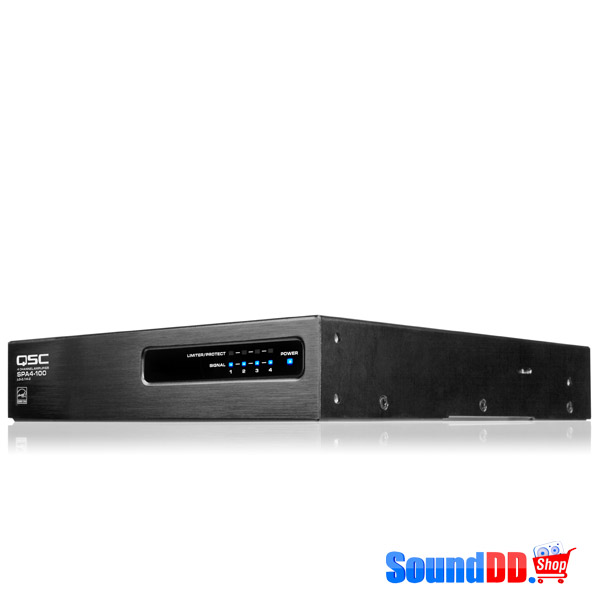

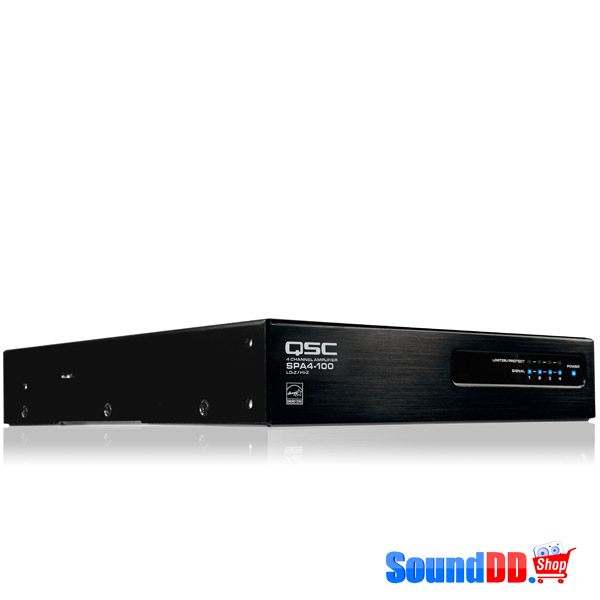

QSC SPA4-100
EnergyStar Power Amplifier
The SPA4-100 four channel amplifier delivers 100 watts rms per channel into 4 or 8 ohms; the four channels can also be bridged in pairs, each pair providing up to 200 watts rms into 4 or 8 ohms.
The SPA4-100 bridged pair channels can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a 70V or 100V output; when in 70V or 100V mode the 80Hz highpass filter is automatically engaged.
คลิกที่ภาพ เพื่อขยาย
คุณสมบัติ
- Up to 200 watts per channel into 4 and 8 ohms — the outputs of the SPA4-100 model are designed to provide up to 100 watts per channel into Low-Z loads.
- ENERGY STAR® qualified amplifier – The ENERGY STAR qualified SPA amplifiers employ an efficient class-D design to conserve energy and reduce operational cost.
- Bridgeable outputs for higher power — Bridgeable outputs for higher power – Bridging the outputs of the SPA4-100 will deliver up to 350 watts into 70V or 100V when bridged.
- Auto-Ramp provides quiet startup and power-down — The ENERGY STAR auto-ramp circuitry ensures quiet and fast power up from standby and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
- Rack-mountable 1U, half rack width enclosure — The SPA amplifers can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under-table and wall-mounting
สเปค
SPECIFICATIONS |
SPA2-60 |
SPA4-60 |
SPA2-200 |
SPA4-100 |
Stereo Mode Watts Per Channel |
||||
| 8Ω dynamic, both channels driven | 60 W | 60 W | 200 W | 100 W |
| 4Ω dynamic, both channels driven | 60 W | 60 W | 200 W | 100 W |
Bridged Mode, watts per channel |
||||
| 8Ω & 4Ω | 200 W | 200 W | 400 W | 200 W |
| 70V & 100v | 250 W | 250 W | 350 W | 350 W* |
| Signal to Noise (A weighted, 20 Hz-20 kHz) | >100 dB | >100 dB | >100 dB | >100 dB |
| Input Sensitivity | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) |
| Maximum Voltage Gain | 25.0 dB | 25.0 dB | 25.0 dB | 25.0 dB |
| Ouput Circuitry | Class D | Class D | Class D | Class D |
| Frequency Response (20 Hz – 20 kHz) | Frequency Response (20 Hz – 20 kHz) | |||
| Input Impedance | >10 kΩ (balanced), >10 kΩ (unbalanced) | |||
| Maximum Input Level | 12.3V (+24 dBu) | |||
| Highpass Filter | Switchable 80 Hz when Bridged in 70V & 100V | |||
| Front Panel Indicators | Power, per channel Signal, per channel Protect/Limit | |||

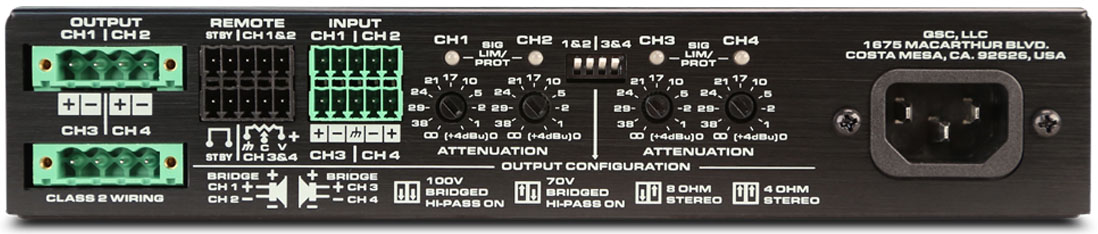

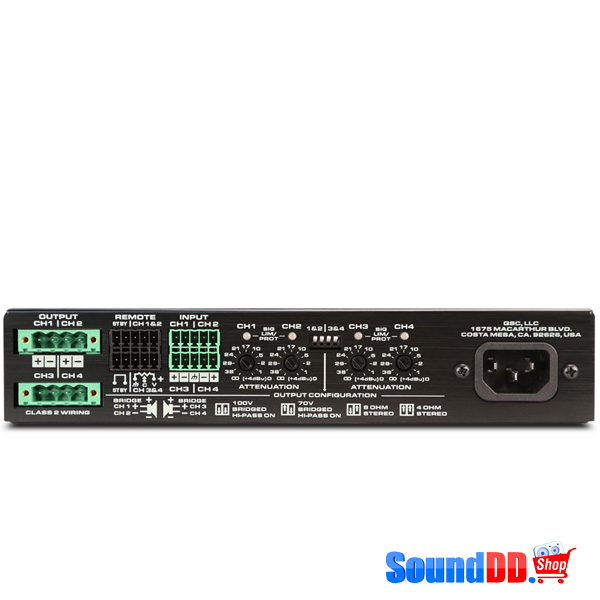

| Controls | 4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair | |||
| Dimensions (HWD) inches | 1.7 x 8.7 x 9.5 / 1RU | |||
| Dimensions (HWD) mm | 43 x 220 x 241 / 1RU | |||
| Weight (Net) | 3.5 lb / 1.6 kg | 3.5 lb / 1.6 kg | 4.0 lb / 1.4 kg | 4.0 lb / 1.4 kg |
| Weight (Shipping) | 6 lb / 2.3 kg | 6 lb / 2.3 kg | 6.5 lb / 2.5 kg | 6.5 lb / 2.5 kg |
| Agency Approvals | UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit | |||
| Carton Contents | Power cable, quick start guide, connector kit, rack mount ears, mounting brackets | |||
*Peak Power – dependent on other channel loads. |
||||
