เพาเวอร์แอมป์ QUEST Q1K เครื่องขยายเสียง 2 ชาแนล 500 วัตต์ Q1K Power Amplifier จากแบรนด์ QUEST

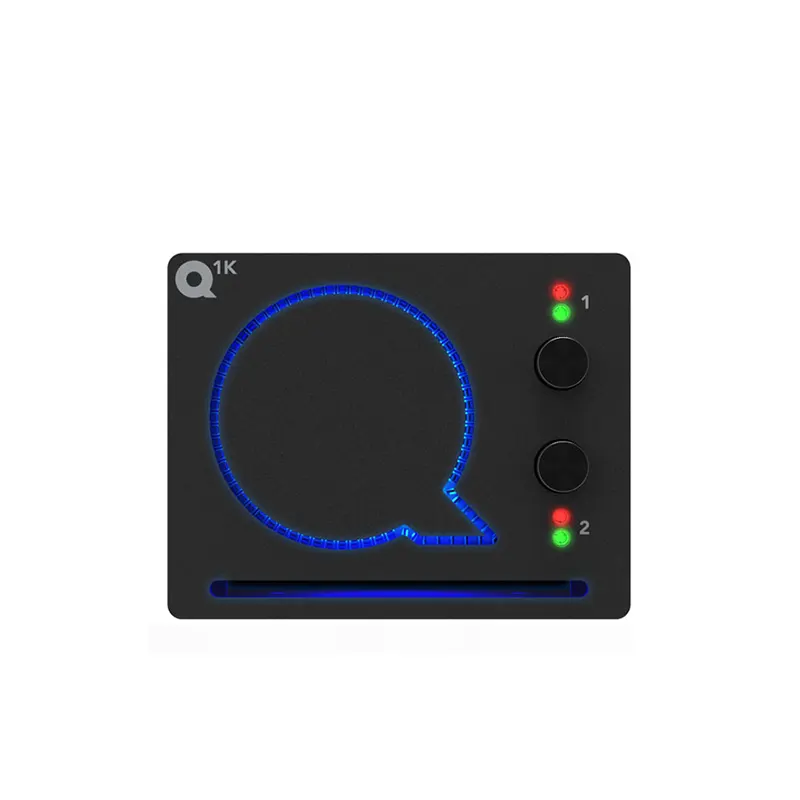

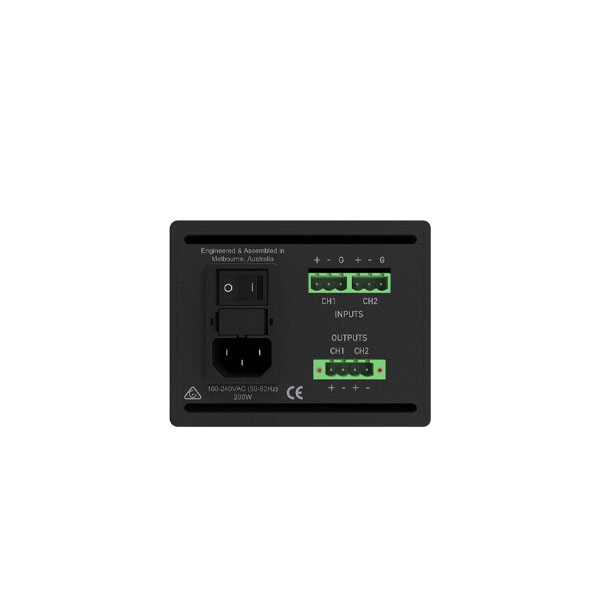

QUEST Q1K
Q Series Q1K Compact Amplifier
The new leader in Architectural Audio amplification. Ultra small in size and big on features, this small footprint high fidelity amplifier is an audio powerhouse that will deliver full performance from the compact Quest MX and HPi loudspeaker series. Either as a standalone studio quality stereo amplifier, or as a part of a more complex multi channel system, the Q1K is the system designer’s ideal solution.
สเปค
Max. Output Voltage | 70 Vp SE, 140 Vp BTL |
Output Circuitry | Class D |
Signal To Noise-Ratio (20 Hz – 20 kHz, 4 Ω load MOL) | > 91 dB (unweighted) |
THD+N (1W 1kHz) | < 0,01 % |
Dynamic Range | 120 dBA |
Frequency Response (4 Ω, 120 W output) | 35 Hz – 20 kHz (fixed 35Hz 4th Order Butterworth High Pass Filter) |
Gain | 28 dB |
Protection Circuits | Temperature, Over Current, DC Output, Mains RMS Input, High Frequency, and Internal Rail Over-voltage |
Indicators | Signal, Clip, Fault, Gain Settings, Meters Mode (‘Q’ Illumination) |
Mains Input Voltage | 85VAC – 265VAC |
Net Weight | 3.1 kg |
Shipping Weight | 4.3 kg |
Dimensions (HxWxD) | 87 x 110 x 330 mm |
Shipping Dim. (HxWxD) | 136 x 254 x 395 mm |
ErP (1275/2008/EC) compliant standby consumption < 0.5W |
