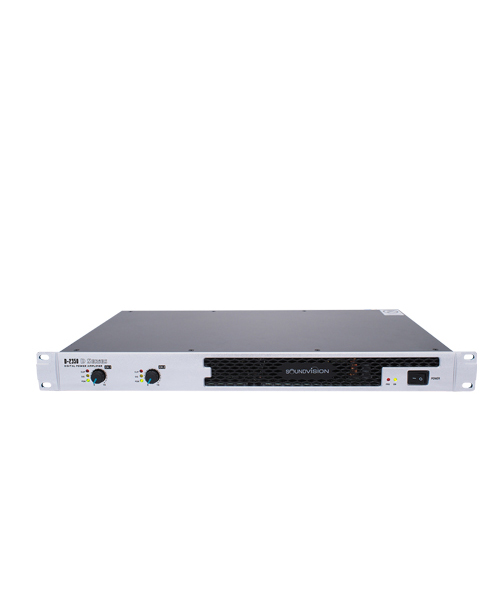

เพาเวอร์แอมป์ SOUNDVISION D-2350 ระบบดิจิตอล 2 ชาแนล คลาส D 2×350 วัตต์ ที่ 8 โอมห์ SOUNDVISION D 2350 แอมป์ขยายเสียงจากแบรนด์ชั้นนำ SOUNDVISION
SOUNDVISION D-2350
2-Channels Digital Power Amplifier class D 2×350 watts at 8 ohm
คุณสมบัติ
1. Multifunction and 1U design
Traditional amplifier use heavy toroidal transformers and cooling tubes, inconvenient to transport and carry. D-2350 use high quality digital amplifier switching power supply, with the U.S. IR digital amplifier module, Rated output power (2x350W @ 8 ohm) , just 4 kg, 1U design, lightweight , which is easy for installation orperformance using.
2. Advanced high-quality switching power supply module
Digital switching power amplifier for selection is critical , our engineers through repeated trials , the power sector is currently selected.This module anti-interference ability, high stability of output voltage, over power protection has short circuit protection, high conversion efficiency, making the digital amplifier power and stability are quite good.
3. American IR digital with japan qualified capacitance
After continuous exploration and research by our engineers use the imports main component (the U.S. IR digital power tube amplification scheme and Japan’s advanced technology bulk capacitance) so the digital amplifier power will be stronger, fast transient response signal, thereby gaining a very good sound quality.
4. Efficient and safe, green energy saving
Class AB or Class H of traditional amp, utilization is only 30% -50%, but digital amplifier switching power efficiency up to 90%, the quiescent current consumption to zero, even if work for 8 hours, the temperature is not exceeding 50 degrees,absolutely safe, reliable and environmental protection.
สเปค
Stereo Mode ( 2 Channels output ) | Continuous average output power per channel |
8Ω/FTC20HZ~20KHZ/0.1%THD 4Ω/FTC20HZ~20KHZ/0.1%THD 2Ω/FTC20HZ~20KHZ/0.1%THD |
350W 550W 850W |
S/N ( 20HZ~20KHZ) 8Ω | >95dB |
Distortion(@8Ω 1KHZ) | <0.15% |
Sensitivity of input | 1.0V |
Frequency response | 20HZ~20KHZ+/-0.5dB |
Circuit design | CLASS D |
Damping coefficient | >600@8Ω |
Cooling mode | 2 fans, airflow from the back to the front |

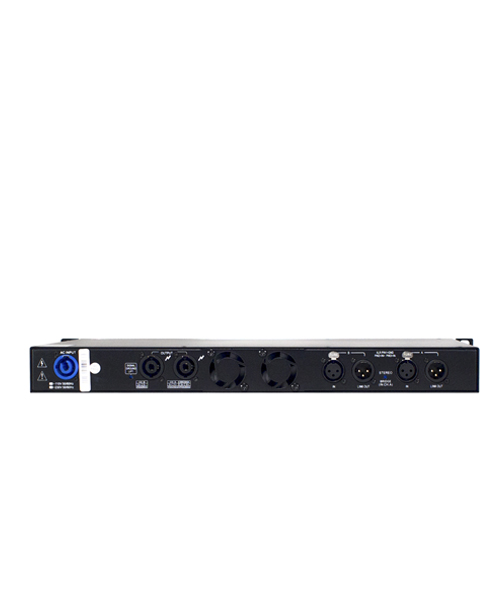

Connector(each channel) | Input: XLR output: lock pin type jack |
Control panel | Front panel:AC power switch,single channel 1/2 gain adjust.Back panel: Stereo / Bridge mode selection |
Indicator light | Power:Green LED ,Signal:Yellow LED ,CLIP:Red LED ,Protect:Red LED |
Protect function | Short circuit, over heat, automatic limit,long-term output, DC / AC protection |
Size(Wide x deep x high) | 483mmx343mmx45mm |
Weight | 4KG |
AC input | 220V |
