เพาเวอร์แอมป์ SOUNDVISION D-4350 ระบบดิจิตอล 4 ชาเนล คลาส D 4×350 วัตต์ ที่ 8 โอมห์ SOUNDVISION D 4350 แอมป์ขยายเสียงจากแบรนด์ชั้นนำ SOUNDVISION

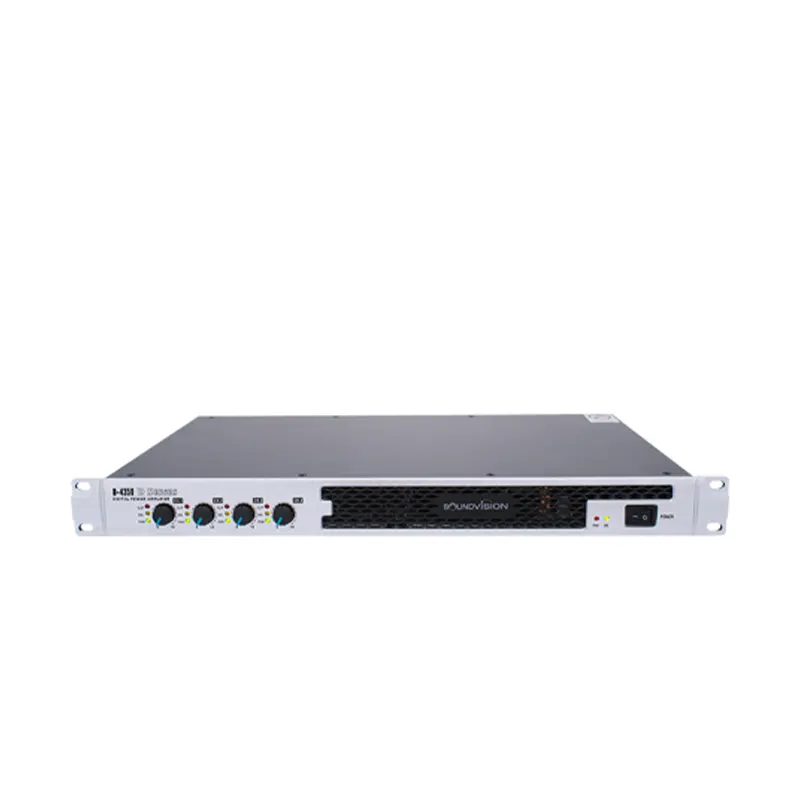

SOUNDVISION D-4350
4-Channels Digital Power Amplifier class D 4×350 watts at 8 ohm
คุณสมบัติ
1. Four High-Power Channels In One Amplifier
D-4350 amplifiers provide four independent channels output / input, D-4350=350W/CH . D-4350 are suitable for a wide range of installed systems.Which is reduce the power amplifier quantity and the cost of project, easy management and maintenance.
2. Stereo, Parallel, or Bridged Operation
The stereo mode provides four independent channels of amplification, the parallel mode allows two mono sources to drive dual amplifiers each, and in the bridged mode two channels operate as a single high-power mono amp, effectively giving you two higher powered mono amps in one unit. The operating mode can be easily switched from the rear panel.
3. Versatile Input/Output Connectivity

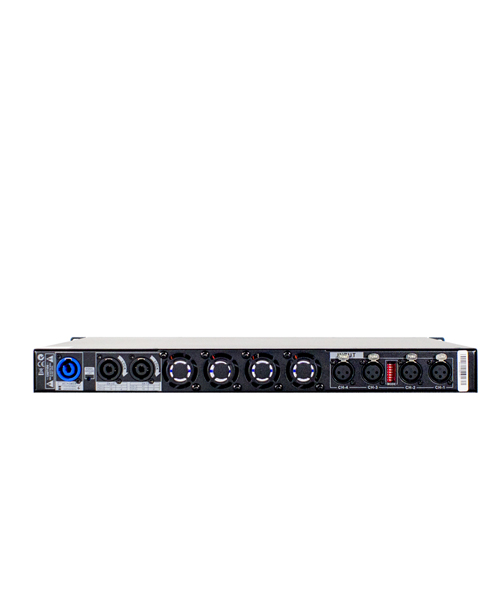

XLR jacks for easy, secure input connection. Output connections are made via three-way binding posts. Precision attenuators and independent indicators are provided for each channel, allowing accurate level setup and status monitoring.
4. locking power jack
In consideration of safer power input power, the power to adopt more secure interlocking series of standard power socket, safe, efficient, more professional quality.
สเปค
| Multi-Channels ( 4 Channels output ) | Continuous average output power per channel |
| 8Ω/FTC20HZ~20KHZ/0.1%THD 4Ω/FTC20HZ~20KHZ/0.1%THD 2Ω/FTC20HZ~20KHZ/0.1%THD |
350W 550W 700W |
| Bridge mode(single channel output) | Average continuous output power |
| 8Ω/FTC20HZ~20KHZ/0.1%THD 4Ω/FTC20HZ~20KHZ/0.1%THD |
700W 1100W |
| S/N ( 20HZ~20KHZ) 8Ω | >95dB |
| Distortion(@8Ω 1KHZ) | <0.15% |
| Sensitivity of input | 1.0V |
| Frequency response | 20HZ~20KHZ+/-0.5dB |
| Circuit design | CLASS D |
| Damping coefficient | >600@8Ω |
| Cooling mode | 4 fans, airflow from the back to the front |
| Connector(each channel) | Input: XLR output: lock pin type jack |
| Control panel | Front panel:AC power switch,single channel 1/2/3/4 gain adjust.Back panel: Stereo / Parallel / Bridge mode selection |
| Indicator light | Power:Green LED ,Signal:Yellow LED ,CLIP:Red LED ,Protect:Red LED |
| Protect function | Short circuit, over heat, automatic limit,long-term output, DC / AC protection |
| Size(Wide x deep x high) | 483mmx240mmx45mm |
| Weight | 7KG |
| AC input | 220V |
