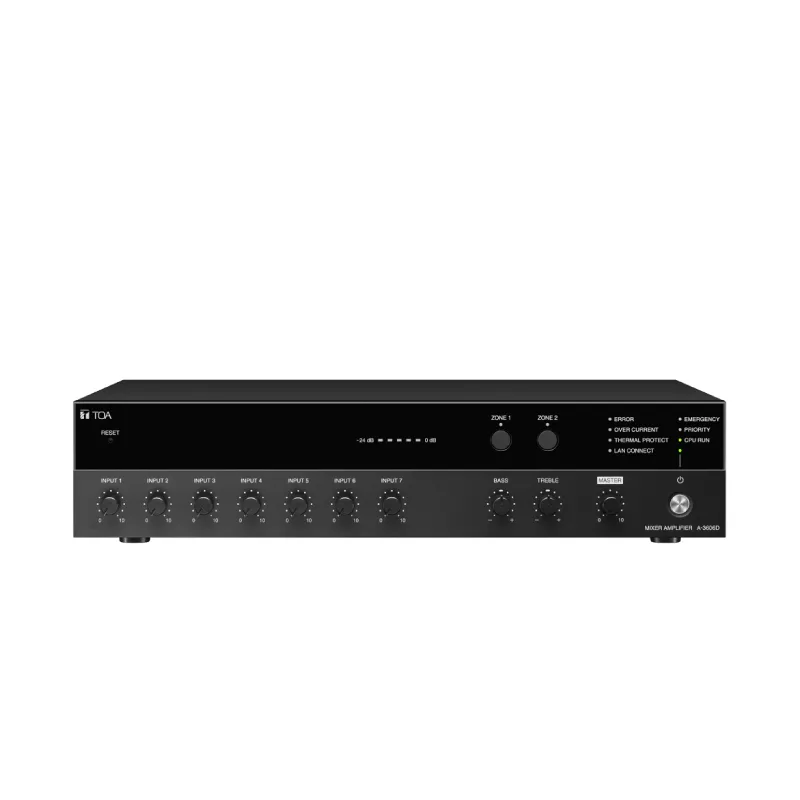

| Power Source |
100 – 240 V AC, 50/60Hz |
| Rated Output |
480 W |
| Power/Current Consumption |
601 W (Rated output), 113 W (based on EN62368),
200 mA or less (when power switch is OFF) |
| Frequency Response |
50 Hz – 20 kHz ±3 dB (1/8 rated output) |
| Distortion |
1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)) |
| Tone Control |
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz |
| S/N Ratio |
88 dB or more (Master volume: min.)
76 dB or more (Master volume: max.)
55 dB or more (INPUT 1 – 6)
72 dB or more (INPUT 7)
(A-weighted) |
| Audio Input |
INPUT 1, 2: -60 dB(*1)(MIC) / -20 dB (*1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3 pins)
Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable)
INPUT 3, 4: -60 dB(*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable)
INPUT 5, 6: MIC (BUS 1) / LINE (BUS 2) selectable
MIC : -60 dB(*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
LINE: -20 dB (*1), 10 kΩ, unbalanced, RCA pin jack x 2
INPUT 7: -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack x 2
PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack |
| Input Bus |
INPUT 1 – 4: BUS 1
INPUT 5 – 6: BUS 1/BUS 2 selectable
INPUT 7: BUS 2 |
| Audio Output |
Speaker out: Low impedance (4 – 16 Ω) /
High impedance (DIRECT, ZONE 1, ZONE 2: 100 V / total 21 Ω), removable terminal block (6 pins)
(ZONE 1 / ZONE 2 is selectable, max. 480 W per output)
Rec out: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack
Line out 1, 2: 0 dB (*1) , 600 Ω, unbalanced, RCA pin jack (Interlock with zone selection is possible) |
| Control Input |
4 channels. no-voltage make contact input, open voltage: 35 V DC or less,
Short circuit current: 10 mA or less, removable terminal block (4 pins)
REMOTE VOLUME: Removable terminal block (4 pins)
ZONE CONTROL IN: No-voltage make contact input, even voltage: 35 V DC or less,
short-circuit current: 10 mA or less, removable terminal block (4 pins) |
| Control Output |
POWER REMOTE OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
EMERGENCY OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
ZONE CONROL OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) |
| Chime |
1-note, 2-note, or ascending, 4-note chime, or None selectable with switch setting |
| Indicator |
5-point LED output level master, Power LED, LAN connect LED, Priority LED, Emergency LED, Thermal protection LED, Over current protection indicator LED, CPU RUN LED, Error LED, Zone 1 LED, Zone 2 LED |
| Operating Temperature |
-10°C to +40°C |
| Operating Humidity |
85 %RH or less (or condensation) |
| Finish |
Panel: ABS resin, black
Case: Surface-treated steel plate, black, paint |
| Dimensions |
420 (W) × 96.1 (H) × 313.1 (D) mm |
| Weight |
5.2 kg |
| Accessory |
Power Cord (2 m) x 1, Audio Input Removavble Terminal Plug (3.81 mm, 3 pins) x 6, Control I/O Removable Terminal Plug (3.81 mm, 4 pins) x 4, Remote Control Removable Terminal Plug (3.5 mm, 4 pins) x 2, Speaker Out Removable Terminal Plug (5 mm, 6 pins) x 1, Volume Control Cover x 4 |
| Option |
Rack mounting bracket: MB-25B
Perforated panel: PF-013B |
