ดิจิตอล มิกเซอร์แอมป์ แบบ 70V/100V TOA A-5012 อินพุต 2 MIC/LINE , 2 Aux เหมาะสำหรับการใช้งานที่หลากหลาย ดิจิตอล มิกเซอร์แอมป์ A-5012 แบรนด์ TOA

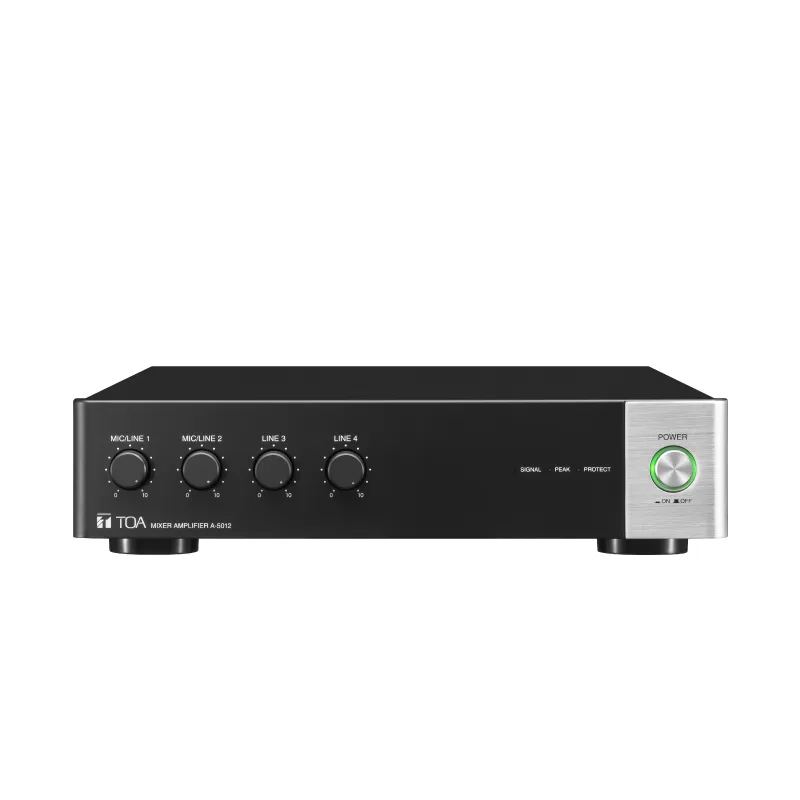

TOA A-5012
Digital Mixer Amplifier
The A-5012 is a half-rack 1-unit size, 120 W, desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100V and 70V lines) and low-impedance (4 Ω) speaker connections.
Functions can be set with a PC using the dedicated setting software. The A-5012 is ideal for use as a power amplifier in a small commercial facility and conference room.
With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).
สเปค
| Power Source | 100 – 240 V AC, 50/60 Hz |
| Rated Output | 120 W |
| Power Current Consumption |
207 W (rated output), 39 W(based on cULus standards) Max. 3 A |
| Frequency Response | 50 Hz – 20 kHz, 1/8 output |
| Distortion | 1 % or less (1 kHz, rated output) |
| Input | INPUT 1, 2: MIC -60 dB*, LINE -20 dB*, MIC/LINE selectable 2.2k ohms, electronically-balanced, removable terminal block (5 pins) INPUT 3, 4: LINE -20 dB*, 10k ohms, unbalanced, RCA pin jack |
| Output | Speaker: 4 ohms, 70 V (42 ohms), 100 V (83 ohms) Removable terminal block (5 pins) |
| S/N Ratio | MIC 1, 2: 50 dB or more, LINE 1 – 4: 70 dB or more (A-weighted) |
| Function | Parametric equalizer: 5 points settable on each input and output, 20 Hz – 20k Hz +/-15 dB, Q: 0.267 – 69.249 Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default) Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input |
| Control | Mute control, Remote master volume control, Power ON/OFF switch, Ground lift |
| Indicator | Power, Signal, Peak, Protect |
| Finish | Panel: RS resin, black; Case: Surface-treated steel plane, black, paint |
| Dimensions | 210 (W) X 52.5 (H) X 375 (D) mm (8.27″ x 2.07″ x 14.76″) |
| Weight | 3.9 kg (8.6 lbs.) |
| Accessory | x CD(setting software), 1 x Large type removable terminal plug (5 pins), 2 x Small type removable terminal plug (5 pins), 6 x Bracket mounting screw, 6 x Plain washer, 1 x Power supply cord (2 m (6.56 ft.)) |
| Options | Rack mounting brackets: MB-15-BK, MB-15B-J, YA-706 |
