เพาเวอร์แอมป์ TOA DA-250DH CE 2 ชาแนล 2×250 วัตต์ เพาเวอร์แอมป์ DA-250DH CE จากแบรนด์ TOA

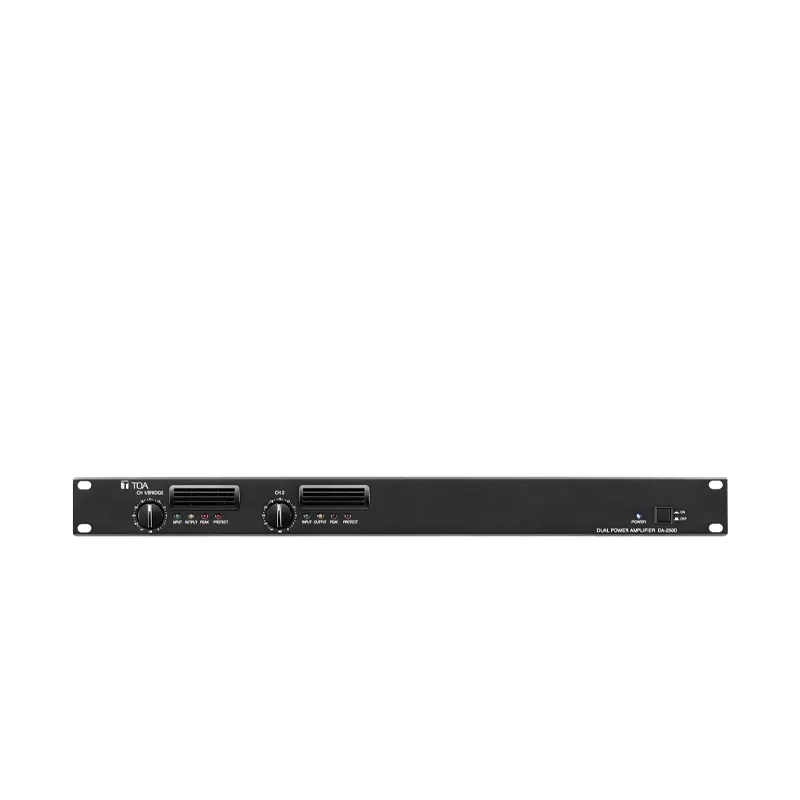

TOA DA-250DH CE
Dual-Channel Power Amplifier
DA-250DH เป็นพาวเวอร์แอมปลิไฟเออร์ดิจิตอลแบบ 2 แชนแนลออกแบบมาให้ใช้งานกับ high-impedance (100V) มีน้ำหนักเบา กำลังขับสูง กำลังขับ 250 W × 2 (40Ω output) แต่ละช่องสัญญาณจะมีไฟเลี้ยงในตัวเอง โดยตัวแอมปลิไฟเออร์มีขนาดเพียง 1 Unit เท่านั้น
สเปค
Power Source | 220 – 240 V AC |
---|---|
Amplification System | Class D |
Power Consumption | 150 W (based on EN standards) 580 W (rated output 100 V line |
Input | 2 circuits 10 kΩ XLR-3-31 type connector CH 1 mode ON/OFF switch (ON: PARALLEL |
Rated Output | 2 channels: 250 W × 2 (100 V line M4 screw terminal |
Frequency Response | 50 Hz – 20 kHz (-3 dB |
Total Harmonic Distortion | 0.1 % (1 kHz) 0.3 % (100 Hz – 20 kHz) |
Protection Circuit | Protection against excessive current flow due to overload short circuit temperature rise at power amp. heat sink (100 ℃ (212 ゜F) or more) temperature rise inside the unit (80 ℃ (176 ゜F) or more) |
S/N Ratio | 100 dB (A-weighted) |
Crosstalk | 70 dB (A-weighted) |
LED Indicator | Power (blue) × 1 Protect (red) × 2 |
Cooling | Forced air cooling |
Operating Temperature | -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F) |
Operating Humidity | 90 %RH or less (no condensation) |
Finish | Panel: Aluminum Case: Plated steel sheet |
Dimensions | 482 (W) × 44 (H) × 401.8 (D) mm (18.98 × 1.73″ × 15.82) |
Weight | 5.3 kg (11.68 lb) |
Accessory | Power cord (2 m (6.56 ft)) …1 Tamper-proof cap …2 |
Option | Matching transformer: MT-251H |
