Booster Amplifier TOA P-3248D 480 วัตต์ มีบริการรับออกแบบ พร้อมติดตั้ง ใช้สำหรับขยายกำลังวัตต์ให้มากขึ้น มีบริการรับออกแบบ พร้อมติดตั้ง ปรึกษาฟรี! จากแบรนด์ TOA

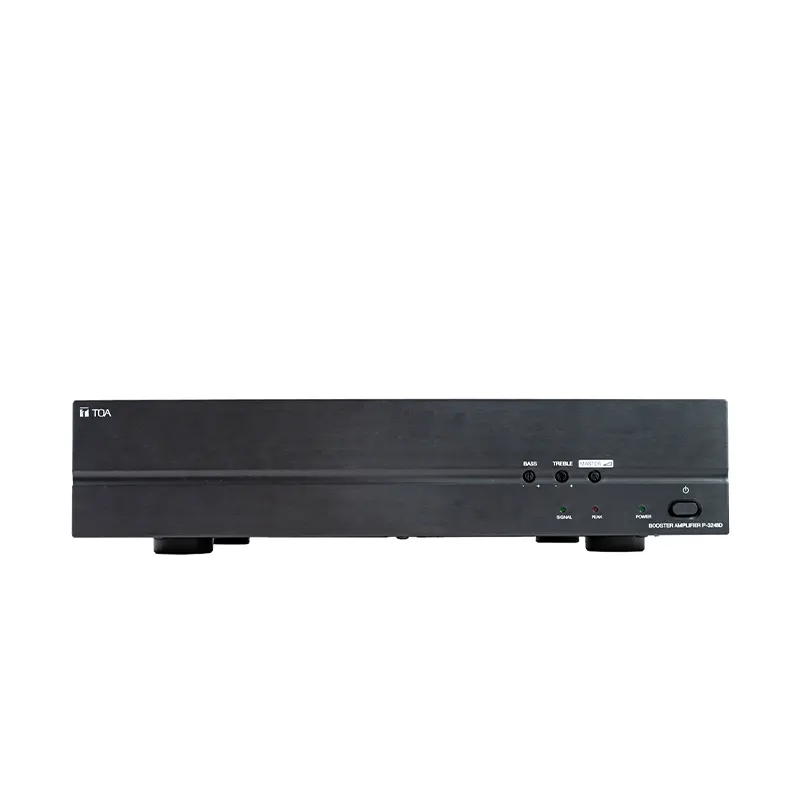

TOA P-3248D-AS
Booster Amplifier 480W
P-3248D is a high performance yet cost-effective digital booster amplifier equipped suited for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.
สเปค
| Power Source | 100 – 240 V AC, 50/60Hz or 24 V DC |
|---|---|
| Rated Output | 480 W |
| Power Consumption | 99 W (AC operation at 1/8 maximum output without clip) |
| Frequency Response | 50 – 20,000 Hz |
| Input | Line In: 0 dB*, 10 kΩ, balanced, screw terminal 100 V Line In: 40 dB*, 30 kΩ, unbalanced, screw terminal |
| Output | Speaker out: Speaker Output in screw type terminal Direct line (selectable): 21 Ω (100 V) or 4 Ω Rec out: 0 dB*, 600 Ω, unbalanced, screw terminal |
| Control | Remote power control, screw terminal Remote master volume bypass, screw terminal |
| S/N Ratio | Over 70 dB |
| Total Harmonic Distortion | Under 1% at 1 kHz, 1/3 rated power |
| Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Indicator | Power, Signal , Peak |
| Ventilation | Fan Cooling |
| Finish | Panel: ABS resin, black Case: Steel plate, black |
| Dimensions | 420 (W) × 100.9 (H) × 351.3 (D) mm |
| Weight | 5.2 kg |
