แอมป์ขนาดเล็ก TOA TA-102 H 10 วัตต์ 2 Input ไมโครโฟน และ 1 Aux RCA คุณภาพคงทน ไม่ยุ่งยาก หน้าเครื่องควบคุมง่ายต่อผู้ใช้งาน จากแบรนด์ TOA

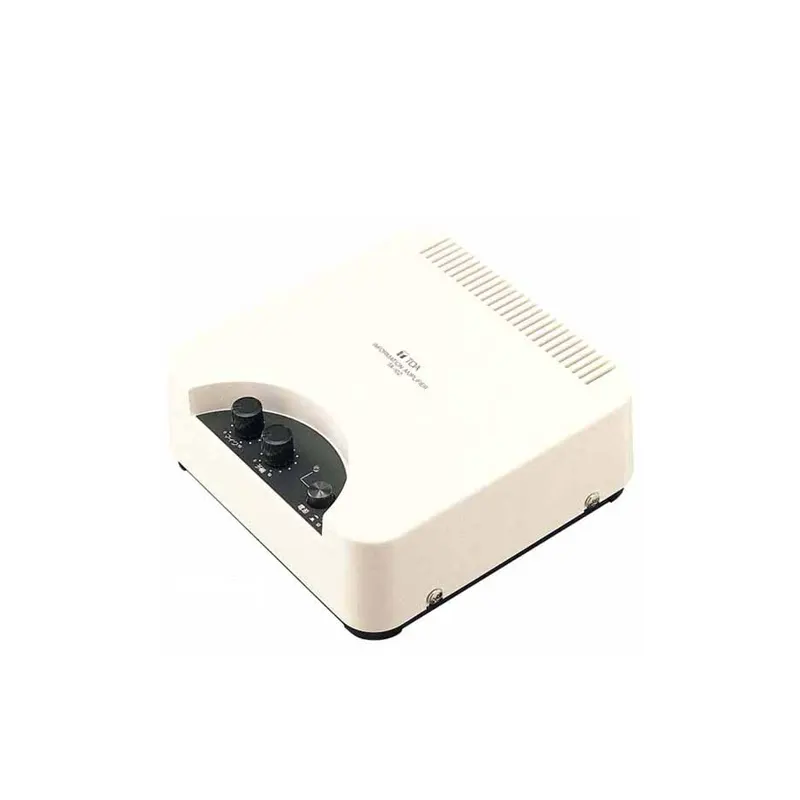

TOA TA-102H
Information Amplifier 10 W
Rated at 10 W of output, TOA’s TA-102 amplifier is ideal for simple paging in such places as reception desks,
waiting rooms, and coffee shops. Its internal single-tone chime generator can be operated by using the optional paging microphone PM-660D.
สเปค
SPECIFICATIONS
- Power Source 220 – 240 V AC, 50/60 Hz
- Power Consumption 30 W
- Rated Output 10 W
- Distortion Under 3% (1 kHz, rated output)
- Frequency Response 100 – 12,000 Hz within ±3 dB
- Input Microphone input:600 Ù, –60 dBV, unbalanced
- Phone jack x 1, 5-pin DIN jack x 1 (Phone jack is given
- priority.)
- AUX input: 50 kÙ, –10 dBV, unbalanced
- RCA pin jack x 2
- Speaker Output High impedance, 1 kÙ
- S/N Ratio Over 60 dB
- Internal Chime Generator Single-tone chime, 330 Hz (remote operation by PM-600D’s talk switch)
- Muting Circuit AUX input automatically attenuates when microphone announcement is
- made, and is automatically restored upon announcement completion.
- (Attenuation level: 25 – 30 dB, restoration time: 4.5 seconds)
- Operating Temperature –10°C to 50°C
- Dimensions 180 (W) x 71 (H) x 180 (D) mm (projection excluded)
- Weight 1.8 kg
- Finish Case: ABS resin (off white)
- Chassis: Steel plate/paint (black)
