SOUNDVISION ACS-1500 x SIGNATURE 12 ชุดลำโพง Active Column พร้อมอนาล็อก มิกเซอร์ 12 ชาแนล

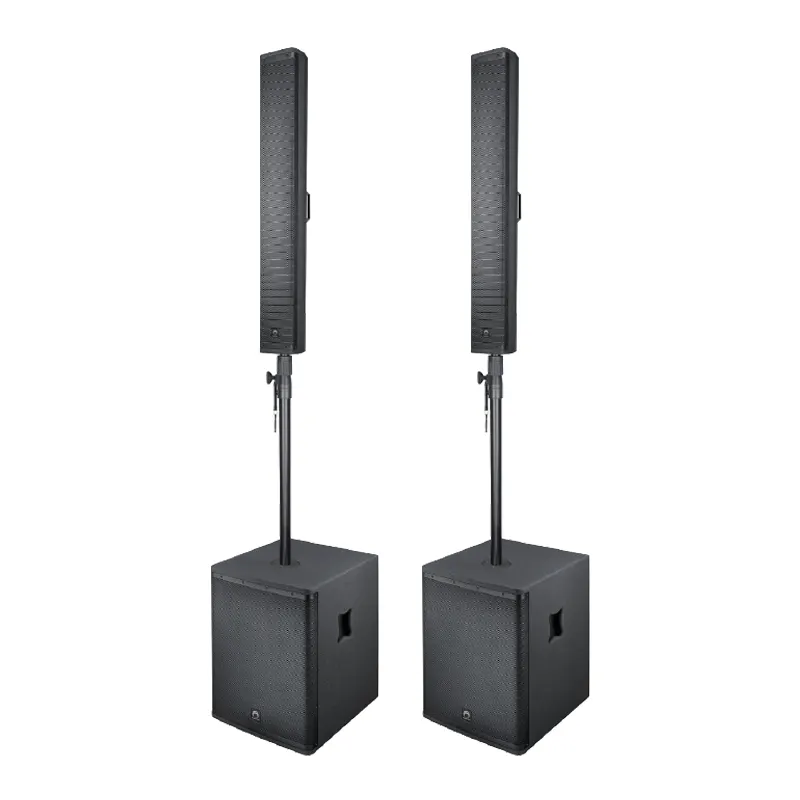

SOUNDVISION ACS-1500 Series Active Column Speaker System
ACS-1500 Series Active Column Speaker System which can cover the usage area from small to large designed for hi-end professional sound performance specifically for frequency response up to 40Hz ～ 18KHz ± 3dB, Power maximum 1800 Watts Amplifier Class D with DSP processor 5 Preset for best performance.
And can stream wireless music via Bluetooth support ideal life sound concert, event, shopping mall, meeting room – training, fitness, restaurant, hotel banquet room.
This series includes ACS-1500S (Subwoofer), ACS-1500C (Column Speaker)
- Subwoofer Component: 15″, 3″ voice coil
- Satellite Components: 4″ X 8 Full Range Speaker
- Dispersion Angle (H x V): 80 x 20 Degree.
- Frequency response: 40Hz ～ 18KHz
- Max. SPL / (Peak): 125dB/134dB
- Power RMS: 900W / 1800W (MAX)
- Built-in Class D Amplifier
- Built-In DSP Processor Mode: DEFAULT, MUSIC, DANCE, SPEECH, POP
- Built-in Media player: Wireless stereo audio streaming Bluetooth.
- Operating voltage AC 220 – 240V, 50/60Hz
|Transducer||Subwoofer Components: 15″, 3″ voice coil||Satellite Components : 4″ X 8 Full Range Speaker|
|Frequency Response||40Hz ～ 180Hz ±3dB||110Hz ～ 18kHz ±3dB|
|Rated Power||600W / 1200W (MAX)||300W / 600W (MAX)|
|Sensitivity||95dB 1m/1W||96dB 1m/1W|
|Maximum SPL||125dB/134dB (Peak)||125dB/134dB (PEAK)|
|Nominal Impedance||4 Ω||4 Ω|
|Built-in DSP Processor||DEFAULT, MUSIC, DANCE, SPEECH, POP|
|Audio Streaming Wireless||Bluetooth Version 4.0|
|Dispersion Angle (H x V)||80° X 20°|
|Connection||Line Input: XLR or 1/4” Jack, Line Output: XLR||SPEAKON|
|Operating voltage||AC 220～240V, 50/60Hz|
|Dimensions (W x H x D)||430 x 520 x 570mm||135 x 135 x 980mm|

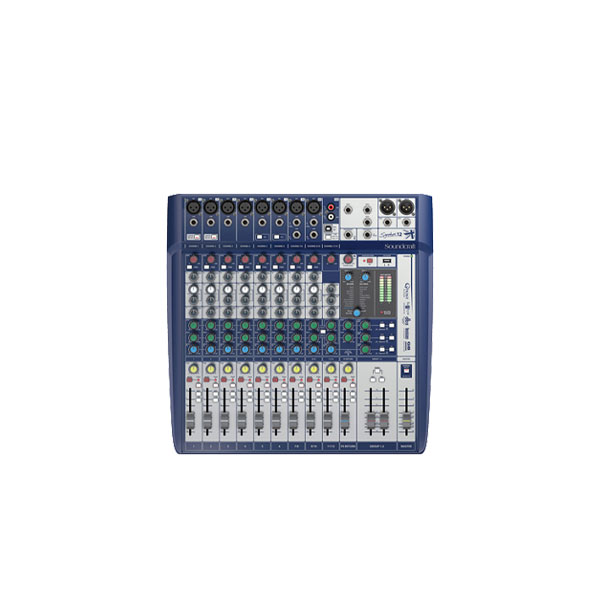

SOUNDCRAFT Signature 12 Compact analogue mixing – your Signature sound
They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.
All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPX-i native plug-in and Ableton Live 9 Lite.
In addition, the consoles feature smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.
- High-Performance 12-input small format analogue mixers with onboard effects
- Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
- Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
- Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
- dbx® Limiters (High-ratio Compressors) on input channels
- 2-in/2-out USB audio playback and recording*
- Switchable Hi-Z inputs for guitars, basses and other instruments
- Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
- Comprehensive Soundcraft® GB Series audio routing
- Smooth premium-quality faders
- Robust metal construction for tour-grade build quality and reliability
- Internal universal power supply
