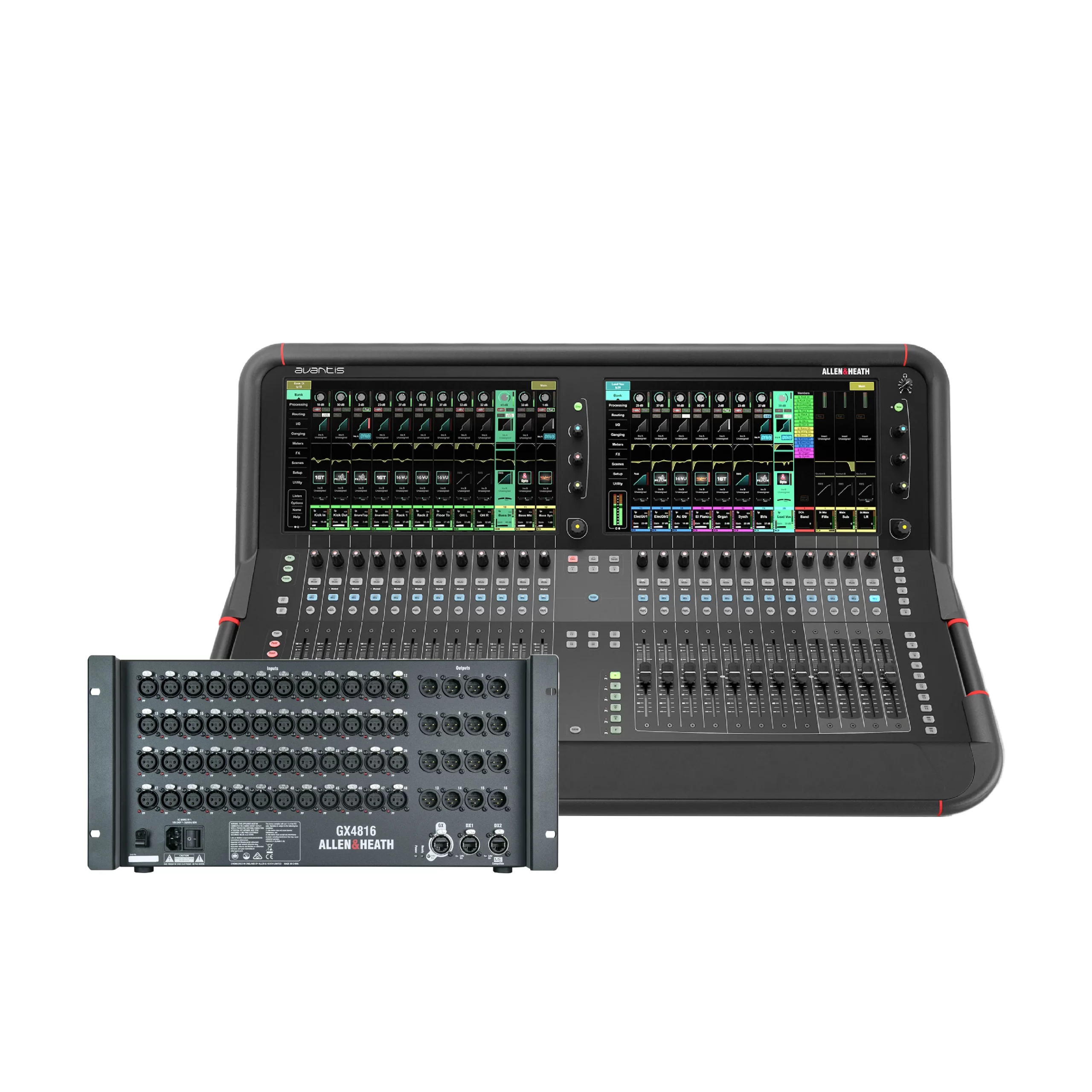

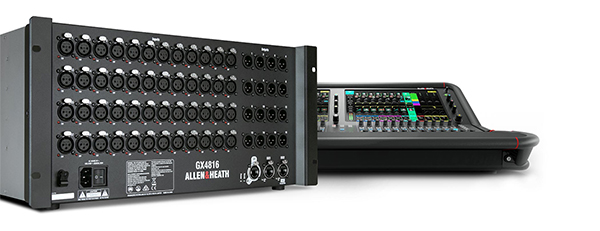

ALLEN&HEATH Avantis+GX4816 มิกเซอร์ ดิจิตอล 64 ชาแนล 42 Bus ALLEN&HEATH Avantis Mixer Digital พร้อม GX4816 I/O Stagebox จากแบรนด์ Allen&Heath
ประกอบด้วย
ALLEN&HEATH Avantis
มิกเซอร์ ดิจิตอล 64 ชาแนล 42 Bus
ALLEN&HEATH I/O GX4816
ดิจิตอล สเตจบ๊อกซ์ 48 Input 16 Output

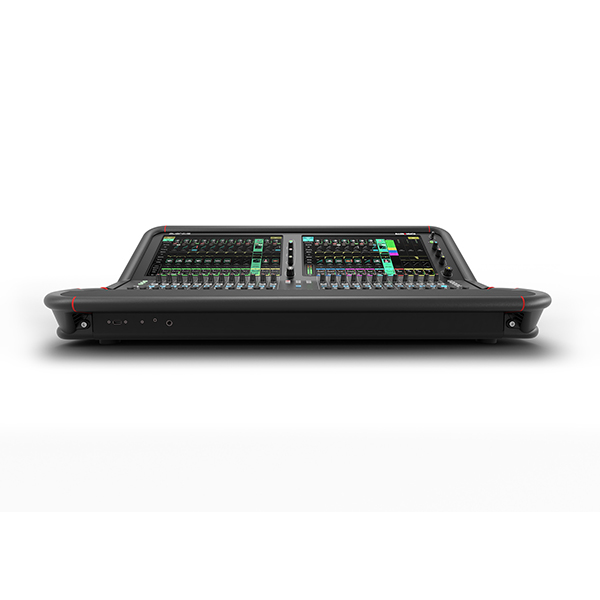

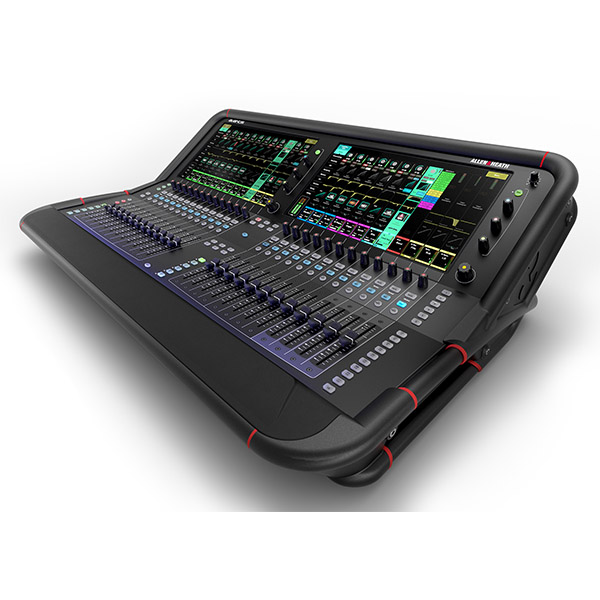

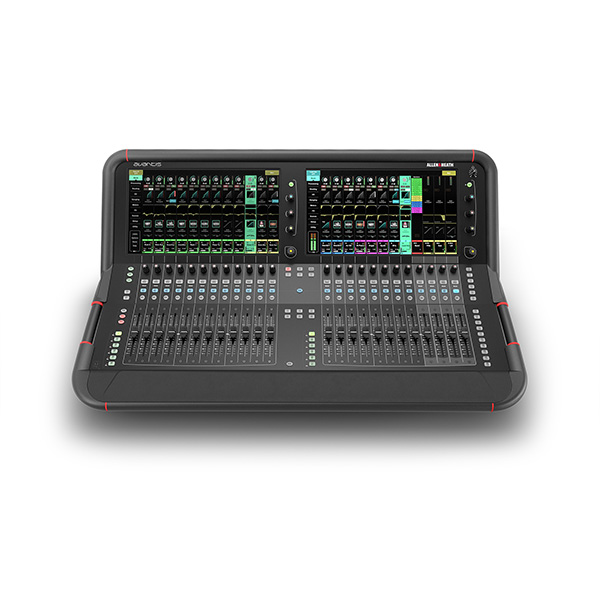

ALLEN&HEATH Avantis มิกเซอร์ ดิจิตอล 64 ชาแนล 42 Bus ALLEN&HEATH Avantis Mixer Digital จากแบรนด์ Allen&Heath

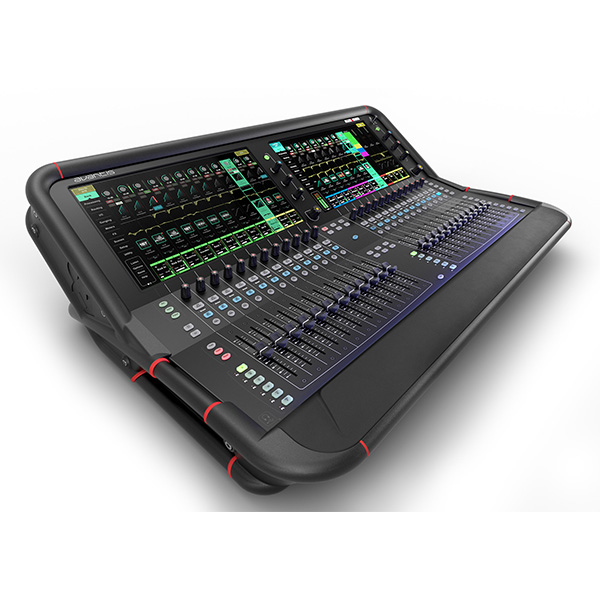

ALLEN&HEATH Avantis Mixer Digital
คุณสมบัติ
- 96kHz 64 channel / 42 bus digital mixer
- XCVI FPGA core with ultra-low latency (0.7ms)
- Fully configurable mix bus architecture
- Super-tough, full metal chassis
- Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
- dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
- 12 RackExtra FX slots with dedicated stereo returns
- 16 DCAs
- Dual 15.6” Full HD capacitive touchscreens with gesture control
- AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
- Fully assignable layout
- 144 fader strips (24 faders, 6 layers) with optional dedicated master section
- SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
- 12 analogue XLR Inputs / 12 analogue XLR Outputs
- 1 Stereo AES In / 2 Stereo AES Out
- 2 I/O Ports, both capable of 128×128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
- User configurable rotary controls
- 24 assignable SoftKeys
- Comprehensive metering with multi-point peak detection
- USB stereo recording and playback
- BNC Word Clock
ALLEN&HEATH Avantis IT’S A SMALL STEP TO A GIANT LEAP
The third mixer based on our 96kHz XCVI FPGA engine, Avantis puts all our next-generation technology in a 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super-flexible workflow with Continuity UI, extensive I/O options, add-on processing from our flagship dLive mixing system, and a rugged full metal chassis.
The power of Avantis emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with parallel virtual processing cores generating enough power for 88×42 (including FX returns) channels of processing at 96kHz sampling rate.
The massive power of XCVI (25 billion operations per second) allows Avantis to deliver 64 full processing inputs and 12 stereo FX returns, 42 bus with configurable mix architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms.

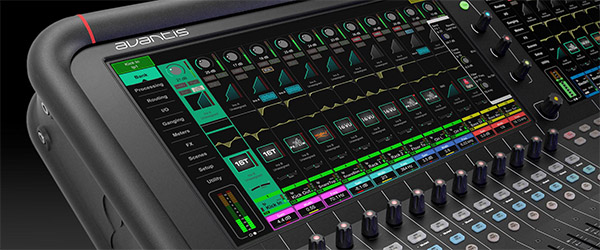

ALLEN&HEATH Avantis CONTINUITY UI
It’s your mixer so mix your way.
With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays.
The faders react on touch to immediately highlight the active channels for instant visual feedback.
The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.
Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel.
The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.
EVERYTHING I/O
A complete ecosystem of remote expanders.
Whether you’re an owner/operator looking to build a compact system, or a rental company with existing Allen & Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen & Heath audio expander hardware. Add a Dante card to your system and you’ve got even more options, with our dedicated Dante expanders, DT168 and DT164-W.

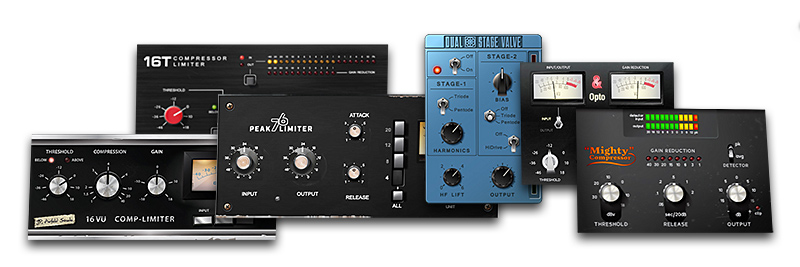

UPGRADE TO dPACK
Get acclaimed dLive processing.
Inside your Avantis.
Right out of the box, Avantis is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console with Avantis dPack to get additional dLive processing including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual Stage Valve Preamp, plus more models as they’re added.

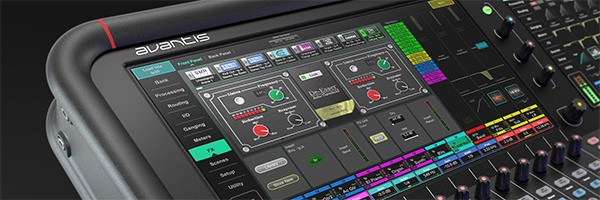

dPACK – DEEP
Trusted by platinum selling artists on sellout tours, DEEP puts incredible emulations directly within Avantis’ input and mix channels with zero latency. No burning FX slots, no 3rd party gear hassles and no issues with latency or phase coherency.

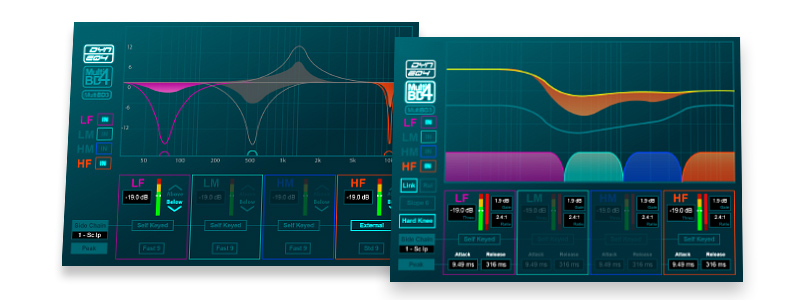

dPACK – DYN8
Avantis dPack also delivers Dyn8, a powerful and sophisticated processor boasting 4 bands of dynamic EQ and 4 bands of multiband compression. With endless applications including taming vocals, tightening sub-groups or adding sonic glue to a mix, Dyn8 changes the way we think about dynamic processing. dPack enables 16 Dyn8 engines for inserting on Input and Mix channels.
RACKEXTRA FX
12 dedicated fx rack slots. And no compromises.

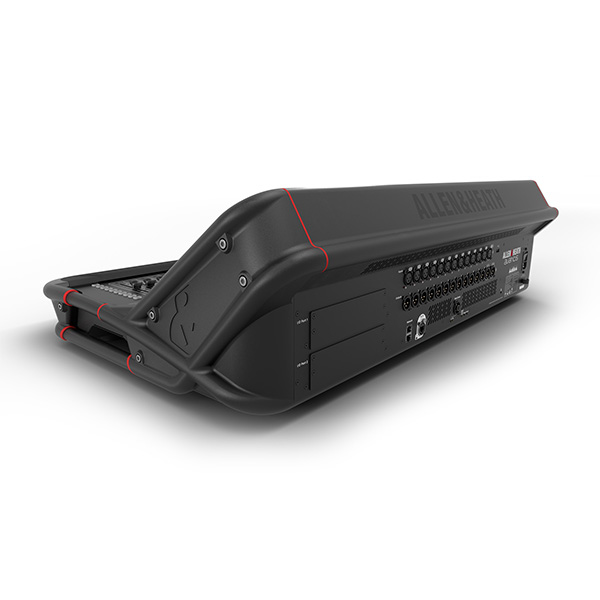

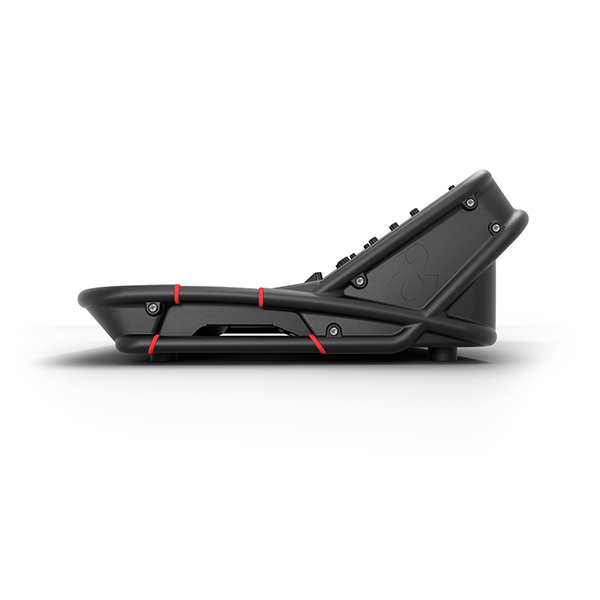

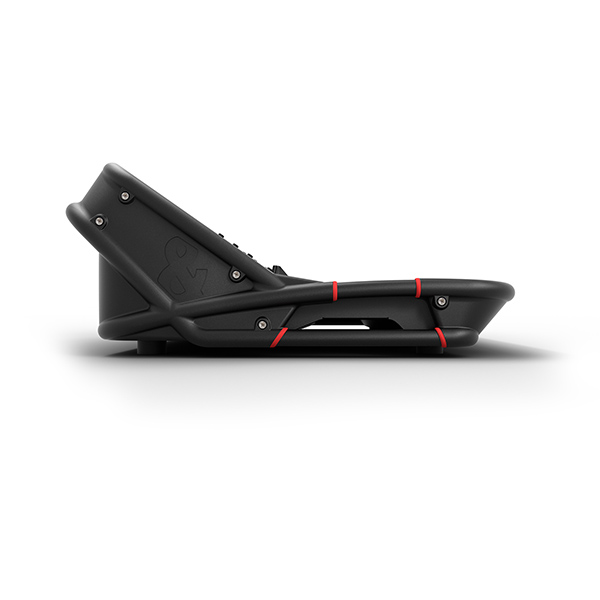

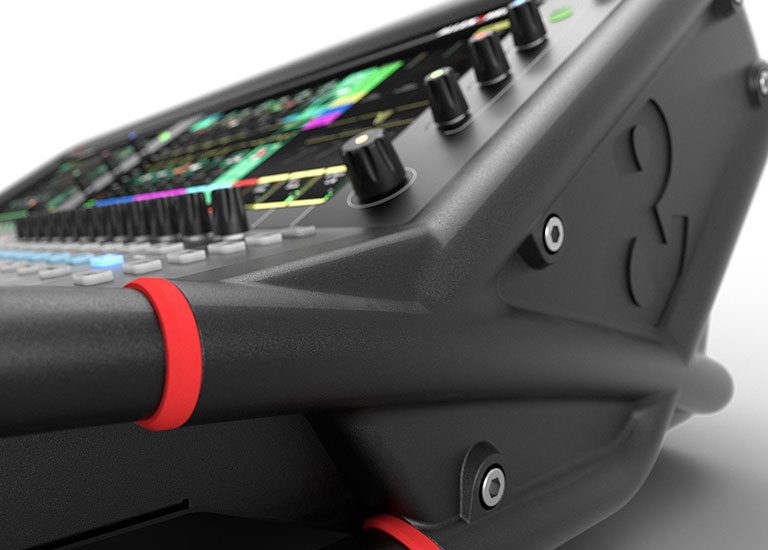

FULL METAL CHASSIS
Lightweight and super-strong.

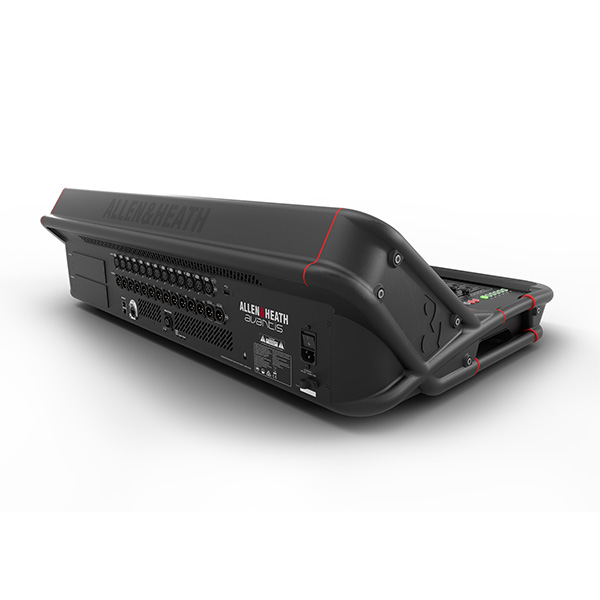

WELL CONNECTED
Dante. Waves. And so much more.

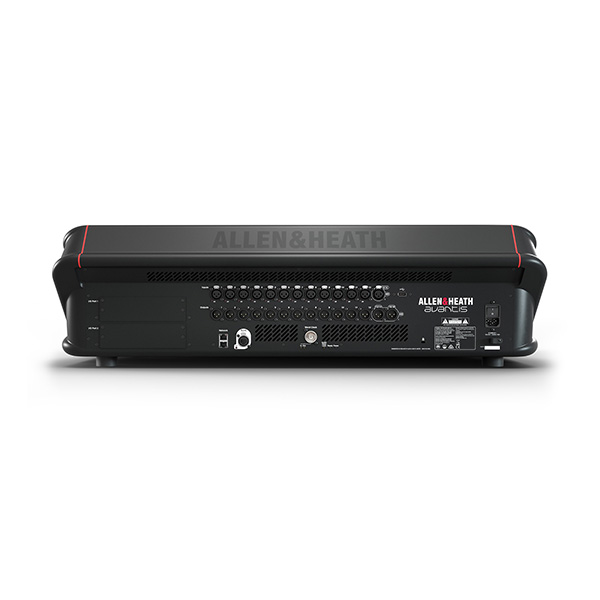

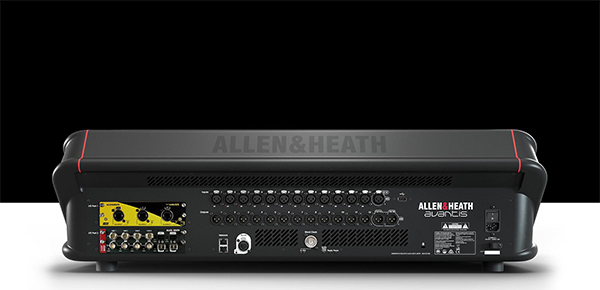

For local I/O, Avantis is well equipped with 12 XLR analogue inputs, 12 XLR analogue outputs, plus AES (Stereo In, 2x Stereo Out). Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64×64 and 128×128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.

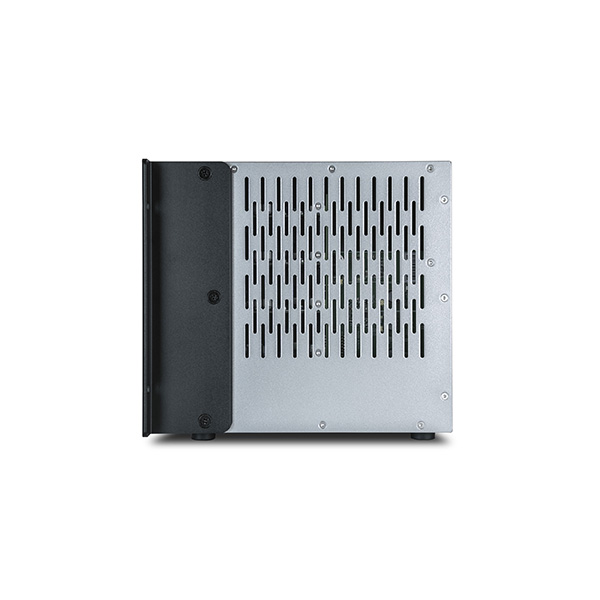

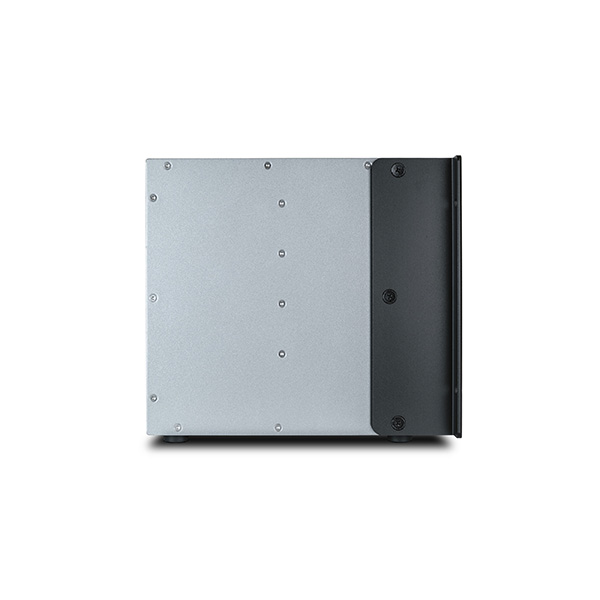

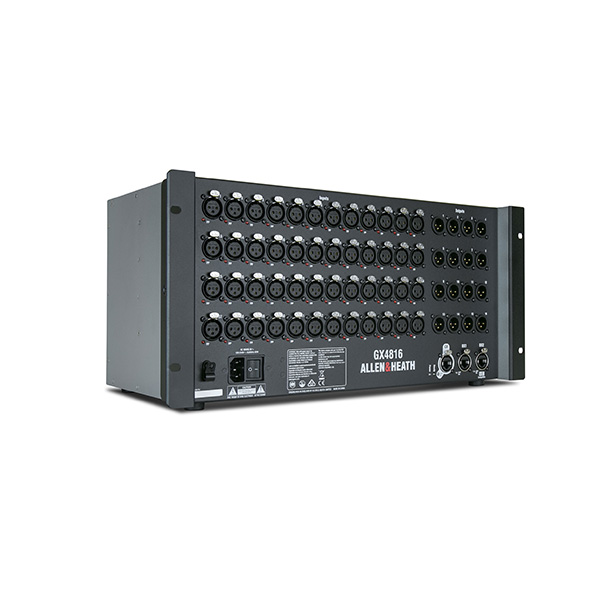

ALLEN&HEATH I/O GX4816 ดิจิตอล สเตจบ๊อกซ์ 48 Input 16 Output ALLEN&HEATH GX4816 ดิจิตอล สเตจบ๊อกซ์ จากแบรนด์ Allen&Heath

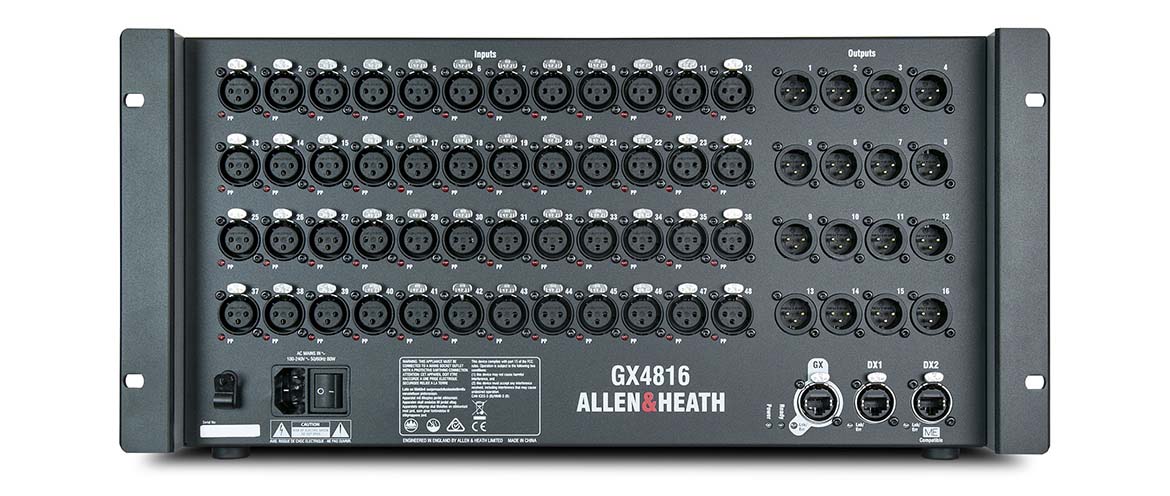

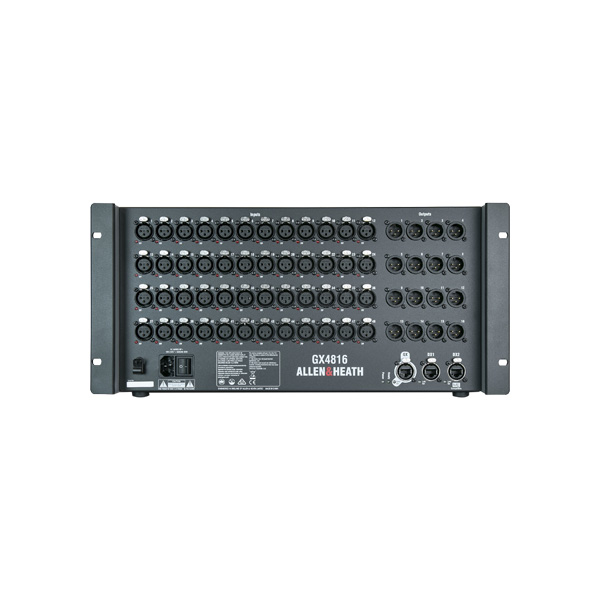

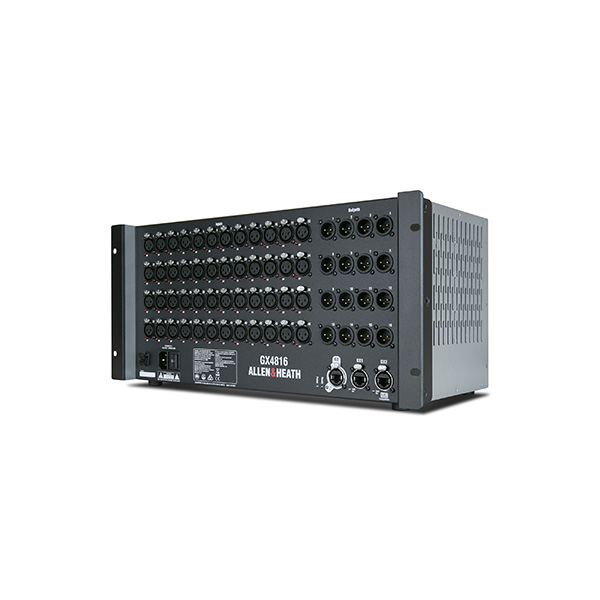

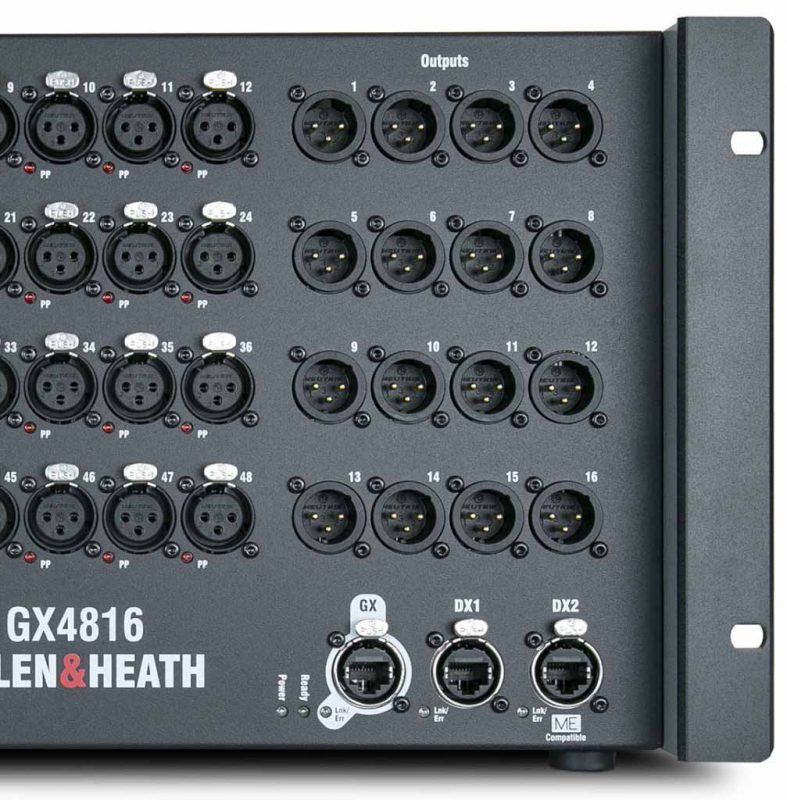

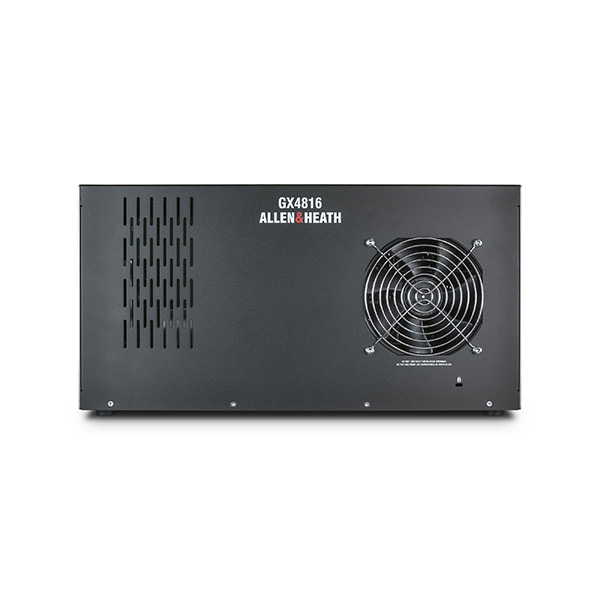

ALLEN&HEATH GX4816 Digital stage box
48 XLR Input / 16 XLR Output Portable GX Expander w/ DX Sockets
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive* mixing systems.
*dLive compatibility due in Firmware V1.9
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ or Avantis, or to a gigaACE audio network card on a dLive system.
Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
คุณสมบัติ
- Preamp 48 Mic บน XLR พร้อมไฟ LED แสดงสถานะ Phantom Power
- 16 XLR Line Outs
- การทำงาน 96kHz
- พอร์ต DX1 – เข้ากันได้กับ DX32 เดี่ยวหรือตัวขยาย DX168 / DX164-W สูงสุด 2 ตัว
- พอร์ต DX2 / ME – เข้ากันได้กับ DX32 เดี่ยว, ตัวขยาย DX168 / DX164-W สูงสุด 2 ตัวหรือระบบตรวจสอบส่วนบุคคล ME
- เข้ากันได้กับระบบ SQ, Avantis และ dLive (เฟิร์มแวร์ 1.9 เป็นต้นไป)
- สามารถเพิ่ม GX4816 หลายตัวในระบบ:
- สามารถเพิ่มหน่วย GX4816 ได้สูงสุด 2 ระบบในระบบ SQ
- สามารถเพิ่มหน่วย GX4816 ได้สูงสุด 2 ระบบในระบบ Avantis
- สามารถเพิ่มหน่วย GX4816 ได้มากถึง 5 ระบบในระบบ dLive S Class
- สามารถเพิ่มหน่วย GX4816 ได้สูงสุด 3 ระบบในระบบ dLive C Class
- การทำงานแบบติดตั้งบนชั้นวาง (5u) หรือชั้นวาง / พื้น
- Plug and Play – ไม่ต้องใช้ที่อยู่ IP
- เข้ากันได้กับสาย CAT5e (หรือสูงกว่า) ที่มีความยาวไม่เกิน 100 เมตร
- การล็อคพอร์ต EtherCon
