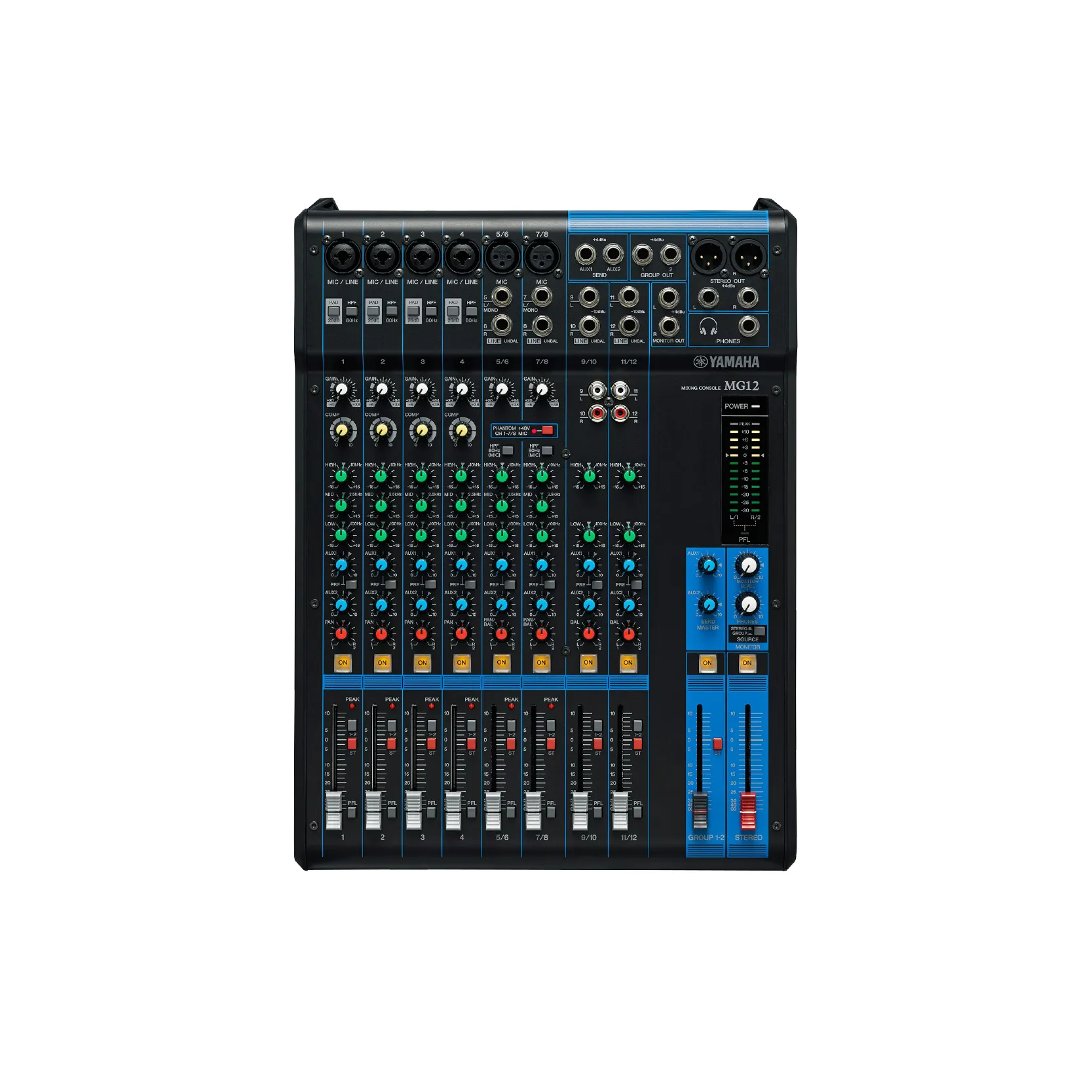

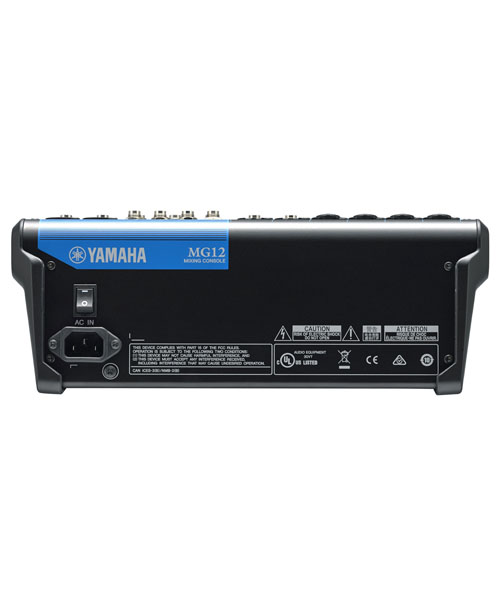

YAMAHA MG12 Analog Mixer 12 Input เครื่องผสมสัญญาณเสียง มิกเซอร์อนาล็อก 12 ชาแนล
YAMAHA MG12
Analog Mixer 12 Input (4 mono + 4 stereo) 2 Group Buses + 1 Stereo Bus 2 Aux
- มิกเซอร์ขนาด 12 อินพุท (4 โมโน และ 4 สเตอริโอ)(D-PRE)
- ช่องเอาท์พุทแบบ XLR และ TRS
- คอมเพรสเซอร์แบบปรับค่าด้วยปุ่มเดียว
- ภาคจ่ายไฟในตัว สามารถเพิ่มชุดยึดแร็ค (อุปกรณ์เสริม)
- 2 AUX และ 2 Group
ถูกออกแบบมาเพื่อเก็บรายละเอียดของเสียงต้นฉบับได้อย่างครบถ้วน ด้วยวงจร Discrete Inverted Darlington แบบคู่ ที่ให้เสียงสะอาด เที่ยงตรงและสัญญาณรบกวนต่ำ ปราศจากความผิดเพี้ยนของสัญญาณเสียง
Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a “signature” sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.
When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix.
Equipped with some of the same state-of-the-art functionality featured on Yamaha’s high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.
For gigging, recording, and installed applications alike, your console can be subjected to a wide range of environmental conditions and hazards. Excessive humidity, unstable power supplies, and the rigors of road travel in general can take a serious toll on a mixing console, often causing expensive, time-consuming repairs, and reducing its lifespan.
The MG Series has been redesigned with an emphasis on durability, incorporating practical features that offer greater flexibility while ensuring peak performance for many years to come.
YAMAHA MG12 มิกเซอร์ อนาล็อก 12 ชาแนล YAMAHA MG12 Analog Mixer
-
12-Channel Mixing Console
-
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
-
2 GROUP Buses + 1 Stereo Bus
-
2 AUX (incl. FX)
-
“D-PRE” mic preamps with an inverted Darlington circuit
-
1-Knob compressors
-
PAD switch on mono inputs
-
+48V phantom power
-
XLR balanced outputs
-
Internal universal power supply for world-wide use
-
Optional Rack Mount Kit RK-MG12 Available
-
Metal chassis
-
308 mm x 118 mm x 422 mm (9.6″ x 2.8″ x 11.6″)
-
Net Weight: 4.0 kg (8.8 lbs.)
Outline
I/O | Phantom power | +48 V |
Input Channels |
Mono[MIC/LINE] | 4 |
Mono/Stereo[MIC/LINE] | 2 | |
Stereo[LINE] | 2 | |
Output Channels |
STEREO OUT | 2 |
MONITOR OUT | 1 | |
PHONES | 1 | |
AUX SEND | 2 | |
GROUP OUT | 2 | |
Bus |
Stereo: 1, GROUP: 2, AUX: 2 | |
Input Channel Function |
PAD | 26 dB (Mono) |
HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | |
COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | |
EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking | |
EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
Level Meter | 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General specifications
Total harmonic distortion |
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
Frequency response |
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
Hum & noise level |
Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | |
Crosstalk |
-78 dB | |
Power requirements |
AC 100 – 240 V, 50 / 60 Hz | |
Power consumption |
22 W | |
Dimensions |
W | 308 mm (9.6″) |
H | 118 mm (2.8″) | |
D | 422 mm (11.6″) | |
Net weight |
4.0 kg (8.8 lbs.) | |
Accessories |
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12 | |
Others |
Operating Temperature: 0 to +40˚C |
