AUDAC ATEO4M ลำโพงติดผนัง 4 นิ้ว 140 วัตต์ (8Ω, 100V)

฿7,383 (รวม VAT 7% แล้ว)





  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดผนัง AUDAC ATEO4M ขนาด 4 นิ้ว 140 วัตต์ (8Ω, 100V) การออกแบบที่ไม่ธรรมดา ทนต่อสภาพอากาศได้เต็มที่ และความสะดวกในการติดตั้งที่เหนือกว่า เสียงระดับไฮเอนด์ เสียงสดใส ติดตั้งง่ายดาย

AUDAC ATEO4M
ATEOxM loudspeaker series

OVERVIEW

The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO4M is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true to- nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components.

What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install indoor applications.

With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall plate to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors.

For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time.

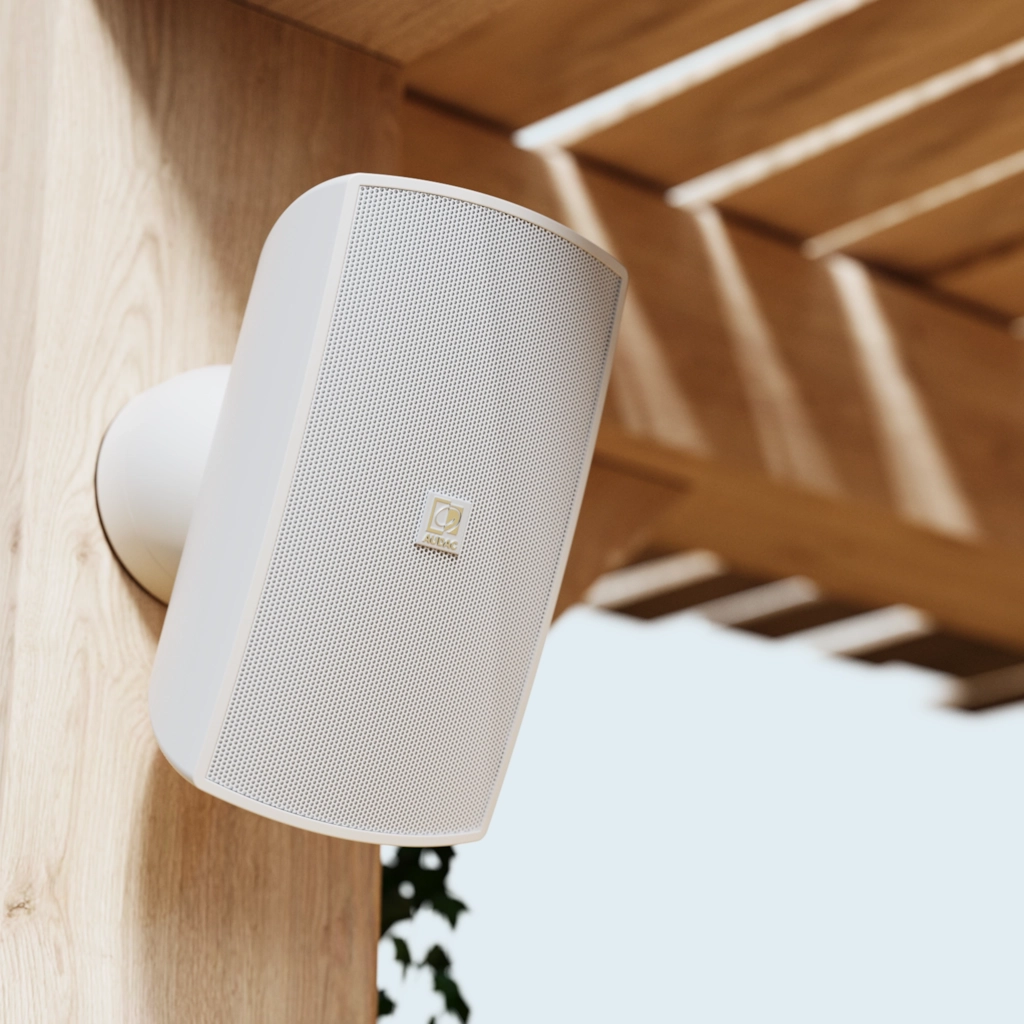

All-weather resistant


An optimized loudspeaker design with an aluminum grill, with hydrophobic mesh, to achieve an IP65 rating. Thanks to it’s elegant ABS housing it it also salt spray and UV resistant.

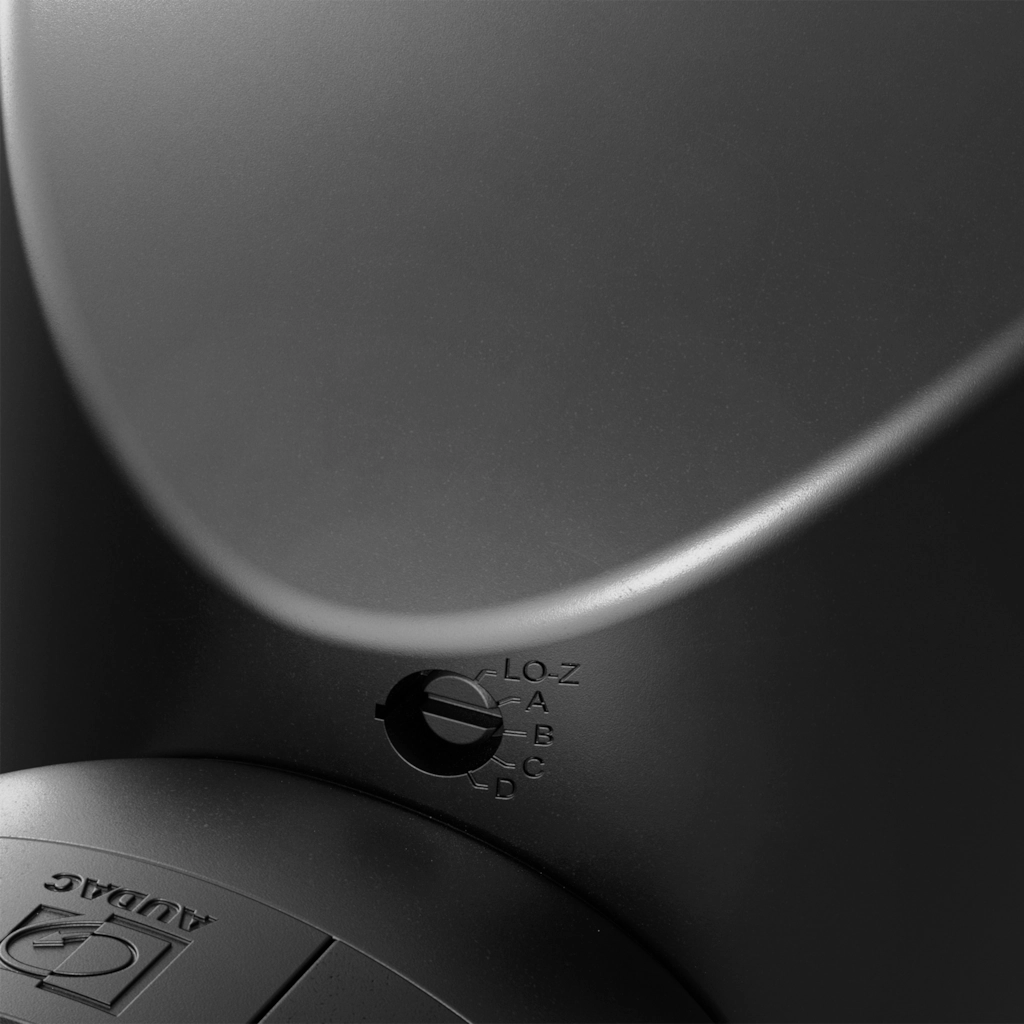

External power tap selection


Need to tweak the loudspeaker settings after installation? No problem, the ATEOxM has an integrated external power tap selector hidden on the rear. Easy and quick access in seconds!

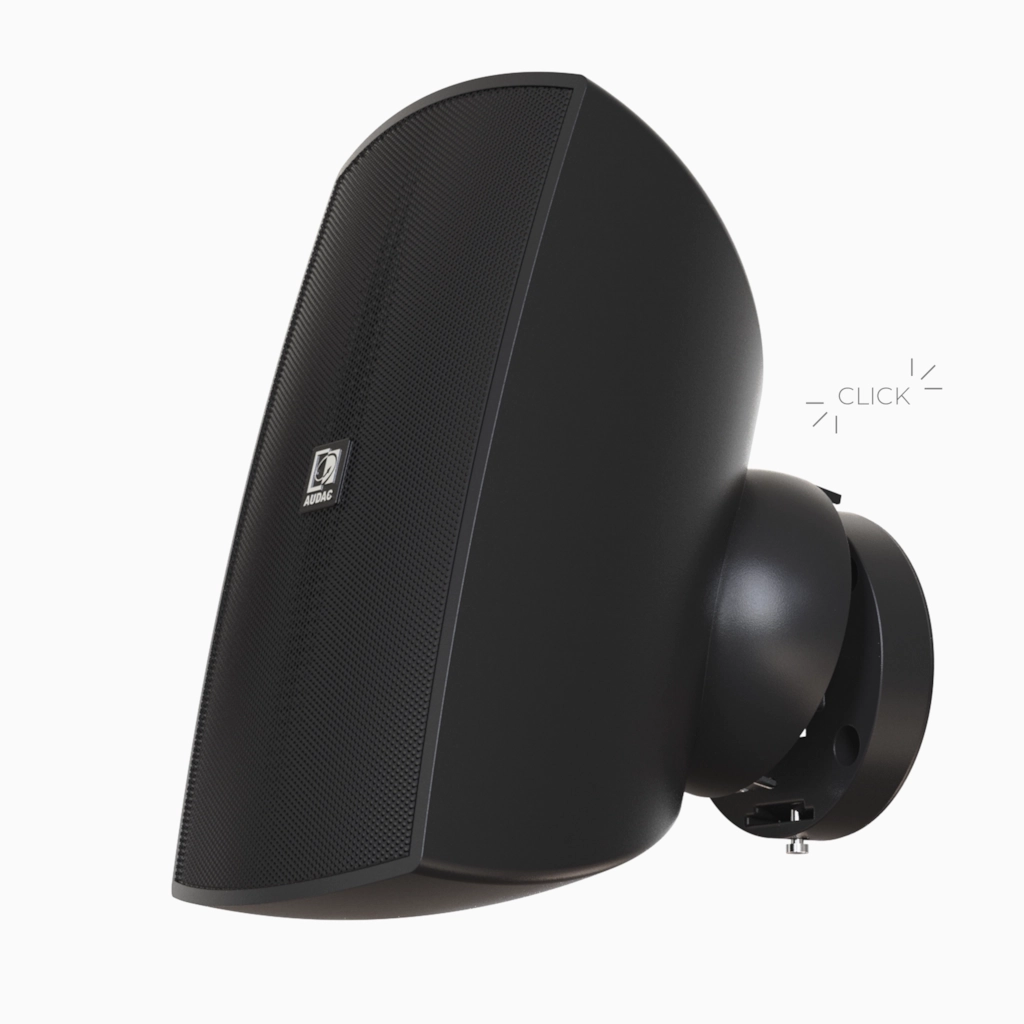

Easy lock function


Thanks to the patented CleverMount+™ mounting technology these loudspeakers have the advantage of making the speaker cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. A safe installation of the loudspeaker is acquired thanks to the separate bracket base.

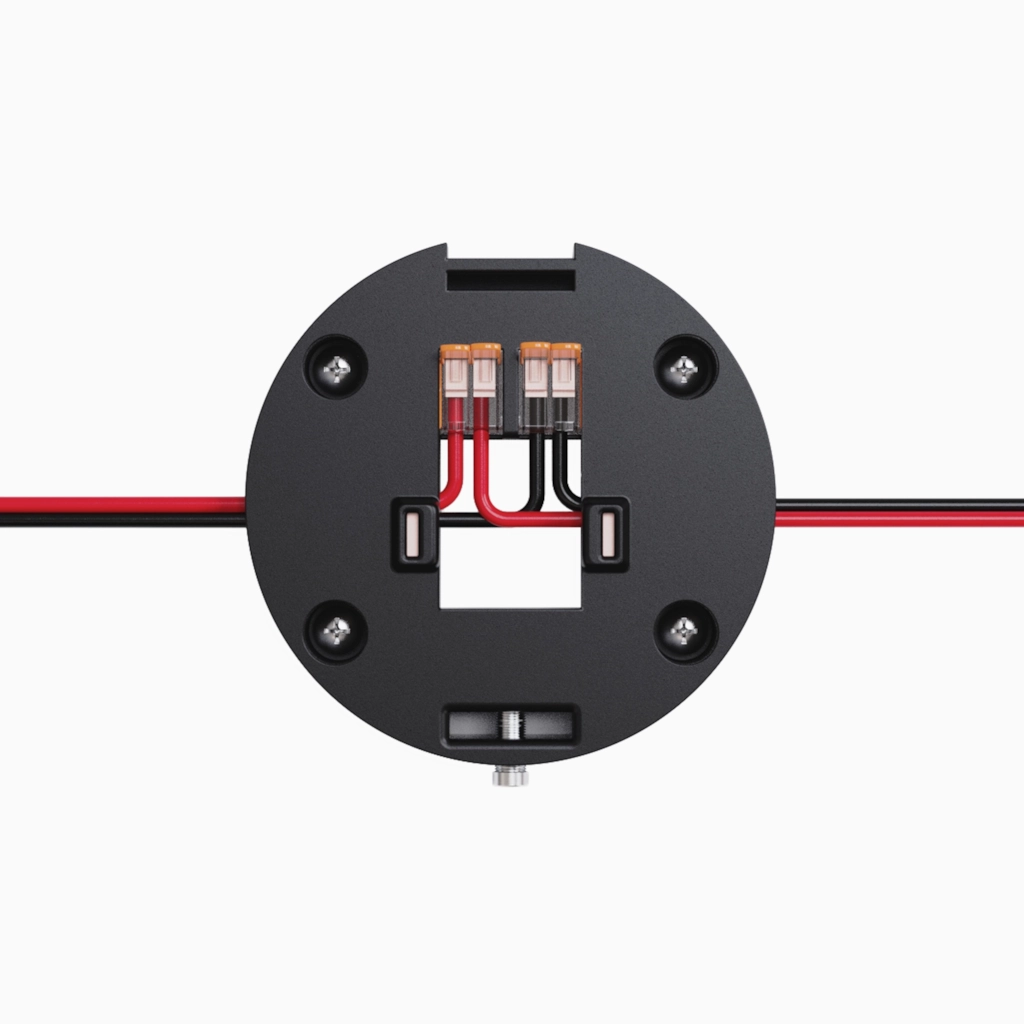

WAGO connections


These design loudspeakers come with official WAGO connectors for the perfect high-quality and reliable electrical installation. Great installer convenience is provided with the WAGO spring cage terminals, no additional tools needed!

น้ำหนัก 2.05 กก.
ขนาด 153 × 136 × 244 มิลลิเมตร
ยี่ห้อ

สเปค

Speaker type Full range
Peak power handling 140 W
Program power handling 70 W
RMS/AES power handling 35 W
Impedance 8 Ω (ATEO4M)
16 Ω (ATEO4DM)
Incline angle Left 30°
Right 30°
Bottom 30°
Top
Sensitivity (1W/1m) 86 dB
Sound Pressure (Max. W/1m) @ 8 Ω 101 dB
@ 100 V 100 dB
Frequency Response (± 3 dB) 100 Hz – 20 kHz
Range (-10 dB) 65 Hz – 20 kHz
Dispersion Horizontal 130°
Vertical 130°
Connectors 6 x WAGO terminal block connections
Drivers 1” Dome tweeter
4” MF / LF Woofer
Line Transformer Tappings 1 208 Ω – 100 V / Not used – 70 V / 24 W
2 417 Ω – 100 V / 24 W – 70 V / 12 W
3 833 Ω – 100 V / 12 W – 70 V / 6 W
4 1667 Ω – 100 V / 6 W – 70 V / 3 W
Ingress Protection rating IP65
Dimensions 136 x 244 x 153 mm (W x H x D)
Weight 2.050 kg
Operating temperature -20 °C ~ 60 °C
Accessories Included Allen-key wrench
Mounting Weatherproof CleverMount+™
Construction ABS
Front finish Aluminium grill with hydrophobic cloth
Colours Black (RAL9005) (ATEO4M/B, ATEO4DM/B)
White (RAL9003) (ATEO4M/W, ATEO4DM/W)
