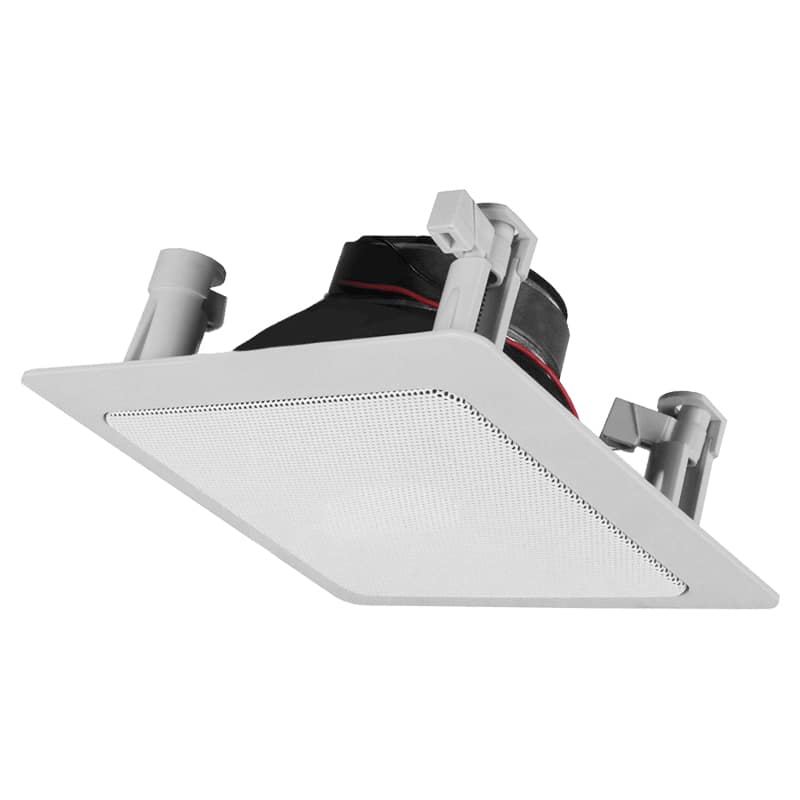

AUDAC WS524/W
QUICK FIT 2-WAY 5 1/4″ SQUARE IN-WALL SPEAKER
The WS series loudspeakers are high-quality in-wall/ceiling loudspeakers, delivering exceptional sound quality and value for a wide variation of applications, ranging from paging and announcements to background music systems in a wide range of business applications, including hotels, restaurants and pubs, corporate offices, retail stores, etc.
The WS524 in-wall/ceiling loudspeaker features a 5 ¼” driver with a coaxially mounted 1” tweeter, having a continuous power handling of 30 Watt and a maximum power handling of 60 Watt. The 2-way construction makes the WS524 the perfect match for a wide variation highly demanding of applications, guaranteeing a high-quality and true-to-nature reproduction of music and speech. The moisture proof treatment on the speakers’ cone and aluminum front grill protects it for installation in humid or outdoor environments.
A multi-tapping line transformer fitted with Fast-con™ allows fast and smooth connections to 100 Volt public address or low impedance systems. The mounting of the loudspeaker into the wall or ceiling is achieved with a Quick-fix mechanism, offering a great installers convenience and lifetime stability. The construction of the speakers’ housing is made out of high-quality ABS, while the front is covered by a solid powder-coated aluminum grille. Custom painting is possible for a total blending into any environment.
- QuickFix mechanism
- Fast-Con™ connections
- 1″ tweeter
- 5 1/4″ low frequency driver
- Multi-tapping 100V line transformer
- Aluminum front grill
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Speaker type | 2-way coaxial | |||
| Max. Power | 60 W | |||
| RMS Power | 30 W | |||
| Impedance | 8 Ω (WS524/W) | |||
| 16 Ω (WS524D/W) | ||||
| Sensitivity (1W/1m) | 92 dB | |||
| Sound Pressure (Max. W/1m) | 107 dB | |||
| Connectors | Fast-con™ connections | |||
| Line Transformer Tappings | 1 | 24 W / 417 Ω | ||
| 12 W / 833 Ω | ||||
| 6 W / 1667 Ω | ||||
| Frequency | Response (± 3 dB) | 60 Hz – 20 kHz | ||
| Range (-10 dB) | 50 Hz – 20 kHz | |||
| Crossover | Type | Passive built-in | ||
| Dispersion | Horizontal | 100° | ||
| Vertical | 100° | |||
| Drivers | LF | 5 1/4″ Woofer | ||
| MF | 5 1/4″ Woofer | |||
| HF | 1” Dome tweeter | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 180 x 180 x 90 mm (W x H x D) | |||
| Weight | 1.190 kg (WS524/W) | |||
| 0.950 kg (WS524D/W) | ||||
| Construction | ABS | |||
| Front finish | Aluminium grill | |||
| Cut-out measurement | 145 x 145 mm | |||
| Built-in depth | 85 mm | |||
| Mounting & handling | QuickFit™ installation system (4-screw) | |||
| Colours | White (RAL9010) | |||
| Accessories | Included | Foam inlay | ||
| Cut-out template | ||||
