AUDIOENGINE HDP 6 PASSIVE SPEAKERS
The HDP6 passive speakers are perfect for stereo receivers, integrated amps, and tube amplifiers.
Old-school elegance and modern technology that blends with any decor.
The HDP6 passive speakers are perfect for stereo receivers, integrated amps, and tube amplifiers. The HDP6 has a 4 ohm impedance rating but will sound great when connected to almost any receiver or power amp with 4, 6 or 8 ohm speaker output impedance.
WHY YOU’LL LOVE THEM
Perfect for music + movies
Hand-crafted cabinets + magnetic grills
Custom aramid fiber woofers with diecast aluminum baskets
SET UP IN SECONDS
The HDP6 Passive Speakers are bookshelf speakers that pack a big sound, fitting into and filling any room.
Award-winning HD Series design in a passive loudspeaker. Old-school elegance and modern technology that blends with any decor.
Experience the same award-winning HD-Series sound and quality in a passive loudspeaker.
SMALL SPEAKERS BIG SOUND
FILLS ANY ROOM
Bookshelf speakers offer you the flexibility to place them in tight spaces, but they typically don’t have the same huge sound as floorstanders. Not so with HDP6. You’ll be delighted to hear that they project a soundstage usually found in larger floorstanding speakers.
The HDP6 Passive Speakers are constructed with custom Audioengine components: aramid fiber woofers and silk tweeters, wrapped in precision tuned, hand-crafted cabinets.
Perfect for any size space.
Audioengine speakers are special. Slotted rear bass ports eliminate turbulence, easily transitioning the low frequency energy from the speaker cabinet into your room.
With this design, HDP6 Passive Speakers deliver smooth, natural and surprisingly deep bass from such small speakers.
A whole new music experience, guaranteed.
2-way passive, rear ported design
10-150W per channel
5.5″ aramid fiber woofers
1″ silk dome tweeters
20mm thick MDF cabinets
Gold-plated, 5-way binding posts
WEIGHTS AND MEASURES
5.5 kg (12.5 lbs)
Total shipping weight
14.5 kg (32 lbs)
300 (H) x 185 (W) x 250 mm (D) (11.75″ x 7.25″ x 10″)
Shipping box dims
430 (H) x 510 (W) x 380 mm (D) (17″ x 20″ x 15″)
Satin Black Paint
Operating temperature: 32 degrees F to 95 degrees F
Non-operating temperature: -4 degrees F to 113 degrees F
Relative humidity: 5% to 95% non-condensing
WALL OR CEILING MOUNT

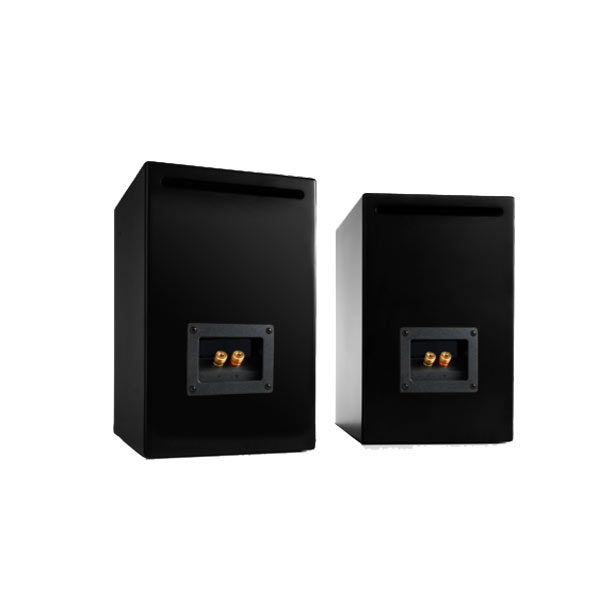

HDP6 speakers include standard 1/4″ threaded inserts on the bottom of each HDP6 cabinet for attaching to a speaker mount or bracket. We recommend using products by companies such as OmniMount or Sanus. Before installing mounts or brackets make sure you consult all documentation and carefully follow the installation instructions.
Audioengine designs and manufactures our own speaker drivers and other critical components. In other words, the HDP6 is not a box-built system with off-the-shelf parts, but includes custom-designed components constructed to our specifications. What we do not fabricate directly inside our factories we have made to our specific designs and parts such as circuit boards, transformers, magnets, and wiring harnesses, for example.
Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are aramid fiber woven glass composite with rubber surrounds. Aramid fiber is obviously very strong, which means the woofer retains its shape when being driven at high levels. The HDP6 woofers are housed in cast aluminum frames which provide high rigidity and increased heat dispersion.
To minimize unwanted resonances and distortion, Audioengine cabinets have thick high-resin MDF walls with extensive internal bracing. Heavy internal sound-damping material is used to reduce unwanted sound reflections inside the cabinet. All cabinet edges are rounded which look great and reduce high-frequency diffraction effects on the front baffles. The HDP6 cabinet contains tuned, rear-port slots.

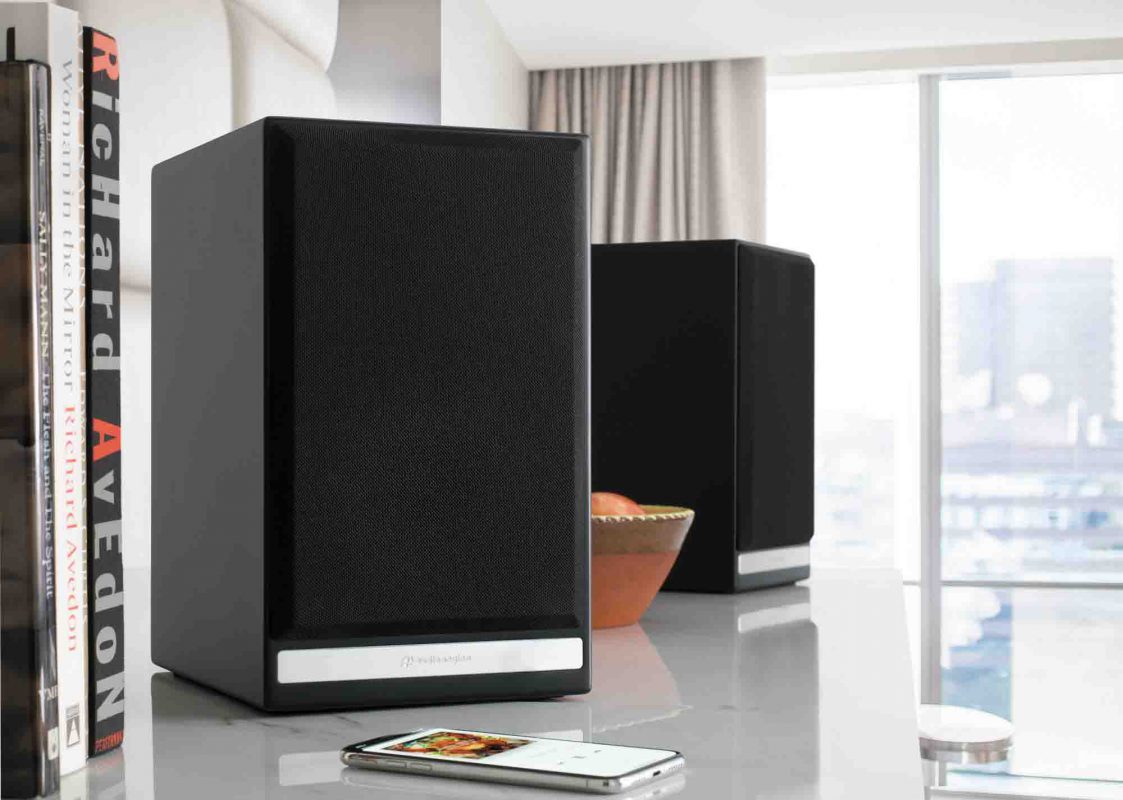

The HDP6 cabinets are available in several handsome finishes, including walnut and cherry veneers as well as satin black paint, offering a myriad of options for complementing room furnishings. Also included are detachable grills that add further aesthetic advantages as they are firmly held in place with hidden neodymium magnets for a clean look.
Both drivers are directly magnetically shielded which allow you to place the speakers within a few inches of a video monitor. This shielding also offers protection for hard drive-based digital music players.
