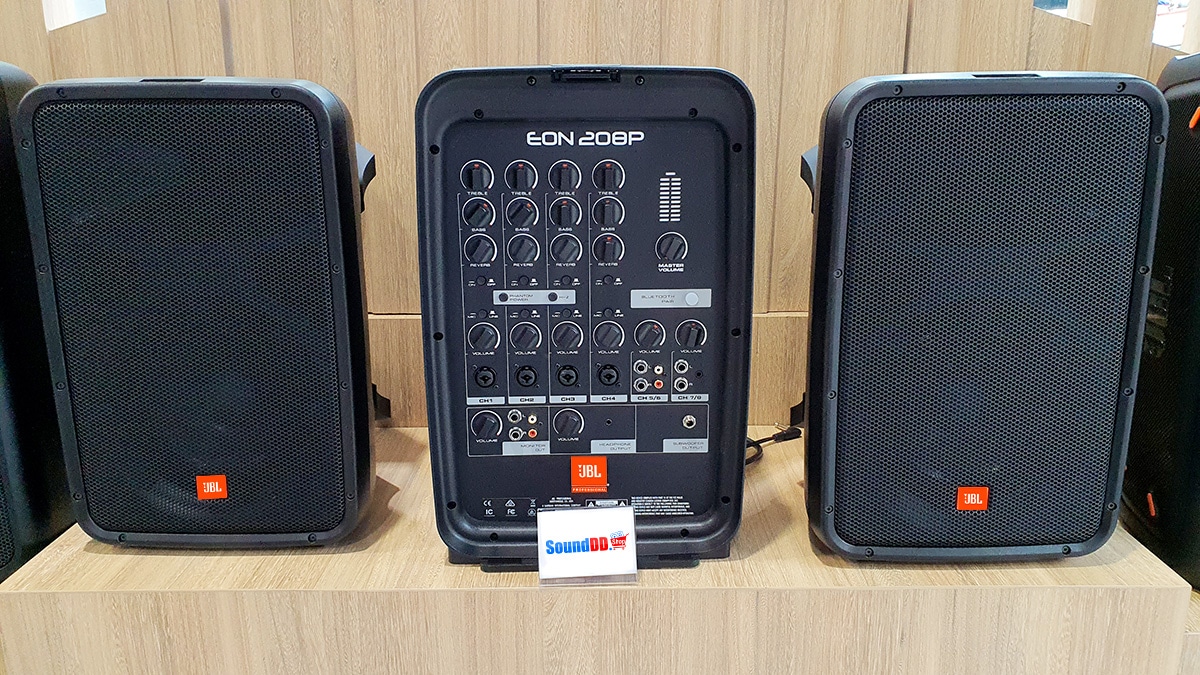

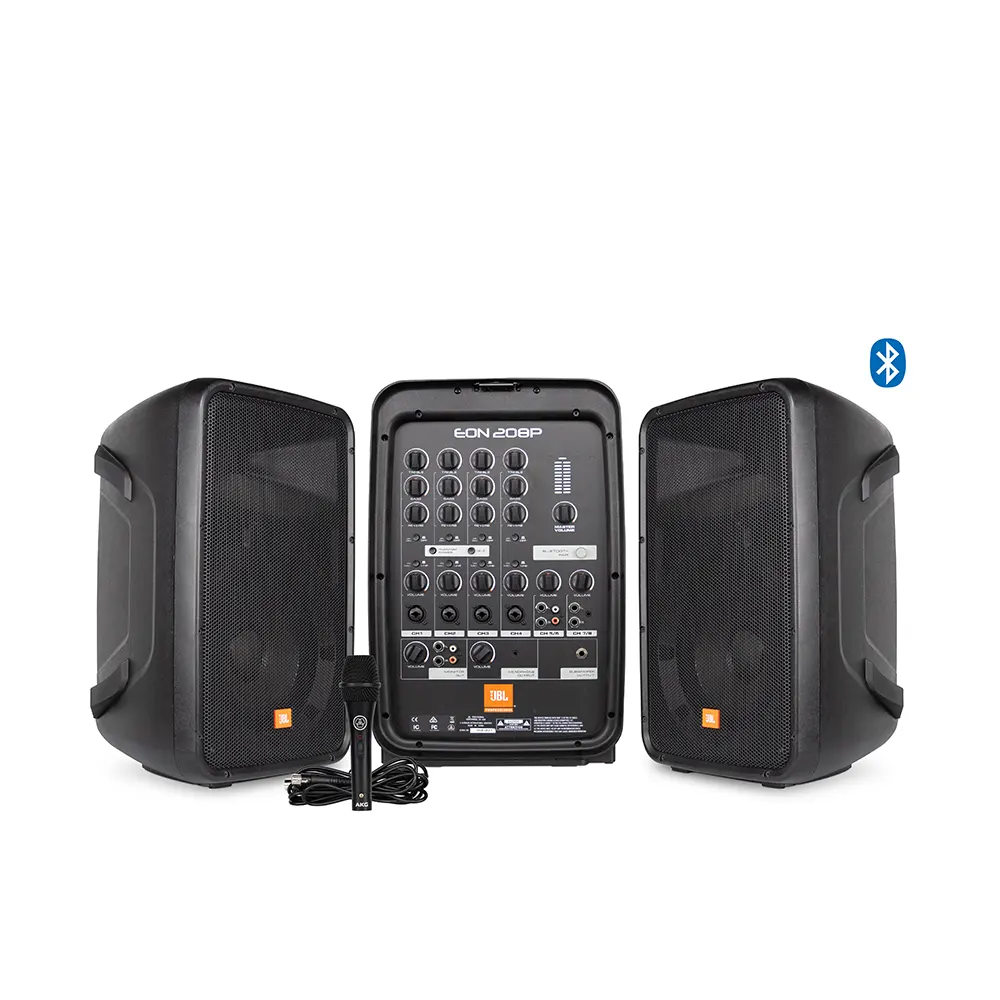

ชุดเครื่องเสียงเคลื่อนที่ JBL EON208P ด้วยพาวเวอร์มิกเซอร์ 8 อินพุต 300 W (2 X 150W) มี Bluetooth® ในตัว พร้อมไมโครโฟน AKG EON208P เป็น all-in-one portable PA system จากแบรนด์ JBL
JBL EON208P
Packaged 8″ 2-Way PA with Powered 8-Channel Mixer and Bluetooth®
- พาวเวอร์มิกเซอร์ 1 ชุด 8 inputs 300 W (2x 150 W stereo)

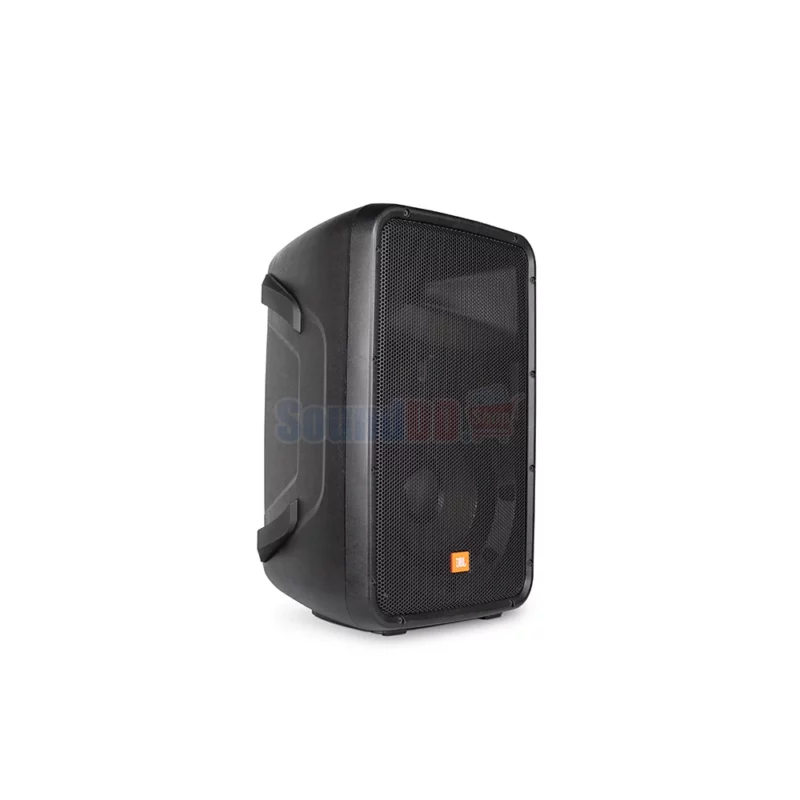

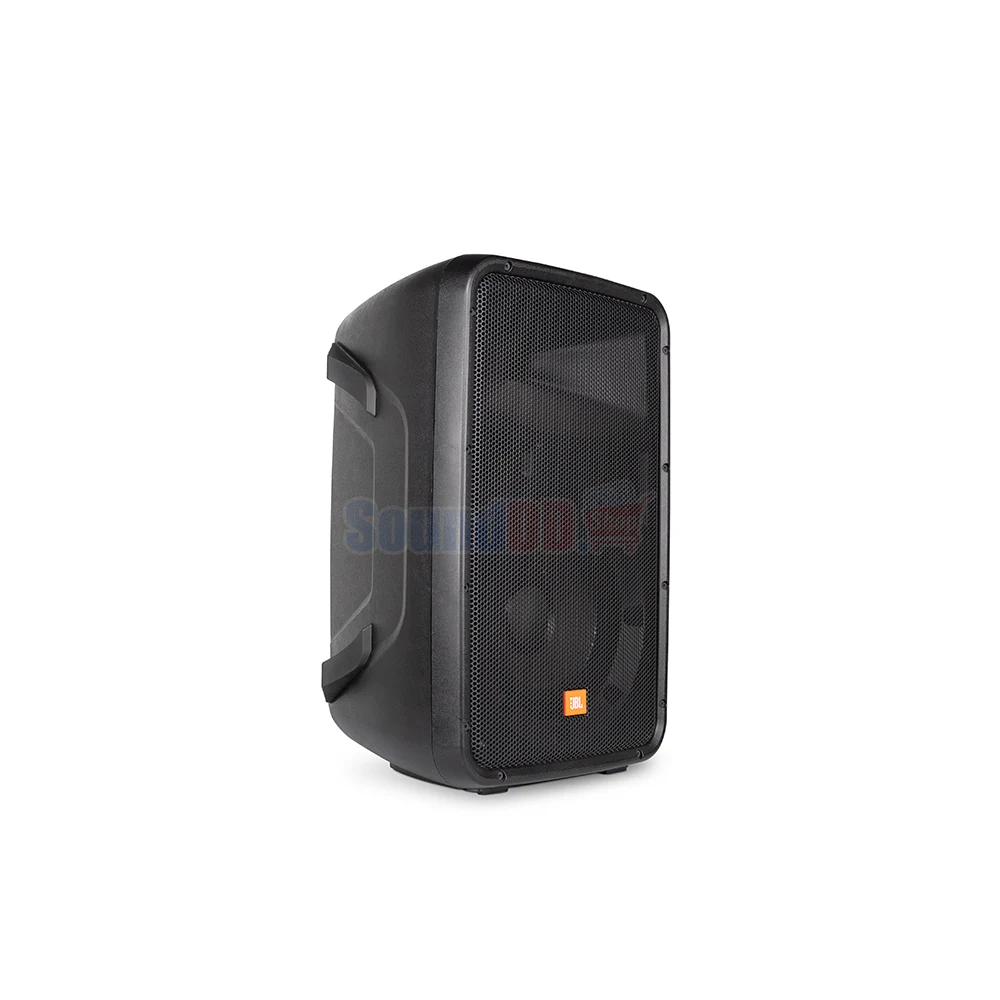

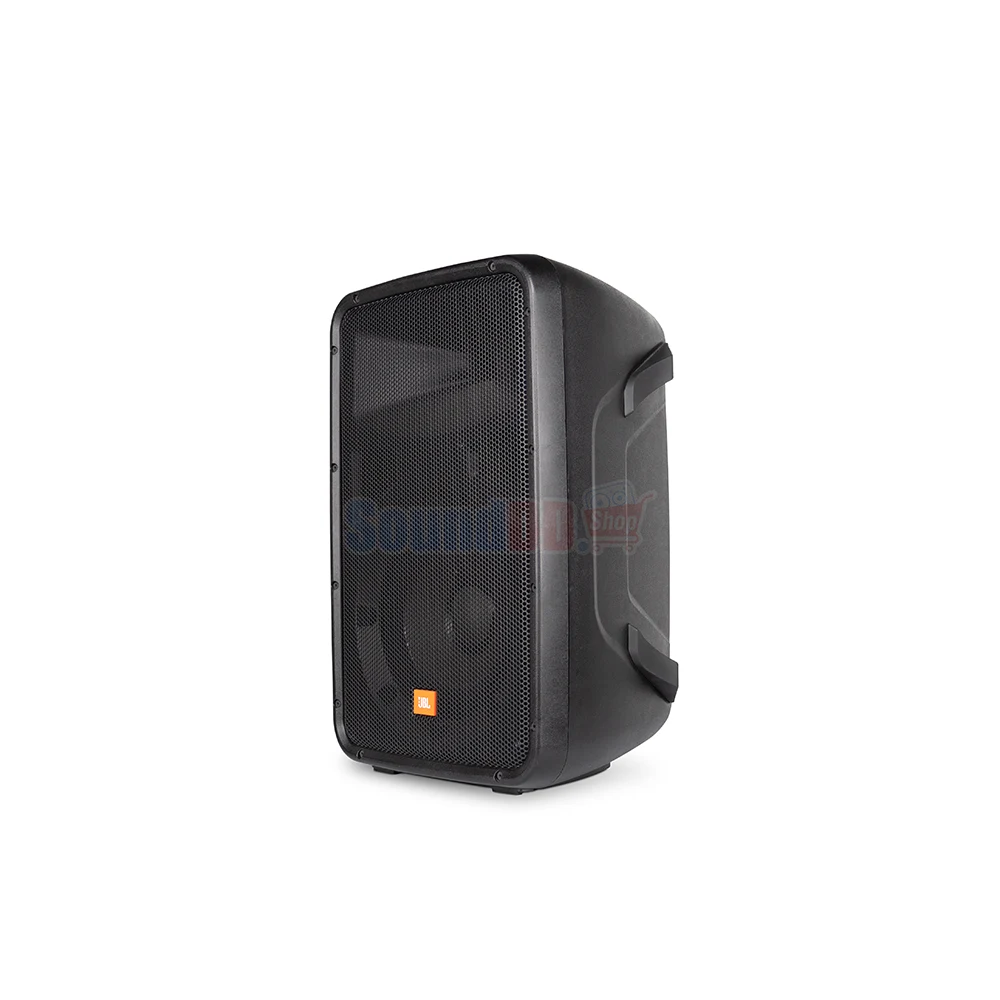

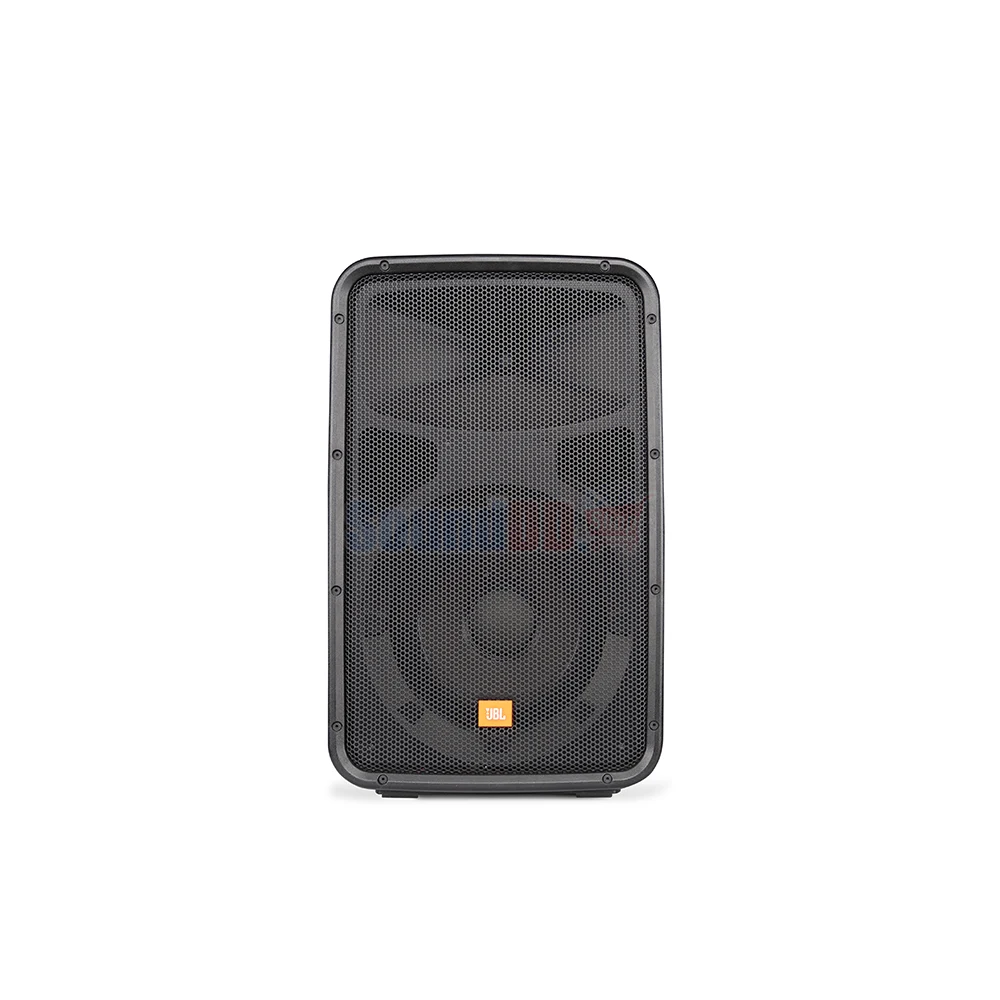

- ลำโพง 2-way full-range 8 นิ้ว 2 ใบ
- ลำโพง ช่วงย่านความถี่ 60Hz – 20kHz
- Maximum SPL Output: 121 dB peak
- Coverage Pattern : 100° horizontal x 60° vertical

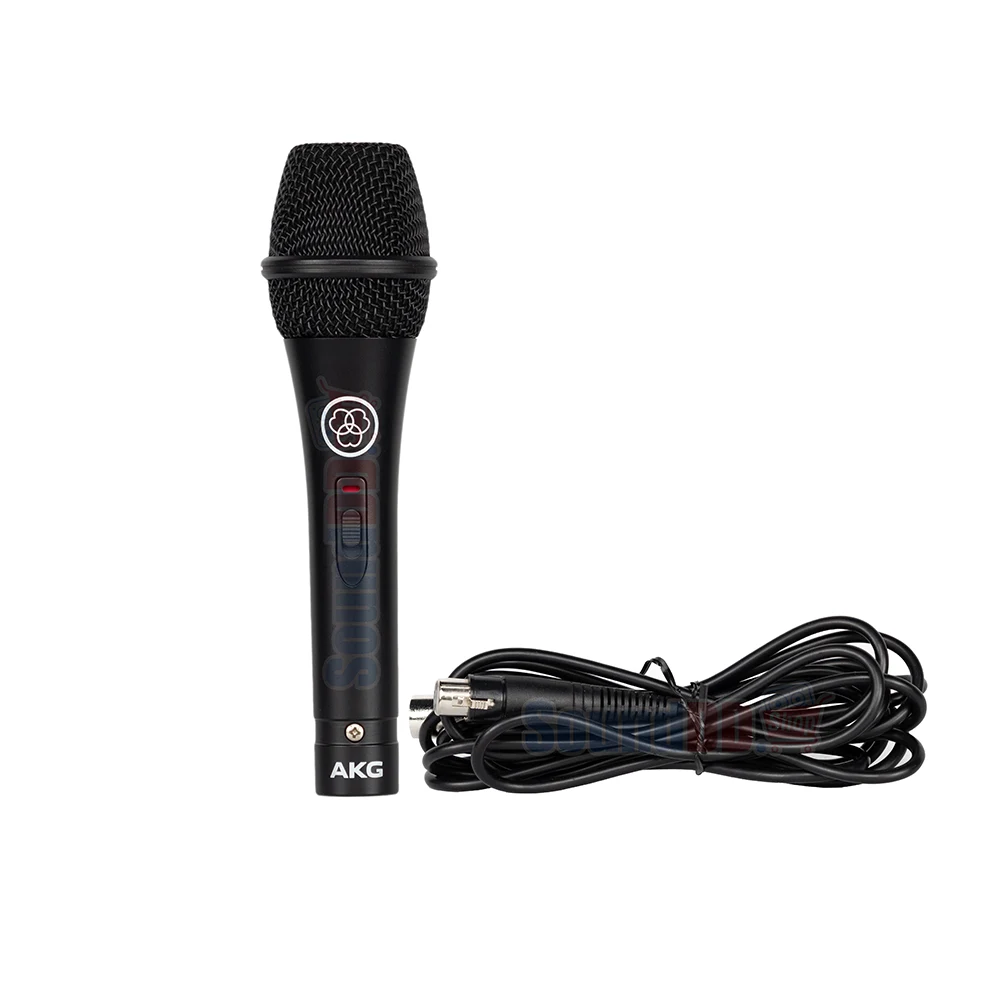

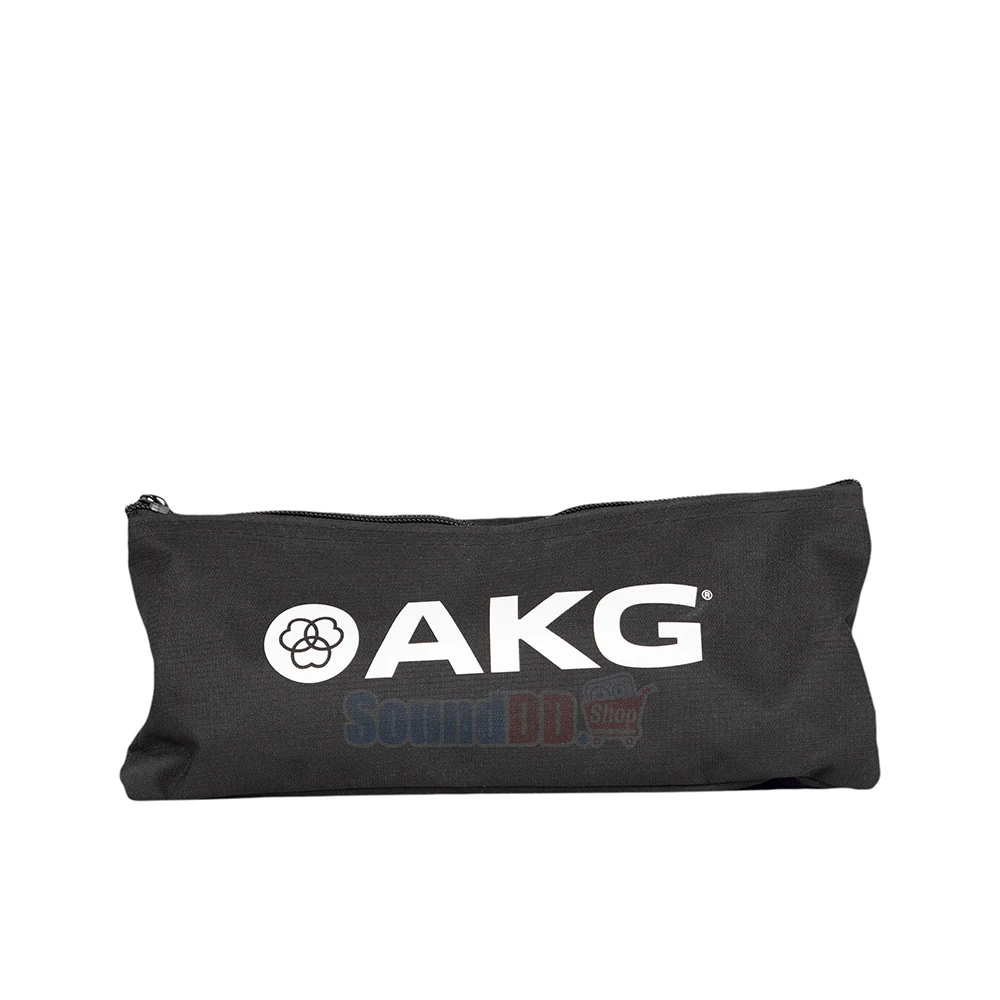

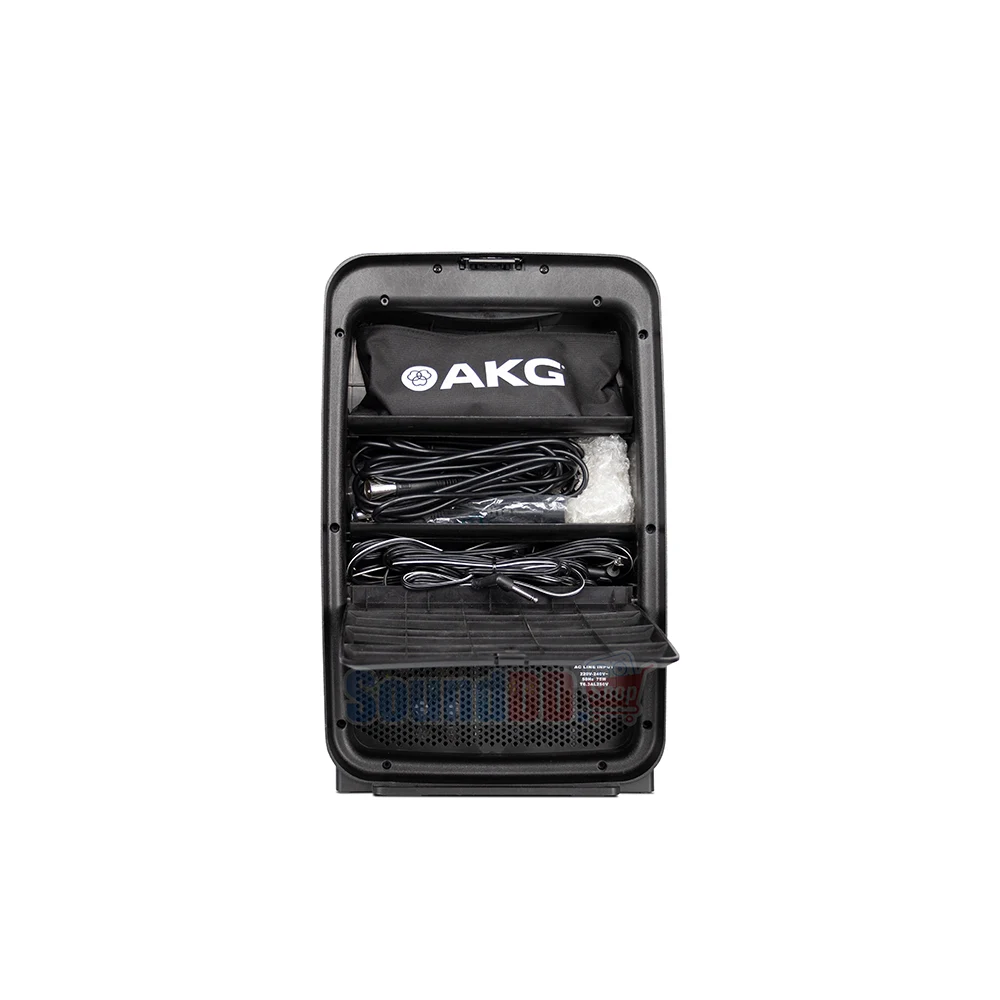

- ไมโครโฟน AKG 1 ตัว

Everything You Need to Be Heard
แบรนด์ JBL ซึ่งทุกท่านคงทราบดีว่าแบรนด์นี้ขึ้นชื่อและเป็นผู้เชี่ยวชาญเรื่อง ลำโพง ซึ่งเป็นโปรดักส์ชั้นนำลำดับต้นๆของโลกอย่างแท้จริง วันนี้ JBL ได้มีโปรดักส์หลากหลายมากมายหลายรุ่นเกี่ยวกับลำโพงตั้งแต่ลำโพงตั้งแต่ ขนาด พกพา หรือชุดดูหนังฟังเพลง รวมถึงตู้ลำโพงชุดคาราโอเกะ ไปจนถึงตู้ลำโพงที่ รองรับงานขนาดสเกลต่างๆขนาดกลางไปจนถึงตู้ลำโพงที่รองรับงานมหกรรมคอนเสิร์ตได้
วันนี้ทาง JBL จึงได้สรรค์สร้างโปรดักส์เกี่ยวกับชุดลำโพงเคลื่อนที่แบบ Portable Powered Loundspeaker รุ่น EON208P ชุดลำโพงเคลื่อนที่เอนกประสงค์ขนาดคอมแพ็ค แบรนด์ JBL จะมีฟีดเจอร์และฟังค์ชั่นอะไรบ้างเรามาดูพร้อมๆกันเลยครับ
มีแอมป์ขยายเสียงแบบสเตอริโอในตัวให้กำลังขับชาแนลละ 150 วัตต์ รวมเป็น 300 วัตต์เป็นแอมป์แบบคลาสดีซึ่งน้ำหนักเบาแต่คงประสิทธิภาพ มาพร้อมลำโพง 2-way full-range 8 นิ้ว 2 ใบ สามารถใส่ขาตั้งลำโพง หรือวางในแนว สเตจมอนิเตอร์ได้
- ลำโพงตอบสนองความถี่ 60Hz – 20kHz
- มีความไวสูงสุด Maximum SPL Output: 121 dB peak
- และมีมุมกระจายเสียง Coverage Pattern : 100° แนวนอน
- horizontal x 60° แนวตั้ง vertical

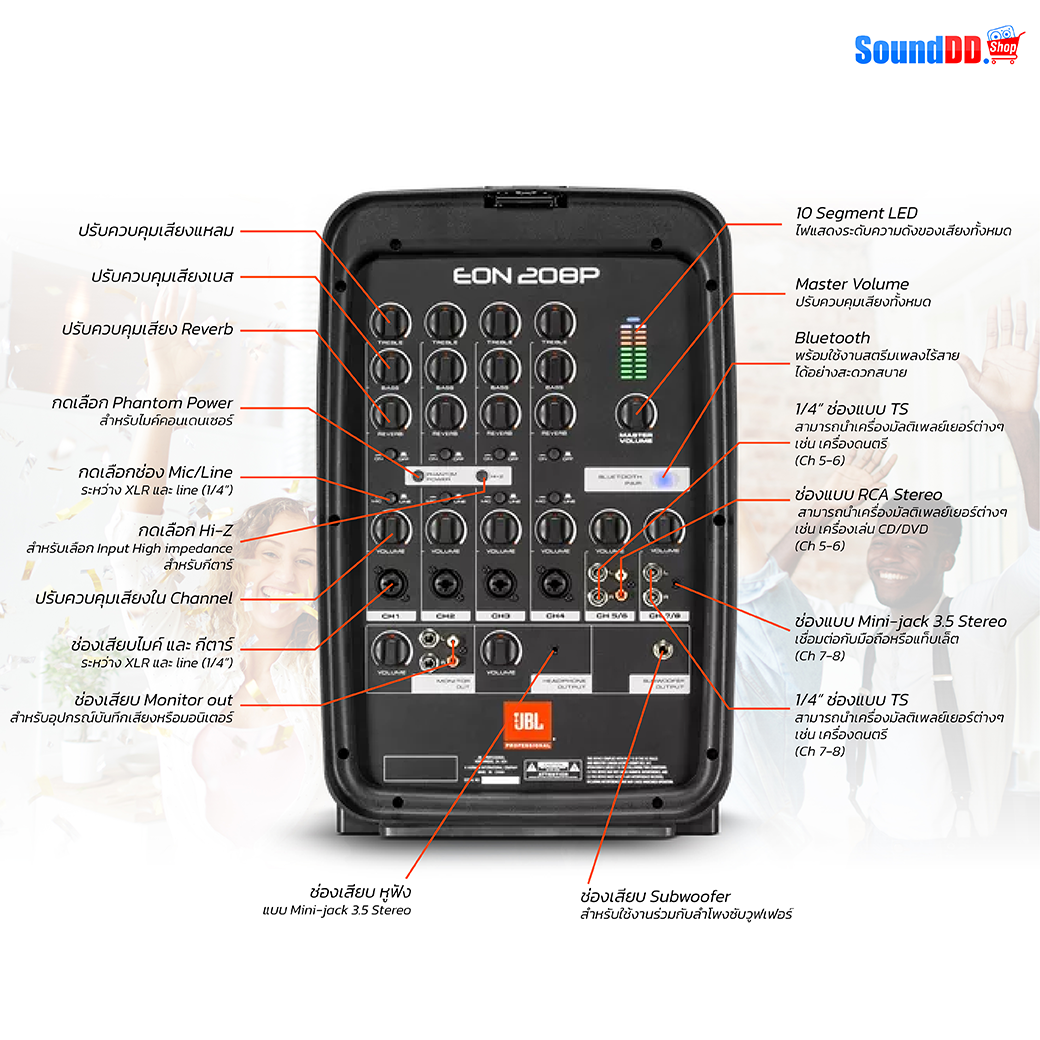

Professional-Grade Mixer

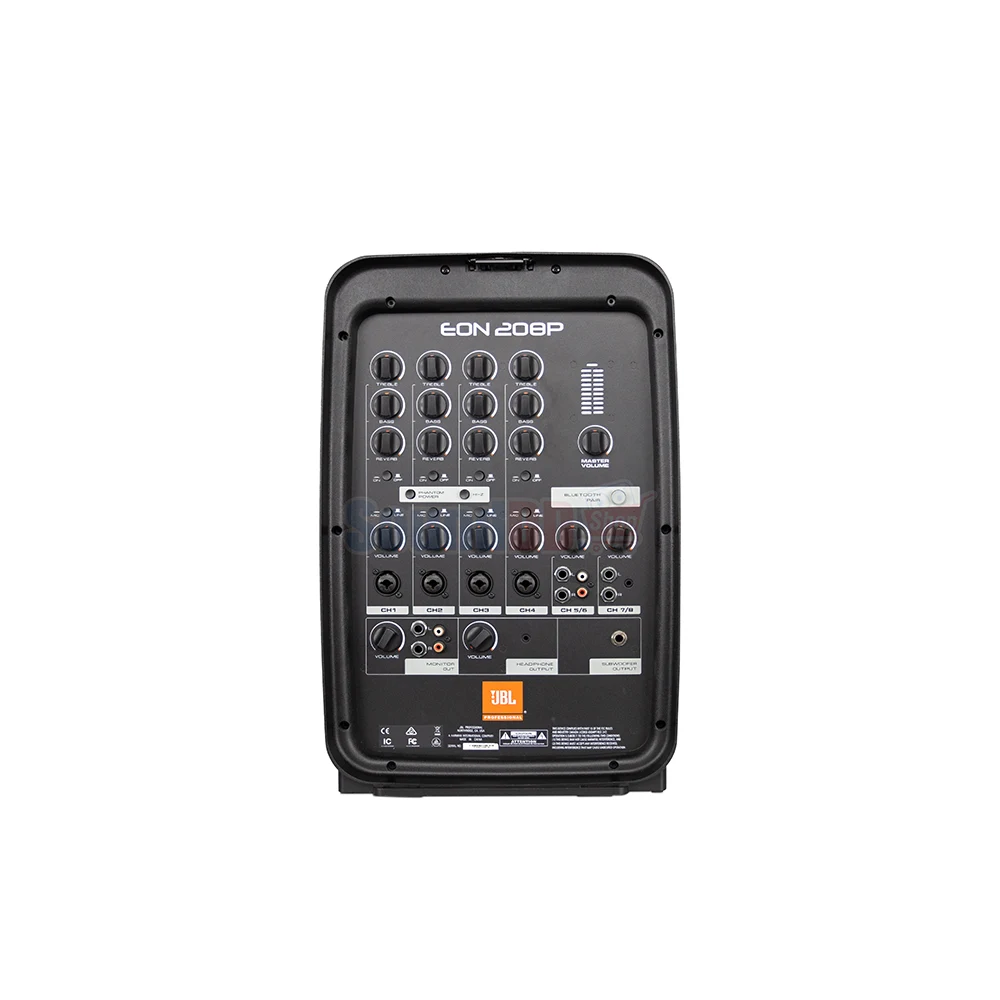

Portable Powered Loundspeaker รุ่น EON208P มาพร้อมมิกเซอร์ขนาด 8 ช่องอินพุท ชาแนลที่ 1-4 สามารถนำไมโครโฟนและเครื่องดนตรีหรือเป็นเครื่องมัลติเพลย์เยอร์มา เสียบเล่นได้ ซึ่งคอนเนคเตอร์เป็นแบบ คอมโบ้แจ๊คใช้ได้ทั้ง XLR และ TRS PHONE
- ชาแนลที่ 1-4 สามารถปรับอีคิวได้สองแบนด์ เสียงทุ้มและเสียงแหลม
- ชาแนลที่ 1-4 สามารถปรับเพิ่มเสียงรีเวิร์ปเพื่อให้ทั้งเสียงไมค์และเสียงดนตรีมีความ ไพเราะและมีมิติพิ่มขึ้นอีกด้วย
- ชาแนลที่ 3 ดีไซน์ให้เป็นช่องฮายอิมพีแดนซ์สามารถนำเครื่องดนตรี เช่น กีต้าร์หรือกีต้าร์ เบสมาเสียบเล่นได้เลย
- ชาแนลที่ 5,6 / 7,8 เป็นช่องสเตอริโอ สามารถนำเครื่องมัลติเพลย์เยอร์ต่างๆเช่น เครื่อง เล่น ซีดี เอ็มพีสาม ดีวีดี หรือ เครื่องดนตรีเช่นคีบอร์ด มาอินพุทเข้าได้เลย แจ๊คเป็นแบบ โฟนโมโนและ อาร์ซีเอ แจ๊คและ มินิแจ๊คสเตอริโอ 3.5 mm. อีก 1 ช่องอินพุท –มีช่องมอนิเตอร์เอาท์ (Monitor out) เป็นแจ๊ค โฟนโมโนและแจ๊คแบบอาร์ซีเอ
- มีช่องเฮดโฟนเอ้าท์ (Headphone out) สำหรับหูฟัง แจ๊คแบบ มินิสเตอริโอ 3.5 mm. 1ช่อง
- มีช่องซัพวูฟเฟอร์เอ้าท์ (Subwoofer out) 1 ช่อง

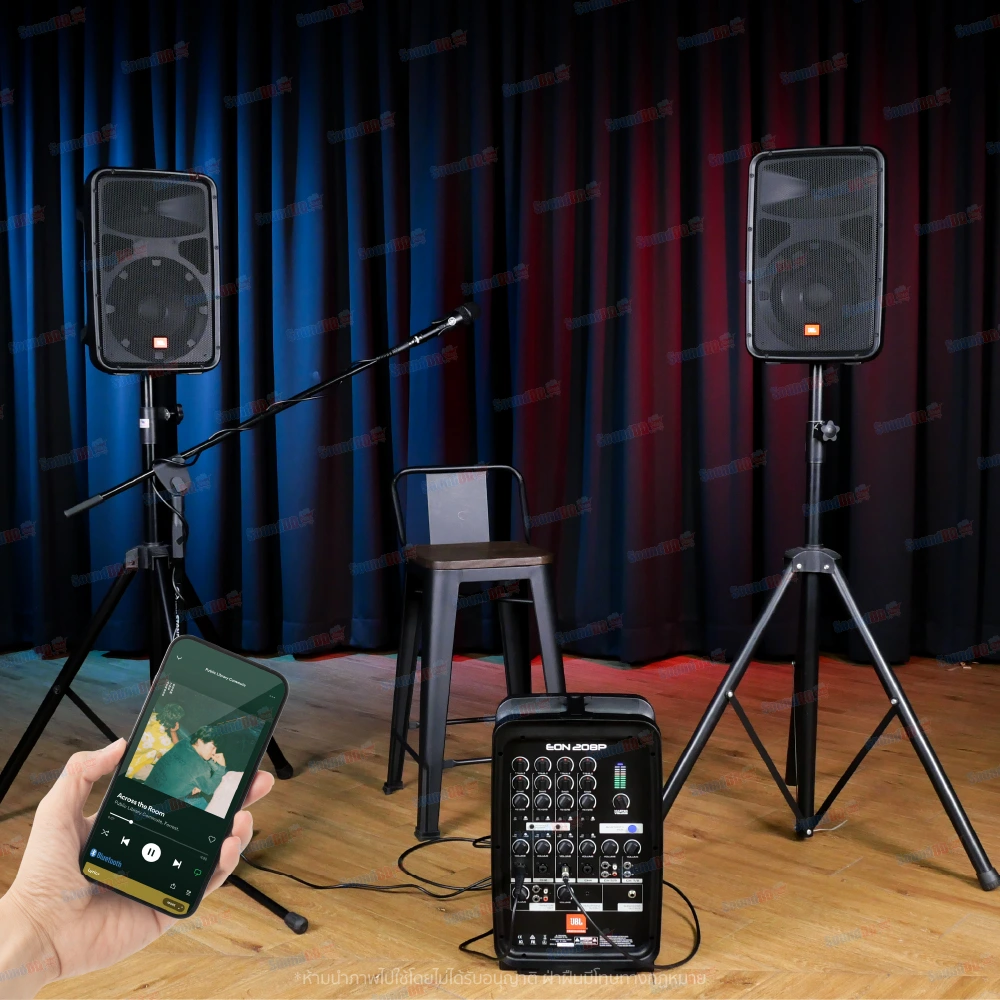

Bluetooth Streaming
With Bluetooth connectivity, EON208P lets you stream audio from your mobile device. Now you can DJ a party right from the dance floor, or play pre-recorded material for your meeting, worship event, or health club—all without the hassle of wires.

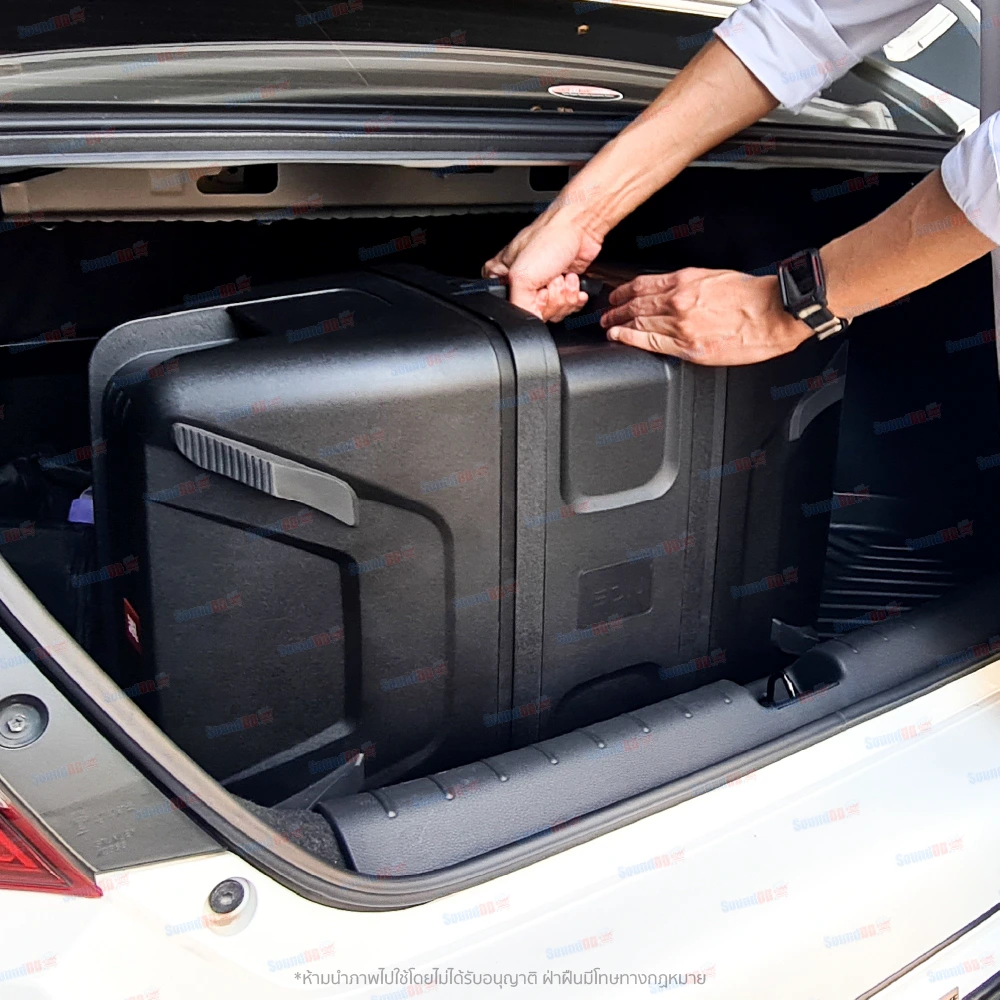

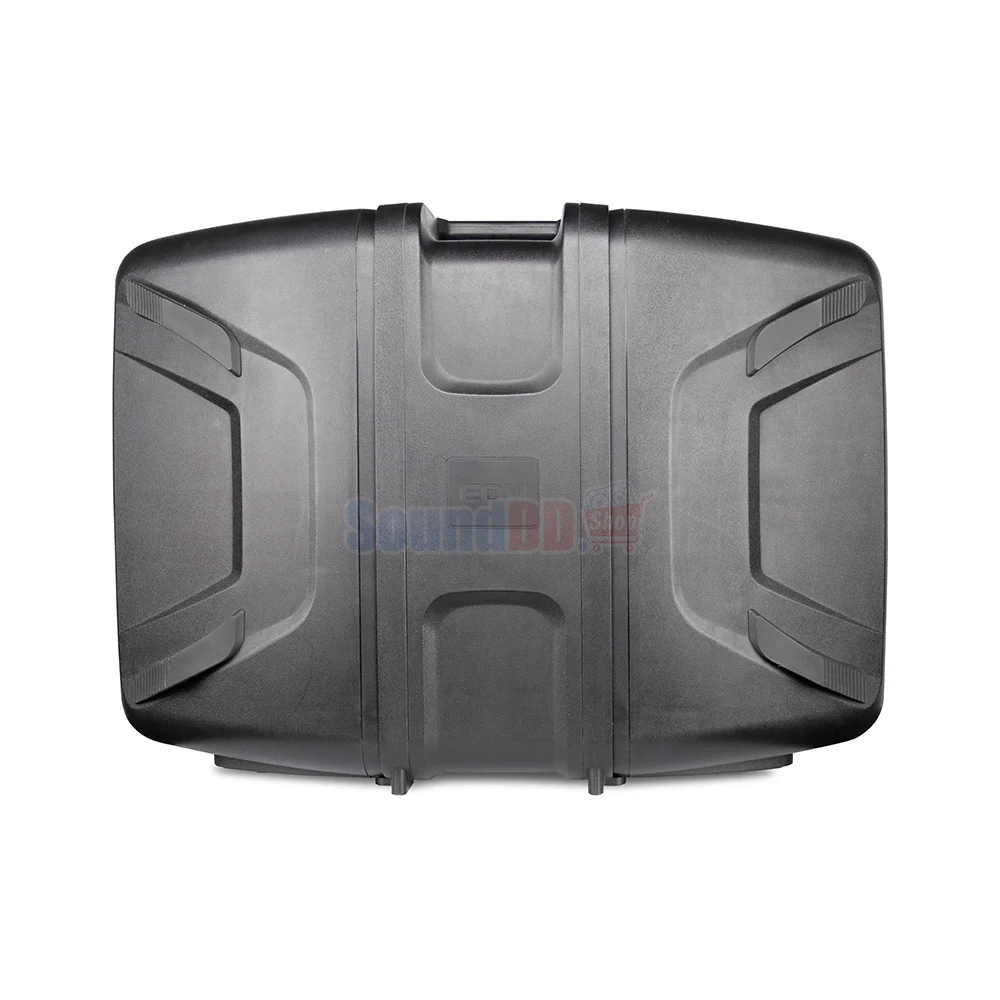

Portable Design

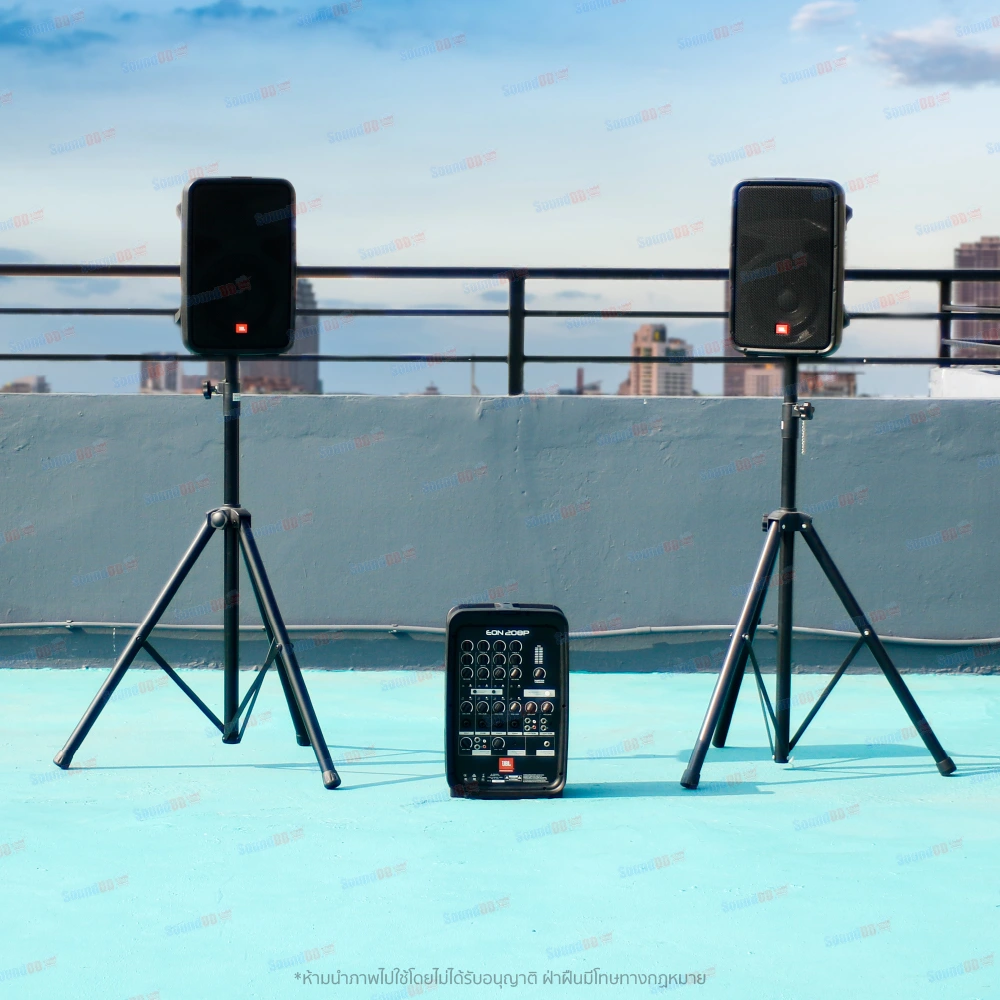

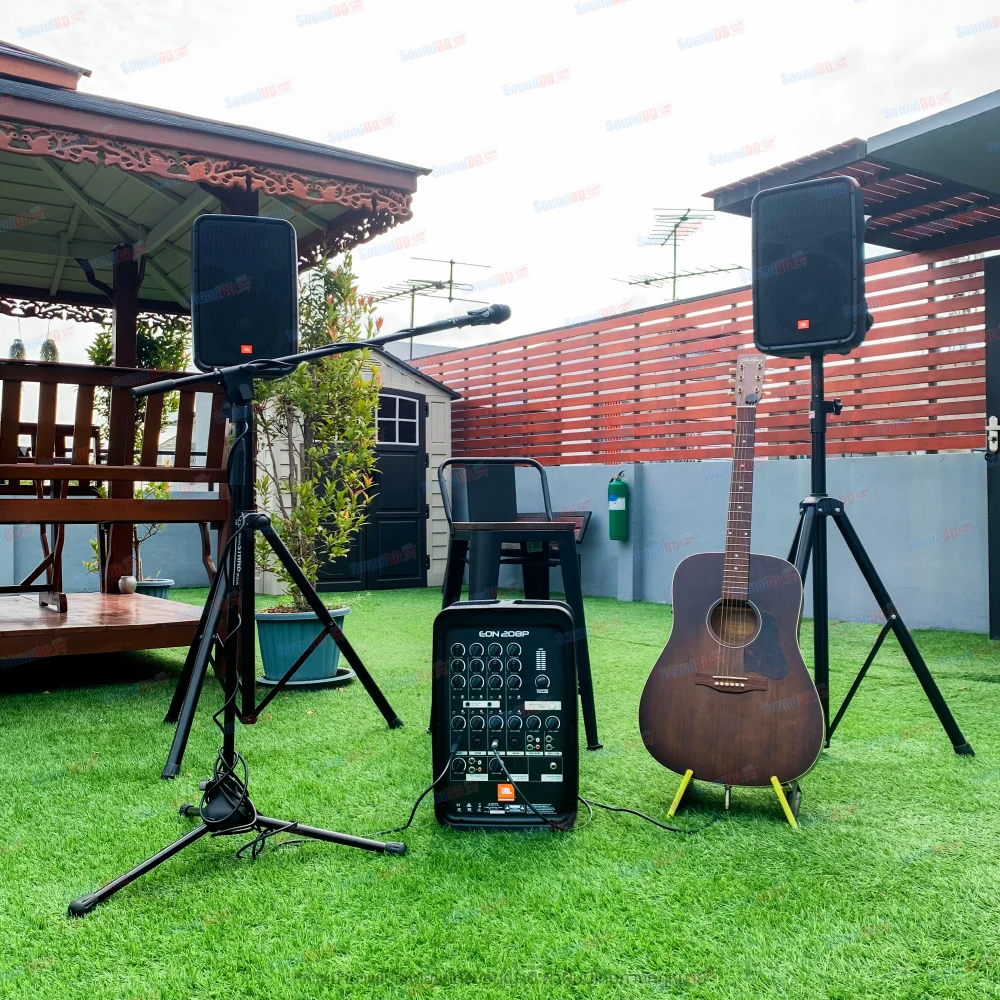

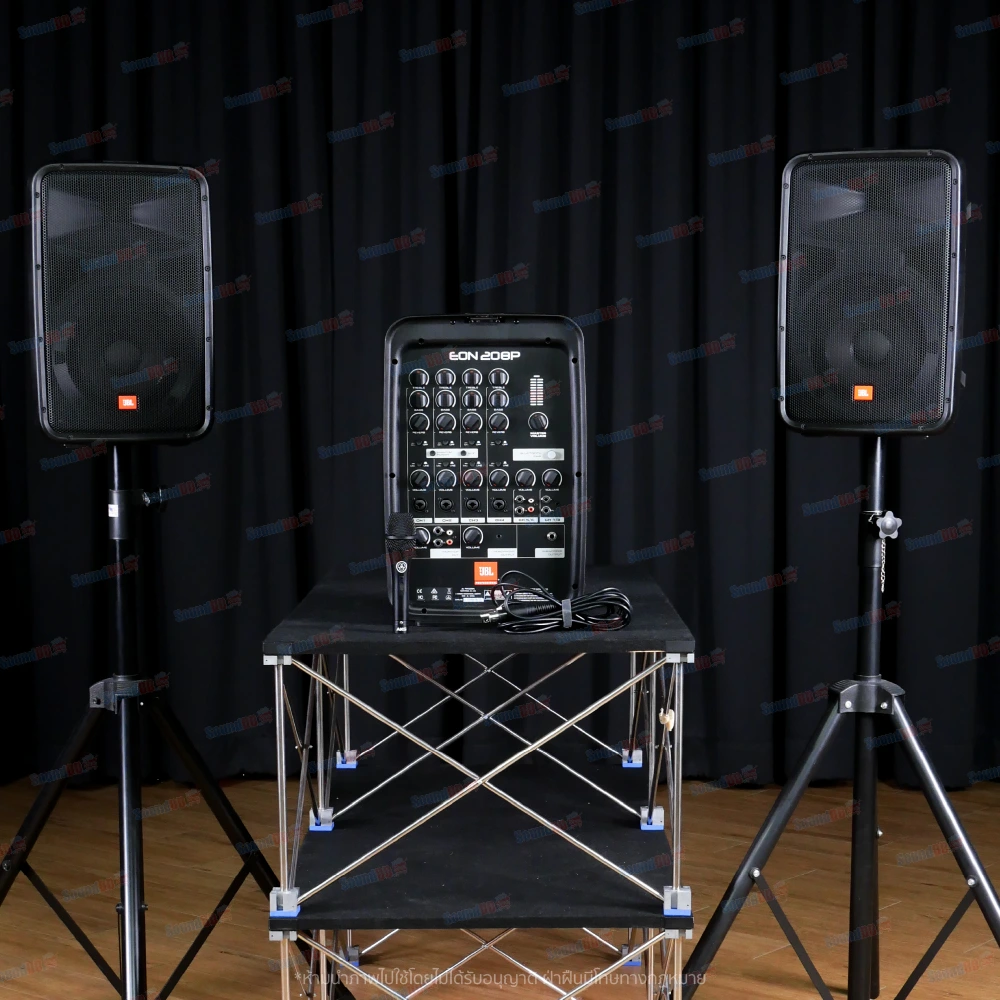

EON208P puts professional audio within arm’s reach—literally. The twin 8” speakers and 8-channel mixer clip together to form the most comprehensive, lightweight and portable PA in its class. Carry it in one hand with a guitar slung over your shoulder to play coffee shops and medium-size gigs. Or turn a backyard into the hottest nightclub around. With uncompromising JBL sound quality and effortless portability, you’ll want to take it everywhere. The versatile enclosures facilitate stacking, pole mounting and use in monitor position.
JBL EON208P
เหมาะกับงานลักษณะต่างๆเช่น พรีเซนต์เตชั่น ประชาสัมพันธ์ ออกบูธ จัดแสดงสินค้า ใช้งานเทรนนิ่ง ใช้ในห้องเรียน คาราโอเกะขนาดเล็ก เล่นดนตรีโฟล์ค หรือดนตรีสด เป็นต้น
System Type |
Portable 2-way full-range loudspeakers with powered mixer |
Maximum SPL Output |
121 dB peak |
Frequency Range (-10 dB) |
60 Hz – 20 kHz |
Frequency Response (+/-3 dB) |
70 Hz – 18 kHz |
AC Input |
100-120 V, 220-240 V 50/60 Hz |
Amp Design |
Class D |
System Power Rating |
300 W (2x 150 W stereo) |
Output Connector |
2 x 1/4″ TS (unbalanced) amplifier outputs |
Channels |
1-4: XLR/1/4″ jack combo connectors 5-6: one pair of 1/4″ balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4″ balanced TRS jacks (stereo), and a 3.5mm stereo jack |
Phantom Power |
CH1 and CH2 have phantom power control and share the same selection switch |
Hi-Z Selection |
CH3 has a Hi-Z selection switch used for guitar signal input |
Mixer Output Connectors |
Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4″ balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4″ balanced TRS jack |
Treble/Bass EQ |
Per-channel high- and low-shelf filters; +/- 12dB cut and boost |
System Limiter |
On-board DSP limiting |
LF Driver |
1x JBL 8″ (203mm) woofer |
HF Driver |
1x 1″ Neodymuim black aluminum dome tweeter |
Coverage Pattern |
100° horizontal x 60° vertical |
Crossover Frequency |
2 kHz |
Crossover Type |
2-way passive network, 2nd order filters (12dB cutoff per octave) |
Enclosure |
Polypropylene |
Suspension/Mounting |
36 mm pole socket |
Handles |
One on top |
Speaker Grille |
Powder-coated perforated steel |
Shipping Package(HxWxD) |
22.6″ (575 mm) x 30.5″ (775 mm) x 15.7″ (400 mm) |
Net Weight |
38.8 lbs (17.6 kg) |
