- Converts 16 analog inputs into 24-bit digital audio to be transmitted via standard CAT5e cable
- 2 x 8-channel ADAT optical inputs with auto detect and priority select
- 16 balanced, high-headroom TRS audio inputs
- State-of-the-art 24-bit A/D converters for premium audio quality
- 4-position gain switch per channel
- Digital inputs support 44.1 and 48 kHz sample rates
- Ultra-low system latency of less than 1 millisecond
- Signal Present and Clip LEDs per channel plus ADAT status LEDs
- Standard CAT5e connection delivers power and signals for up to 6 Personal Mixers
- 6 ULTRANET expansion network connectors (RJ45)
- Internal autorange power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
- 3-Year Warranty Program*
- Designed and engineered in Germany

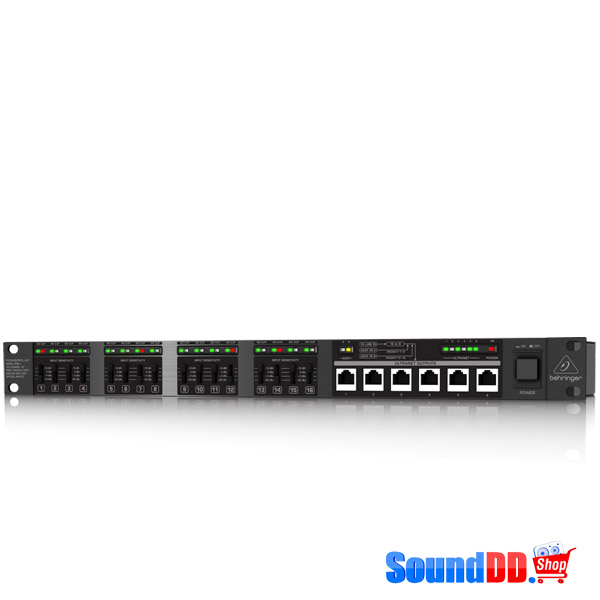

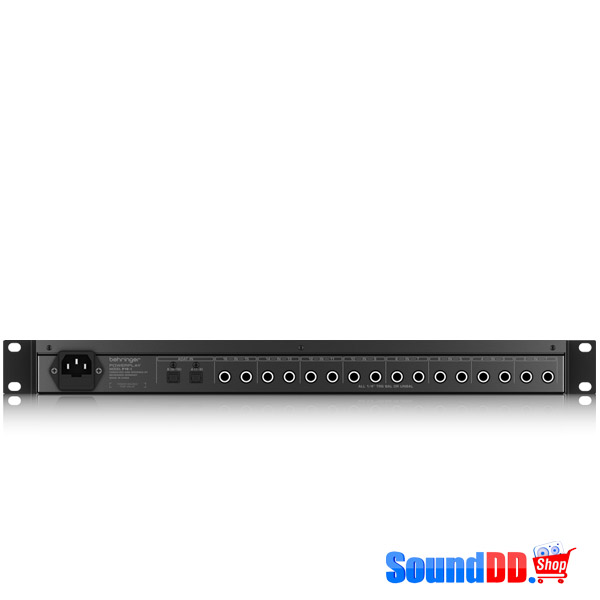

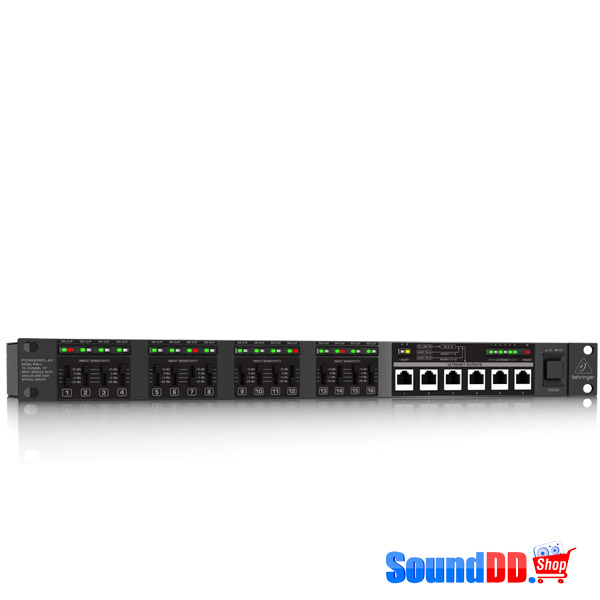

POWERPLAY P16-I
The POWERPLAY P16 system is the easy and affordable way to give live or recording musicians/vocalists what they really want – “more me!” Part of the P16 Personal Monitoring System, the P16-I input module can be used with any analog source, and convert up to 16 analog inputs into 24-bit digital audio to send to your P16-MPersonal Monitoring Mixers.
The P16-I is also equipped with ADAT optical inputs that auto-detect and give priority to incoming signals.
ADAT-Ready
The P16-I includes a 2 x 8-channel ADAT optical input with auto detect and priority select for use with our existing ADAT equipment. Additionally, 16 balanced, high-headroom TRS audio inputs can be employed to send audio from analog outputs to your P16-Ms.
You can choose from 4 gain positions per channel via a convenient onboard switch, and visually monitor by means of the status LEDs on each channel.
ULTRANET – Seamless Integration
The world-renowned engineers at KLARK TEKNIK, MIDAS, TURBOSOUNDand BEHRINGER have all come together to create something truly innovative that will change live and studio workfl ow forever – ULTRANET.
This revolutionary technology seamlessly transmits up to 16 independent channels of 24-bit digital audio and control data via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Advantages realized through ULTRANET digital networking,
Easy Installation
A basic installation consists of one P16-I Input Module, which connects to the main mixing console and up to six P16-M Personal Mixers, creating a system big enough to equip a typical recording studio, small to medium-sized band or worship team.
You’ll also need a few standard audio and Cat 5e cables. The optional P16-MB mounting bracket allows the P16-M Digital Personal Mixer to be attached to any standard microphone, music or drum stand. As many as six P16-D Digital ULTRANET Distributors can be added to your system to accommodate up to forty-eight P16-M Personal Mixers
Extraordinary Value
The POWERPLAY P16 Personal Monitoring System puts total control of the monitor system where it belongs
in the hands of the performers, freeing up the engineer to sculpt the perfect front-of-house mix. By putting dynamic control over virtually all elements (Volume, Pan, Solo & Mute) of up to 16 input signals within each performer’s reach,
