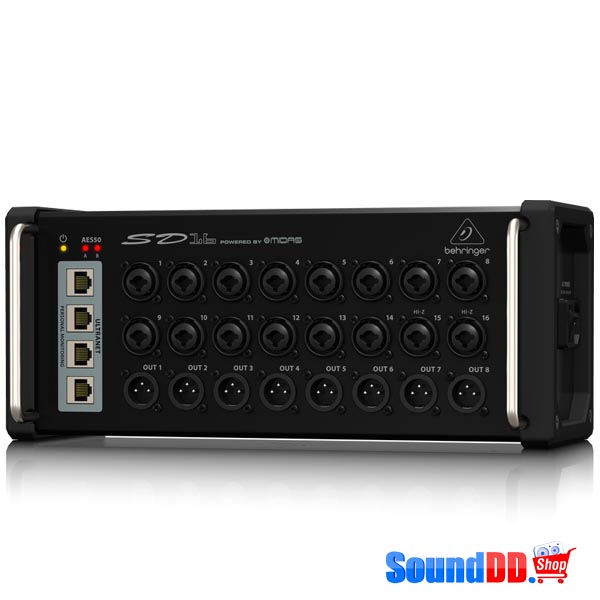

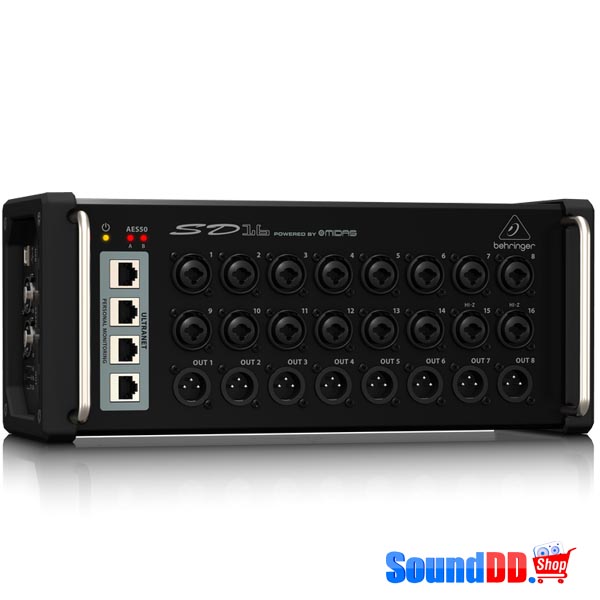

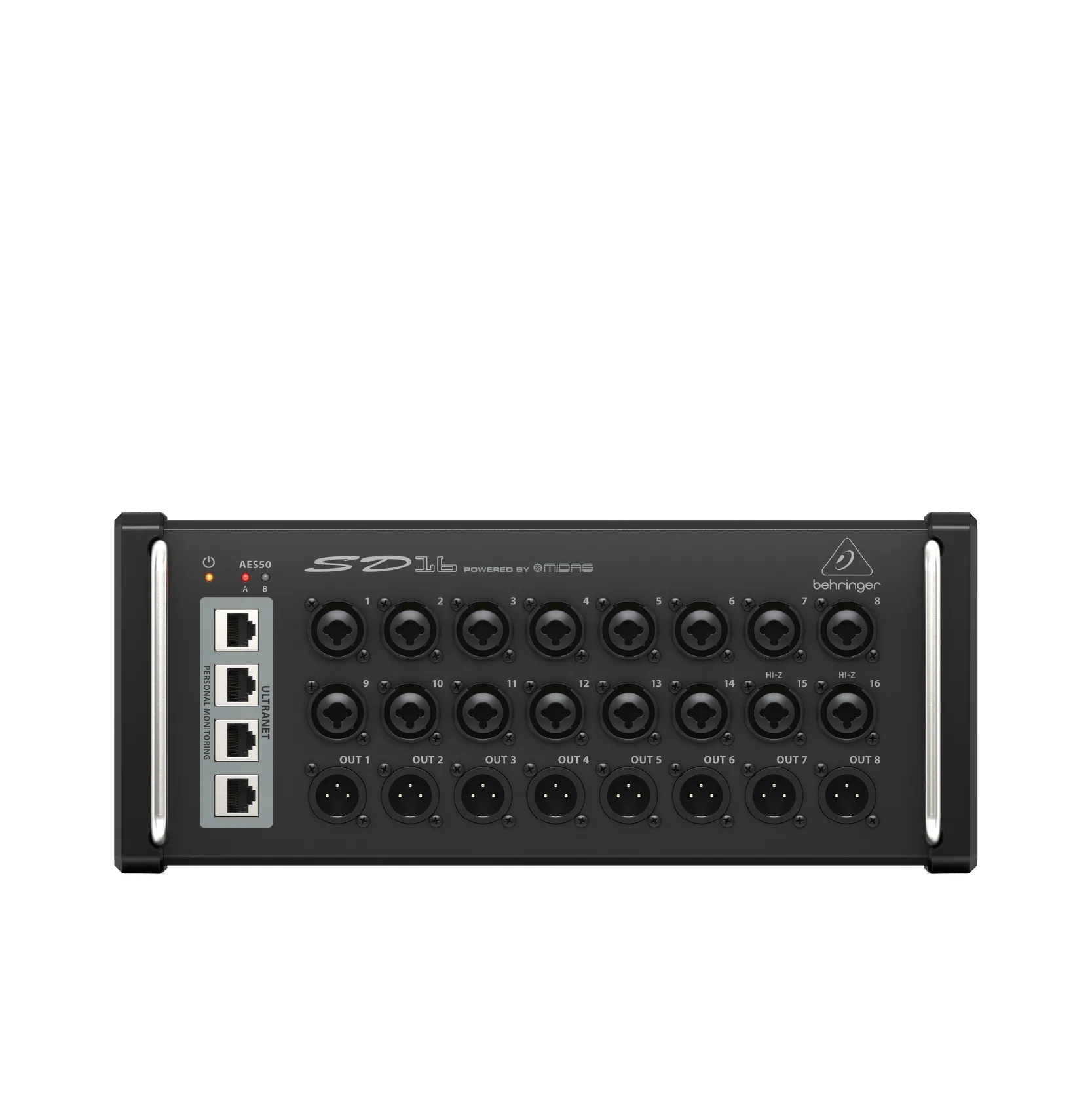

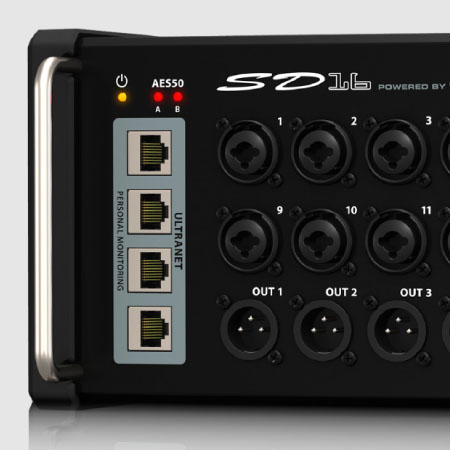

BEHRINGER SD16 I/O Stage Box
with 16 Remote-Controllable MIDAS Preamps, 8 Outputs, AES50 Networking and ULTRANET Personal Monitoring Hub
- 16 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
- 8 analog, servo-balanced XLR outputs
- AES50 network ports featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
- 4-port ULTRANET distribution hub for powered connection of 4 BEHRINGER P16-M personal monitoring mixers
- Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability

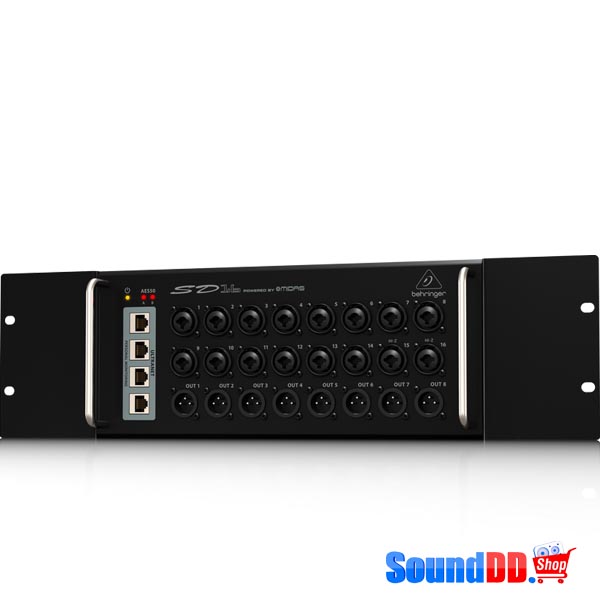

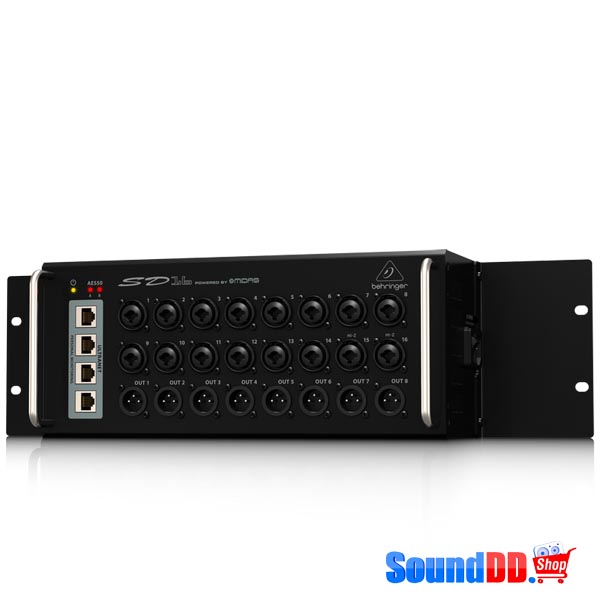

- Rack ears and protection bumpers included for installed and mobile applications
- Dual AES50 ports for cascading multiple units—no merger or router required
- Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
- USB connector for system updates via PC
- Ultra-compact and roadworthy, all-steel chassis
- 3-Year Warranty Program*
- Designed and engineered in Germany
SD16
An onboard ULTRANET distribution hub provides power and 16 channels of audio to 4 BEHRINGER POWERPLAY P16-M personal monitor mixers per SD16, all via inexpensive shielded CAT5e cabling – and without any additional hardware. Two of the programmable inputs are also compatible with Hi-Z sources, so you can connect keyboards, acoustic and bass guitars, etc., with no DI box required. The SD16 also features a USB port for fast and easy system updates via your PC.
MIDAS – ตำนานคุณภาพเสียง
นับตั้งแต่ก่อตั้งขึ้นในปี 1970 MIDAS มีประวัติอันยาวนานในด้านนวัตกรรมและความเป็นผู้นำในโลกของเครื่องผสมเสียง MIDAS คอนโซลตำนานเช่น XL4 และ Heritage H3000 กลายเป็นมาตรฐานอุตสาหกรรมโดยใช้การเดินทางและการเดินทางที่มีชื่อเสียงที่สุดในโลก
MIDAS ได้รับชื่อเสียงอันไร้ที่ติของพวกเขาเนื่องจากไม่มีวิธีการประนีประนอมในด้านคุณภาพเสียงและการสร้างและโดยเฉพาะอย่างยิ่งสำหรับรางวัล Mic Preamps ที่ได้รับรางวัลซึ่งถือว่าเป็นรางวัลที่ดีที่สุดในอุตสาหกรรม จากแนวคิดเดิมนี้ XL8 และ PRO Series ของ Live Mixing Systems ยังคงรักษามรดกคุณภาพเสียงที่ได้รับรางวัลไว้อย่างต่อเนื่อง
Preamps ที่สามารถควบคุมได้จากระยะไกลทำให้การติดตั้งน่าตื่นเต้น
SD16 Stage Box เป็นความฝันของวิศวกรเสียงในสตูดิโอ / อาศัยอยู่ การติดตั้งเป็นเรื่องง่ายมากที่ควบคุมพารามิเตอร์ที่เกิดขึ้นที่คอนโซล – รวมทั้งที่ได้รับรางวัล MIDAS -designed ไมค์ preamps, +48 V เส้นทางปลายทางอื่น ๆ เพียงแค่ใส่ SD16 ที่คุณต้องการให้มันทำงานไม่กี่ CAT5e, ไมค์และสายเครื่องมือ – และหัวสำหรับคอนโซล SD16 ทำให้การตั้งค่าเป็นไปอย่างง่าย!

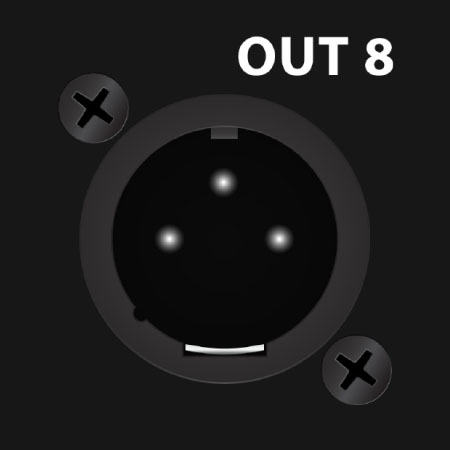

8 เอาต์พุต XLR แบบ Servo-Balanced
SD16 มีเอาต์พุตแบบ balanced XLR 8 เอาท์พุทช่วยให้คุณสามารถเชื่อมต่อกับแอ็คเซสแอ็กเกอร์ลำโพงและลำโพงที่ใช้งานได้ ด้วย Cirrus Logic * 24 บิตมาตรฐานอ้างอิงการทำงานแบบดิจิตอลของ SD16 ช่วยลดความเป็นไปได้ในการรบกวนคลื่นความถี่วิทยุ (RFI) และการ crosstalk คุณจะได้รับสมรรถนะด้านเสียงที่บริสุทธิ์ที่สุดไม่ว่าแอปพลิเคชันจะเป็นอะไรที่ไม่เคยได้ยินมาก่อนในชั้นนี้!
- Type:Digital Stage Box
- Compatibility:AES50 / Ultranet systems
- Channels:16
- Inputs – Mic Preamps:14 x XLR-1/4″ combo (mic/line), 2 x XLR-1/4″ combo (mic/line/Hi-Z)
- Phantom Power:Yes
- Outputs – Main:8 x XLR

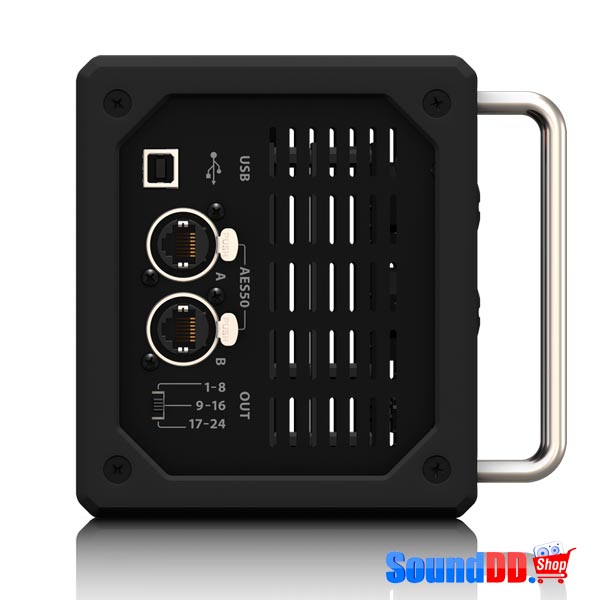

- Data I/O:2 x EtherCON (AES50), 4 x Ethernet (Ultranet)
- USB:1 x Type B
- Computer Connectivity:USB (for system updates), Ethernet
- Manufacturer Part Number:SD16
