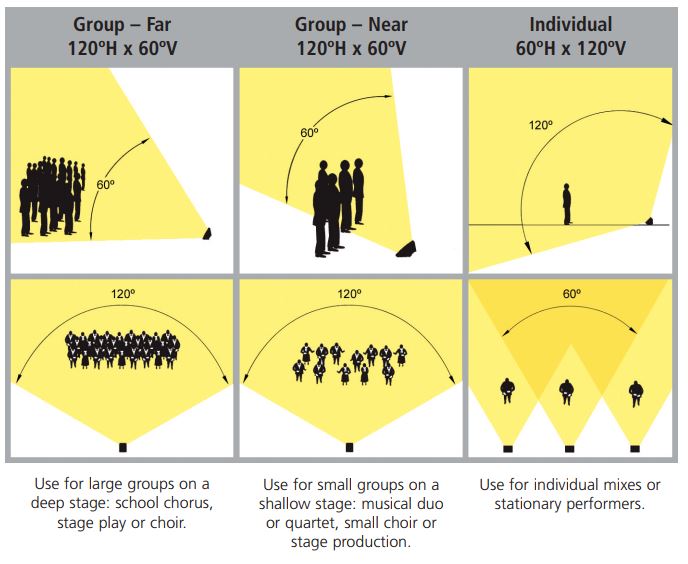

• Three-in-one cabinet design provides smooth response and even coverage for multiple floor-monitor applications:
  • 45° position (individual mix)
    Horizontal: 60°; Vertical: 120°
  • 40° position (group mix – shallow stage)
    Horizontal: 120°; Vertical: 60°
  • 60° position (group mix – deep stage)
    Horizontal: 120°; Vertical: 60°

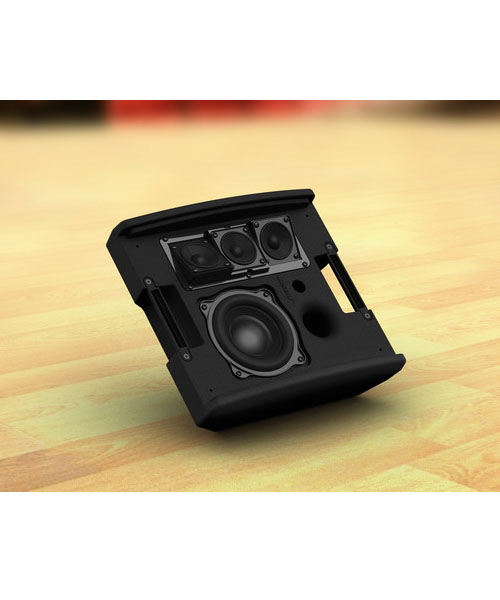

• Proprietary Articulated Array® speaker configuration with three 2.25″ (57 mm) mid-high frequency drivers combined with a single 5.25″ (133 mm) woofer
• Internal passive crossover network does not require active equalization
• Recessed NL4 connectors allow for easy cable concealment, which reduces clutter on stage
• Rear bumper prevents unwanted movement

• Houses of worship
• Auditoriums
• Performing arts venues
• Multi-purpose spaces
• Small to medium stage applications

Frequency Response (+/-3 dB)
70 Hz – 16 kHz

Frequency Range (-10 dB)
55 Hz – 19 kHz

Nominal Dispersion
60° H x 120° V

Long-Term Power Handling
100 W (400 W peak)

Sensitivity (SPL / 1 W @ 1 m)
91 dB SPL

Maximum SPL @ 1 m
111 dB SPL (117 dB SPL peak)

Nominal Impedance
8 Ω.

Physical

Enclosure
Molded textured polyethylene material

Environmental
Indoor use only

Connectors
Two (2) parallel-wired NL4 Neutrik® Speakon® connectors

Dimensions
12.5″ H x 14.2″ W x 8.3″ D (318 mm x 361 mm x 211 mm)

Net Weight
14 lb (6 kg)

Color
Black

Package Contents
1 loudspeaker
