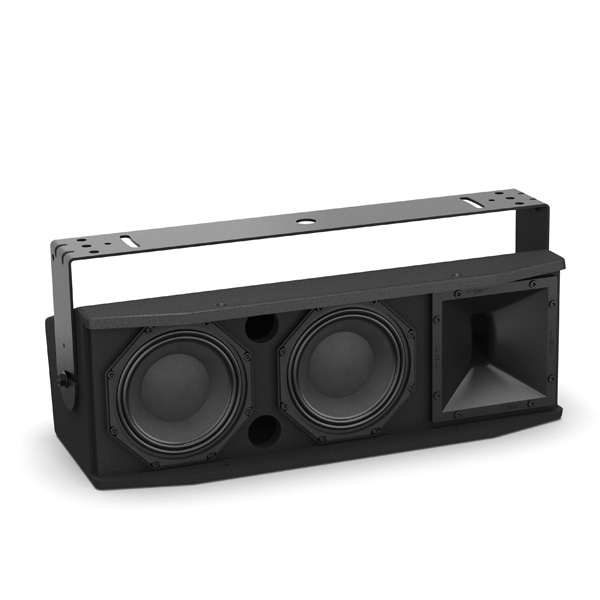

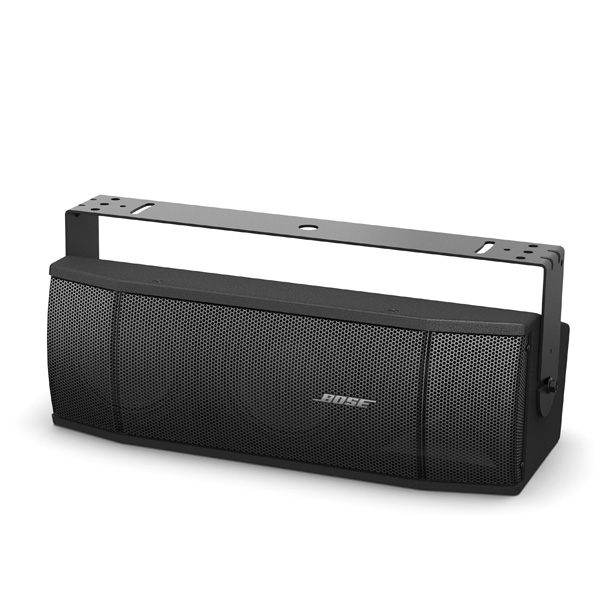

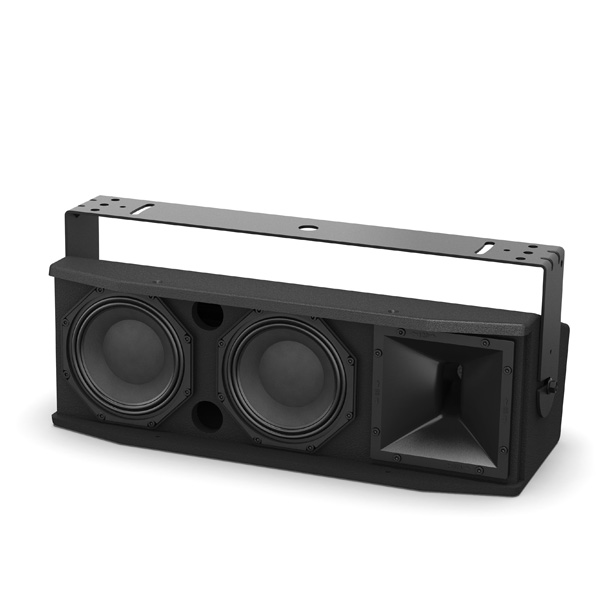

BOSE RoomMatch®Utility RMU206
BOSE RoomMatch®Utility RMU206 ตู้ลำโพงติดผนัง ขนาด 6.5 x 2 นิ้ว 2 ทาง 1000 วัตต์ Small-format under-balcony fill loudspeaker BOSE RoomMatch®Utility RMU206 ลำโพงติดผนัง จากแบรนด์ BOSE
ลำโพงขนาดเล็กสำหรับติดตั้งบริเวณใต้ระเบียงในโรงละครหรือในห้องที่มีระดับเพดานต่ำ ด้วยการออกแบบที่มีคุณลักษณะเด่นของ Bose EMB2 compression driver เพียง 1 ตัว ที่ให้เสียงในย่านความถี่กลางและสูงเหมือนกับลำโพง RoomMatch full-range array และ RoomMatch Utility ในทุกรุ่น และลำโพงวูฟเฟอร์ขนาด 6.5 นิ้ว จำนวน 2 ตัว ที่ให้เสียง vocal-range และ high-frequency waveguide ที่สามารถปรับเปลี่ยนองศาได้เพื่อเพิ่มความอิสระในการติดตั้ง
The RoomMatch Utility RMU206 small-format under-balcony fill loudspeaker features a unique angled baffle enclosure design to minimize the projected height for typical under-balcony and low-ceiling zone-fill applications. The design also features a single Bose® EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. Two 6.5-inch woofers provide vocal-range output and a rotatable high-frequency waveguide increases mounting flexibility.
-
Award-winning RoomMatch sound – now in smaller, 2-way, point-source designs for high-level foreground music, under-balcony, and zone-fill applications
-
Bose EMB2 compression driver – for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character to that of RoomMatch full-range and other RoomMatch Utility models
-
Minimal height for under-balcony or low-ceiling mounting – unique enclosure baffle design provides minimum projected height for under-balcony or low-ceiling mounted applications
-
120° x 60° constant-directivity high-frequency horn – gives wide, even coverage and may be rotated in enclosure. Can reduce the number of speakers required for under-balcony applications
-
2 x Bose LF6 6.5-inch woofers – with extended-excursion voice coils extend response to 80 Hz for lowest vocal range
-
Quasi-3-way passive crossover with separate filters for each transducer – provides more consistent frequency and polar response compared to conventional crossover designs
-
80 Hz – 16 kHz frequency response and 122 dB maximum peak SPL – deliver the performance required for most demanding under-balcony and zone-fill applications
-
Flexible mounting with included U-bracket – rear enclosure panel also includes 4 x M8 threaded inserts in 5.0” x 2.75” (127mm x 70mm) pattern to accept third-party accessory mounting brackets
-
Under-balcony and zone fill
-
High-quality foreground music
-
Stage-front fill
- Frequency Response (+/-3 dB)
90 Hz – 16 kHz - Frequency Range (-10 dB)
80 Hz – 16 kHz - Nominal Coverage Pattern (H x V)
120° x 60° (rotatable high-frequency horn) - Power Handling, long-term continuous
Bose extended-lifecycle test⁴: 200 W
AES transducer test⁵: 250 W - Power Handling, Peak
Bose extended-lifecycle test⁴: 800 W
AES transducer test⁵: 1000 W - Sensitivity (SPL / 1 W @ 1 m)
Bose extended-lifecycle test⁴: 92 dB
AES transducer test⁵: 92 dB - Calculated Maximum SPL @ 1 m
Bose extended-lifecycle test⁴: 115 dB
AES transducer test⁵: 116 dB - Calculated Maximum SPL @ 1 m, peak
Bose extended-lifecycle test⁴: 121 dB
AES transducer test⁵: 122 dB - Nominal Impedance
8 Ω
