CROWN 135MA มิกเซอร์แอมป์ แบบ 70V/100V 35 วัตต์ MONO 3 MIC CROWN 135MA Mixer-Amplifier จากแบรนด์ CROWN
CROWN 135MA
Three Input, 35W Mixer-Amplifier มิกเซอร์แอมป์ 3In/1Out 35W
Crown’s 135MA and 160MA are high value mixer-amplifiers for commercial audio. They provide 8-ohm and constant-voltage outputs (70V and 100V). Typical uses are paging, background music, and music-on-hold. The 135MA provides 3 inputs (each with a volume control) and a 35W amplifier output. The 160MA provides 4 inputs (each with a volume control) and a 60W amplifier output. Other features include priority muting, voice activated muting, phantom power, and bass and treble controls.
คุณสมบัติ
- 3 inputs (each with a volume control), and one 35W amplifier output channel in 135MA
- 4 inputs (each with a volume control), and one 60W amplifier output channel in 160MA
- Ideal for paging, background music, and music-on-hold

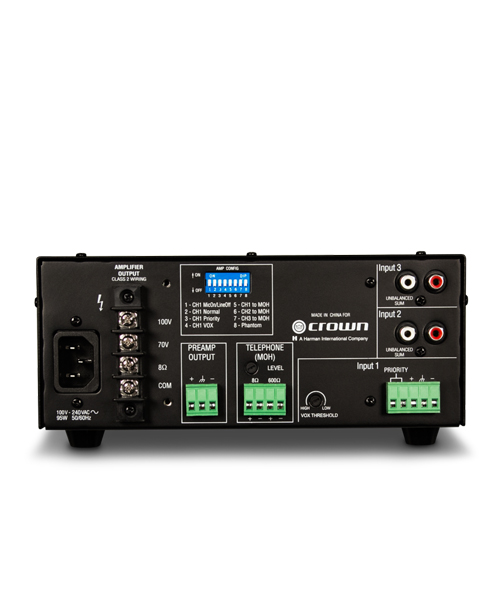

- Balanced Phoenix-type mic/line input, telephone output, dual RCA stereo music inputs, screw-terminal speaker outputs
- Priority muting by VOX or external switch
- Bass and Treble controls on master output
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
สเปค
Frequency Response |
(at 1 watt from line out): 50 Hz to 20 kHz +/-1 dB, 19 Hz to 34 kHz – 3 dB |
Signal to Noise Ratio |
(ref. to rated power, master volume at minimum): Mic: > 58 dB, Line: > 60 dB, Telephone: > 60dB, Inputs 2 or 3: > 78 dB |
THD+Noise |
< 0.5% at rated power at 1 kHz, < 0.1% at 5W at 1 kHz |
Input Sensitivity |
(for full output at miximum gain): Input 1: Mic 3mV, Line 800 mV, Input 2: 400mV, Input 3: 400mV |
Input Impedance (nominal) |
Mic: 2.2 kilohms, Line: 10 kilohms, RCA: 10 kilohms |
Crosstalk |
-82 dB at 1 kHz (Ch. 1 line inpute 0.8V, Ch. 1 volume at minimum, other channel volumes at maximum) |
Line Output Level (nominal) |
1V into 10 kilohms |
Phantom Power |
15 VDC |
AC Line Voltages Available |
Universal Power Supply. Line voltage tolerance +15%, -20% |
Operating Temperature/Humidity |
0 degrees C to 40 degrees C at 95% relative humidity (non-condensing) |
Storage Temperature |
-20 degrees C to 85 degrees C |
IEC Power Connector |
15A |
